AAP 3" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-80H

AAP 4" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-100H

AAP 5" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-125H

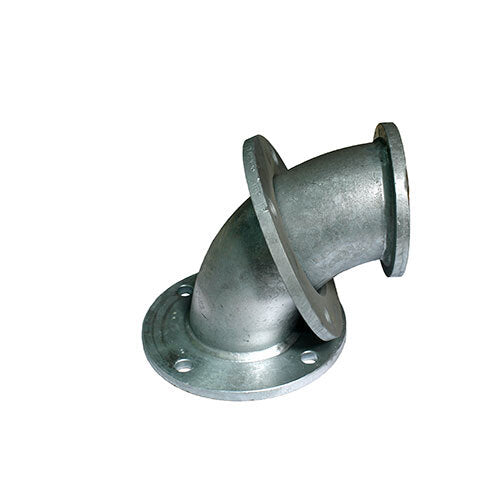

AAP 6" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-150H

AAP 8" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-200H

AAP 10" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-250H

AAP 12" Loose Flanged 90° Elbow Type-D (STD) Galvanised IEL90-300H

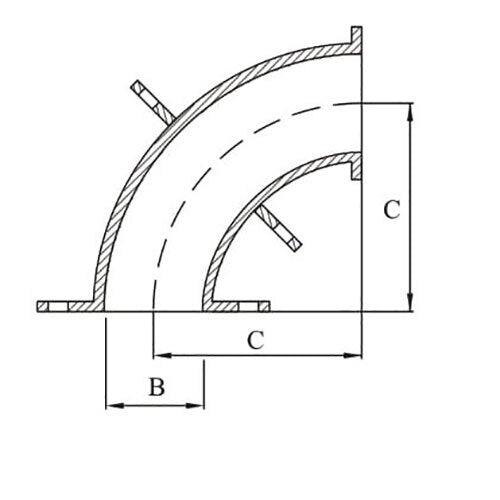

Description +

AAP Loose flange 90deg Elbow STD

Galvanised flanged Irrigation Fittings
WALL THICKNESS FOR Fittings
3" - 80mm
4" - 100mm
5" - 125mm
6" - 150mm
8" - 200mm
10" - 250mm
12" - 300mm
14" - 350mm
16" - 400mm
18" - 450mm
GENERAL PURPOSE - SGP
4.2mm
4.5mm
4.5mm
5.0mm
5.8mm
-
-
-
-
-
HEAVY DUTY - STD WGT
5.5mm
6.0mm
6.5mm
7.1mm
8.1mm
9.3mm
9.5mm
9.5mm
9.5mm
9.5mm
flange - TAB D
12mm
12mm
13mm
13mm
13mm
16mm
19mm
22mm
22mm
25mm
TABLE D flange BOLTING DETAILS
NUMBER OF HOLES
4
4
8
8
8
8
12
12
12
12
DIAMETER OF BOLT HOLES
18mm
18mm
18mm
18mm
18mm
22mm
22mm
26mm
26mm
26mm
FIXED flange FASTENER SIZE & THREAD
M16 x 45
M16 x 45
M16 x 45
M16 x 45
M16 x 50
M20 x 50
M20 x 50
M24 x 60
M24 x 60
M24 x 75
LOOSE flange FASTENER SIZE & THREAD
M16 x 60
M16 x 60
M16 x 60
M16 x 60
M16 x 65
M20 x 65
M20 x 65
M24 x 80
M24 x 80
M24 x 100

Specifications +

Material Specifications

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Loose Flange 90deg Elbow STD

SKU: A0077970

Type: Flanged Elbow

$269.24

Inc. GST

Buy It Now

Available

The AAP Loose Flange 90deg Elbow STD by AAP is a Flanged Elbow galvanised. It provides 3" to 18" (80mm to 450mm) flange sizes with heavy duty wall thickness up to 9.5mm and loose flange fastener size M24 x 100 and is suitable for Flanged Fittings.
