AAP Ball Check Valve, 4"

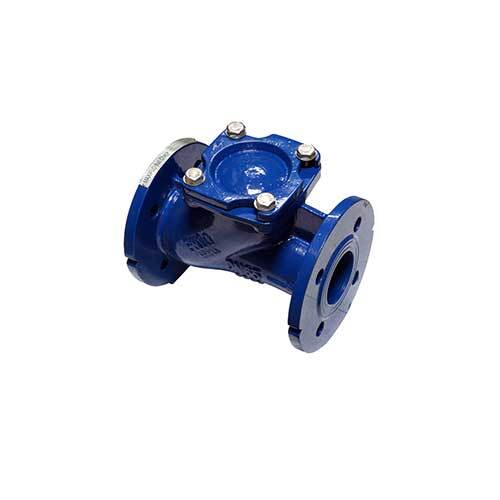

This AAP resilient seat flanged ball check valve has a ductile iron body and cover, an EPDM encapsulated ball and flanges to AS 2129 Table D. It is supplied in 3 sizes from 4" (100mm) to 10" (250mm).

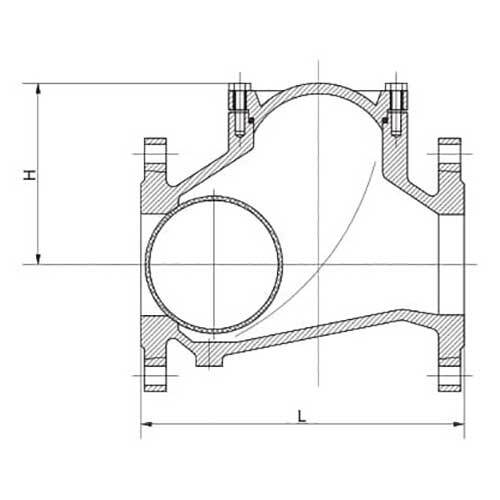

A ball check valve is used where full, uninterrupted flow is needed. When the pump runs, flow pushes the ball into a pocket in the body, out of the flow path. When the pump stops, the ball falls back into the flow path with the help of the back pressure and blocks any return of fluid to the pump. The ball is steel encapsulated in EPDM. The maximum working temperature is 120°C and the cold working pressure is 1,000 kPa (10 bar), with flanges to AS 2129 Table D and face-to-face length to DIN 3202. It is a PN10 valve.

Where this product is used

• Water treatment plants
• Pump discharge lines where a full, uninterrupted flow is wanted
• Protecting pumps from reverse flow when they stop
• Water lines where a ball check is preferred to a swing check

Features

• 3 sizes from 4" (100mm) to 10" (250mm)
• Ductile iron body and cover
• EPDM encapsulated ball, EPDM gasket
• Flanges to AS 2129 Table D
• Cold working pressure 1,000 kPa (10 bar), maximum 120°C
• Face to face to DIN 3202

Key specifications

Choosing the right option

Choose the size to match your Table D flanges, and check the hole count against your mating flange.
