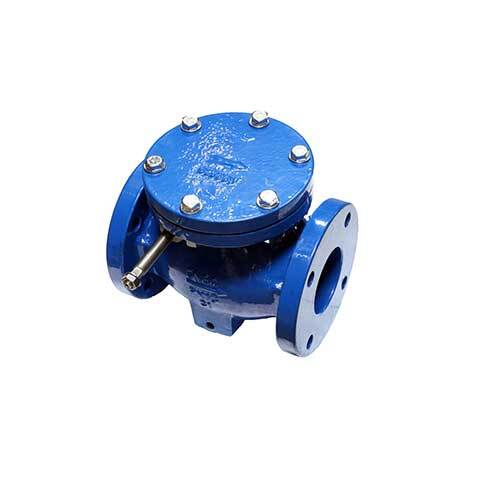

AAP Resilient Check Valve flanged Swing Table-D

Material List:

• Body - Cast Iron
• Cover - Cast Iron
• Side Plug - Brass
• flanger Pin - Stainless Steel
• flanger - Ductile Iron
• Disc - Cast Iron
• Disc Trim - EPDM
• Body Trim - Bronze
• Gasket - Graphite

About Swing Check Valves:

• Swing Check valves are used where the fflow moves through the valve in approximately a straight line similar to that in a gate valve, which is commonly used in pipelines conveying liquids by gravity or pumping.

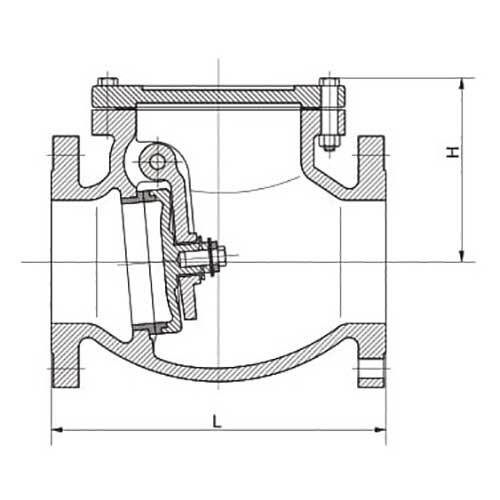

• The check mechanism of the design incorporates a disc that swings on a hinge.

Specifications:

• flange - AS2129 T/D
• Cold Working Pressure - 1600kPa
• Max Working Temperature -120°C

Application:

• Water Treatment Plant, can be fitted with counter lever and weight
