AAP Resilient Check Valve Flange Ball PN10 Table-E1

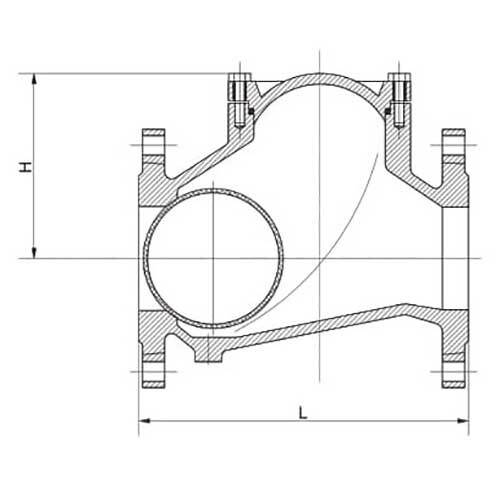

AAP Resilient Check Valve Flange Ball PN10 Table-E2

AAP 50mm, 2" Resilient Check Valve Flanged Ball PN10 Table-E VFBC50

AAP 65mm, 2-1/2" Resilient Check Valve Flanged Ball PN10 Table-E VFBC65

AAP 80mm, 3" Resilient Check Valve Flanged Ball PN10 Table-E VFBC80

AAP 100mm, 4" Resilient Check Valve Flanged Ball PN10 Table-E VFBC94

AAP 200mm, 8" Resilient Check Valve Flanged Ball PN10 Table-E VFBC98

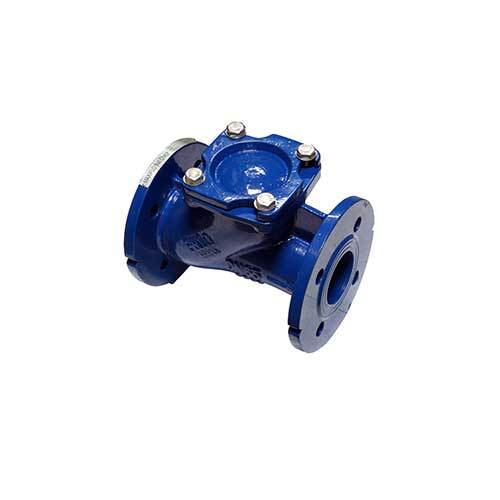

AAP 250mm, 10" Resilient Check Valve Flanged Ball PN10 Table-E VFBCX25

Description +

Resilient Seat PN10 Flanged Ball Check Valve (Table E)

Material List:

Body - Ductile Iron
Cover - Ductile Iron
Ball - Metal + EPDM
Gasket - EPDM

About Ball Check Valves:

This valve is used where full uninterrupted flow is required.
The design of the valve incorporates a compartment for when the fluid is pumped through the valves the EPDM encapsulated steel ball is pushed into this compartment and held there whilst the up steam pressure is applied.
When the pump is turned off the ball falls from its compartment and with backpressure assists drops back into the flow path and blocks any return of fluid back to the pump.

Specifications +

Specifications:

Cold Working Pressure - 1000kPa
Max Working Temperature - 120°C
Flanges - AS2129 T/E
Face to Face - DIN3202

Application +

Application:

Water Treatment Plant

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

AAP Resilient Check Valve Flange Ball PN10 Table-E

SKU: A0081470

Type: Resilient Check Valve

$407.31

Inc. GST

Buy It Now

Available

The AAP Resilient Check Valve Flange Ball PN10 Table-E by AAP is a Resilient Check Valve made of ductile iron and fitted with EPDM gasket and a metal EPDM ball. It offers 1000kPa cold working pressure and is for Water Treatment Plant.
