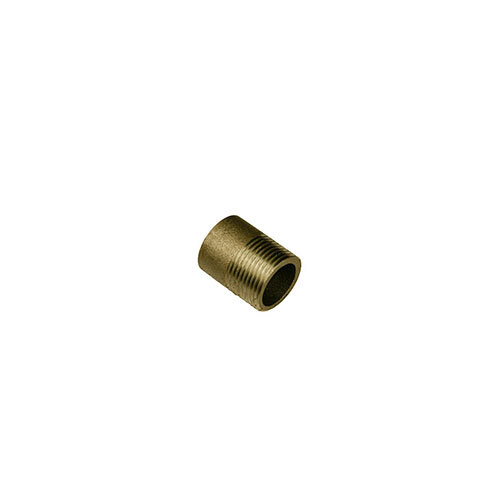

AAP Black Steel Toe Nipple, 1/2"
Available

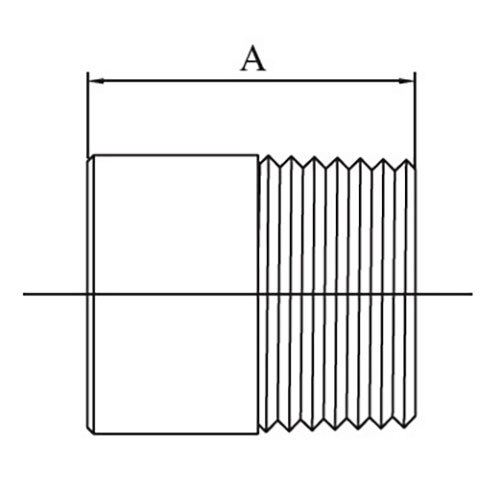

This AAP black toe nipple is a mild steel fitting with BSP threads. It is supplied in 9 sizes, 1/2" (15mm) to 4" (100mm). A toe nipple is a nipple with a male thread at one end and a plain end at the other, as drawn by AAP. A is the overall length.
It has a black finish. All sizes other than unions are sample tested to 5.2 MPa. These are test pressures, not working pressures.
Where this product is used
- Threaded connections on fabricated steel pipework
- Taking a threaded outlet off a pipe or vessel
- General steel pipework
Features
- 9 sizes, 1/2" (15mm) to 4" (100mm)
- Mild steel, black
- BSP threads
- Thread: BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1
Key specifications
| Specification | Detail |
|---|---|
| Brand | AAP |
| Product | Black toe nipple, mild steel |
| Finish | Black |
| Thread | BSP (British Standard Pipe) thread, ISO 7 and AS 1722 Part 1 |
| Ends | Male (external) thread at one end, plain at the other (as drawn by AAP) |
| Test pressure | Sample tested to 5.2 MPa |
| Sizes | 1/2" (15mm) to 4" (100mm) (9 sizes) |
Choosing the right option
Choose the size to match your pipework. These fittings are BSP threaded, so check that your pipe or fitting is BSP and not NPT before you order.
Related AAP products: AAP Black Steel Barrel Nipple, AAP Black Steel Close Nipple, AAP Black Steel Socket, Heavy Type.
| Option | Part number | SKU |
|---|---|---|
| 1/2" | SPTOE1535 | A0077442 |
| 3/4" | SPTOE2035 | A0077443 |
| 1" | SPTOE2540 | A0077444 |
| 1-1/4" | SPTOE3250 | A0077445 |
| 1-1/2" | SPTOE4050 | A0077446 |
| 2" | SPTOE5050 | A0077447 |
| 2-1/2" | SPTOE6560 | A0077448 |
| 3" | SPTOE8070 | A0077449 |
| 4" | SPTOE9480 | A0077450 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
AAP Black Steel Toe Nipple: 1/2"
SKU: A0077442 | Model: SPTOE1535
AAP SPTOE1535: AAP Black Steel Toe Nipple, 1/2". Pipe Size (inch): 1/2. Pipe Size (mm): 15. Length (A): 35.
