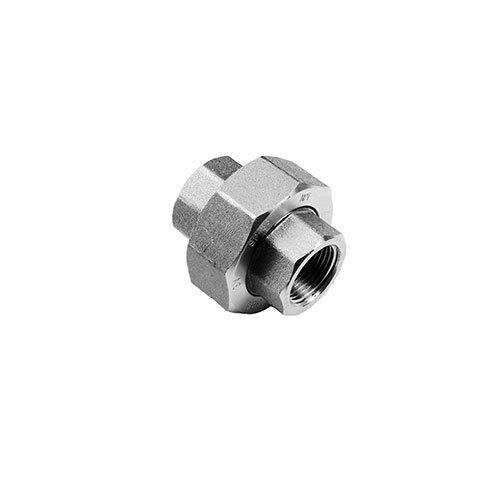

AAP 3000lb Threaded Union, 1"

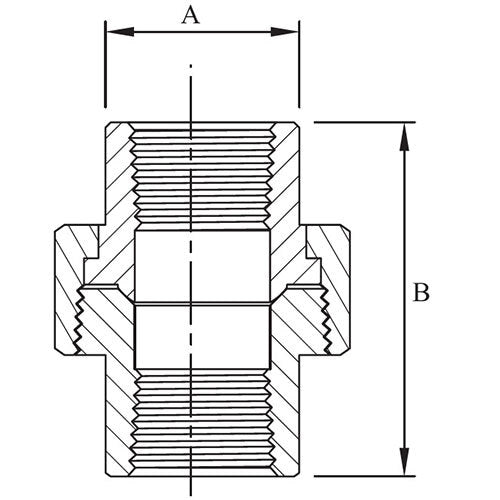

This AAP threaded union is a forged carbon steel fitting with BSPT thread and a hot dip galvanised finish. It is supplied in 5 sizes, 3/4" (20mm) to 2" (50mm). A union joins two pipes in a way that lets the line be taken apart without turning the pipework. This one is threaded inside at both ends. A is the outside diameter and B is the overall length.

The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure threaded pipework in carbon steel
• Joining threaded pipe where the line must be broken for service
• Fitting equipment that has to come out for maintenance

Features

• 5 sizes, 3/4" (20mm) to 2" (50mm)
• 3000 lb forged carbon steel, MSS SP-83-2006
• BSPT, hot dip galvanised
• Thread: BSPT taper threads to AS 1722.1 / ISO 7

Key specifications

Choosing the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
