1 in (25 mm) Threaded Equal Tee, BSPT, Galvanised | PT25BG

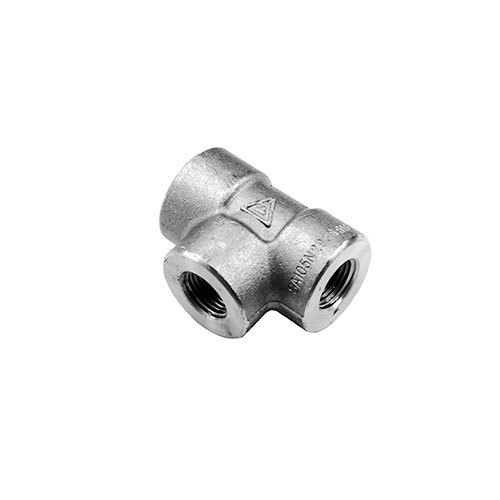

This AAP threaded equal tee is a forged carbon steel fitting with BSPT thread and a hot dip galvanised finish. It is supplied in 5 sizes, 3/4 in (20 mm) to 2 in (50 mm).

An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside at all three ports. A is the outside diameter and B is the overall length of the run, as lettered on the AAP drawing.

AAP rates its threaded high pressure fittings at 3000 lb (manufacturer-stated). AAP's pressure and temperature chart for screwed and socket welding fittings lists 3000 lb fittings at 3000 psi (about 20.7 MPa) from -20 to 100 degrees F (-29 to 38 degrees C), reducing to 355 psi (about 2.4 MPa) at 1000 degrees F (538 degrees C). AAP lists ASTM A105 carbon steel forgings among the standards for the range.

Where this product is used

• High pressure threaded pipework in carbon steel, as listed by AAP for the 3000 lb range
• Branching a threaded pipe run
• Taking an equal size branch off a main

Features

• 5 sizes, 3/4 in (20 mm) to 2 in (50 mm)
• 3000 lb forged carbon steel, ASME B16.11-2009 (manufacturer-stated)
• BSPT, hot dip galvanised

Key specifications

Options and part numbers

A and B are the dimensions lettered on the AAP drawing, in millimetres.

Selecting the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.

Related products

See also AAP 3000lb 90 Degree Threaded Elbow, BSPT, Galvanised, AAP 3000lb Threaded Coupling, BSPT, Galvanised, AAP 3000lb Threaded Union, BSPT, Galvanised and AAP 3000lb Threaded Cap, BSPT, Black.
