AAP 3000lb 90 Degree Threaded Elbow, 1"

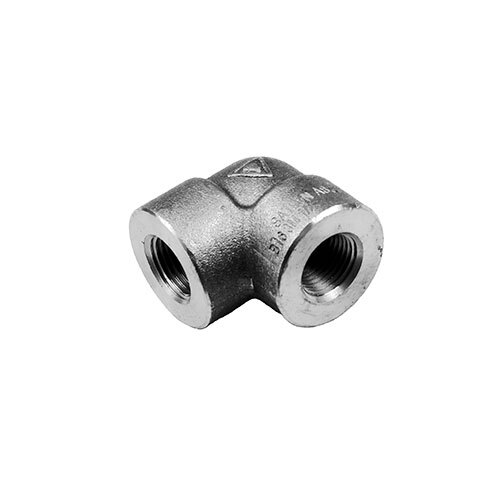

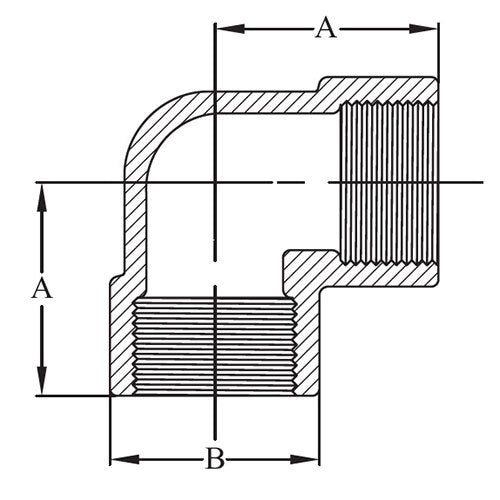

This AAP 90° threaded elbow is a forged carbon steel fitting with BSPT thread and a hot dip galvanised finish. It is supplied in 5 sizes, 3/4" (20mm) to 2" (50mm). A 90° elbow turns a pipe run through a right angle. This one is threaded inside at both ends (female by female). A is the centre to end dimension and B is the outside diameter, both lettered on the AAP drawing.

The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure threaded pipework in carbon steel
• Turning threaded pipework through 90°
• Joining two male threaded pipes at a right angle

Features

• 5 sizes, 3/4" (20mm) to 2" (50mm)
• 3000 lb forged carbon steel, ASME B16.11-2009
• BSPT, hot dip galvanised
• Thread: BSPT taper threads to AS 1722.1 / ISO 7

Key specifications

Choosing the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
