AAP 3000lb Threaded Equal Tee, 1"

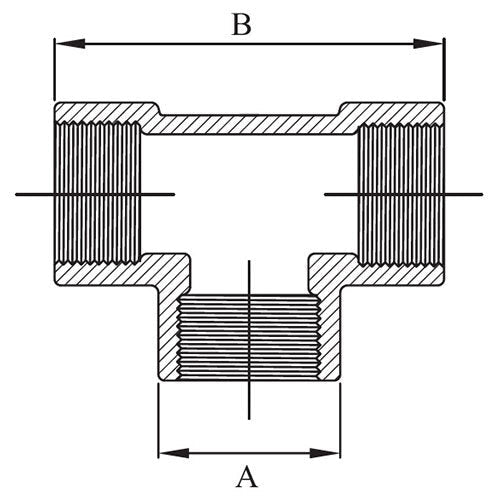

This AAP threaded equal tee is a forged carbon steel fitting with BSPT thread and a hot dip galvanised finish. It is supplied in 5 sizes, 3/4" (20mm) to 2" (50mm). An equal tee has three threaded ports of the same size, so a pipe run can branch in one direction. This one is threaded inside at all three ports. A is the outside diameter and B is the overall length of the run.

The threaded high pressure fittings are rated at 3000 lb. Standards for the range include ASTM A105 carbon steel forgings.

Where this product is used

• High pressure threaded pipework in carbon steel
• Branching a threaded pipe run
• Taking an equal size branch off a main

Features

• 5 sizes, 3/4" (20mm) to 2" (50mm)
• 3000 lb forged carbon steel, ASME B16.11-2009
• BSPT, hot dip galvanised
• Thread: BSPT taper threads to AS 1722.1 / ISO 7

Key specifications

Choosing the right option

Choose the size and thread to match your pipework (NPT or BSPT cannot be mixed), and check the thread gender at each end against the fitting it joins.
