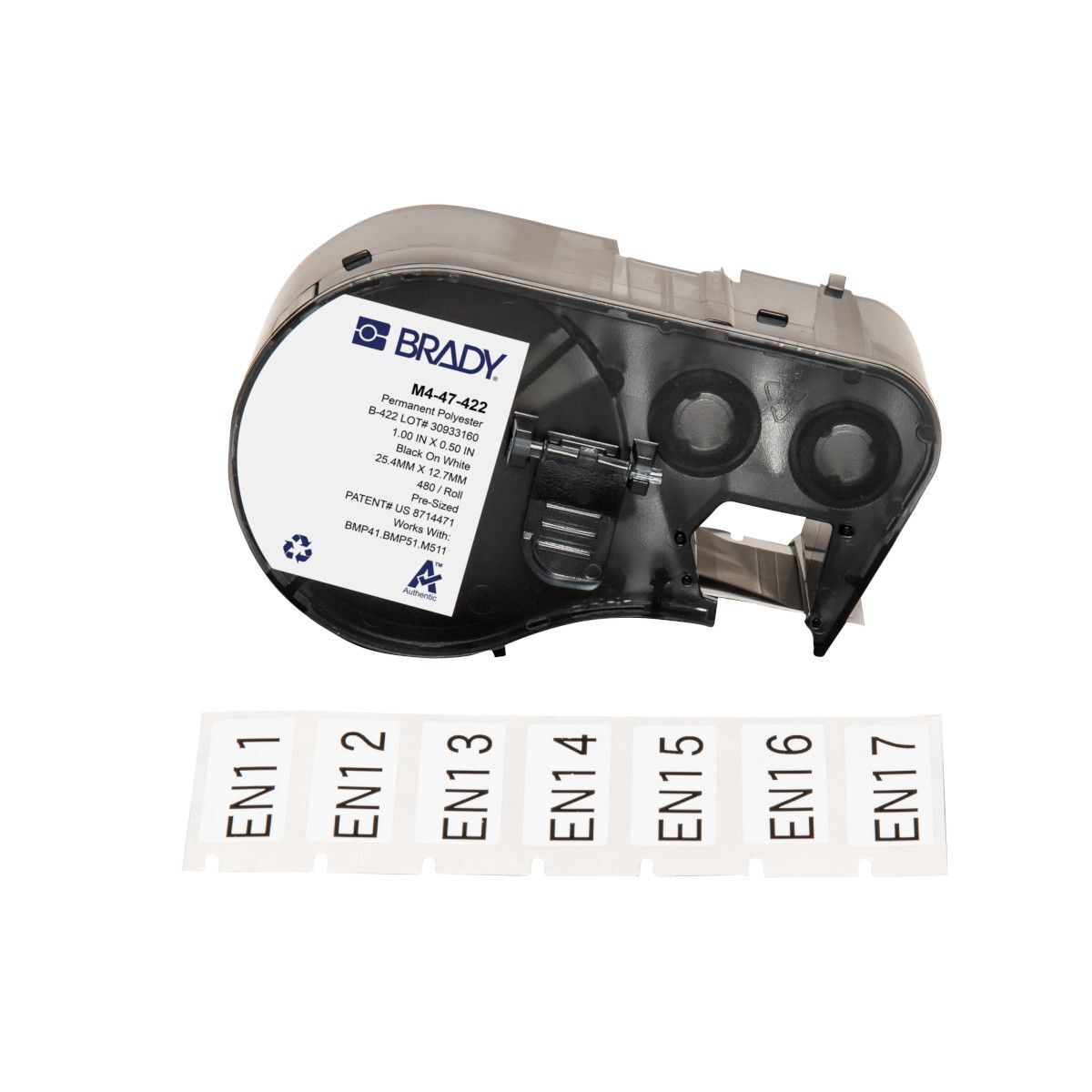

Brady M4-47-422 B-422 Polyester Labels, 25.4 x 12.7 mm, 480 per Cartridge

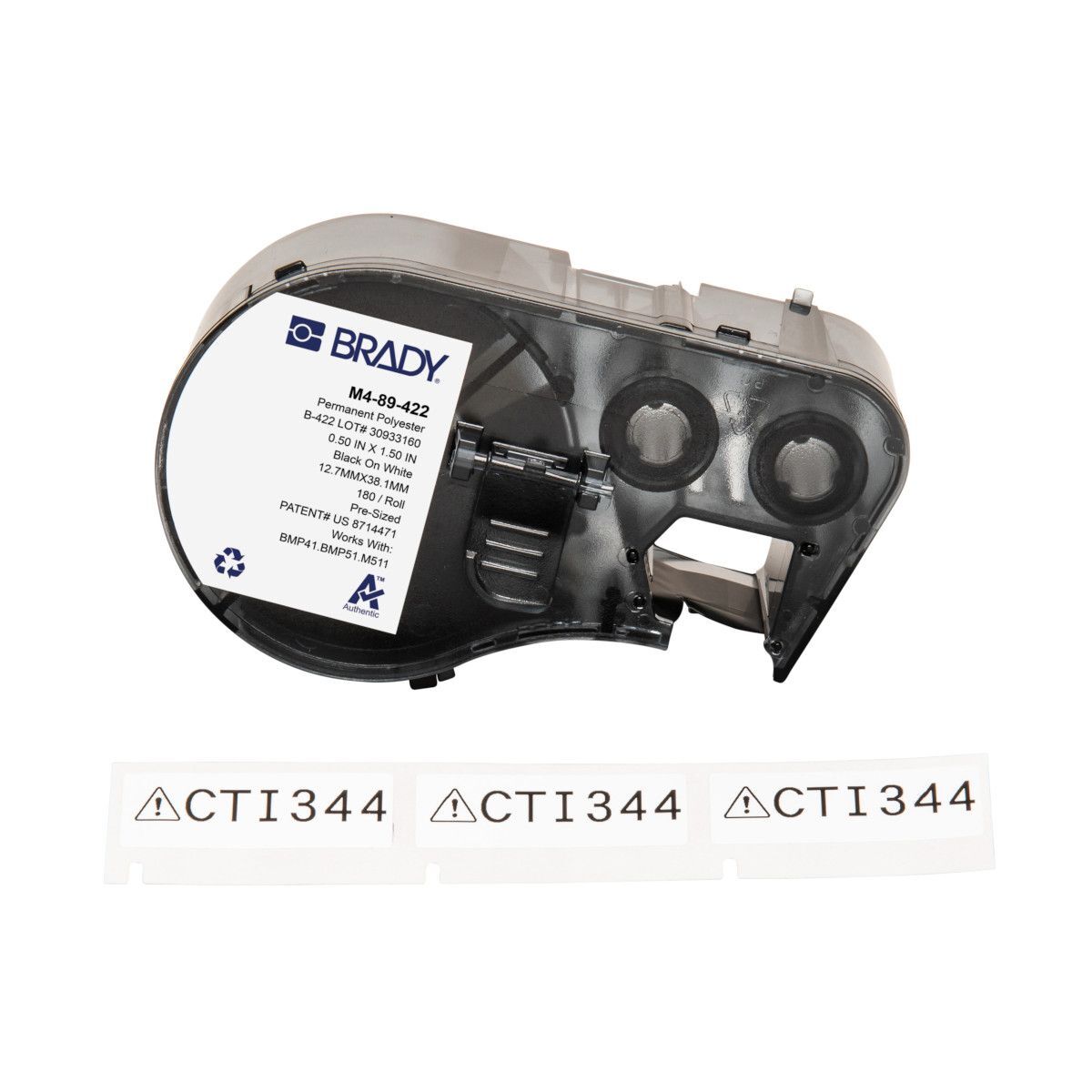

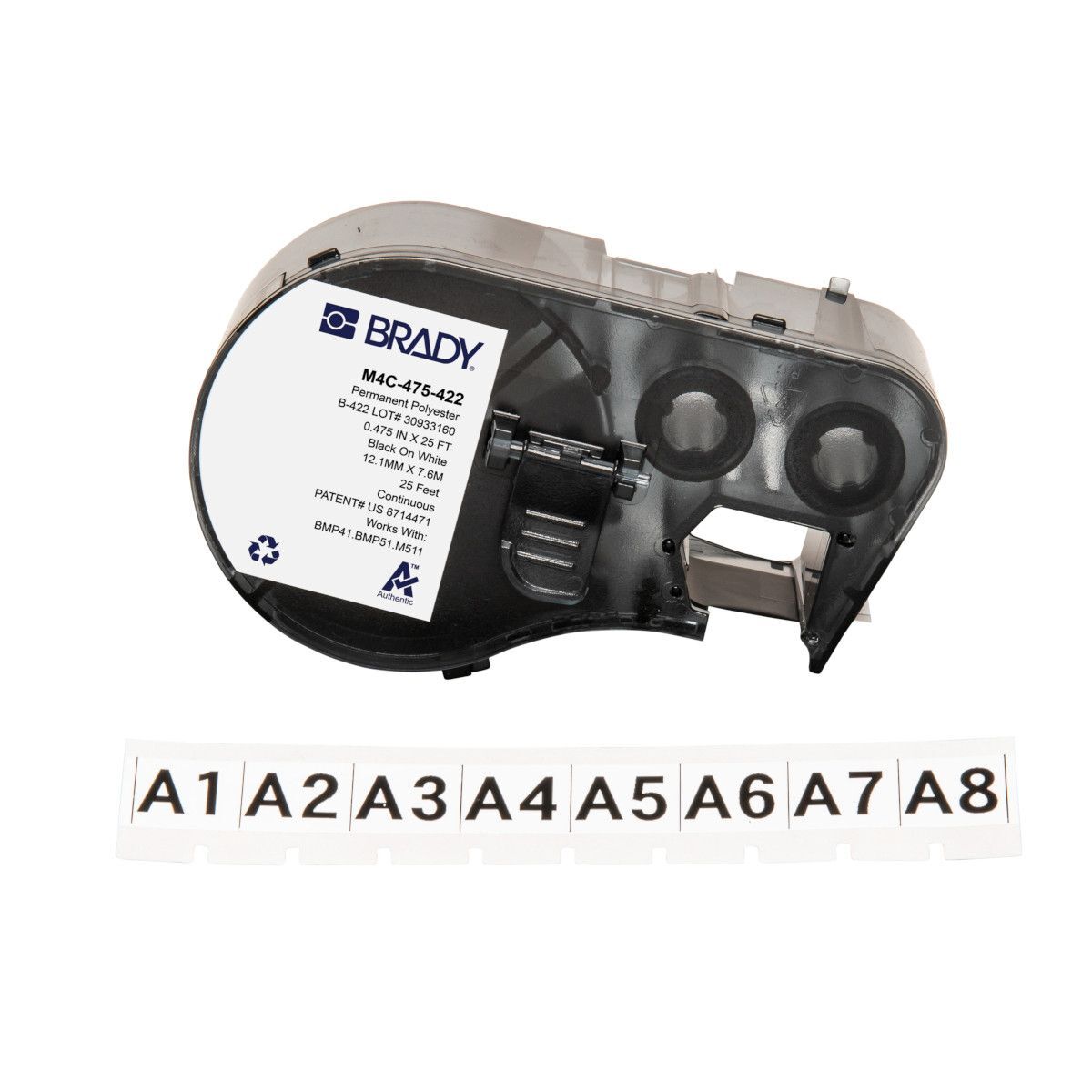

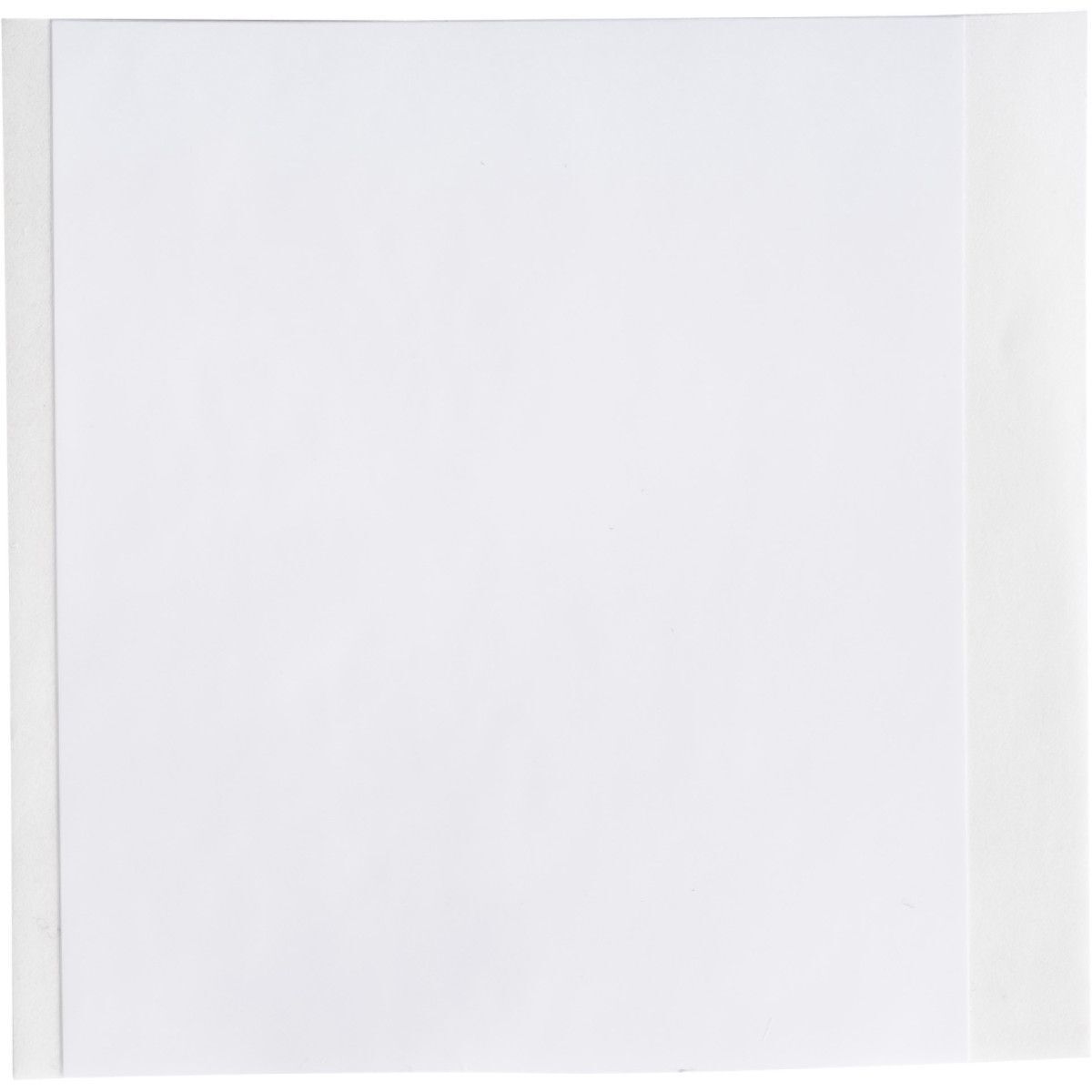

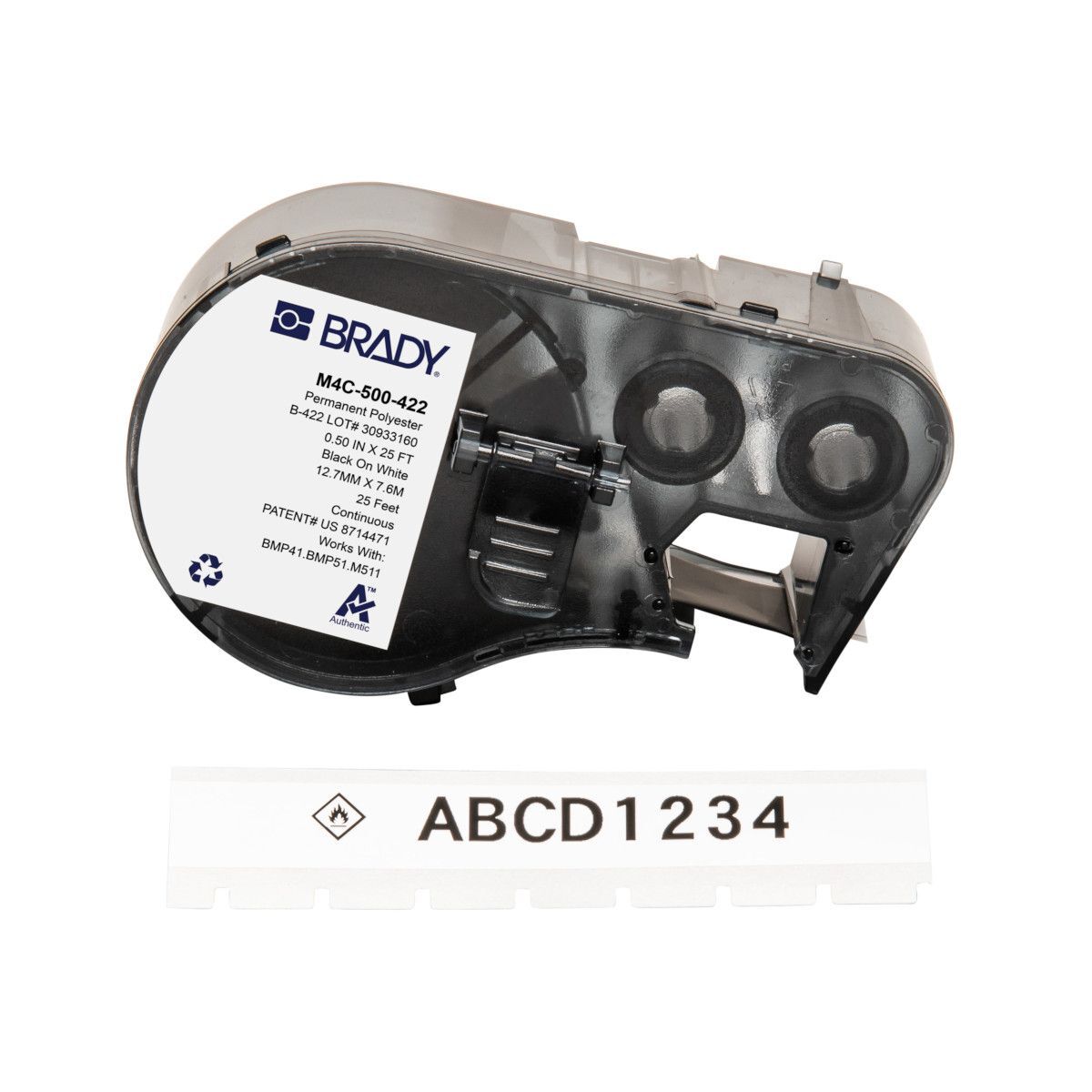

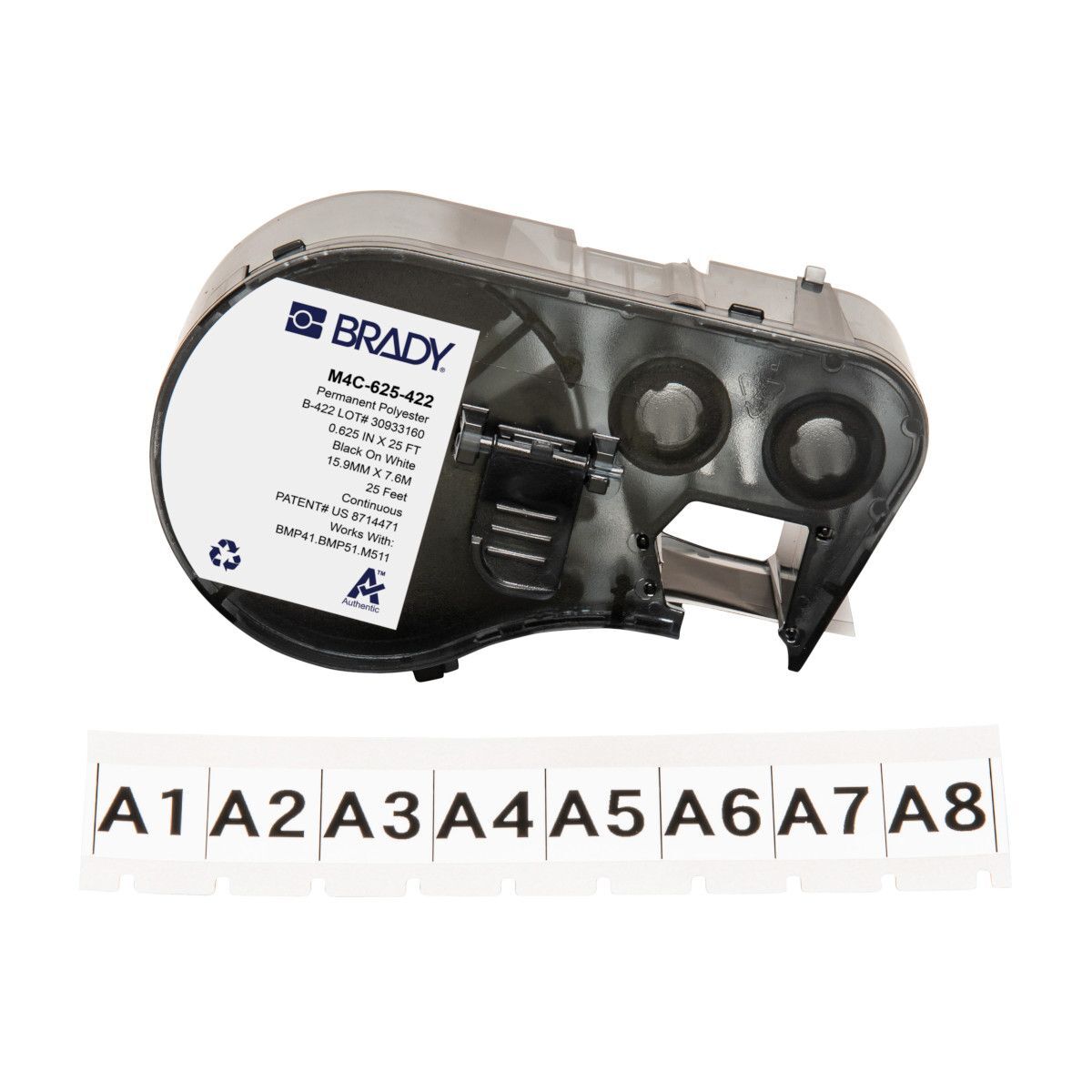

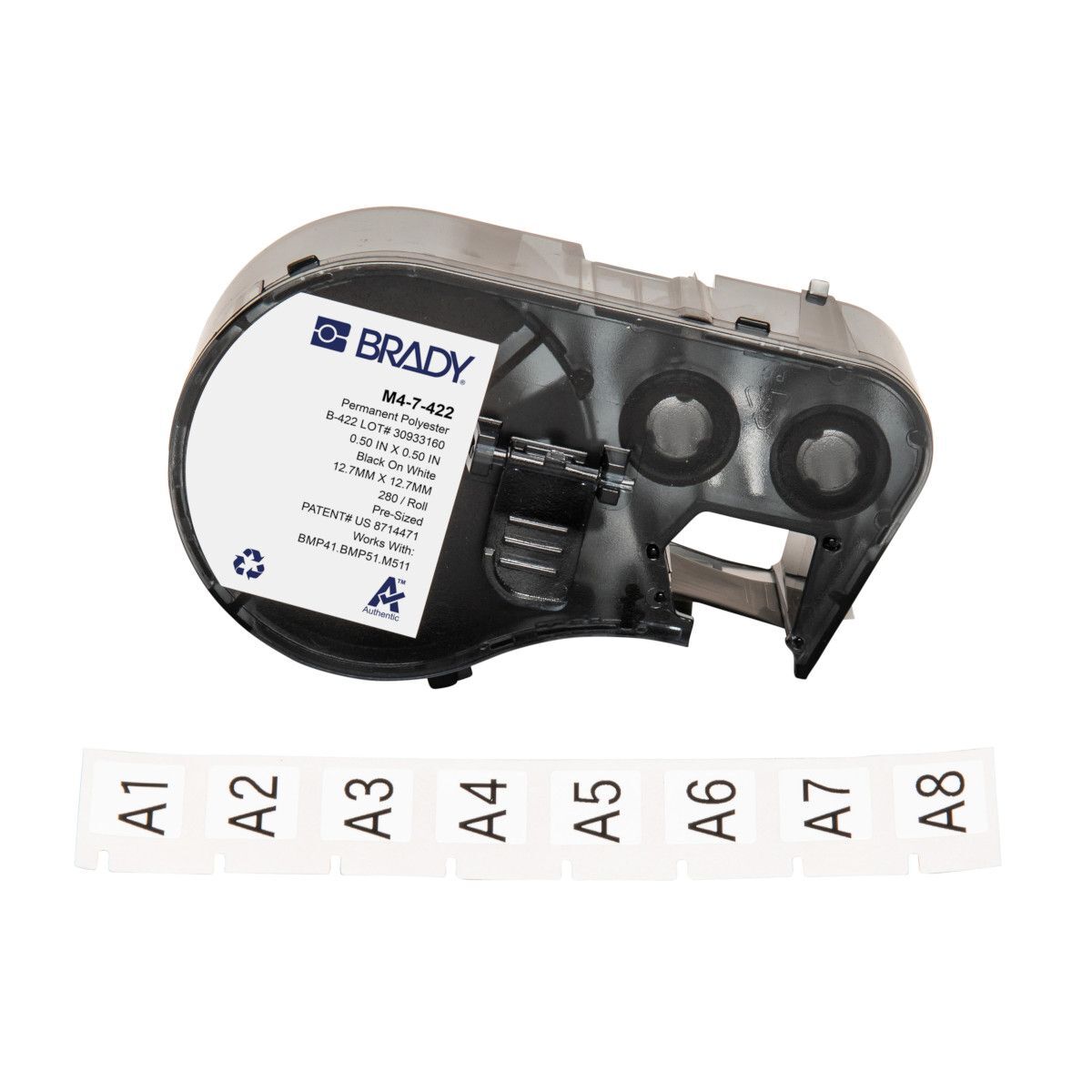

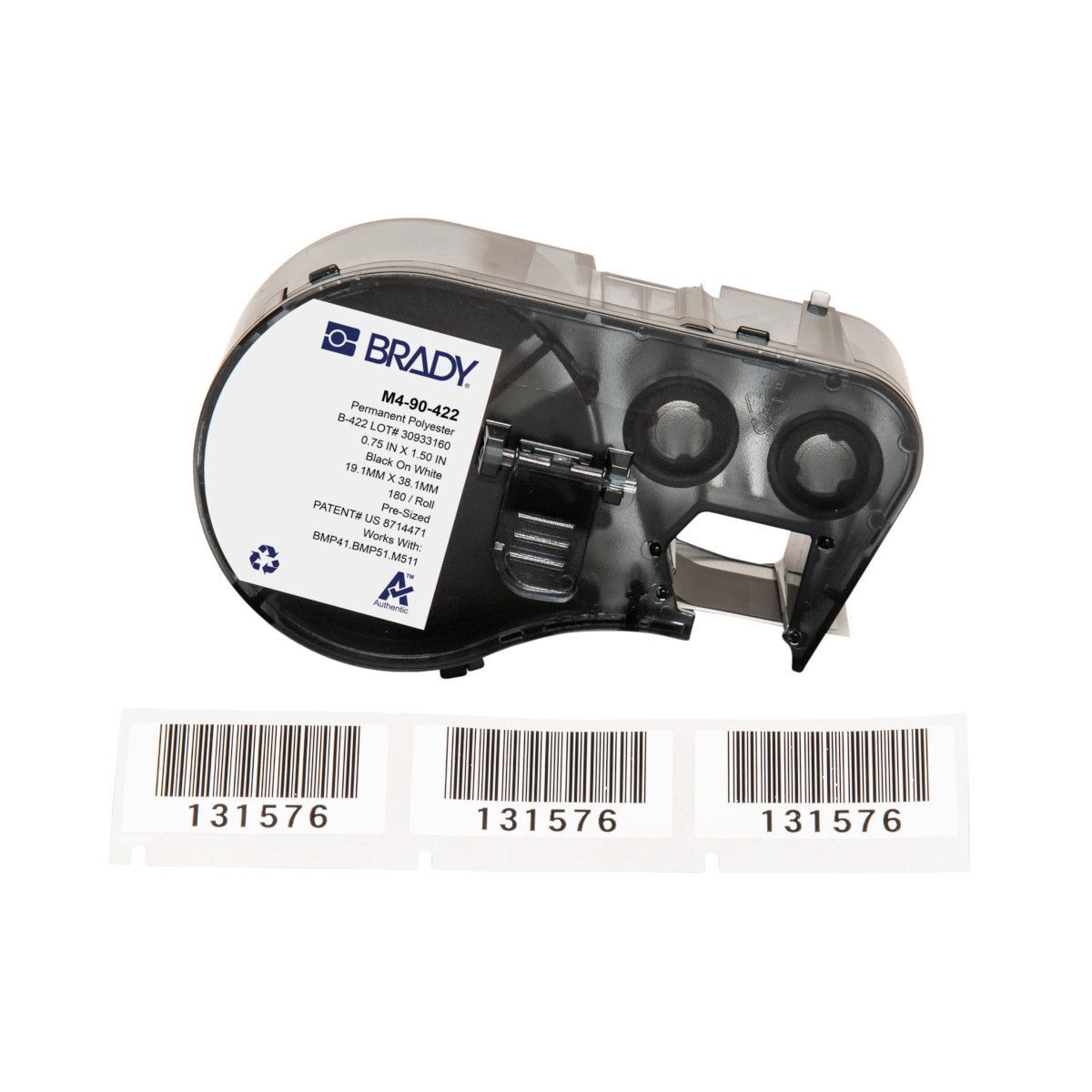

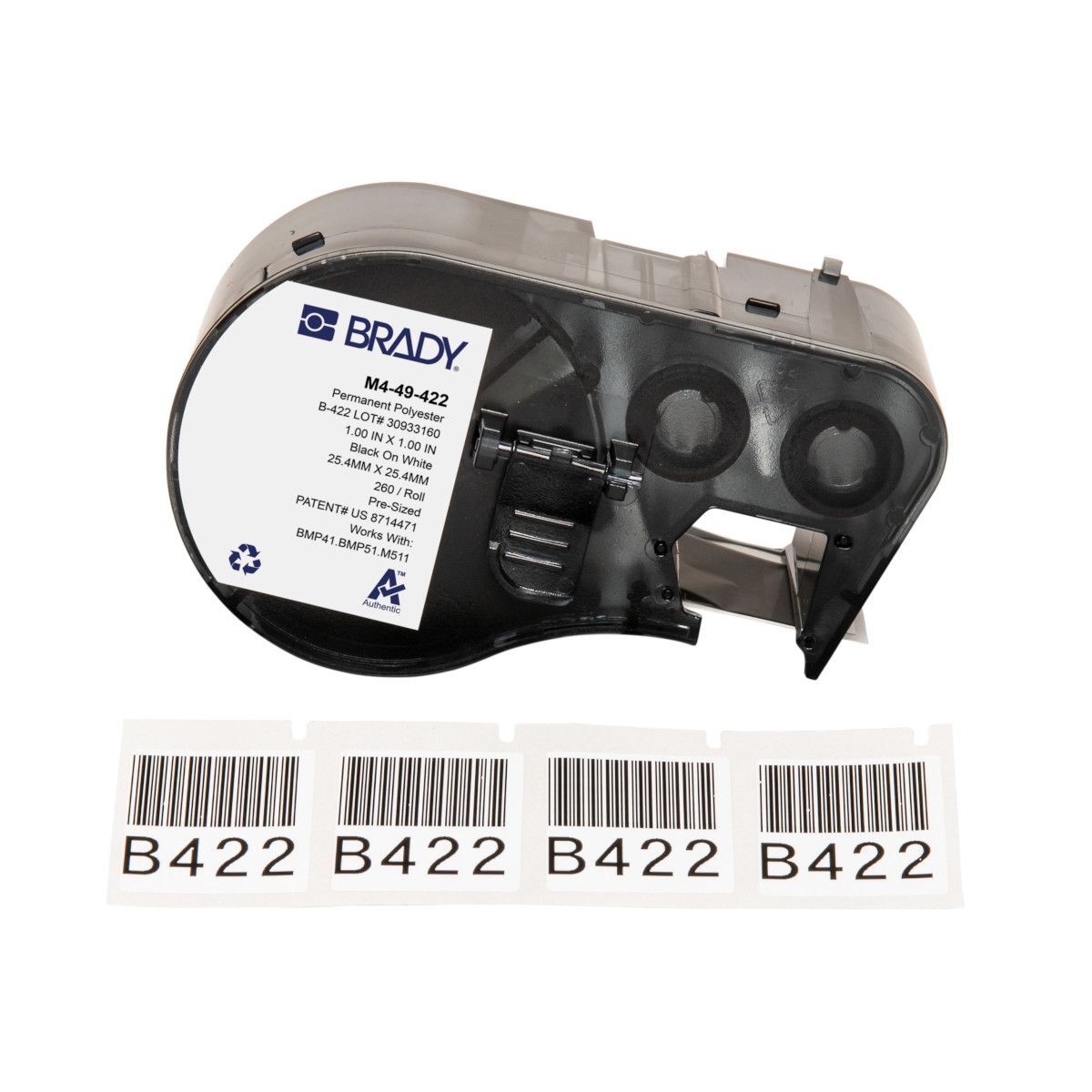

Brady B-422 (ToughBond) is a black-on-white polyester label for Brady M4 and M5 series printers. This listing has five die-cut label cartridges, from 12.7 x 12.7 mm to 19.05 x 38.1 mm with 180 to 480 labels each, and six continuous tape cartridges from 9.53 to 38.1 mm wide, each 7.6 m (25 ft) (manufacturer-stated). Brady lists all of them for the BMP41, BMP51, BMP53, M410, M510 and M511, except the 38.1 mm M5C-1500-422, which is listed for the BMP51, BMP53, M510 and M511 (manufacturer-stated).

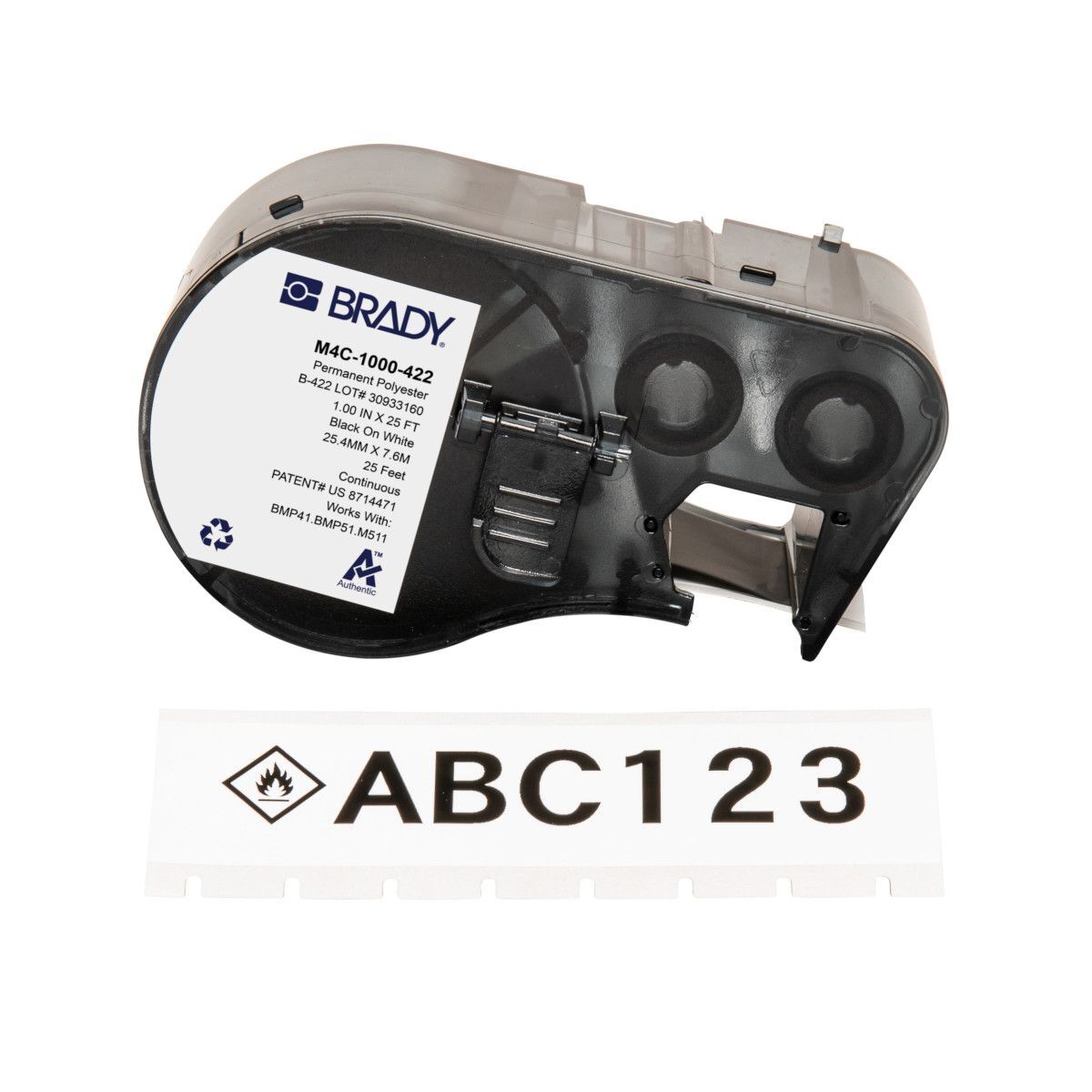

B-422 is a halogen-free polyester, 0.10 mm thick, with an aggressive permanent acrylic adhesive and a gloss finish. It works from -40 to 100 °C in service (manufacturer-stated). Brady lists it as chemical, corrosion, humidity, UV and weather resistant, suited to high surface energy, low surface energy and rough surfaces, and says it resists abrasion, extreme temperatures and solvents including alcohol, oil and water (manufacturer-stated). Brady lists UL recognition to UL969, CSA to C22.2 No. 0.15-95 and RoHS compliance to 2011/65/EU for the material (manufacturer-stated). UL969 and C22.2 are North American standards, and Brady's data sheets can tie this recognition to a specific ribbon, so ask us if the approval matters for your job. Brady's page for the M4C-1000-422 gives an average outdoor durability of 1 year (manufacturer-stated). Figures are Brady published values (manufacturer-stated).

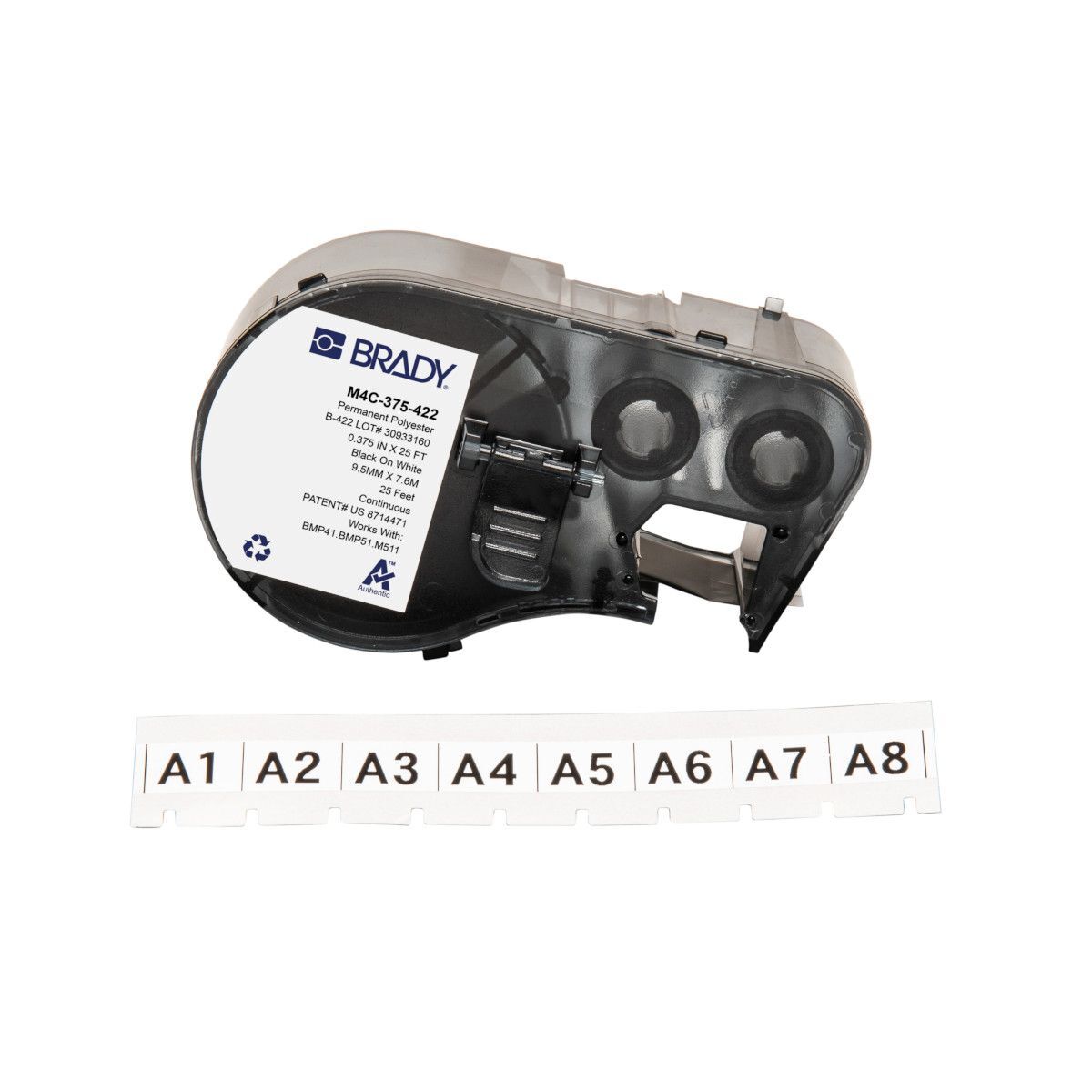

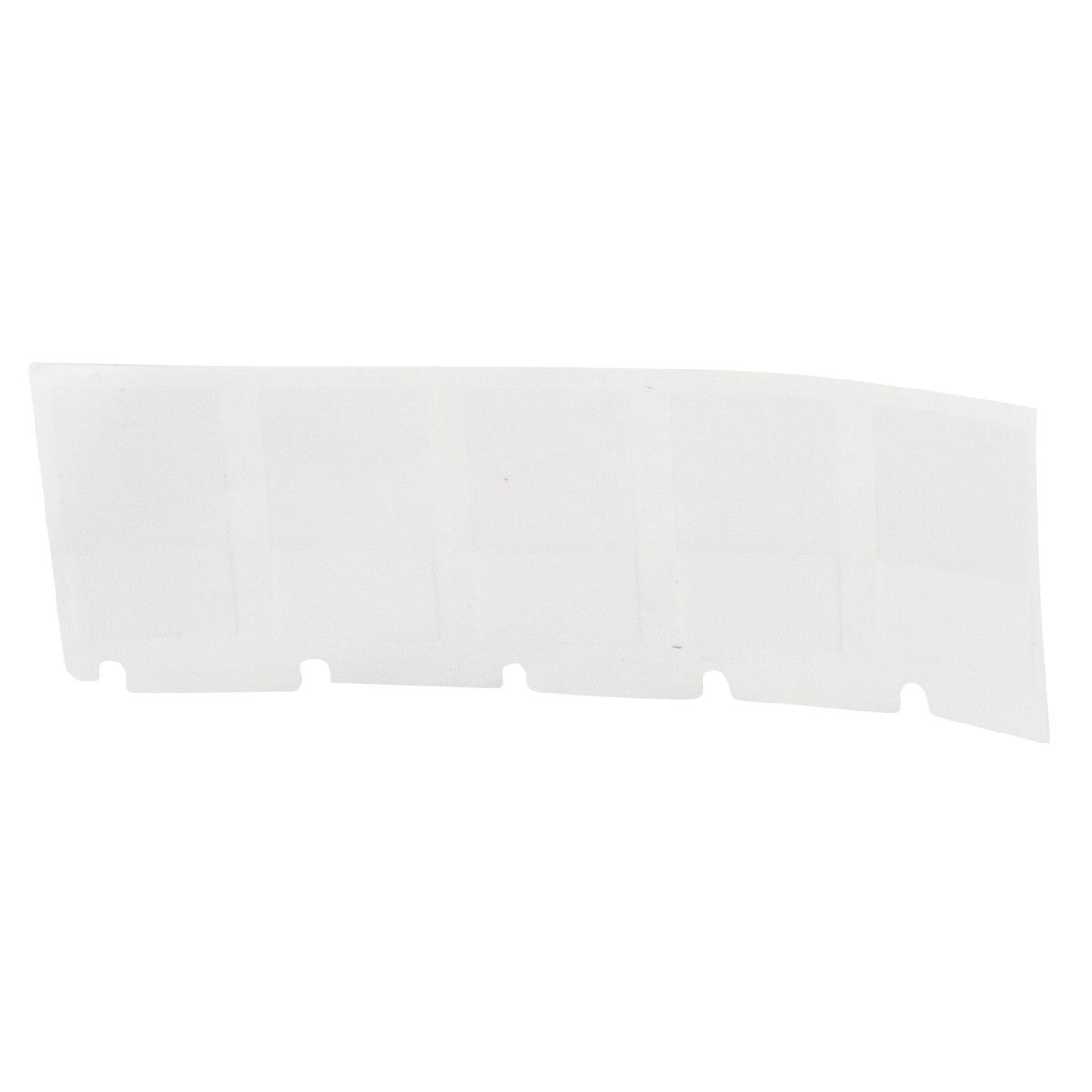

Die-cut codes such as M4-47-422 are pre-cut labels. Codes starting M4C or M5C are continuous tape, and the number after them is the width in thousandths of an inch (500 is 0.5 in, 12.7 mm). Two numbers identify each product. The product code is the alphanumeric code printed on the cartridge, and it is the code to search for or quote. The Brady ordering number is the six-digit number Brady uses to identify the same product. Both are in the table below, and the Product Code shown for each option on this page is the printed code.

Where this product is used

• Barcode, asset tracking, and inventory and inspection labels (manufacturer-stated).

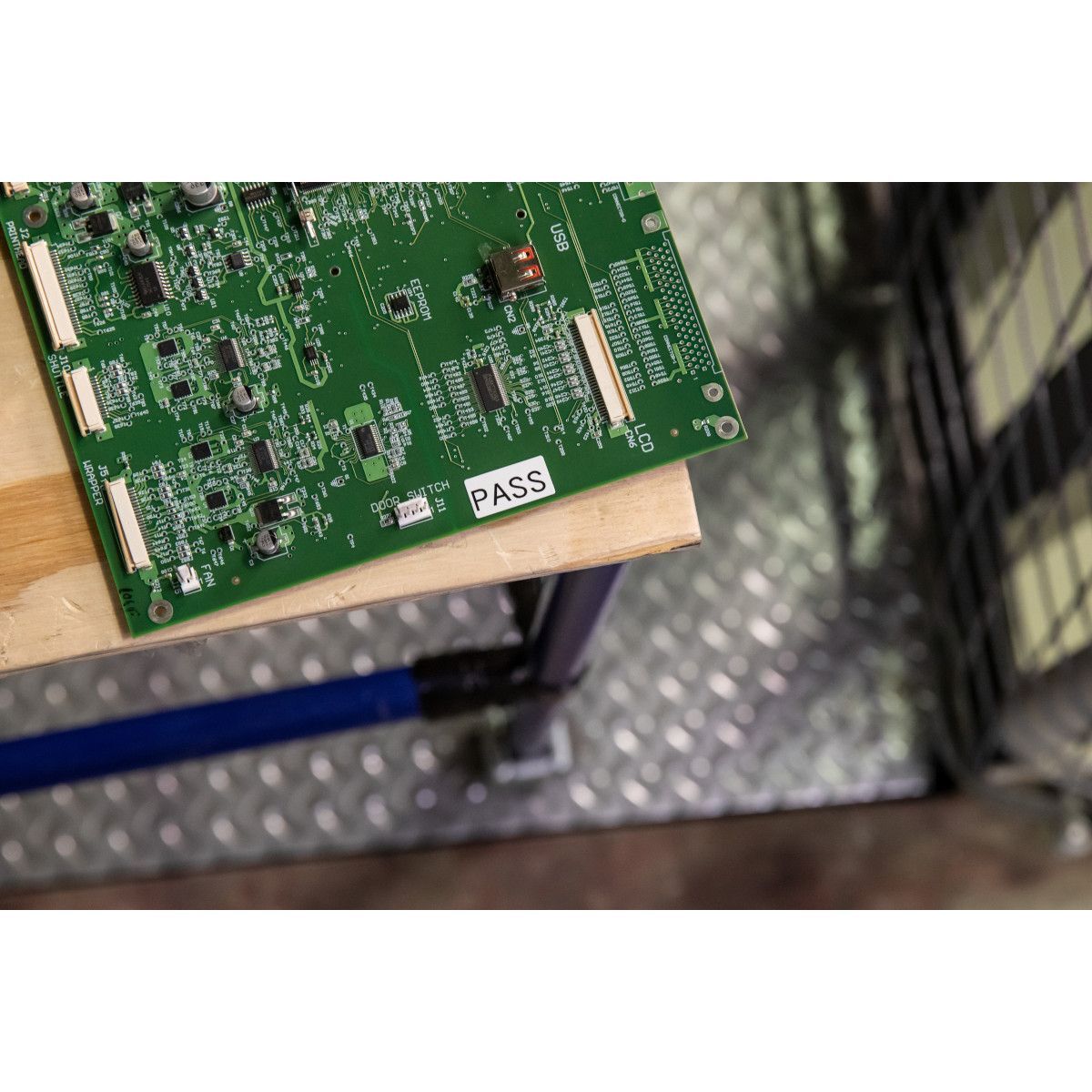

• Component and equipment labelling, including circuit boards and panel components (manufacturer-stated).
• Data and telecommunications labelling (manufacturer-stated).

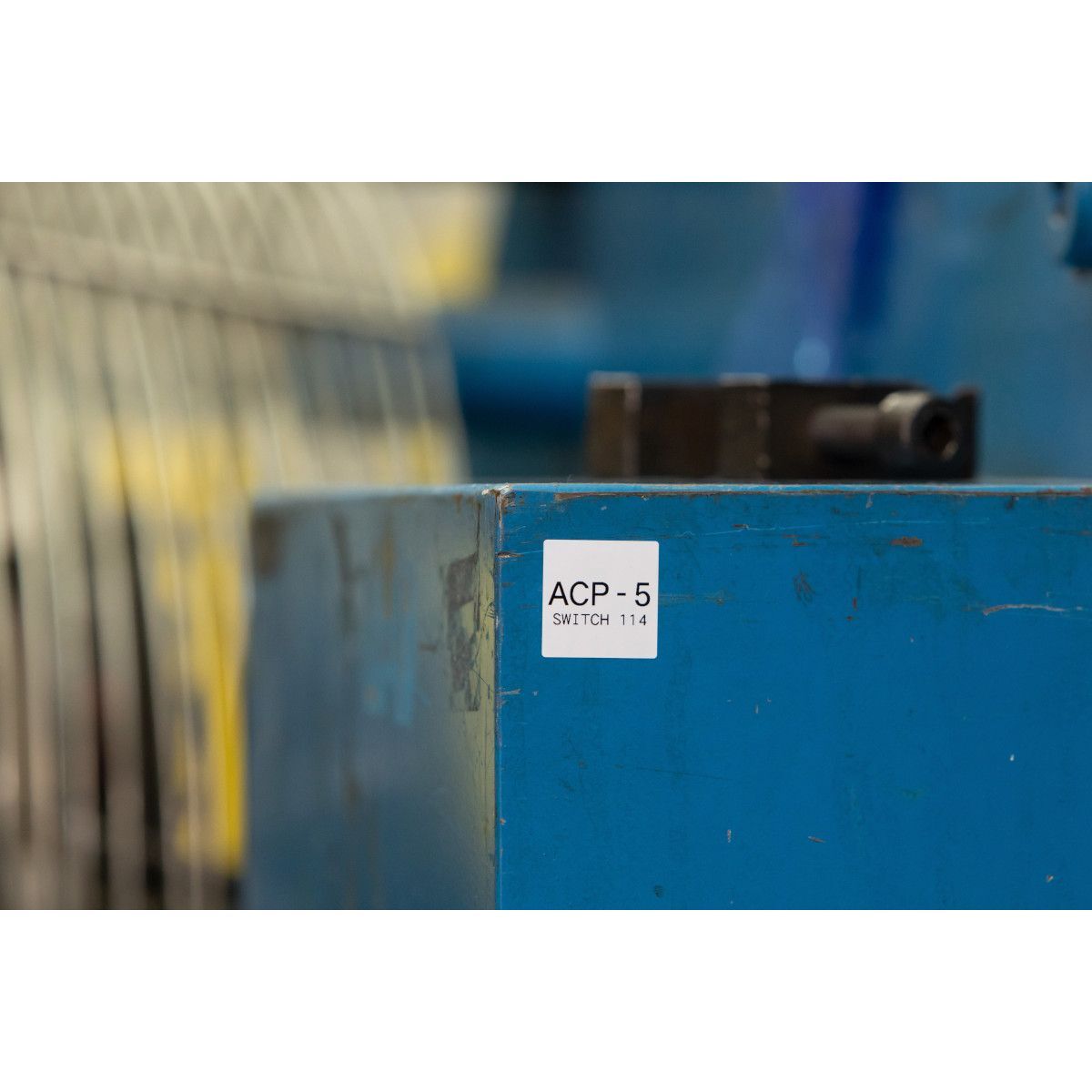

• General identification on rough, low surface energy and high surface energy surfaces (manufacturer-stated).
• Areas exposed to heat, oil, alcohol and other solvents (manufacturer-stated).

Features

• Halogen-free polyester with aggressive permanent acrylic adhesive (manufacturer-stated)
• Service temperature -40 to 100 °C (manufacturer-stated)
• Chemical, corrosion, humidity, UV and weather resistant (manufacturer-stated)
• Suits high surface energy, low surface energy and rough surfaces (manufacturer-stated)
• UL969 recognised and CSA C22.2 No. 0.15-95 listed, ribbon dependent (manufacturer-stated)
• RoHS compliant to 2011/65/EU, with exemptions (manufacturer-stated)
• Five die-cut sizes and six continuous tape widths, each with its printed product code

Common specifications

Key specifications

Selecting the right option

Choose die-cut labels when you want the same size every time, and tape when the length changes. Sizes for die-cut labels are listed width first, then height. Brady lists these products as supplied with ribbon (manufacturer-stated). For long outdoor life the B-595 vinyl label tape cartridges is the better match, with Brady quoting 8 to 10 years against the 1 year on its M4C-1000-422 page. For a reflective tape see the B-584 retro-reflective label tape.

Related products

Other Brady M4/M5 label ranges: B-595 die-cut vinyl labels, B-595 vinyl label tape cartridges, B-584 retro-reflective label tape and M5-01-425-FT T-flag wire labels.
