Austsaw boxer wave design turbo diamond blade, 103
Available
The Austsaw Boxer Super Turbo Wave Diamond Blade is a turbo rim diamond cutting blade with a wave design body, for concrete, pavers, brick, cement sheet and stone and as suitable for wet and dry use. There are five sizes from 103mm to 9", each supplied as a single carded blade.
It is for ceramic bricks, pipes and terracotta, concrete blocks, bricks, pavers, pipes and reinforced concrete, cement sheet, and stone including basalt, bluestone, granite, marble and slate. The 103mm to 125mm blades are for angle grinders, and the 180mm and 9" blades for portable saws or angle grinders. Kerf rises from 1.8mm on the 103mm blade to 2.5mm on the 9" blade, and the maximum speed falls from 15,000 RPM to 6,790 RPM.
Where this product is used
- Cutting concrete, pavers and concrete blocks
- Cutting brick and ceramic pipes
- Cutting cement sheet and board
- Cutting granite, marble and bluestone
Features
- Wave design adds strength to the blade body and helps extract dust build up
- Excellent blade life
- Fast, smooth, clean cutting
- Suitable for wet and dry use
- Five sizes from 103mm to 9", each a single carded blade
- Diamond count rated HIGH
Key specifications
| Specification | Detail |
|---|---|
| Brand | Austsaw |
| Diameters | 103mm to 9" |
| Kerf | 1.8mm to 2.5mm (by size) |
| Maximum speed | 6,790 to 15,000 RPM (by size) |
| Application | Multi-purpose |
| Cutting | Wet and dry |
| Cuts | Concrete, pavers, brick, cement sheet, ceramic and stone |
| Supplied | Carded, 1 blade |
| Size | 103mm (4"), 115mm (4-1/2"), 125mm (5"), 180mm (7"), 9" |
| Bore | 16mm, 22.2mm, 22.2/20mm, 25/22.2mm |
| Use with | Angle Grinder, Portable Saw, Angle Grinder |
Choosing the right option
Choose the diameter and bore your tool takes and check the maximum speed in the specifications. For the same wave design with a diamond count rated HIGHEST see Austsaw Super Turbo Wave Diamond Blade.
See also: Austsaw Super Turbo Wave Diamond Blade, Austsaw Boxer Segmented Diamond Blade, Austsaw Boxer Continuous Rim Diamond Blade.
| Option | Part number | SKU |
|---|---|---|
| 103 | A0146364 | |

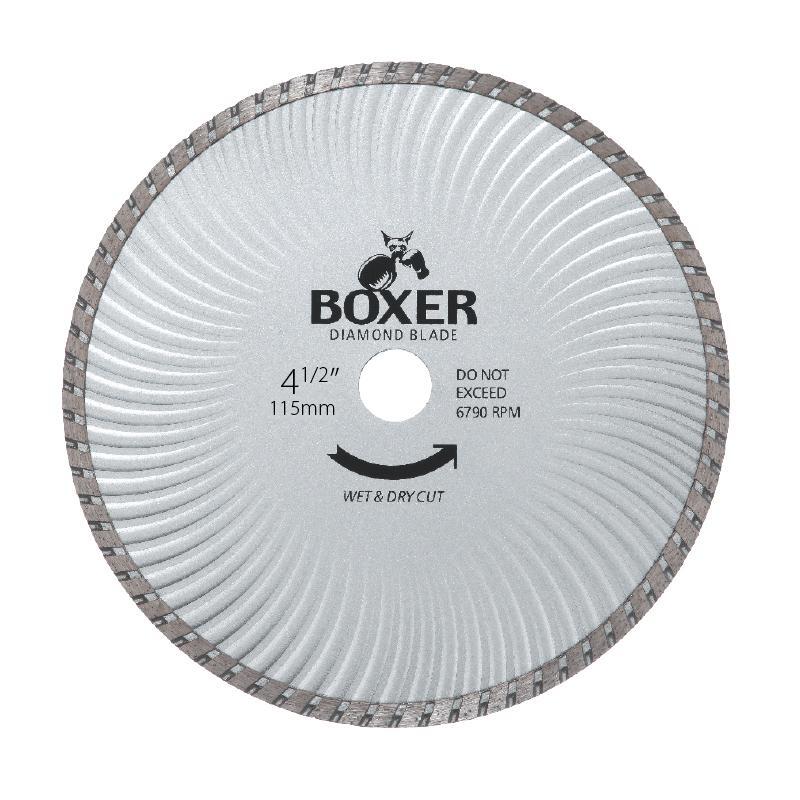

| 115 | A0146365 | |

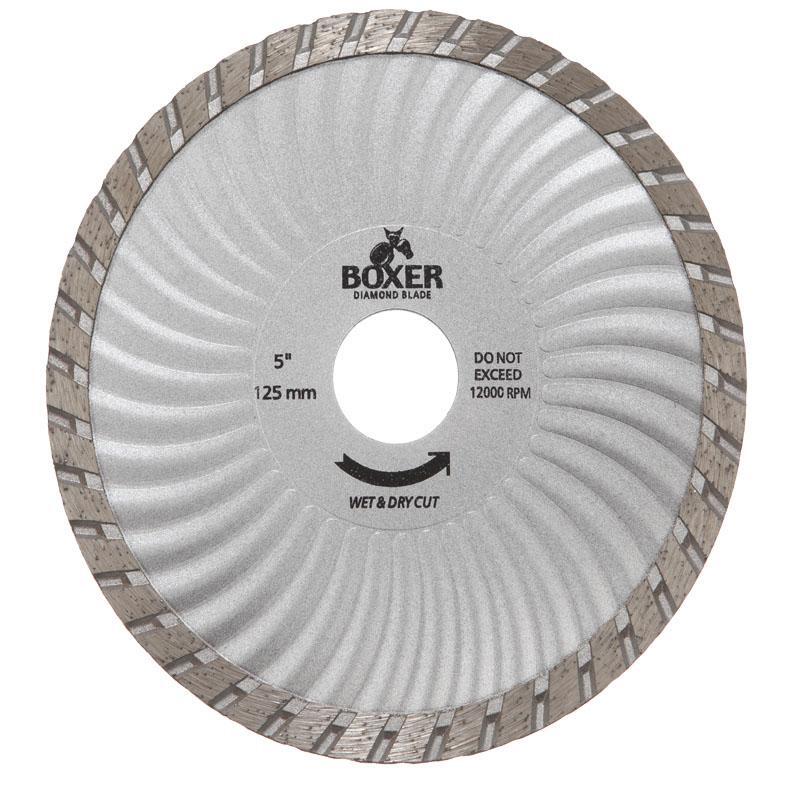

| 125 | A0146366 | |

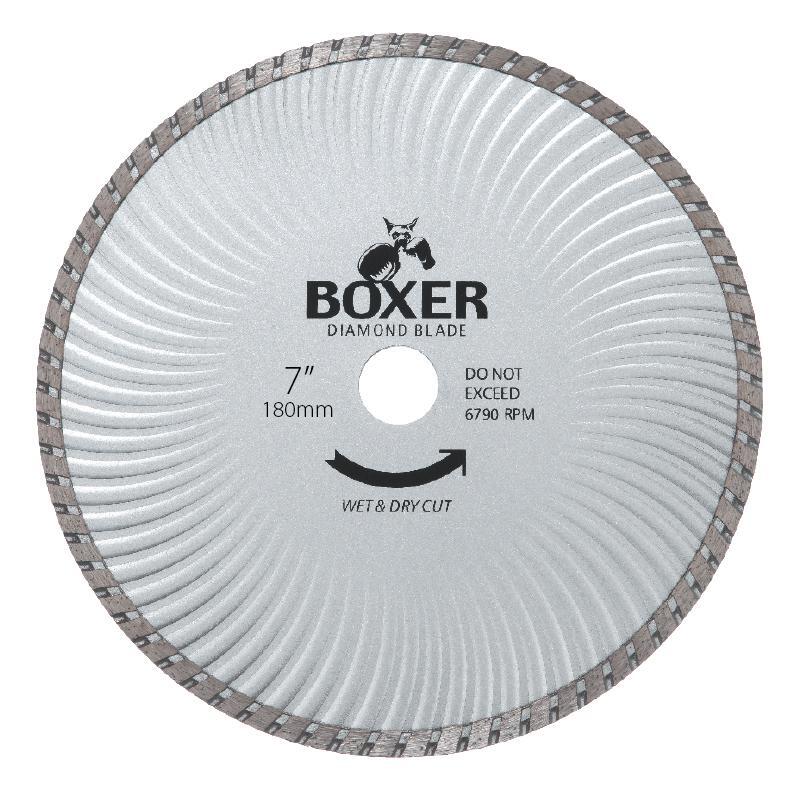

| 180 | A0146367 | |

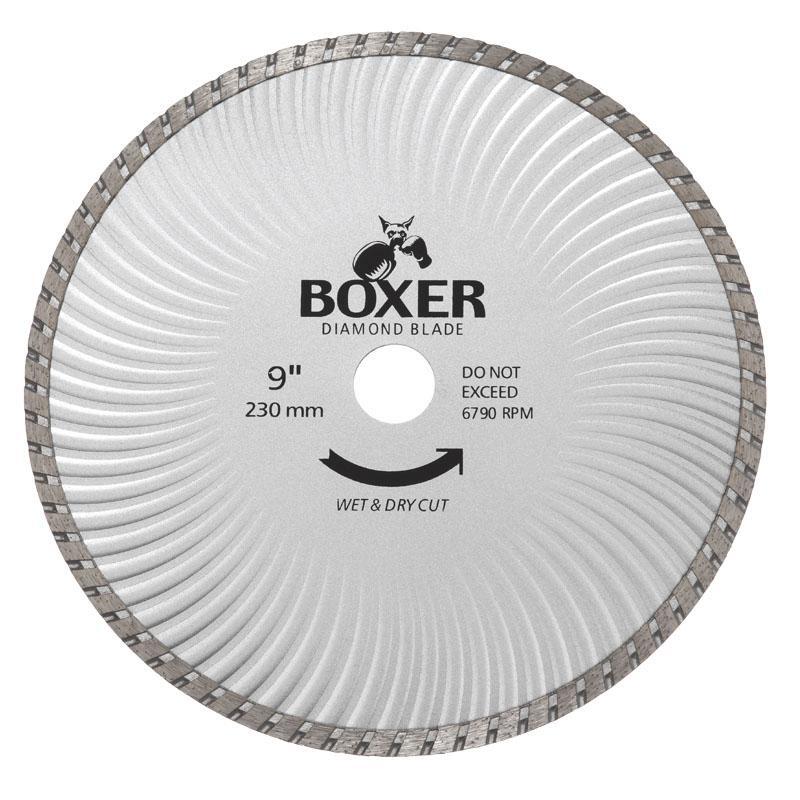

| 235 | A0146368 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austsaw Boxer Super Turbo Wave Diamond Blade, 103mm to 9": 103
SKU: A0146364 | Model: BXR4T

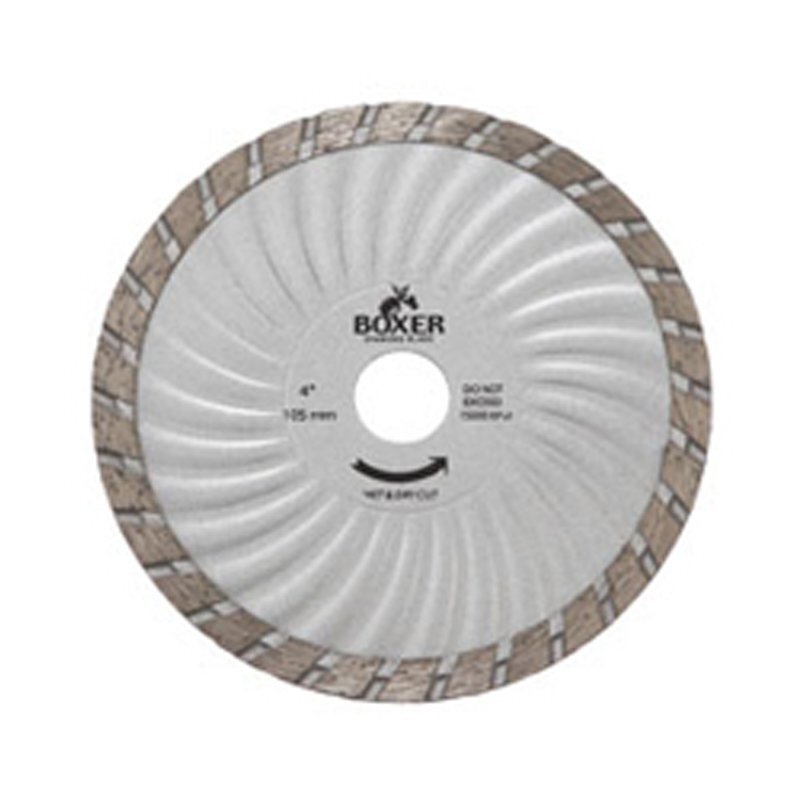

Austsaw BXR4T: 103mm (4") Boxer Super Turbo Wave diamond blade. 16mm bore, 15,000 RPM maximum, for angle grinders.
