Austsaw sheet metal blade for cordless saws, 135
Available
The Austsaw RaiderX Sheet Metal Blade is a circular saw blade for cutting thin sheet metal up to 1.2mm (18 gauge), including roofing, cladding, corrugated sheet, flat sheet and steel studs. The 135mm and 150mm blades have cermet tips and the 165mm and 185mm blades have C6 carbide tips.
All four sizes have a 20mm bore and are for cordless metal saws at up to 6,000 RPM (5,800 RPM on the 185mm blade). Kerf is 1.2mm on the 135mm blade and 1.4mm on the other three. Super thin kerf design and advanced tooth geometry for balance and stability in a straight running cut, and 6x the life of competitor sheet metal saw blades.
Where this product is used
- Cutting roofing and cladding
- Cutting corrugated sheet
- Cutting flat sheet metal
- Cutting steel studs
Features
- Cermet tips on 135mm and 150mm, C6 carbide tips on 165mm and 185mm
- Super thin kerf design
- Advanced tooth geometry for a straight running cut
- Suitable for thin sheet metal to 1.2mm (18 gauge)
- 6x the life of competitor sheet metal blades
Key specifications
| Specification | Detail |
|---|---|
| Brand | Austsaw |
| Diameters | 135mm to 185mm |
| Teeth | 50 to 60 |
| Bore | 20mm |
| Maximum cut thickness | 1.2mm (18 gauge) |
| Maximum speed | 5,800 to 6,000 RPM (by size) |
| Use with | Cordless metal saw |
| Cuts | Roofing, cladding, corrugated sheet, flat sheet and steel studs |
| Size | 135mm x 50T, 150mm x 52T, 165mm x 56T, 185mm x 60T |
| Tip | Cermet, C6 carbide |
| Tooth grind | ATB 3°, ATB 10° |
| Hook angle | -10°, 5° |
| Kerf | 1.2mm, 1.4mm |
Choosing the right option
Choose the diameter your cordless saw takes. All four sizes are for sheet metal up to 1.2mm (18 gauge), so for thicker steel see Austsaw RaiderX Metal Blade (4.0mm to 10.0mm) or Austsaw Extreme Heavy Metal Blade (20mm).
See also: Austsaw RaiderX Metal Blade, Austsaw Extreme Heavy Metal Blade, Austsaw Extreme Stainless Steel Blade.
| Option | Part number | SKU |
|---|---|---|
| 135 | A0182453 | |
| 150 | A0182454 | |
| 165 | A0182455 | |
| 185 | A0182456 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Austsaw RaiderX Sheet Metal Cutting Blade, 135mm to 185mm, Cermet and C6 Carbide Tipped: 135
SKU: A0182453 | Model: MBR1352050S

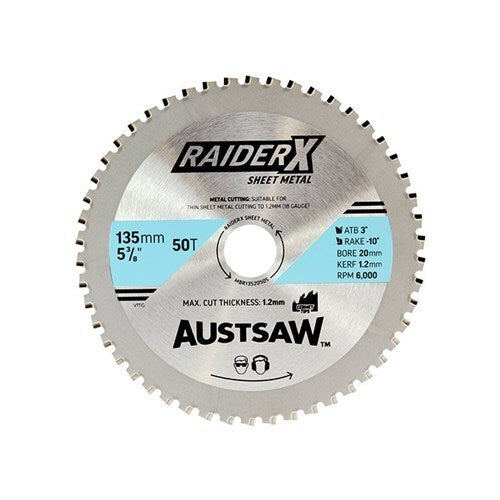

Austsaw MBR1352050S: 135mm x 50T RaiderX Sheet Metal circular saw blade. Cermet tips, 20mm bore, 6,000 RPM maximum.
