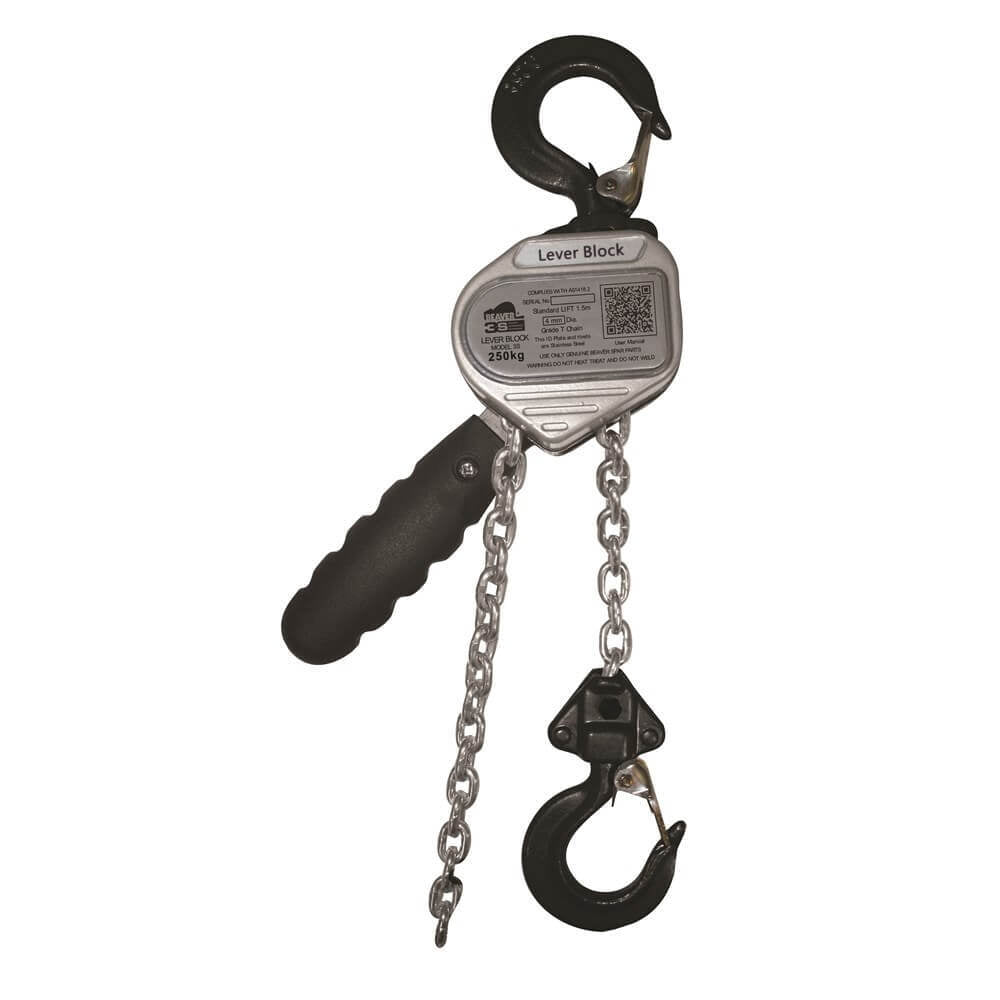

Beaver 3S Industrial Lever Block, 0.25 t (250 kg), 1.5 m Lift (506025)

Beaver 3S industrial manual lever blocks are hand lever blocks with a Grade 80 load chain, rated from 250 kg to 6,300 kg in six codes, with a 1.5 m standard lift and a colour code for each rated capacity (manufacturer-stated). Beaver describes lever blocks as versatile lifting and tensioning devices widely used in rigging, construction and mining, and says they can be used in any direction but must be used in a straight line (manufacturer-stated).

Beaver says the lever blocks comply with AS 1418.2 (manufacturer-stated). Every block is operationally tested to its rated capacity and supplied with a Beaver test certificate that relates to its stamped identification side plate (manufacturer-stated). Beaver publishes a test load for each code and no breaking load. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Where this product is used

• Lifting and tensioning, as Beaver describes lever blocks, in any direction but in a straight line (manufacturer-stated)
• Rigging, construction and mining, as Beaver describes lever blocks (manufacturer-stated)
• Small to medium lifting and pulling jobs, for the 250 kg and 500 kg general purpose blocks, as Beaver describes them (manufacturer-stated)

Features

• Rated from 250 kg to 6,300 kg, with a colour code for each rated capacity (manufacturer-stated)
• Enclosed mechanism and gears in an all steel compact shell (manufacturer-stated)
• Grade 80 alloy steel load chain, calibrated and marked to ISO 3077 and ISO 1834 (manufacturer-stated)
• Chain guide to stop the load jumping out of the pockets on the load sprocket (manufacturer-stated)
• Top and bottom hooks with ball bearings, so they rotate under load, and cast latches (manufacturer-stated)
• Machined and heat treated gears on roller bearings (manufacturer-stated)
• Stainless steel ID plates and rivets (manufacturer-stated)
• Test load listed for each code (manufacturer-stated)

Load chain

Beaver's website describes the load chain on the 250 kg and 500 kg general purpose lever blocks as Grade 80 and zinc plated, and the chain on the 800 kg to 6,300 kg blocks as black finish, heat treated alloy steel (manufacturer-stated). The manual describes the chain as black finish for the range as a whole, so check the chain finish on the block you receive if it matters to you.

Underground mining

Beaver describes the stainless steel ID plates and rivets as avoiding dangerous sparking and says this makes the blocks suited to underground mining (manufacturer-stated). Confirm your site's requirements for equipment used underground before ordering.

Key specifications

Codes, capacities, test loads, headroom, effort, chain, lever length, dimensions (in millimetres) and weights are from Beaver's data sheet and website. Beaver does not define dimensions A to E. Beaver's manual text lists the 250 kg and 500 kg net weights as 2.45 and 2.6 kg while its data sheet and website list 1.5 and 2.5 kg; the data sheet values are shown. Beaver's lever blocks with overload protection, 800 kg to 9 t (codes 507080 to 507900), are on a separate listing: see the overload protected lever blocks.

Selecting the right option

Choose the rated capacity to suit the load, allowing for the weight of rigging such as slings and shackles, then check the headroom H and the effort on the lever. The test load is a figure Beaver lists for each code and is not a working load, so do not lift to it. If you are unsure, ask AIMS or a qualified rigger.
