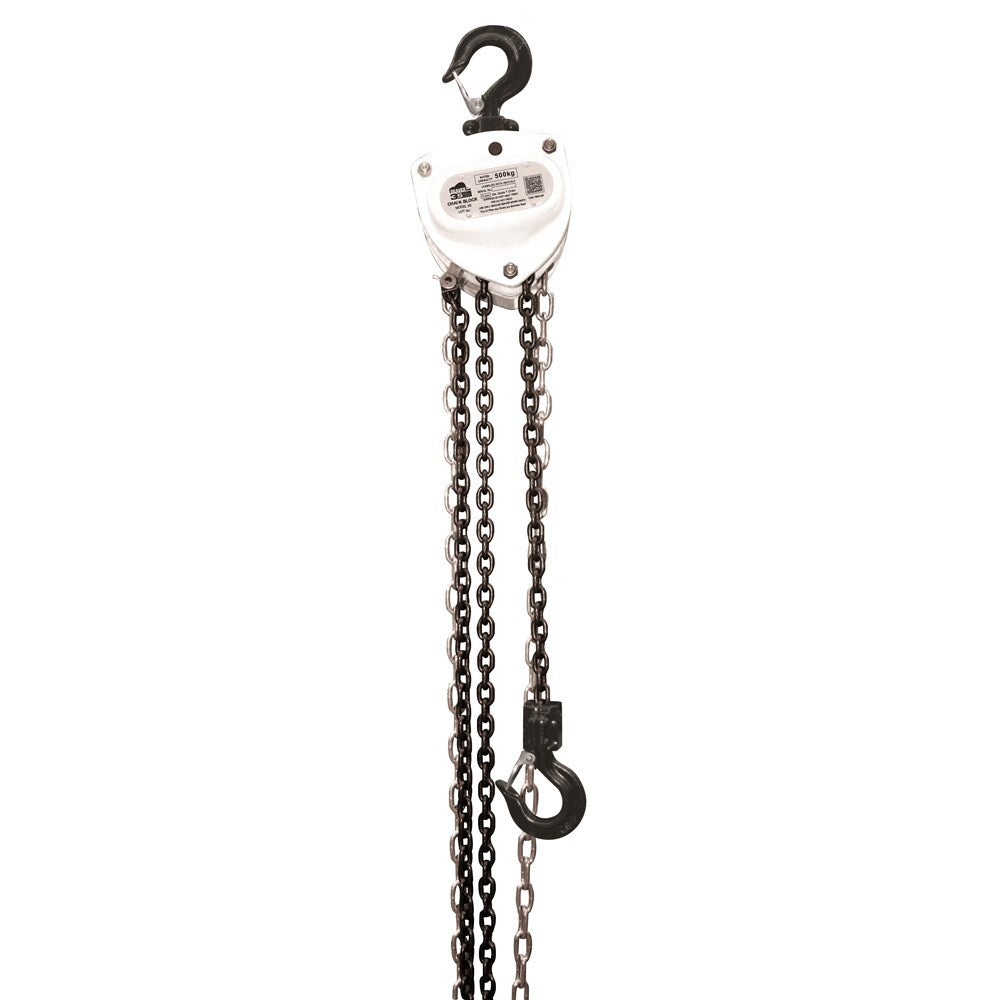

Beaver overload protected chain blocks, 0.5T / 3m

Beaver overload protected 3S industrial manual chain blocks are manual hand chain blocks with a Grade 80 load chain, a cast steel body and a colour code for each rated capacity.

Its 3S chain blocks are designed for use on monorails, jibs, fixed installations and for maintenance use, and are to be used for vertical lifts only. The blocks comply with AS 1418.2. Every block is operationally tested to its rated capacity and supplied with a Beaver test certificate that relates to the stamped identification side plate, and each block has its own serial number that relates to the test certificate. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Where this product is used

• Vertical lifts on monorails, jibs and fixed installations
• Maintenance lifting
• Mining, rigging and construction, general purpose, industrial and mechanical use
• Heavy lifting in mining, heavy industrial, major construction works and offshore exploration

Features

• Full body cast steel construction, with impact resistant gear case and reinforced side covers
• Double pawl and double guide rollers
• Curled design so the hand chain feeds directly into the wheel sprocket
• Grade 80 load chain with a black oxide coating, calibrated and marked to ISO 3077 and ISO 1834
• Forged alloy steel top and bottom hooks with ball bearings, so the hooks rotate under load, and latches or safety catches
• Overload protection for added safety
• Weston type friction braking system with twin synchronised pawls

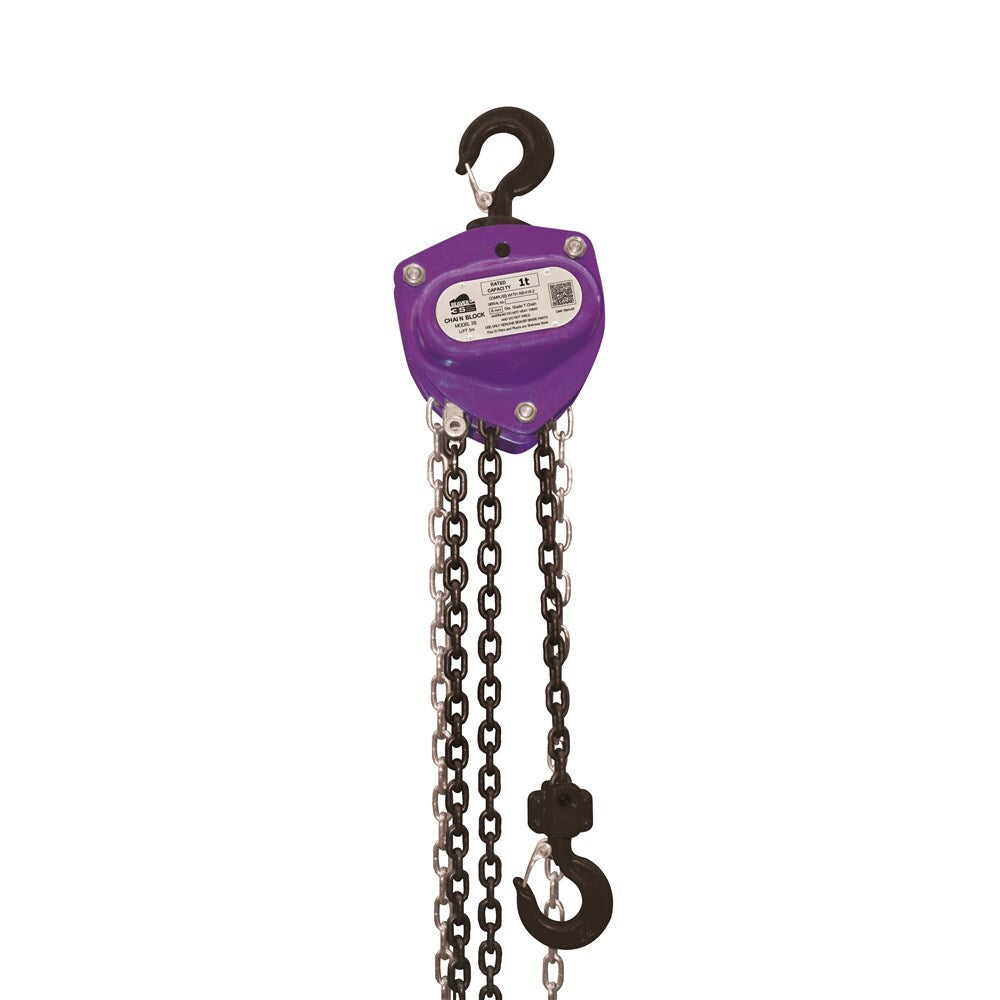

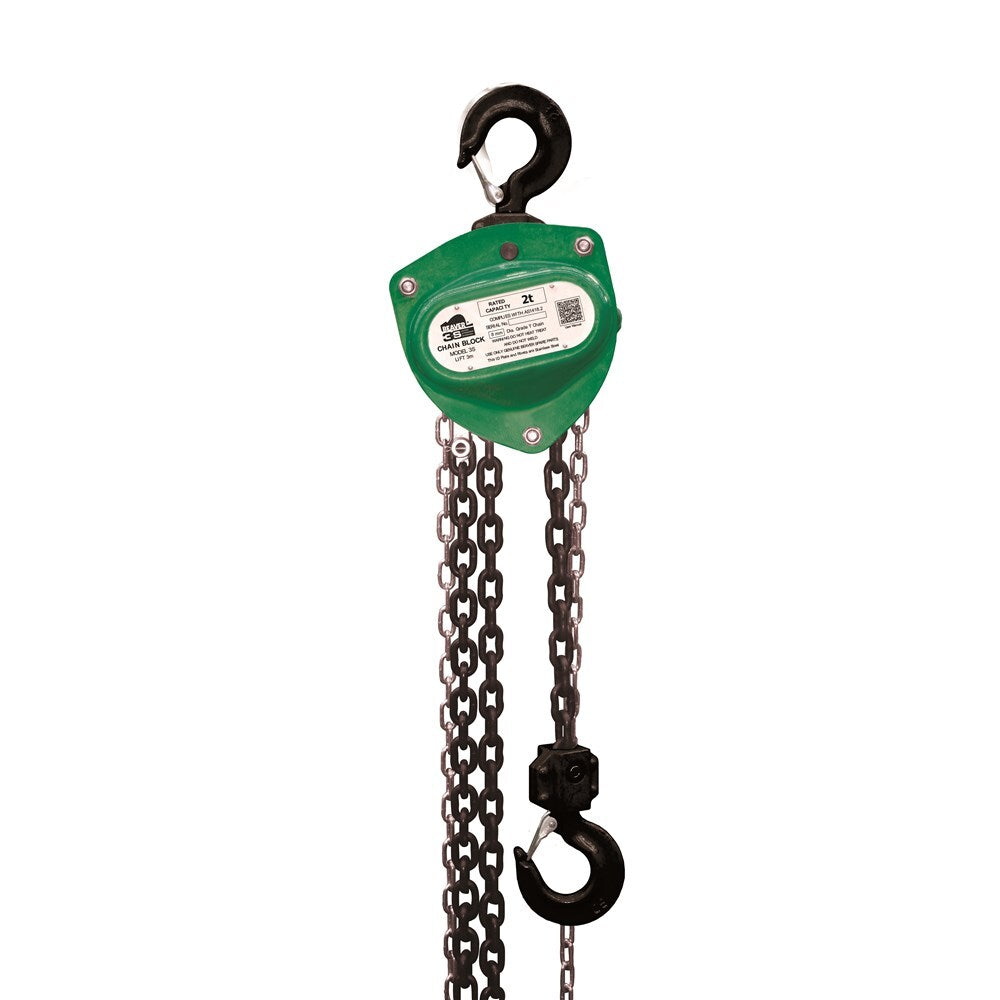

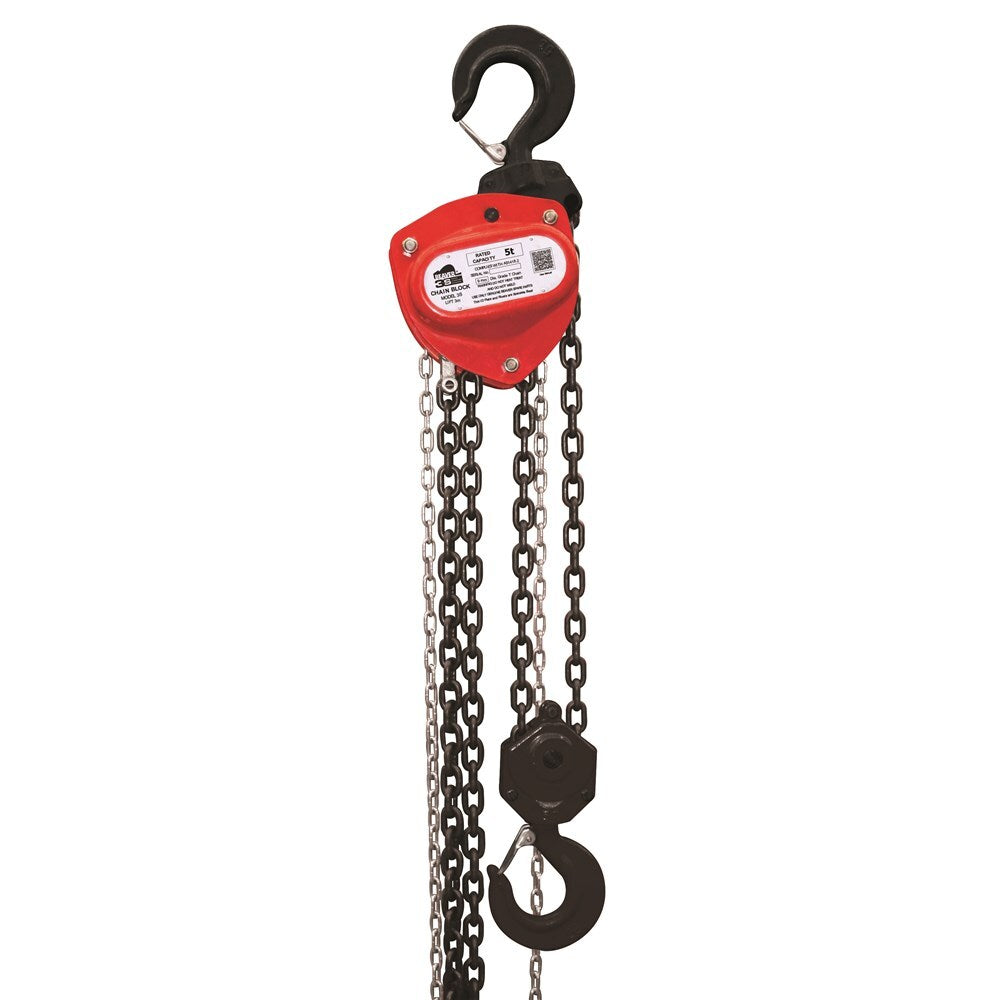

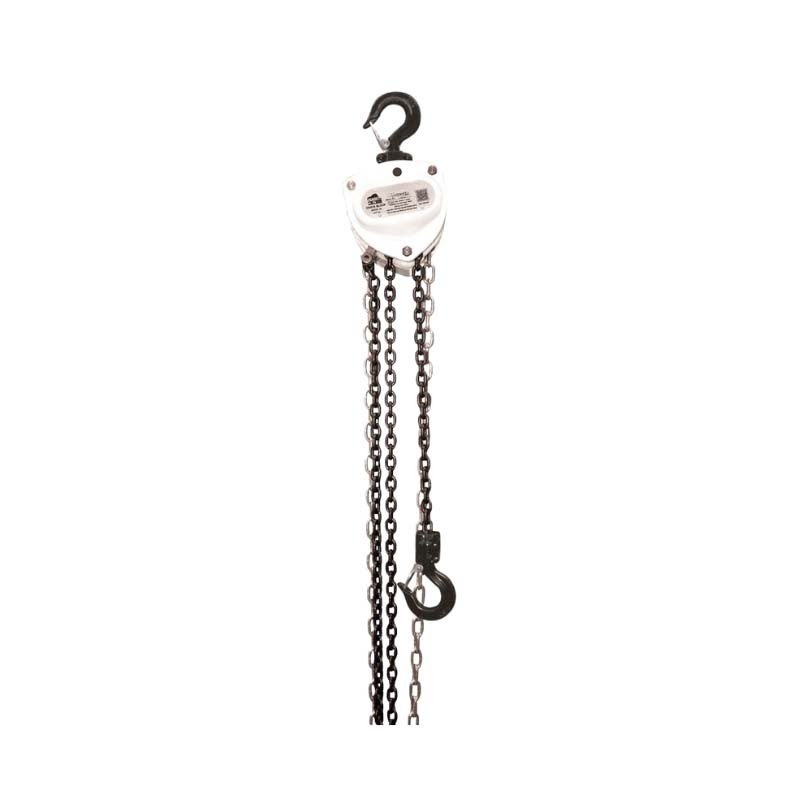

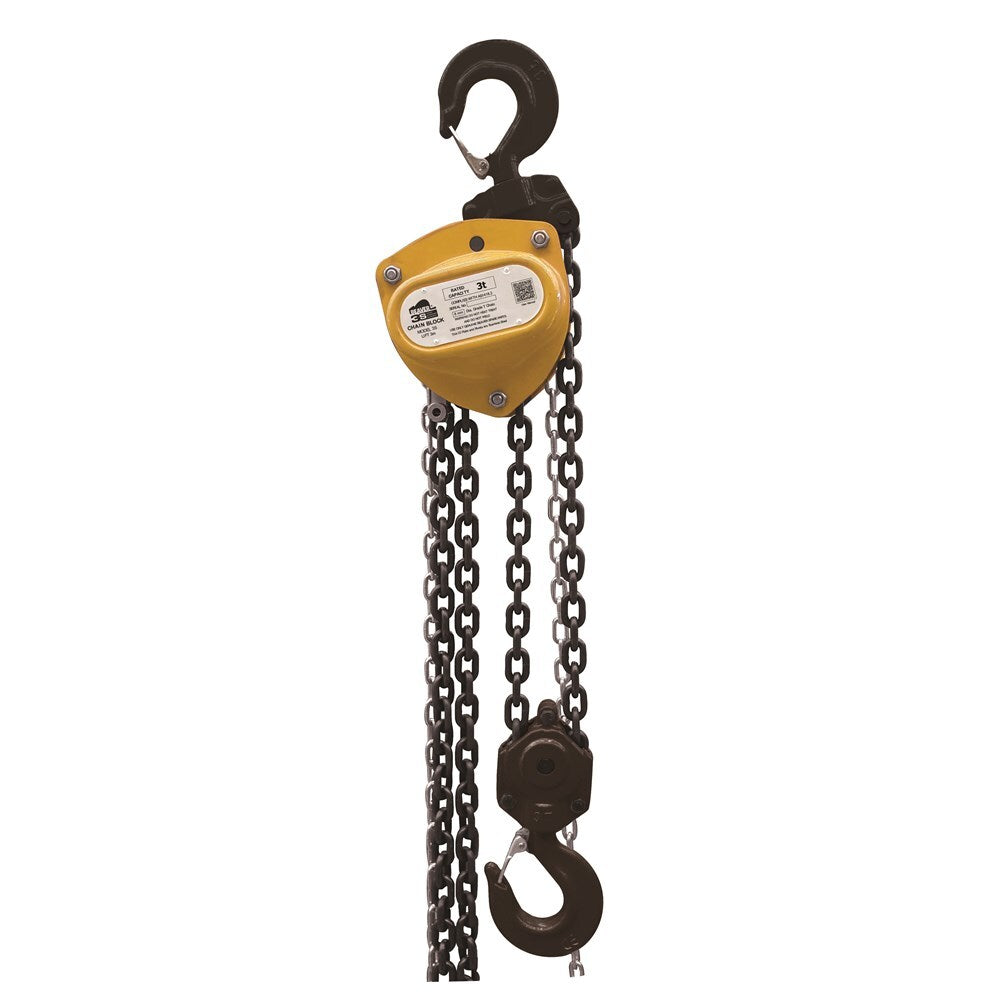

• Colour coded to match international lifting standards for fast identification of the WLL
• Each block tested to its rated capacity and supplied with a Beaver test certificate
• Stainless steel ID plates and rivets, with a QR code on the ID tag

Key specifications

Choosing the right option

Do not treat it as an allowance above the rated capacity.

The stainless steel ID plates and rivets are avoiding dangerous sparking. This makes the blocks suited to underground mining.

The weight shown for the longer lift includes Beaver's extra weight per metre of extra lift.

Choose the rated capacity to suit the heaviest load, allowing for the weight of rigging such as slings and shackles, then the standard lift to suit the height you need. Check the headroom H against the space between your hook point and the load at its lowest, and the effort on the hand chain against the people available.

Other Beaver chain and lever blocks: Beaver 3S Grade 80 Industrial Manual Chain Blocks, 3 m Lift, 0.5 to 5 t, Beaver 3S Grade 80 Industrial Manual Chain Blocks, 6 m Lift, 0.5 to 5 t, Beaver 3S Overload Protected Industrial Chain Block, 10 t, 3 m Lift, Beaver 3S Overload Protected Industrial Chain Block, 10 t, 6 m Lift.

For mounting, Beaver's: Beaver Push Girder Trolleys, 500kg to 10 t, Beaver Geared Girder Trolleys, 1 to 10 t.
