Beaver 7 x 7 Wire Rope Galvanised Swaged Thimble Eye on Inside of Reel
Available
Beaver 7 x 7 G2070 wire rope with a swaged thimble eye is galvanised steel wire rope with seven strands of seven wires and a wire rope core, in right hand ordinary lay (RHOL) as dry lube.
Where this product is used
- Making up wire rope slings and rigging assemblies
- Pulling, tensioning and general rigging
Features

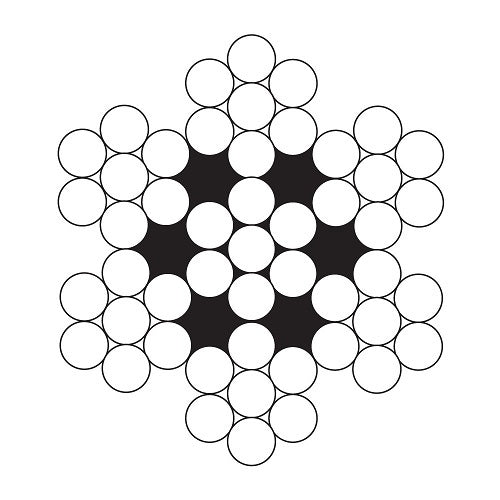

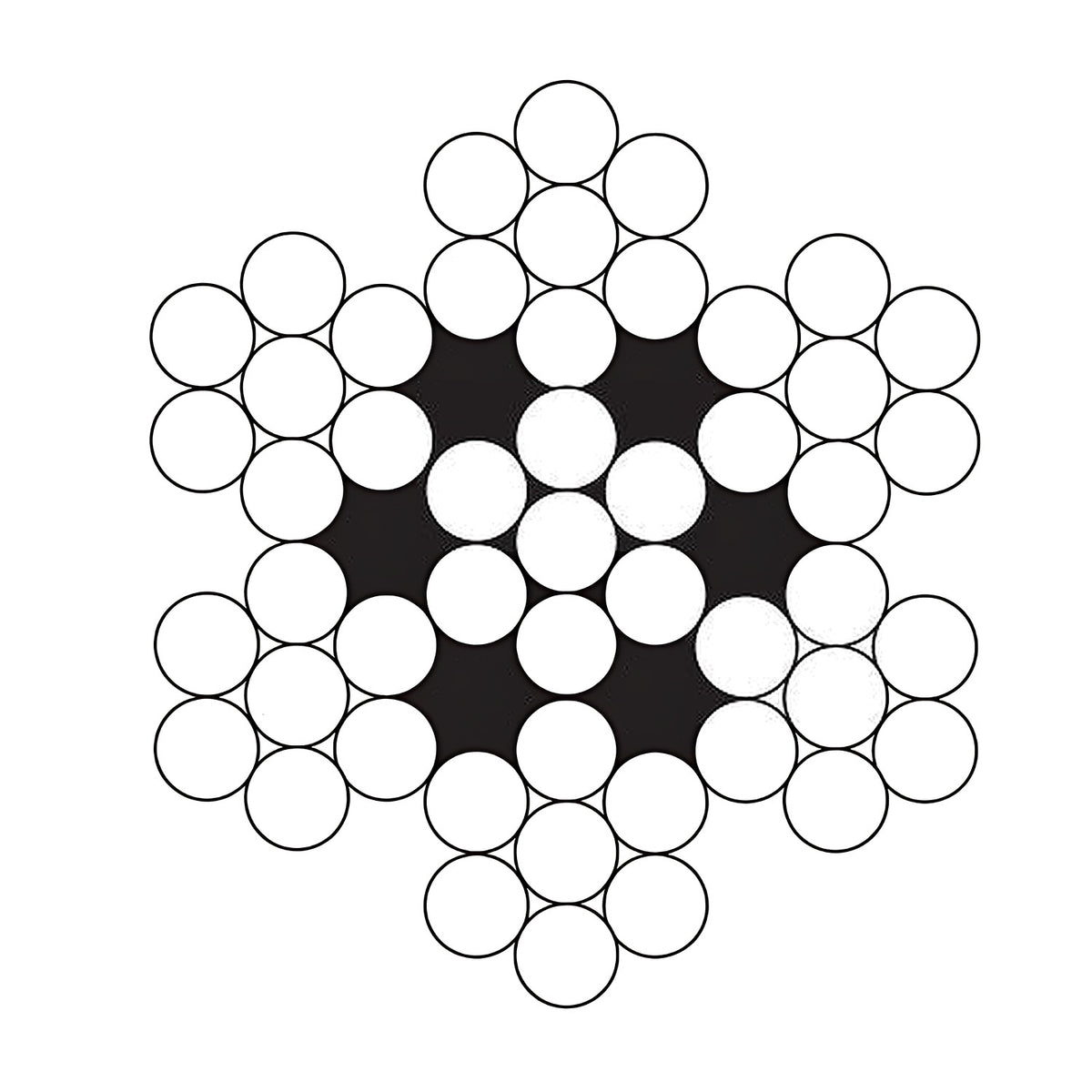

- Construction 7 x 7 with a wire core, right hand ordinary lay (RHOL)
- Grade 2070 galvanised wire
- Swaged thimble eye on the inside of the reel
- Wire rope core (WRC) as dry lube (the term is not defined by Beaver)
- Minimum breaking force 59.3 kN
- Diameter, MBF, mass per 100 m and reel length
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Code | 7083096 |
| Wire Diameter (mm) | 9 |
| Construction | 7 x 7 |
| Grade | 2070 |
| Core | Wire |
| Lay | RHOL |
| Finish | Galvanised (dry lube) |
| MBF (kN) | 59.3 |
| Approx. Mass (kg/100 m) | 32 |
| Length (m) | 610 |
| Termination | Swaged thimble eye (inside end of reel) |
Supplied with
- Lay (RHOL): right hand ordinary lay, with the strands laid to the right and the wires in each strand to the left
- MBF: minimum breaking force in kN. This is not a working load limit
- Approx. mass: kilograms per 100 m of rope
Choosing the right option
MBF is the minimum breaking force of the rope, in kilonewtons (kN). It is not a working load limit. The load a rope can safely carry depends on how it is terminated and rigged and on the safety factor your application needs. That table is for slings and does not cover the rope.
The this rope is dry lube galvanised wire rope with a swaged thimble eye on the inside of the reel. Do not assume the termination carries the full rope breaking force.
MBF is the minimum breaking force, not a working load limit.
Choose the diameter and construction for your application, then check the breaking force against the safety factor you need. Match thimbles, ferrules, grips and sheaves to the rope diameter.
Other Beaver wire rope: Beaver G1570 6 x 24 Fibre Core RHOL Galvanised Wire Rope Dry Lube - 100 m and 500 m Reels, Beaver G1570 6 x 24 Fibre Core RHOL A2 Galvanised Wire Rope Dry Lube - 1000 m Reels, Beaver G1570 6 x 19 Fibre Core RHOL Galvanised Wire Rope Dry Lube, Beaver G1570 6 x 7 Fibre Core RHOL Galvanised Wire Rope Dry Lube.
Related wire rope fittings: Beaver Galvanised Wire Rope Grips - Not for Lifting, Beaver Hot Dipped Galvanised Wire Rope Thimbles, Beaver Aluminium Wire Rope Ferrules.
| Code | Wire dia (mm) | MBF of rope (kN) | Approx. mass (kg/100 m) | Length (m) |
|---|---|---|---|---|
| 7083096 | 9 | 59.3 | 32 | 610 |
