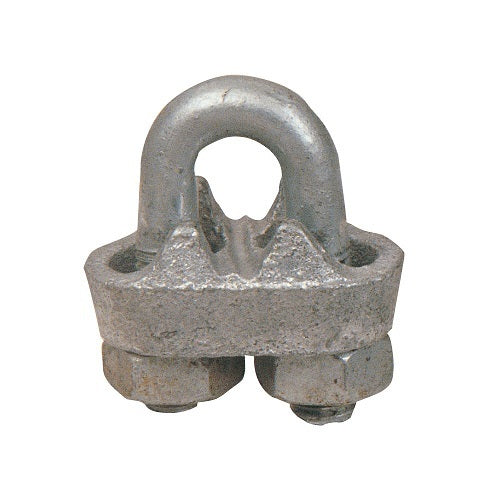

Beaver Galvanised Wire Rope Grip 6 mm (303306) - Not for Lifting

Beaver galvanised wire rope grips are U-bolt style grips sized by wire rope diameter. Beaver lists them as hot dipped galvanised and states they are rated to AS 2076 (manufacturer-stated). Beaver also states that these grips are not suitable for lifting. This listing carries six sizes, for rope from 6 mm to 32 mm. Beaver's range also lists 8 mm, 9 to 10 mm, 20 mm, 24 to 26 mm, 28 mm and 38 mm.

A wire rope grip clamps two parts of a wire rope together, for example where a rope is turned back on itself. Match the grip size to the rope diameter and use the grip only for work that does not involve lifting. Beaver does not publish fitting instructions, torque values or the number of grips needed per termination for this range. Set the grips up to your site procedure and have a competent person check the termination before it goes into service.

Where this product is used

• General rope clamping where a galvanised U-bolt grip is wanted and the job does not involve lifting; Beaver lists no specific applications for these grips and states they are not suitable for lifting (manufacturer-stated)

Features

• Hot dipped galvanised grips, with the U-bolt finish listed for each size (manufacturer-stated)
• Beaver states these grips are rated to AS 2076 (manufacturer-stated)
• Not suitable for lifting (manufacturer-stated)
• Six sizes in this listing, 6 mm to 32 mm wire rope (manufacturer-stated)
• Beaver pack quantities from 400 down to 20, by size (manufacturer-stated)

Not for lifting

This product is not rated for lifting. Do not use it to lift or suspend loads. For lifting applications use a rated lifting product marked with a working load limit (WLL). Beaver states these grips are not suitable for lifting.

Fitting the grips

Beaver does not publish fitting instructions, torque values or the number of grips needed per termination for this range. Set the grips up to your site procedure and have a competent person check the termination before it goes into service.

Key specifications

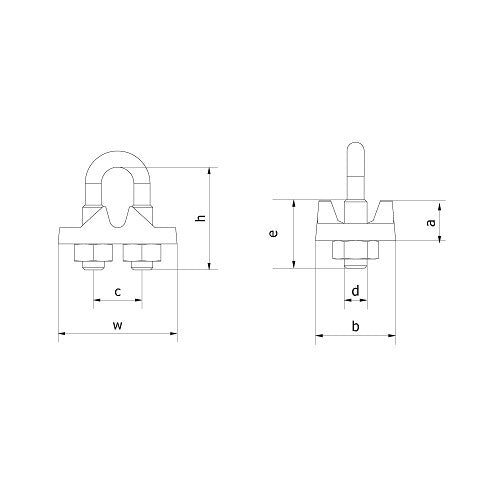

Codes, sizes, dimensions and pack quantities are from Beaver's Materials Handling Technical Manual (Vol. 4) and the Beaver website. All dimensions are in millimetres. Beaver does not define the dimension letters c, h, w, e, d, b and a. Beaver sells the grips singly (unit of measure: each) and lists the pack quantity shown.

Selecting the right option

Choose the grip size by the diameter of the wire rope. For any lifting application use a rated lifting product marked with a working load limit (WLL).
