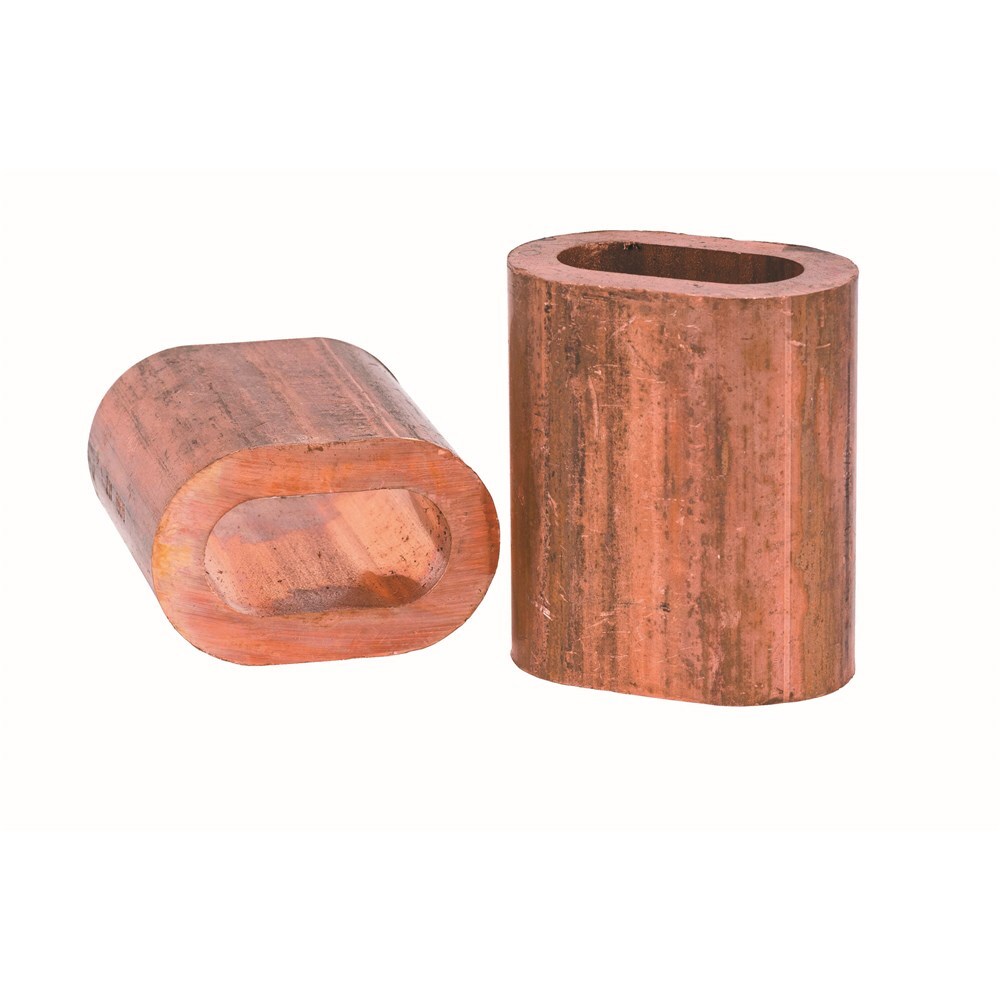

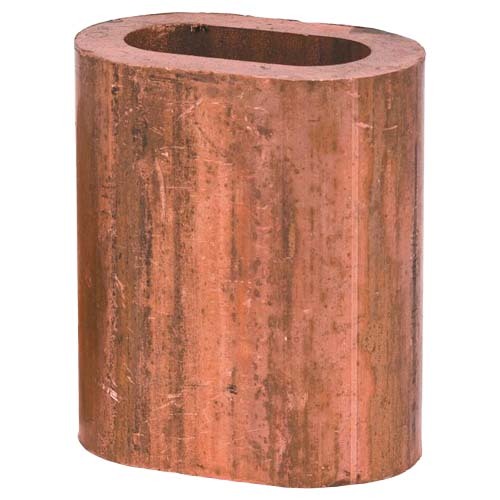

Beaver copper wire rope ferrules, 2.5 (3/32")
Available
Beaver copper wire rope ferrules are sleeves made by Beaver to DIN 3093. A ferrule (swaged sleeve) is a sleeve pressed onto wire rope with a swaging tool to form a termination such as an eye. Beaver's copper range runs from 2mm to 20mm.
Match the ferrule size to the rope diameter and the swaging tool.
Where this product is used
- Forming loops and eyes in wire rope
- Making up wire rope slings
Features
- Copper ferrules made to DIN 3093
- Three sizes: 2.5, 3.5 and 6.5mm
- Dimensions a, b, c and L and pack quantity for each size
- No breaking load or termination efficiency
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Wire Rope Ferrule |
Choosing the right option
A ferrule termination is only as sound as the combination of rope, ferrule, press tool and procedure used to make it. If the assembly will be used for lifting, have it made and tested by a qualified rigger or assembler.
Ferrules are sized to the nominal diameter of the wire rope.
Related wire rope fittings: Beaver Galvanised Wire Rope Grips - Not for Lifting, Beaver Commercial Electro Galvanised Wire Rope Grips, Pail Quantities - Not for Lifting, Beaver G316 Stainless Steel Wire Rope Grips - Not for Lifting, Beaver Hot Dipped Galvanised Wire Rope Thimbles.
Beaver wire rope: Beaver G2070 7 x 7 Galvanised Wire Rope, Beaver G2070 7 x 19 Galvanised Wire Rope, Beaver G1770 6 x 36 Galvanised Wire Rope, Beaver G1570 6 x 19 Fibre Core RHOL Galvanised Wire Rope Dry Lube.
Commercial galvanised thimbles for non-lifting use: Beaver Commercial Galvanised Wire Rope Thimbles.
| Code | Size (mm) | A (mm) | B (mm) | C (mm) | L (mm) | Beaver pack qty |
|---|---|---|---|---|---|---|
| 617402A | 2.5 | 2.7 | 5.4 | 1.05 | 9 | 5000 |
| 617403A | 3.5 | 3.8 | 7.6 | 1.5 | 13 | 3000 |
| 617406A | 6.5 | 7.2 | 14.4 | 2.7 | 23 | 1000 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Beaver Copper Wire Rope Ferrules: 2.5 (3/32")
SKU: A0103159 | Model: 617402A
Beaver 617402A copper wire rope ferrule, size 2.5mm (3/32"), 2.7 x 5.4 x 1.05mm, L 9mm.
