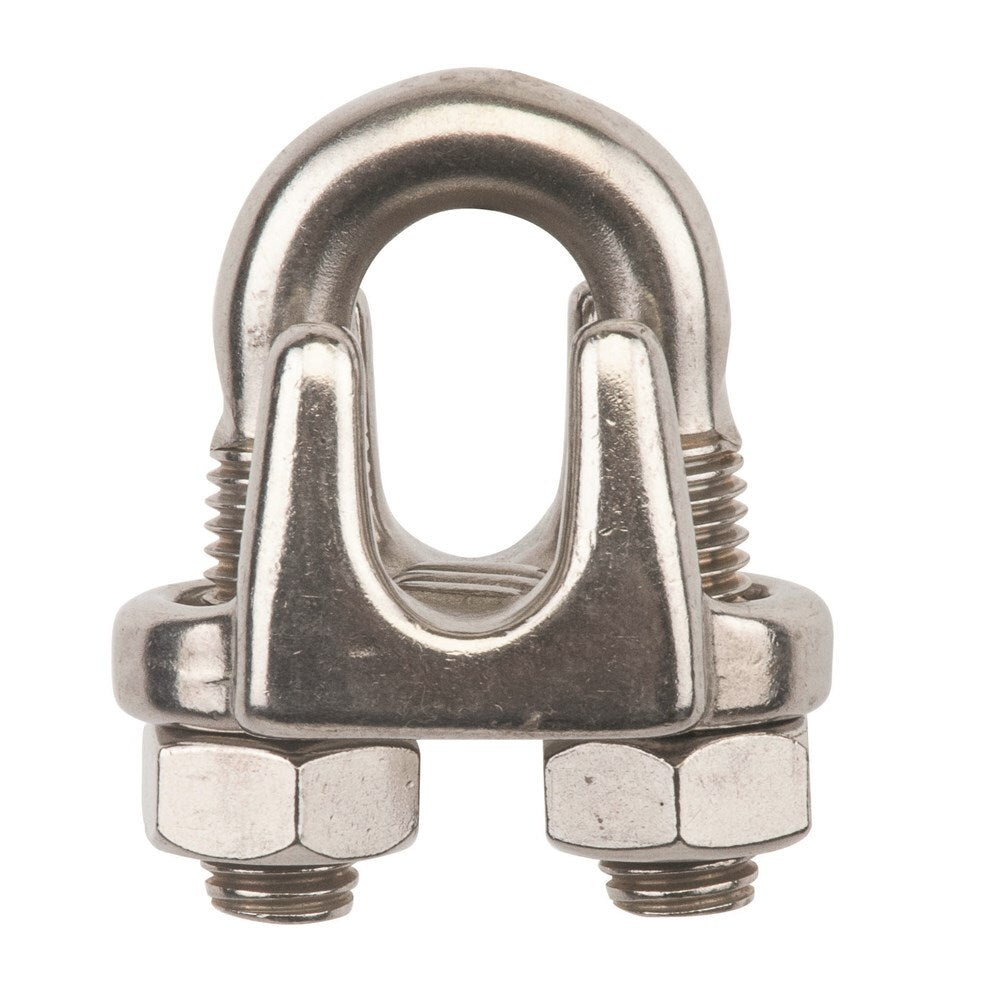

Beaver G316 Stainless Steel Wire Rope Grip 2 mm (612202) - Not for Lifting

Beaver G316 stainless steel wire rope grips are U-bolt style grips made by Beaver from Grade 316 stainless steel and sized by wire rope diameter. Beaver states that this fitting is not to be used for lifting. This listing carries eight sizes, for rope from 2 mm to 12 mm. Beaver's range also lists 14 mm and 16 mm (612214, 612216).

Beaver says Grade 316 stainless steel is also known as marine grade stainless steel, has high corrosion resistance and is better in harsher corrosive applications such as salt water environments. Beaver also says it is suitable for food and pharmaceutical processing applications and is commonly used on boats and in coastal environments (manufacturer-stated). Beaver does not publish fitting instructions, torque values or the number of grips needed per termination for this range. Set the grips up to your site procedure and have a competent person check the termination before it goes into service.

Where this product is used

• Non-lifting rope clamping where a Grade 316 stainless steel grip is wanted, including the boat, coastal, and food and pharmaceutical processing uses Beaver names for its Grade 316 fittings (manufacturer-stated). Beaver states this fitting is not to be used for lifting

Features

• Grade 316 stainless steel, described by Beaver as marine grade (manufacturer-stated)
• Beaver says the grade has high corrosion resistance and suits salt water environments (manufacturer-stated)
• Beaver says it suits food and pharmaceutical processing and is commonly used on boats and in coastal environments (manufacturer-stated)
• Not to be used for lifting (manufacturer-stated)
• Eight sizes in this listing, 2 mm to 12 mm wire rope, with weight and pack quantity listed for each (manufacturer-stated)

Not for lifting

This product is not rated for lifting. Do not use it to lift or suspend loads. For lifting applications use a rated lifting product marked with a working load limit (WLL). Beaver states this fitting is not to be used for lifting.

Fitting the grips

Beaver does not publish fitting instructions, torque values or the number of grips needed per termination for this range. Set the grips up to your site procedure and have a competent person check the termination before it goes into service.

Key specifications

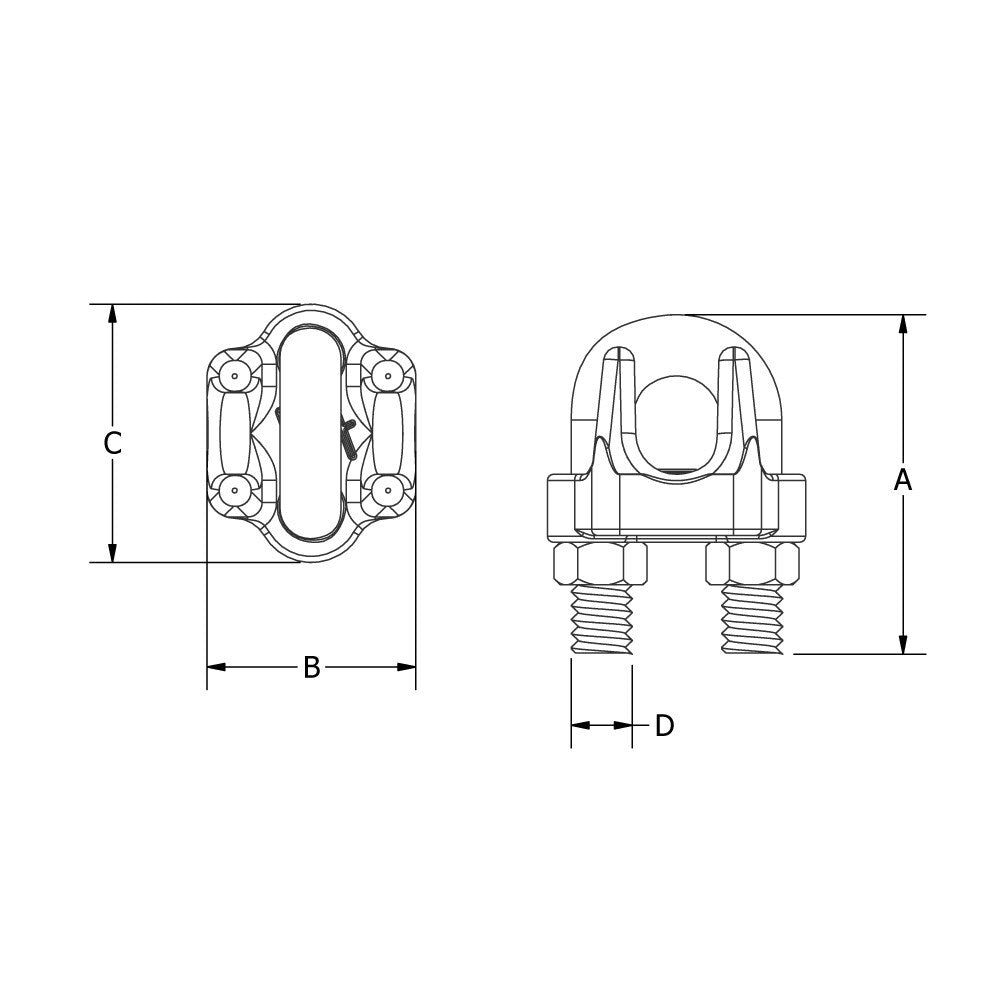

Codes, sizes, dimensions and pack quantities are from Beaver's Materials Handling Technical Manual (Vol. 4) and the Beaver website. Beaver does not define the dimension letters A, B, C and D (D is listed as a metric thread size). Where the Beaver website and manual differ, the manual value is shown.

Selecting the right option

Choose the grip size by the diameter of the wire rope. Stainless steel grips are normally used with stainless steel rope in corrosive conditions. For any lifting application use a rated lifting product marked with a working load limit (WLL).
