Beaver G316 Stainless Steel Wire Rope Thimble 2 mm (612302) - Not for Lifting
Available

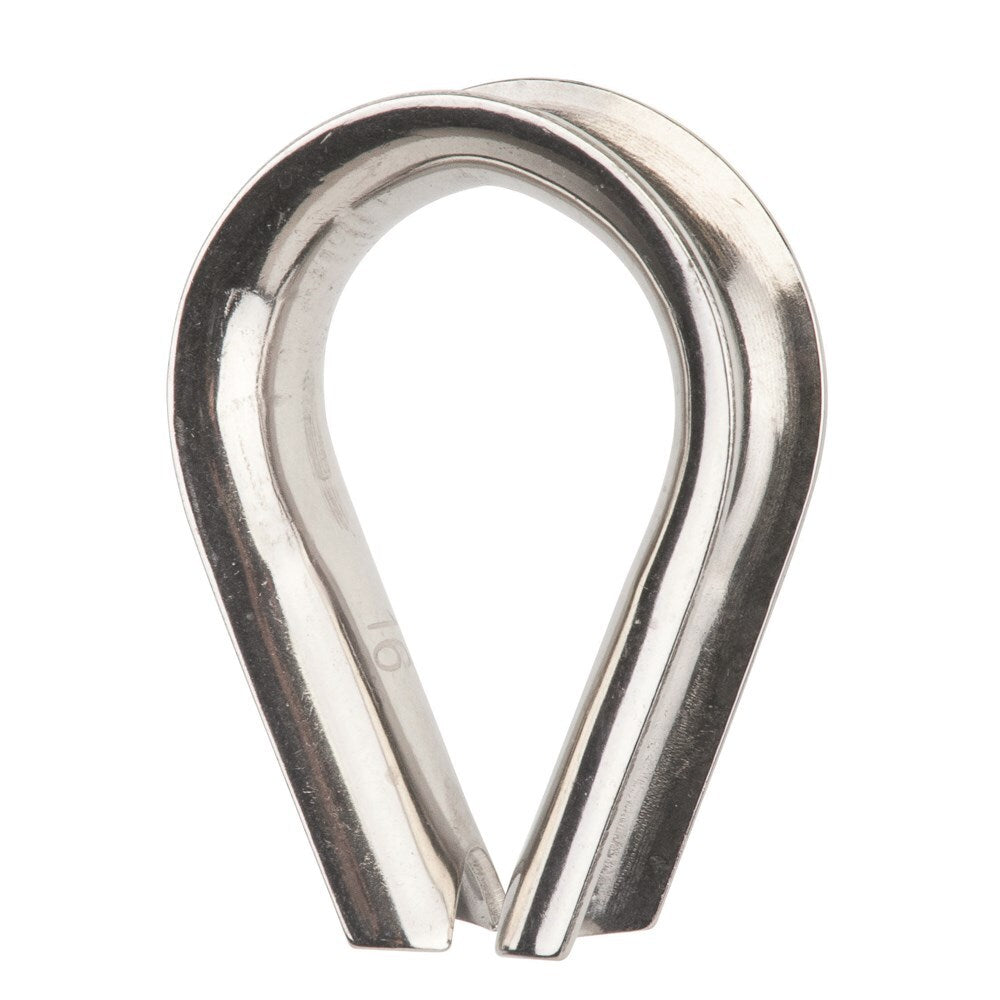

Beaver G316 stainless steel wire rope thimbles are made by Beaver from Grade 316 stainless steel and sized by wire rope diameter. A thimble holds the eye formed in a wire rope in shape and protects the rope where it bends around the eye. Beaver states that this fitting is not to be used for lifting. This listing carries seven sizes, for rope from 2 mm to 12 mm. Beaver's range also lists 10 mm and 16 mm (612310, 612316).
Beaver says Grade 316 stainless steel is also known as marine grade stainless steel, has high corrosion resistance and is better in harsher corrosive applications such as salt water environments. Beaver also says it is suitable for food and pharmaceutical processing applications and is commonly used on boats and in coastal environments (manufacturer-stated).
Where this product is used
- Non-lifting rope eyes where a Grade 316 stainless steel thimble is wanted, including the boat, coastal, and food and pharmaceutical processing uses Beaver names for its Grade 316 fittings (manufacturer-stated). Beaver states this fitting is not to be used for lifting
Features
- Grade 316 stainless steel, described by Beaver as marine grade (manufacturer-stated)
- Beaver says the grade has high corrosion resistance and suits salt water environments (manufacturer-stated)
- Beaver says it suits food and pharmaceutical processing and is commonly used on boats and in coastal environments (manufacturer-stated)
- Not to be used for lifting (manufacturer-stated)
- Seven sizes in this listing, 2 mm to 12 mm wire rope, with dimensions, weight and pack quantity listed for each (manufacturer-stated)
Not for lifting
This product is not rated for lifting. Do not use it to lift or suspend loads. For lifting applications use a rated lifting product marked with a working load limit (WLL). Beaver states this fitting is not to be used for lifting.
Key specifications
| Code | Wire rope dia (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Weight (kg each) | Beaver pack qty |
|---|---|---|---|---|---|---|---|---|
| 612302 | 2 | 20.6 | 18 | 7.5 | 4.5 | 3 | 0.005 | 1000 |
| 612303 | 3 | 24.3 | 21 | 10 | 6 | 4.3 | 0.007 | 800 |
| 612304 | 4 | 27.8 | 24.8 | 11 | 6.6 | 5.2 | 0.008 | 500 |
| 612305 | 5 | 30.5 | 26 | 13 | 8.5 | 6.8 | 0.009 | 400 |
| 612306 | 6 | 37 | 32.6 | 15.5 | 10 | 8.8 | 0.01 | 250 |
| 612308 | 8 | 51.5 | 45.5 | 23 | 12.5 | 10 | 0.02 | 130 |
| 612312 | 12 | 68 | 61 | 32.5 | 18 | 14.5 | 0.05 | 30 |

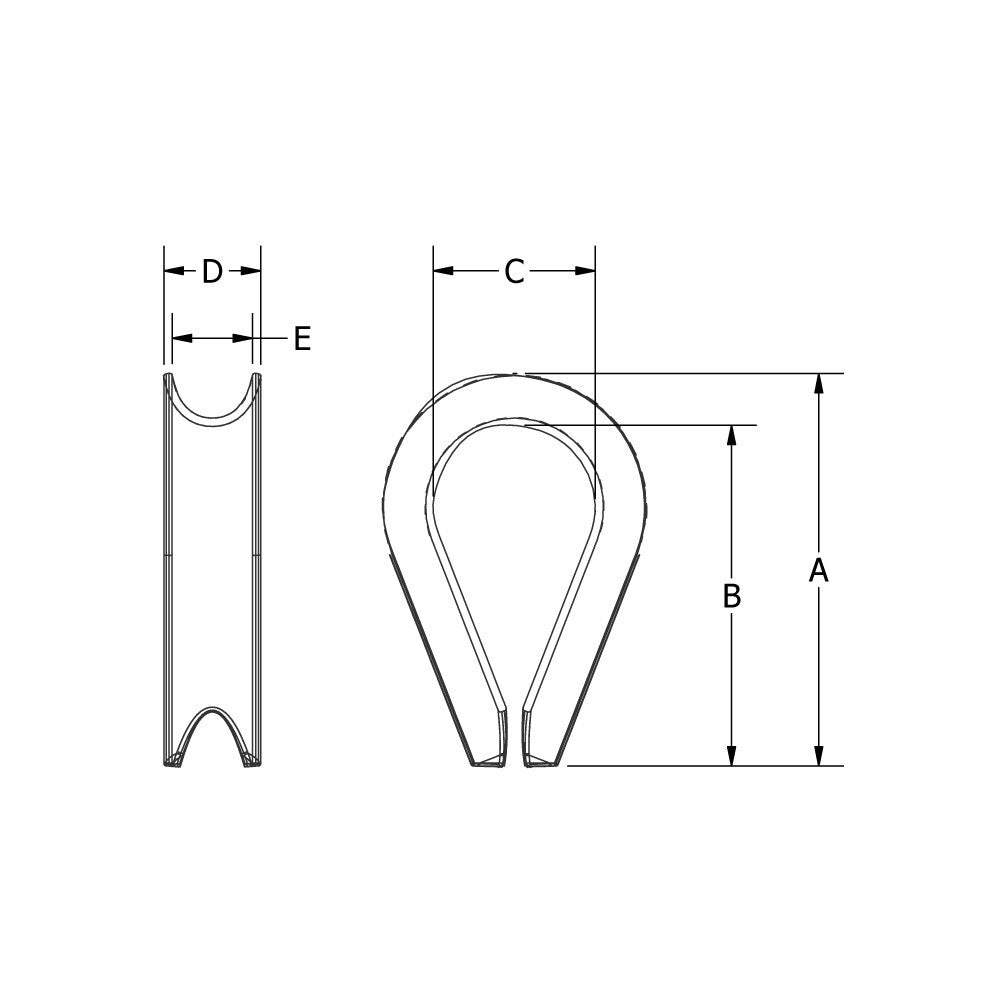

Codes, sizes, dimensions and pack quantities are from Beaver's Materials Handling Technical Manual (Vol. 4) and the Beaver website. Beaver does not define the dimension letters A, B, C, D and E.
Selecting the right option
Choose the thimble size by the diameter of the wire rope and check the dimensions against the shackle or connector the eye will bear on. For any lifting application use a rated lifting product marked with a working load limit (WLL).
Related products
Related wire rope fittings: galvanised wire rope grips, commercial electro galvanised wire rope grips (pail), G316 stainless steel wire rope grips, hot dipped galvanised wire rope thimbles, copper wire rope ferrules, nickel plated copper wire rope ferrules, aluminium wire rope ferrules. Beaver wire rope: G2070 7 x 7 wire rope, G2070 7 x 19 wire rope, G1770 6 x 36 wire rope and G1570 6 x 19 fibre core wire rope. Commercial galvanised thimbles for non-lifting use: Beaver commercial galvanised wire rope thimbles. Check each fitting is sized for the rope diameter and suits the job before you order.
