Beaver Nickel Plated Copper Wire Rope Ferrule, Size 1.6 mm (1/16 in) (617416NP)

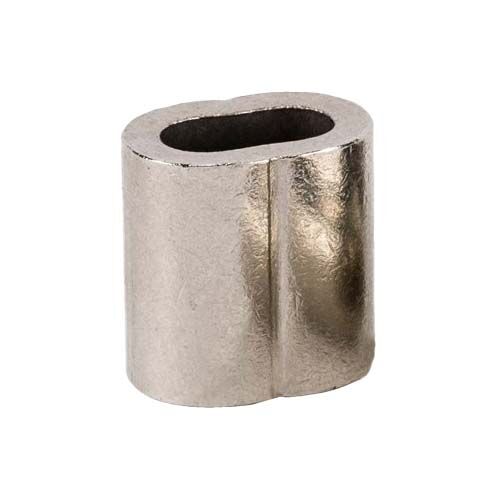

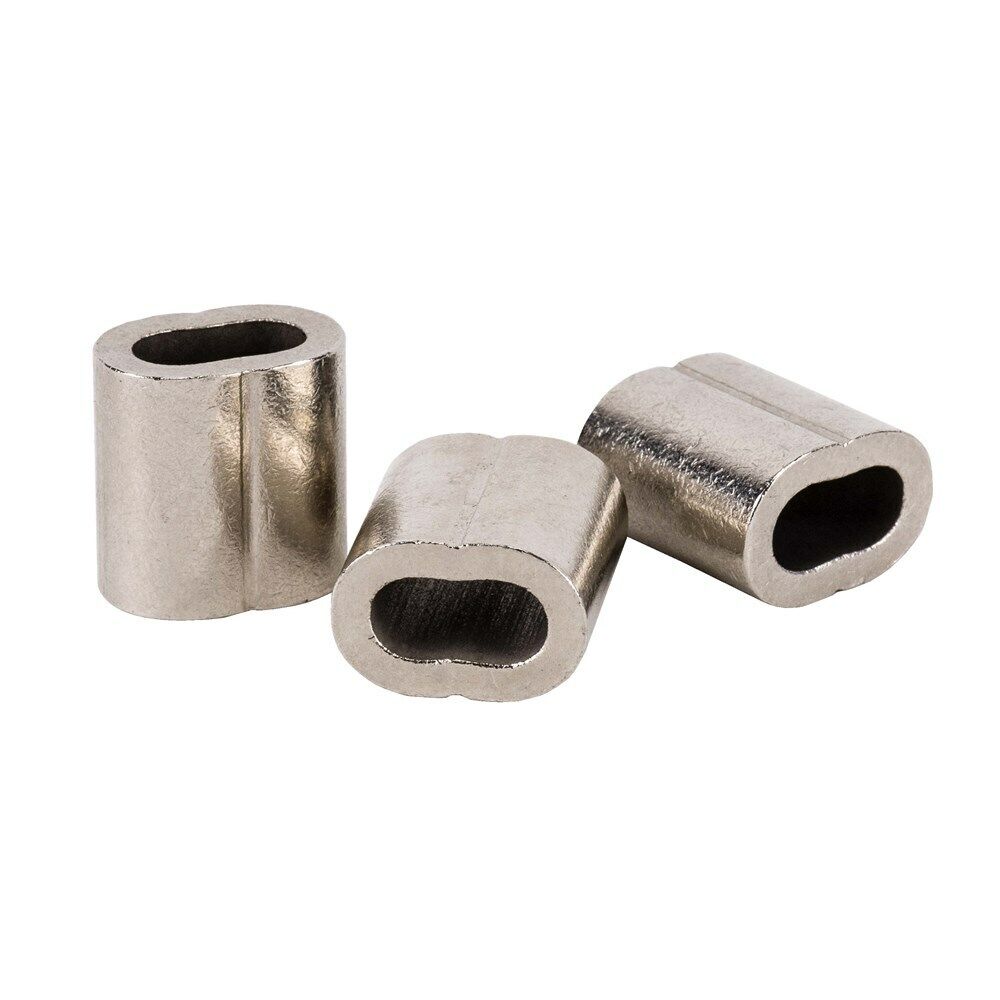

Beaver nickel plated copper wire rope ferrules are copper sleeves with a nickel plated finish, made by Beaver to DIN 3093 (manufacturer-stated). A ferrule (swaged sleeve) is a sleeve pressed onto wire rope with a swaging tool to form a termination such as an eye. This listing carries three sizes: 1.6 mm, 2.5 mm (3/32 in) and 4 mm (5/32 in). Beaver's nickel plated range also lists 2, 3, 5 and 6 mm.

Beaver lists each size with its dimensions and pack quantity, and gives no application, swaging instructions or breaking load for the nickel plated ferrules. Match the ferrule size to the rope diameter and the swaging tool.

Where this product is used

• Swaged terminations in wire rope where a nickel plated copper ferrule is wanted; Beaver lists no specific application for its nickel plated ferrules (manufacturer-stated)

Features

• Nickel plated copper ferrules made to DIN 3093 (manufacturer-stated)
• Three sizes in this listing: 1.6, 2.5 and 4 mm (manufacturer-stated)
• Dimensions a, b, c and L and pack quantity listed for each size (manufacturer-stated)
• No breaking load or termination efficiency published by Beaver

Terminations and lifting

A ferrule termination is only as sound as the combination of rope, ferrule, press tool and procedure used to make it. Beaver publishes no breaking load, termination efficiency, swaging instructions or press settings for these ferrules. If the assembly will be used for lifting, have it made and tested by a qualified rigger or assembler. Beaver also says it can supply manufactured slings made to order (manufacturer-stated).

Key specifications

Codes, sizes, dimensions and pack quantities are from Beaver's Materials Handling Technical Manual (Vol. 4) and the Beaver website. Beaver does not define the dimension letters a, b, c and L, and lists the size under the heading "Size". Beaver sells the ferrules singly (unit of measure: each) and lists the pack quantity shown.

Selecting the right option

Ferrules are sized to the nominal diameter of the wire rope. Confirm the size for your rope and swaging tool before ordering, and use the dimensions in the table (Beaver does not define the letters a, b, c and L) to check the fit.
