Beaver electro galvanised long link proof coil chain
Available
Beaver long link proof coil chain in an electro galvanised finish is a commercial chain, in 5 and 8mm. It is a non-rated chain, manufactured from low carbon steel, for general purpose use only. "proof coil" relates to the number of consistent links in any one length.
Proof coil chain is a non-rated chain for general purpose use only and is not suitable for any lifting purposes. Do not use it to lift or suspend loads or where a rated chain is required.
Where this product is used
- General purpose use only
- Applications where a non-rated chain is acceptable and no load rating is required
Features
- Non-rated commercial chain, general purpose use only
- Low carbon steel
- Electro galvanised finish
- Long link in 5 and 8mm
- Sold by the metre
- Not suitable for lifting purposes
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Proof Coil Chain |
Choosing the right option
Metres per drum are subject to plus or minus 10 percent on actual metreage.
Choose the size for your application. This chain is not rated. Do not use it to lift or suspend loads. For lifting applications use a rated lifting chain marked with a working load limit (WLL).
Other Beaver long link chain: Beaver Long Link Proof Coil Chain Galvanised, Beaver Proof Coil Chain Long Link.

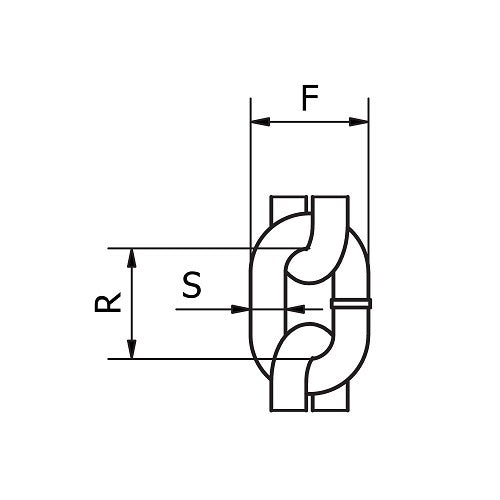

| Code | Size (mm) | S / R / F (mm) | Metres per 100kg (approx.) |
|---|---|---|---|
| 130205 | 5 | 5 / 29.3 / 21.8 | 206 |
| 130208 | 8 | 8 / 41.2 / 31.9 | 78.1 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Beaver Electro Proof Coil Chain Galvanised: 5
SKU: A0111998 | Model: 130205
Beaver 130205 electro galvanised long link proof coil chain, 5mm. Non-rated, general purpose only, not for lifting.
