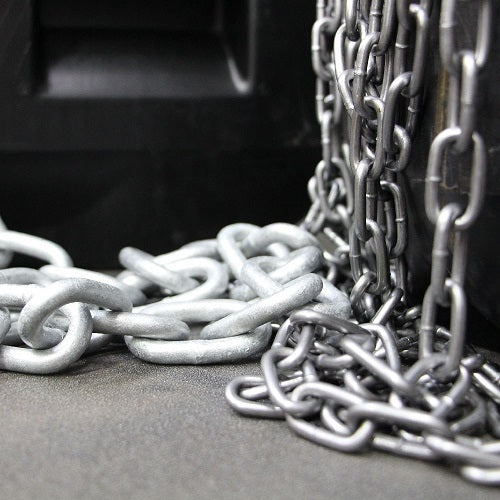

Beaver Galvanised Long Link Proof Coil Chain, 5 mm (130305)

Beaver long link proof coil chain in a hot dipped galvanised finish is a commercial chain in 5 to 10 mm. Beaver states that it is a non-rated chain, manufactured from low carbon steel, for general purpose use only. Beaver states that "proof coil" relates to the number of consistent links in any one length.

Beaver states that proof coil chain is a non-rated chain for general purpose use only and is not suitable for any lifting purposes. Beaver does not publish a working load limit (WLL) for it, so do not use it to lift or suspend loads or where a rated chain is required.

Where this product is used

• General purpose use only, as Beaver describes it (manufacturer-stated)
• Applications where a non-rated chain is acceptable and no load rating is required

Features

• Non-rated commercial chain, general purpose use only (manufacturer-stated)
• Low carbon steel (manufacturer-stated)
• Hot dipped galvanised finish (manufacturer-stated)

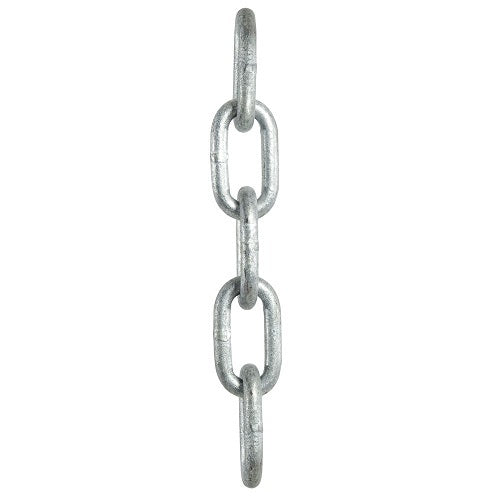

• Long link in 5, 6, 8 and 10 mm
• Sold by the metre
• Not suitable for lifting purposes (manufacturer-stated)

Key specifications

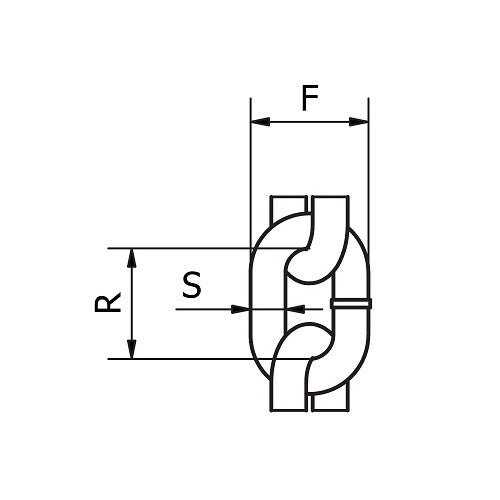

Codes, sizes, dimensions and metres per 100 kg are from Beaver's Materials Handling Technical Manual (Vol. 4) and Beaver's website, which agree. S, R and F are Beaver's dimension columns; Beaver does not define the letters. Metres per drum are subject to plus or minus 10 percent on actual metreage.

Selecting the right option

Choose the size for your application. This chain is not rated. Do not use it to lift or suspend loads. For lifting applications use a rated lifting chain marked with a working load limit (WLL).

Related products

Other Beaver long link chain: electro galvanised long link proof coil chain, long link proof coil chain in 25 kg pails, regular link proof coil chain.
