Beaver proof coil chain, 3 / Hot Dipped Galvanised
Available
Beaver regular link proof coil chain is a commercial chain in self colour and hot dipped galvanised finishes, in 3 to 24mm. It is a non-rated chain, manufactured from low carbon steel, for general purpose use only. "proof coil" relates to the number of consistent links in any one length.
Proof coil chain is a non-rated chain for general purpose use only and is not suitable for any lifting purposes. Do not use it to lift or suspend loads or where a rated chain is required.
Where this product is used
- General purpose use only
- Applications where a non-rated chain is acceptable and no load rating is required
Features
- Non-rated commercial chain, general purpose use only
- Low carbon steel
- Self colour and hot dipped galvanised finishes
- Regular link in 3, 5, 6, 8, 10, 13, 16, 20 and 24mm
- Sold by the metre
- Not suitable for any lifting purposes
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Proof Coil Chain |
Choosing the right option
Metres per drum are subject to plus or minus 10 percent on actual metreage.
Choose the size and finish for your application. Self colour is uncoated; galvanised is hot dipped. This chain is not rated. Do not use it to lift or suspend loads. For lifting applications use a rated lifting chain marked with a working load limit (WLL).
Other Beaver chain: Beaver Long Link Proof Coil Chain Galvanised, Beaver Hardware Chain Regular Link Galvanised - Bulk (3mm to 13mm), Beaver Proof Coil Chain Regular Link Galvanised.

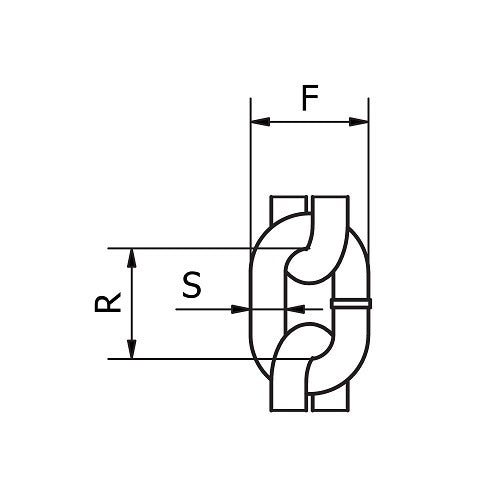

| Code | Size (mm) | Finish | S / R / F (mm) | Metres per 100kg (approx.) |
|---|---|---|---|---|
| 100303 | 3 | Hot dipped galvanised | 3 / 16.6 / 13.1 | 534 |
| 100305 | 5 | Hot dipped galvanised | 4.7 / 25 / 18 | 230 |
| 100306 | 6 | Hot dipped galvanised | 6 / 27 / 24 | 132 |
| 100310 | 10 | Hot dipped galvanised | 9.5 / 43.4 / 34 | 56 |
| 100313 | 13 | Hot dipped galvanised | 13 / 50 / 46 | 28 |
| 100316 | 16 | Hot dipped galvanised | 15.8 / 60 / 56 | 19 |
| 100320 | 20 | Hot dipped galvanised | 19.8 / 72 / 70 | 12 |
| 100324 | 24 | Hot dipped galvanised | 25 / 90 / 85 | 7.8 |
| 100106 | 6 | Self colour | 6 / 27 / 24 | 140 |
| 100108 | 8 | Self colour | 7.6 / 35.8 / 29.2 | 90 |
| 100110 | 10 | Self colour | 9.5 / 43.4 / 34 | 58 |
| 100113 | 13 | Self colour | 13 / 50 / 46 | 29 |
| 100116 | 16 | Self colour | 15.8 / 60 / 56 | 20 |
| 100120 | 20 | Self colour | 19.8 / 72 / 70 | 12.6 |
| 100124 | 24 | Self colour | 25 / 90 / 85 | 8 |
