Beaver g1570 6x19 blue PVC coated wire rope, 3-5
Available
Beaver PVC coated G1570 6 x 19 wire rope is galvanised steel wire rope with a fibre core in right hand ordinary lay (RHOL), covered in a blue PVC coating, SKU A0112062.
More load bearing wires in a rope give greater flexibility, and the core is the foundation for the strands and keeps them in place through the life of the rope.
Where this product is used
- Towing and lifting applications
- Making up wire rope slings and rigging assemblies
Features
- Construction 6 x 19 with a fibre core, right hand ordinary lay (RHOL)
- Grade 1570 galvanised wire
- Blue PVC coating over galvanised wire
- Wire diameter and PVC outside diameter both for each size
- Minimum breaking force 4.34 to 48.2 kN across the range
- Each variant comes in diameter, MBF, mass per 100 m and reel length
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Wire Rope |
Supplied with

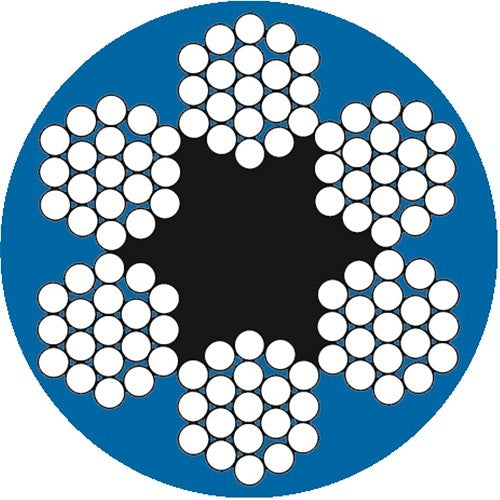

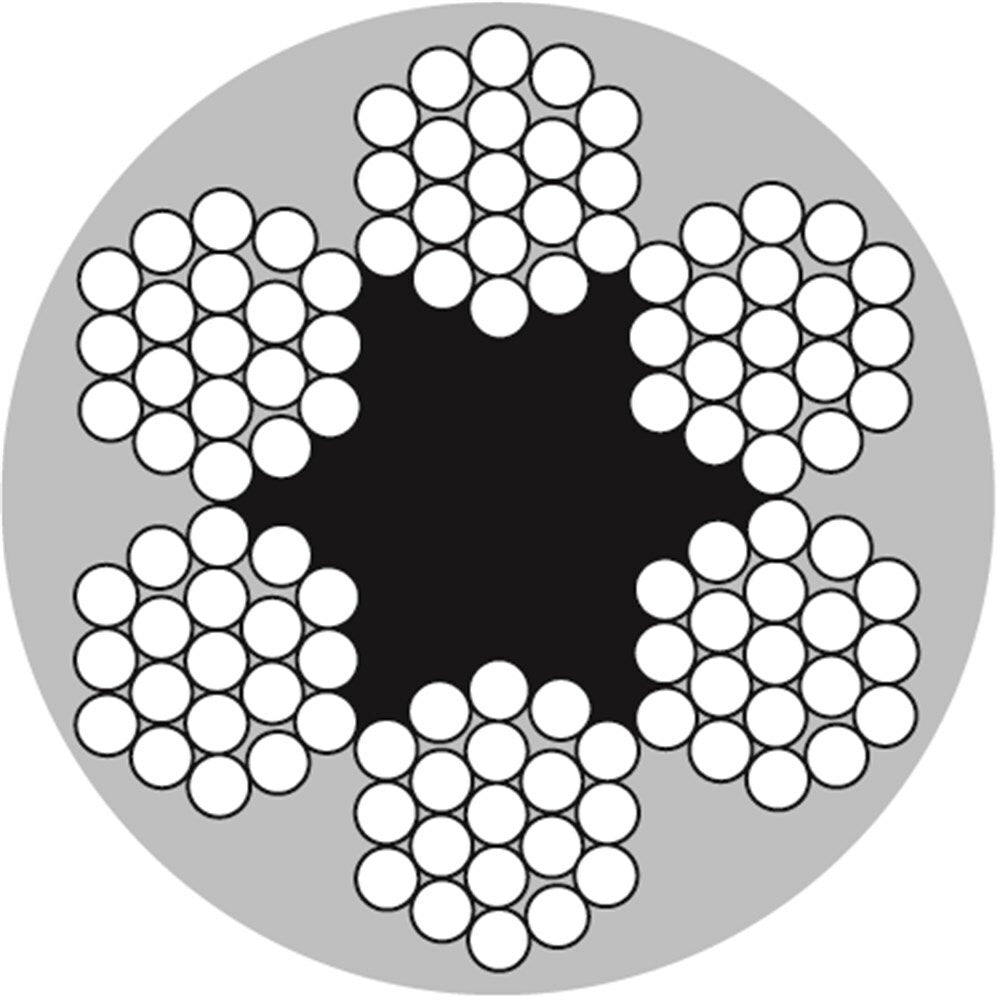

- Construction: six strands of 19 wires each, laid around a fibre core (6 x 19 FC), with a PVC coating over the galvanised wire
- Lay (RHOL): right hand ordinary lay, with the strands laid to the right and the wires in each strand to the left
- MBF: minimum breaking force in kN. This is not a working load limit
- Approx. mass: kilograms per 100 m of rope
Choosing the right option
MBF is the minimum breaking force of the rope, in kilonewtons (kN). It is not a working load limit. The load a rope can safely carry depends on how it is terminated and rigged and on the safety factor your application needs. That table is for slings and does not cover the rope.
MBF is the minimum breaking force, not a working load limit.
Choose the diameter and construction for your application, then check the breaking force against the safety factor you need. Match thimbles, ferrules, grips and sheaves to the rope diameter.
Other Beaver wire rope: Beaver G1570 6 x 24 Fibre Core RHOL Galvanised Wire Rope Dry Lube - 100 m and 500 m Reels, Beaver G1570 6 x 24 Fibre Core RHOL A2 Galvanised Wire Rope Dry Lube - 1000 m Reels, Beaver G1570 6 x 19 Fibre Core RHOL Galvanised Wire Rope Dry Lube, Beaver G1570 6 x 7 Fibre Core RHOL Galvanised Wire Rope Dry Lube.
Related wire rope fittings: Beaver Galvanised Wire Rope Grips - Not for Lifting, Beaver Hot Dipped Galvanised Wire Rope Thimbles, Beaver Aluminium Wire Rope Ferrules.
| Code | Wire dia (mm) | PVC OD (mm) | Colour | MBF (kN) | Approx. mass (kg/100 m) | Reel (m) |
|---|---|---|---|---|---|---|
| 706030 | 3 | 5 | Blue | 4.34 | 3.16 | 1,000 |
| 706030A | 3.5 | 5.5 | Blue | 5.92 | 4.2 | 1,000 |
| 706040 | 4 | 6 | Blue | 7.72 | 5.5 | 1,000 |
| 706050 | 5 | 7 | Blue | 12.06 | 8.6 | 1,000 |
| 706060 | 6 | 8 | Blue | 17.39 | 12.4 | 1,000 |
| 706100 | 10 | 12 | Blue | 48.2 | 34.6 | 1,000 |
