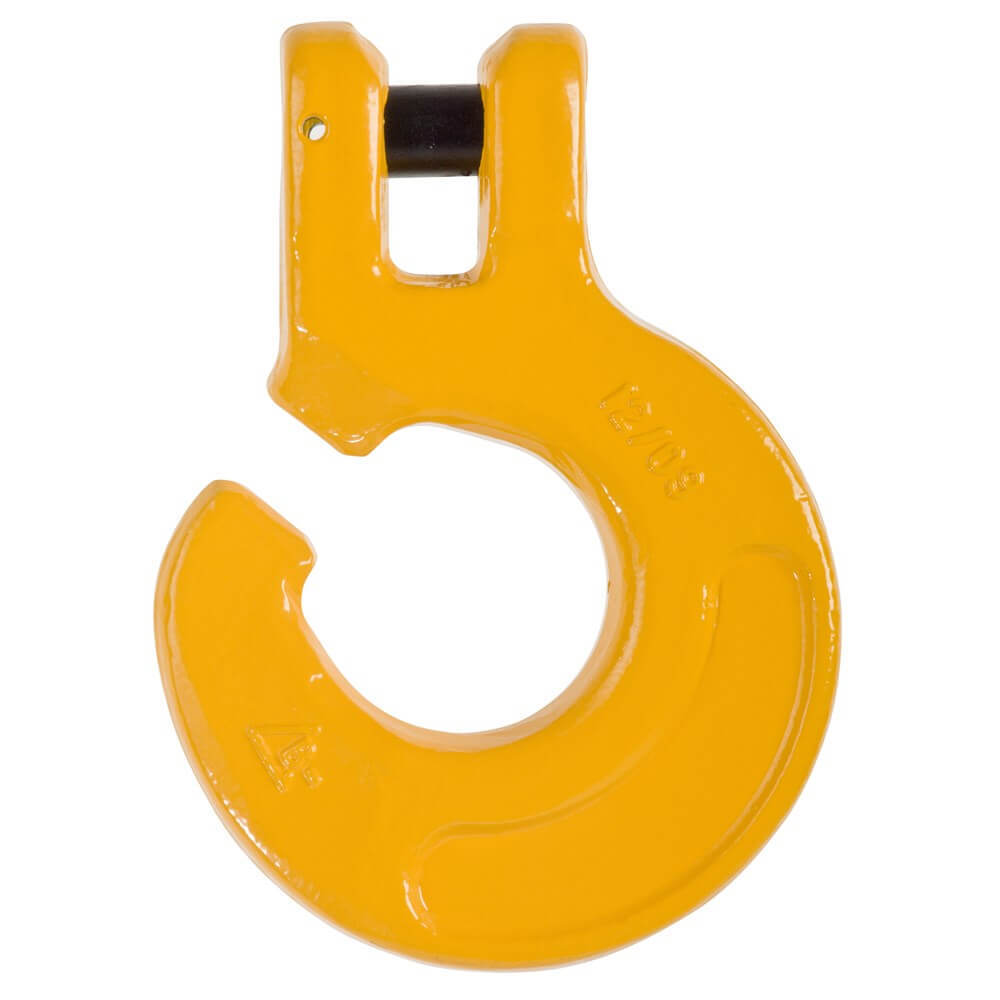

Beaver G80 Clevis Choker Hook 10 mm, 3.2 t WLL (888810)

This Beaver Grade 80 clevis choker hook suits 10 mm Grade 80 chain, with a working load limit (WLL) of 3,200 kg (3.2 t). Beaver lists it in its Grade 80 lifting components, marked "No Deration".

Beaver states that its Grade 80 lifting components are made from heat treated alloy steel, are tested throughout manufacture, and meet AS 3776, Lifting Components for Grade T Chain Slings. They carry distinguishing marks, including the brand, grade and size and a date of manufacture and batch ID.

Where this product is used

• Heavy duty lifting with Grade 80 chain (manufacturer-stated)

Features

• Grade 80 clevis choker hook, WLL 3,200 kg (3.2 t)
• Marked "No Deration" in Beaver's manual
• Marked with brand, grade and size, date of manufacture and batch ID (manufacturer-stated)
• Meets AS 3776, Lifting Components for Grade T Chain Slings (manufacturer-stated)

Key specifications

Weights and codes are from Beaver's Materials Handling Technical Manual (Vol. 4) and are approximate. Chain size is the Grade 80 chain size the component suits.

Selecting the right option

Choose the size by the WLL and the chain size it must match, and make sure every part of the assembly (chain, link, hook and lifting point) is Grade 80 and rated for the load. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Related products

Other Beaver Grade 80 components: clevis sling hooks with safety latch, clevis self locking safety hooks, clevis shortening grab hooks.
