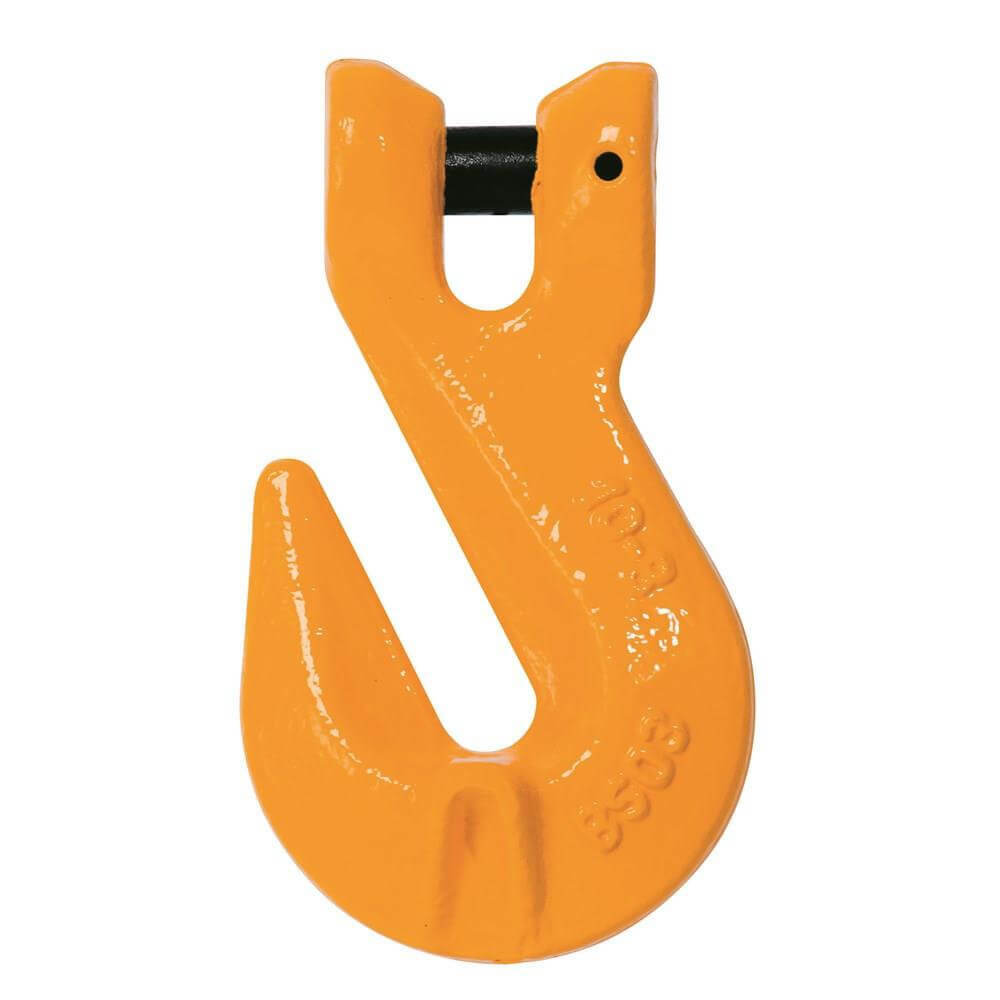

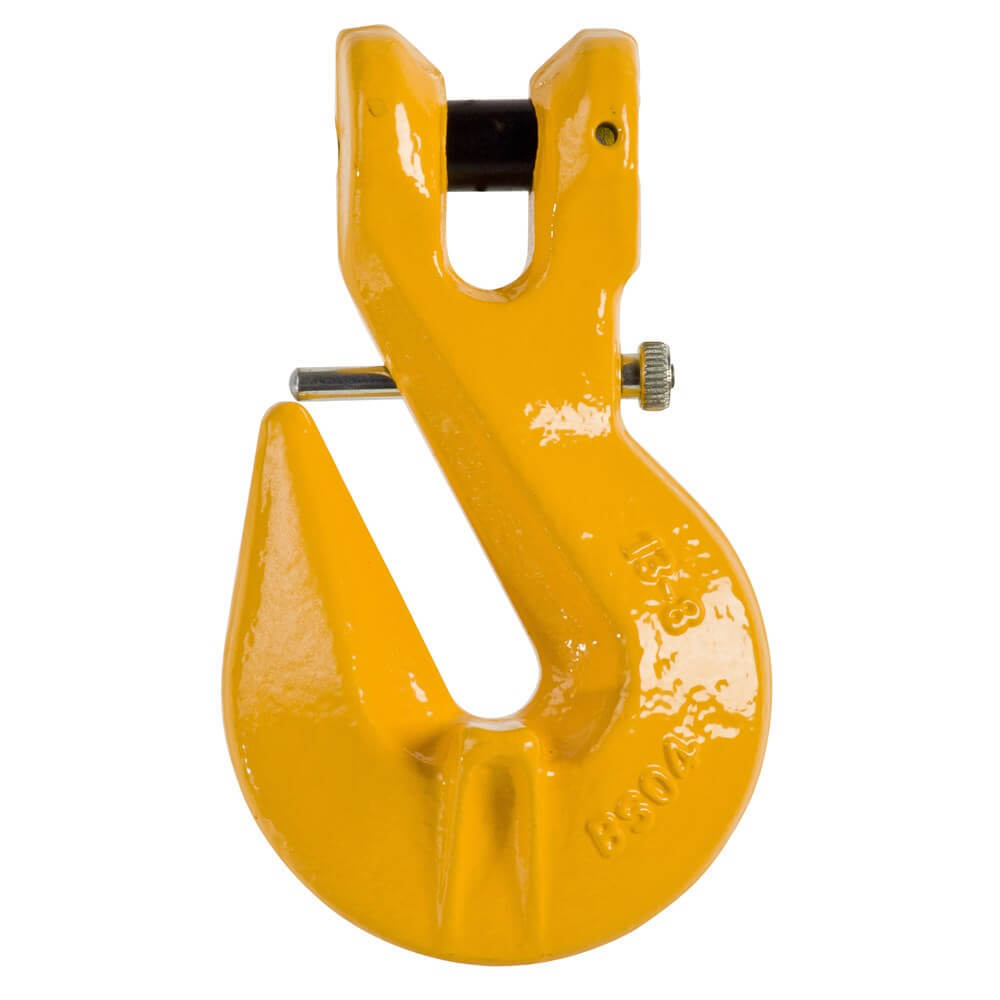

Beaver Grade 80 Clevis Shortening Grab Hook 6 mm, 1.1 t WLL (886206)

Beaver Grade 80 clevis shortening grab hooks suit 6 mm to 22 mm Grade 80 chain, with working load limits (WLL) of 1,100 kg (1.1 t) to 15,000 kg (15 t). They are used to shorten chain sling legs.

Beaver states that its Grade 80 lifting components are made from heat treated alloy steel, are tested throughout manufacture, and meet AS 3776, Lifting Components for Grade T Chain Slings. They carry distinguishing marks, including the brand, grade and size and a date of manufacture and batch ID.

Where this product is used

• Shortening the legs of chain slings

Features

• Grade 80 clevis shortening grab hook, WLL 1,100 kg (1.1 t) to 15,000 kg (15 t)
• Marked with brand, grade and size, date of manufacture and batch ID (manufacturer-stated)
• Meets AS 3776, Lifting Components for Grade T Chain Slings (manufacturer-stated)

Key specifications

Weights and codes are from Beaver's Materials Handling Technical Manual (Vol. 4) and are approximate. Chain size is the Grade 80 chain size the component suits. Weights marked "see note" are not shown because Beaver's printed figure does not fit the size range; please confirm with AIMS.

Selecting the right option

Choose the size by the WLL and the chain size it must match, and make sure every part of the assembly (chain, link, hook and lifting point) is Grade 80 and rated for the load. Use a grab hook as the manufacturer intends, with the chain seated in the hook, and do not tip load it. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Related products

Other Beaver Grade 80 components: eye shortening grab hooks, clevis shortening clutches, clevis sling hooks with safety latch.
