Beaver grade 80 clevis shortening clutches, 10 / 3200
Available

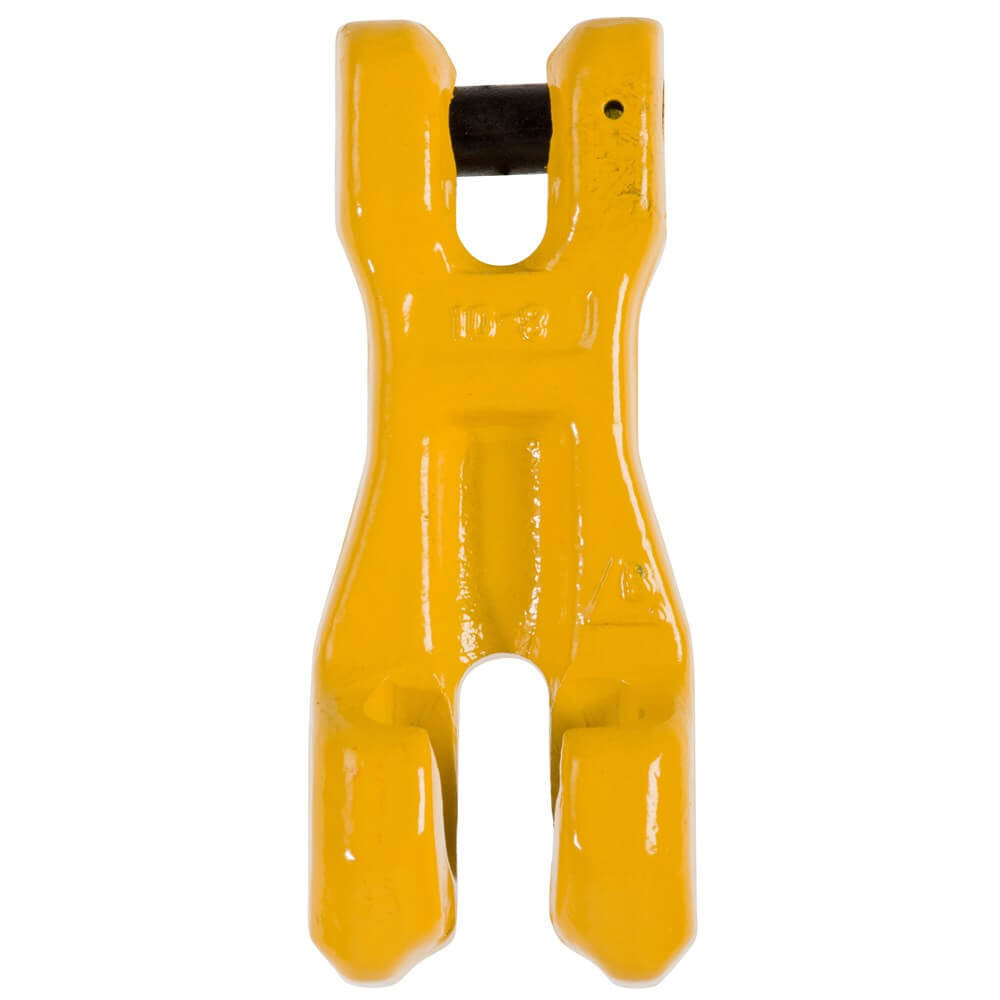

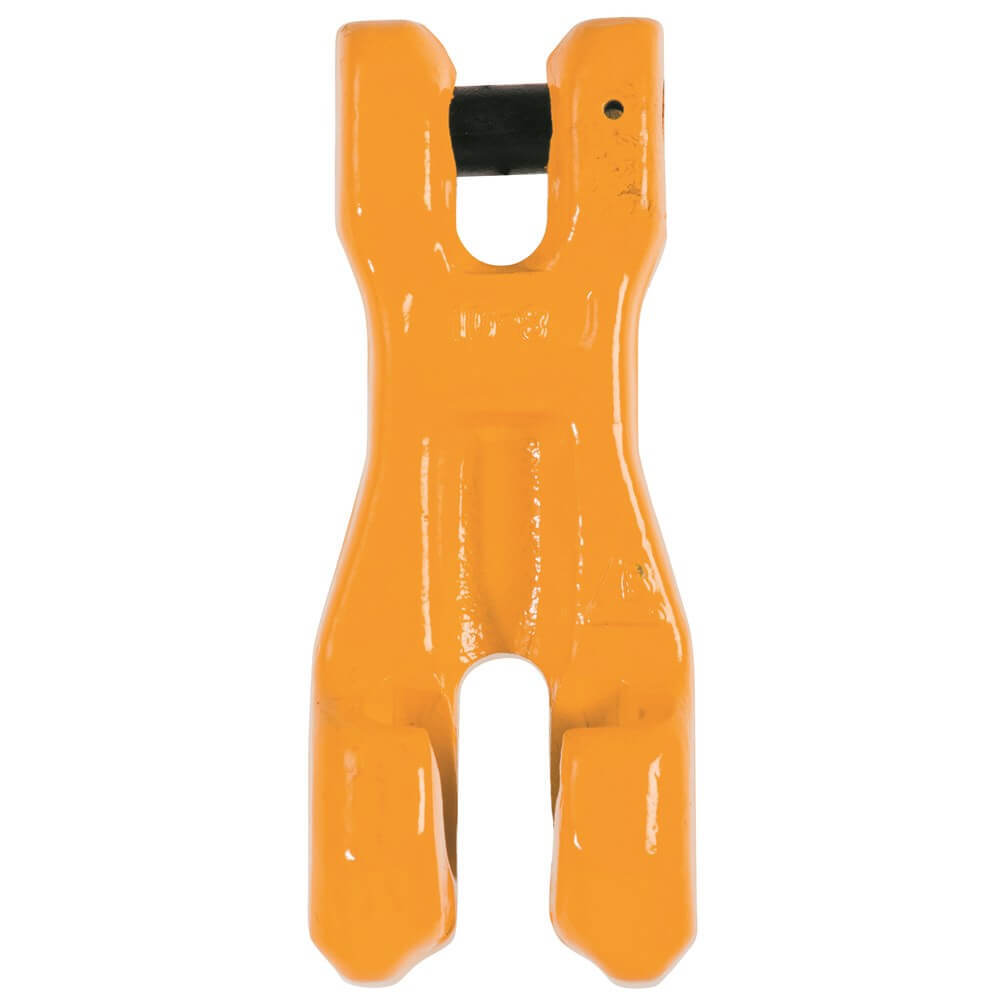

Beaver Grade 80 clevis shortening clutches suit 10mm to 13mm Grade 80 chain, with working load limits (WLL) of 3,200kg (3.2 t) to 5,400kg (5.4 t).
Its Grade 80 lifting components are made from heat treated alloy steel, are tested throughout manufacture, and meet AS 3776, Lifting Components for Grade T Chain Slings. They carry distinguishing marks, including the brand, grade and size and a date of manufacture and batch ID.
Where this product is used
- Shortening a chain sling leg without reducing its WLL
- Shortening a chain sling leg
Features
- Grade 80 clevis shortening clutch, WLL 3,200kg (3.2 t) to 5,400kg (5.4 t)
- Shortens a chain sling without reducing the WLL: marked "No Deration"
- Clevis pin connects directly to chain without a connecting link
- Marked with brand, grade and size, date of manufacture and batch ID
- Meets AS 3776, Lifting Components for Grade T Chain Slings
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Shortening Clutch |
Choosing the right option
Chain size is the Grade 80 chain size the component suits.
Choose the size by the WLL and the chain size it must match, and make sure every part of the assembly (chain, link, hook and lifting point) is Grade 80 and rated for the load. The WLL applies to the clutch used as Beaver intends in a Grade 80 chain sling; do not exceed the WLL of the chain. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
Other Beaver Grade 80 components: Beaver Grade 80 Eye Shortening Grab Hook (1.1 Tonne to 12.5 Tonne), Beaver Grade 80 Clevis Shortening Grab Hook (1.1 Tonne to 15 Tonne), Beaver Grade 80 Clevis Single Master Link (2 Tonne to 5.3 Tonne).
| Code | Chain size (mm) | WLL (kg) | Weight each (kg) |
|---|---|---|---|
| 884510 | 10 | 3,200 | 0.9 |
| 884513 | 13 | 5,400 | 2.1 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Beaver Grade 80 Clevis Shortening Clutch (3.2 Tonne to 5.4 Tonne): 10 / 3200
SKU: A0102579 | Model: 884510
Beaver 884510 Grade 80 clevis shortening clutch for 10mm chain, 3,200kg (3.2 t) WLL, AS 3776.
