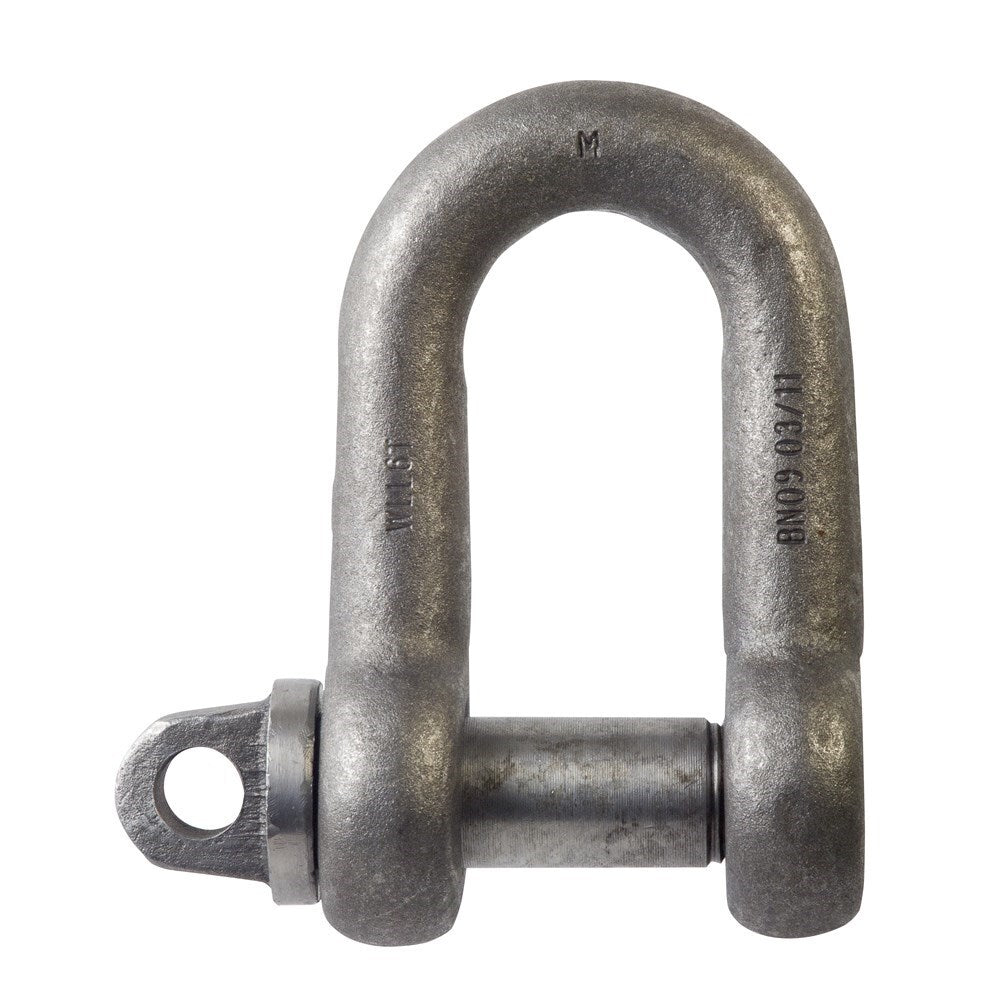

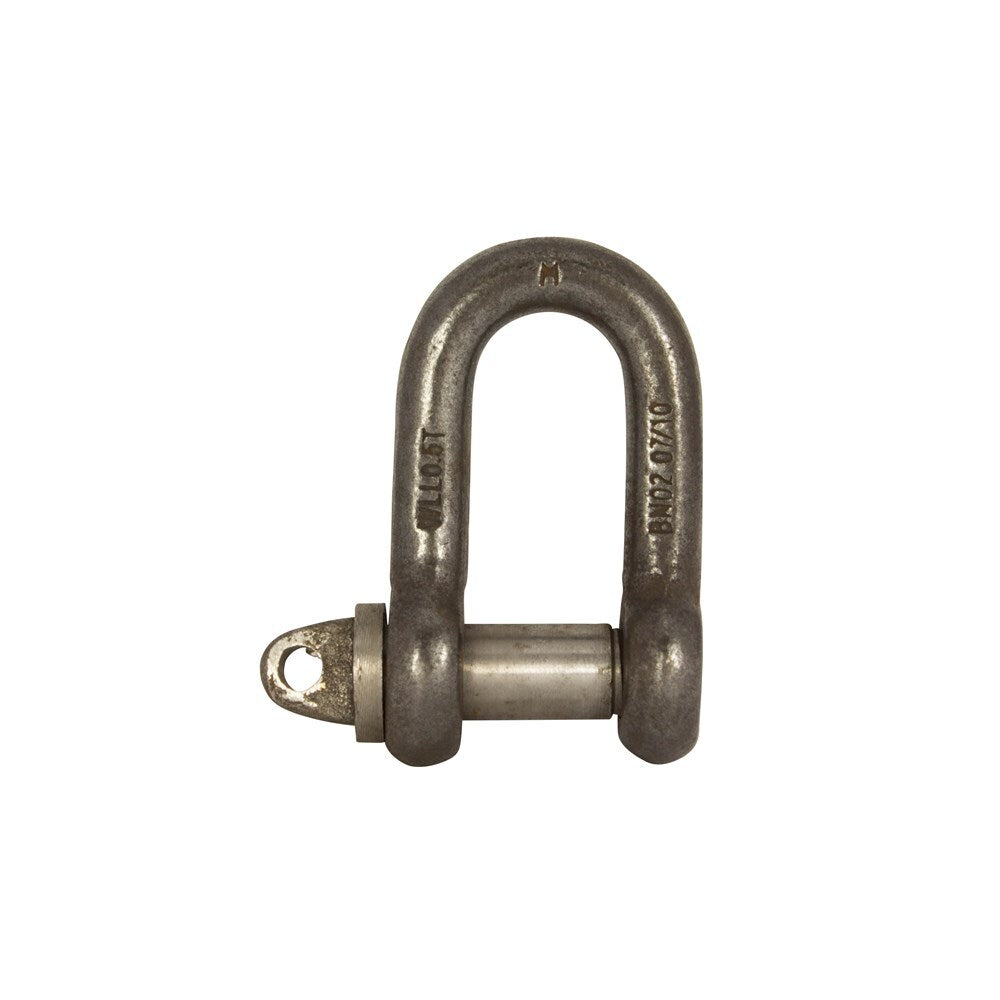

Beaver grade M self colour dee shackles, 10 x 13

Beaver Grade M self colour dee shackles, 10 x 13mm to 29 x 32mm and 41 x 48mm are Grade M screw pin dee shackles with a self colour finish, in WLLs from 500kg (0.5 t) to 11,000kg (11 t). They are rated shackles commonly used in commercial fishing and marine applications and suitable for lifting applications. Grade, WLL, manufacture date and body ID are stamped on each shackle.

The shackles comply with AS 2741. They are made from Grade 40 alloy steel.

Where this product is used

• Lifting applications within the WLL stamped on the shackle
• Dee shackles are mainly used on single leg (one-leg) lifting systems

Features

• Grade M dee shackle with screw pin, self colour finish
• WLL 500kg (0.5 t) to 11,000kg (11 t)
• Made from Grade 40 alloy steel
• Screw collar pin formation
• Grade, WLL, manufacture date and body ID stamped on each shackle for traceability
• Complies to AS 2741

Key specifications

Choosing the right option

Choose the shackle by the WLL marked on it. Grade M shackles of a given WLL are larger than Grade S shackles of the same WLL, so check clearances at the lifting point. Inspect the shackle before each use. Check that the markings are legible, the pin and body threads are undamaged, and the body and pin are not distorted, worn, nicked, gouged, cracked or corroded. Do not heat treat, weld, bend or reshape a shackle, and do not replace the pin with a screw or bolt, as this affects the WLL. A safety bolt type shackle must always be used with its split cotter pin. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

For other rated dee shackles see the: Beaver Grade M Screw Pin Dee Shackle - Galvanised, Beaver Yellow Pin Grade S Screw Pin Dee Shackle.
