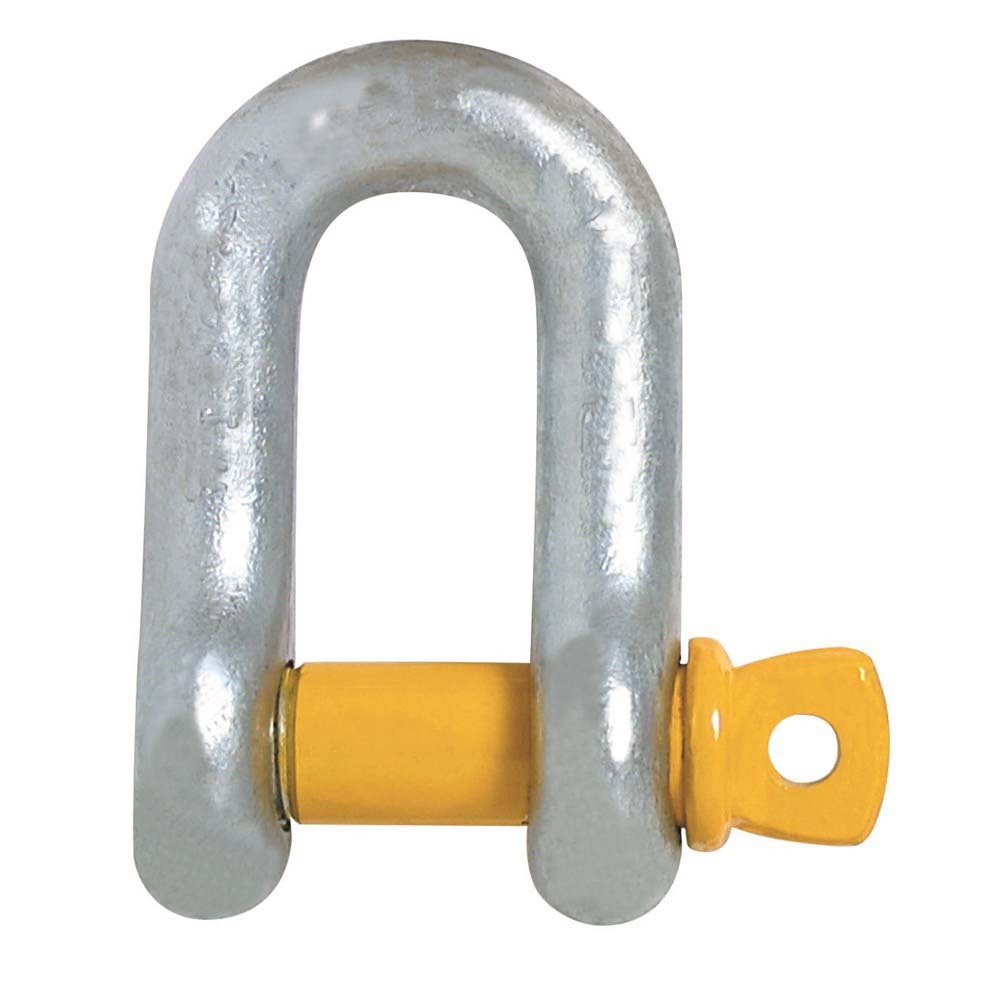

Beaver grade S screw pin dee shackles, 6 x 8

Beaver yellow pin Grade S screw pin dee shackles, 6 x 8mm to 25 x 29mm are Grade S (alloy, marked S/6) dee shackles with a screw pin closure, in WLLs from 500kg (0.5 t) to 8,500kg (8.5 t). The body is stamped with its WLL, grade, size and a body ID with date of manufacture, so the rating and batch can be checked on the shackle itself.

The shackles comply with AS 2741.

Where this product is used

• Dee shackles are mainly used on single leg (one-leg) lifting systems
• Screw pin shackles are used mainly in non-permanent applications

Features

• Grade S alloy dee shackle with screw pin closure, WLL 500kg (0.5 t) to 8,500kg (8.5 t)
• Hot-dip galvanised body
• Yellow painted pin to AS 2741
• Pin diameter larger than the body diameter, because the pin carries more load than the body

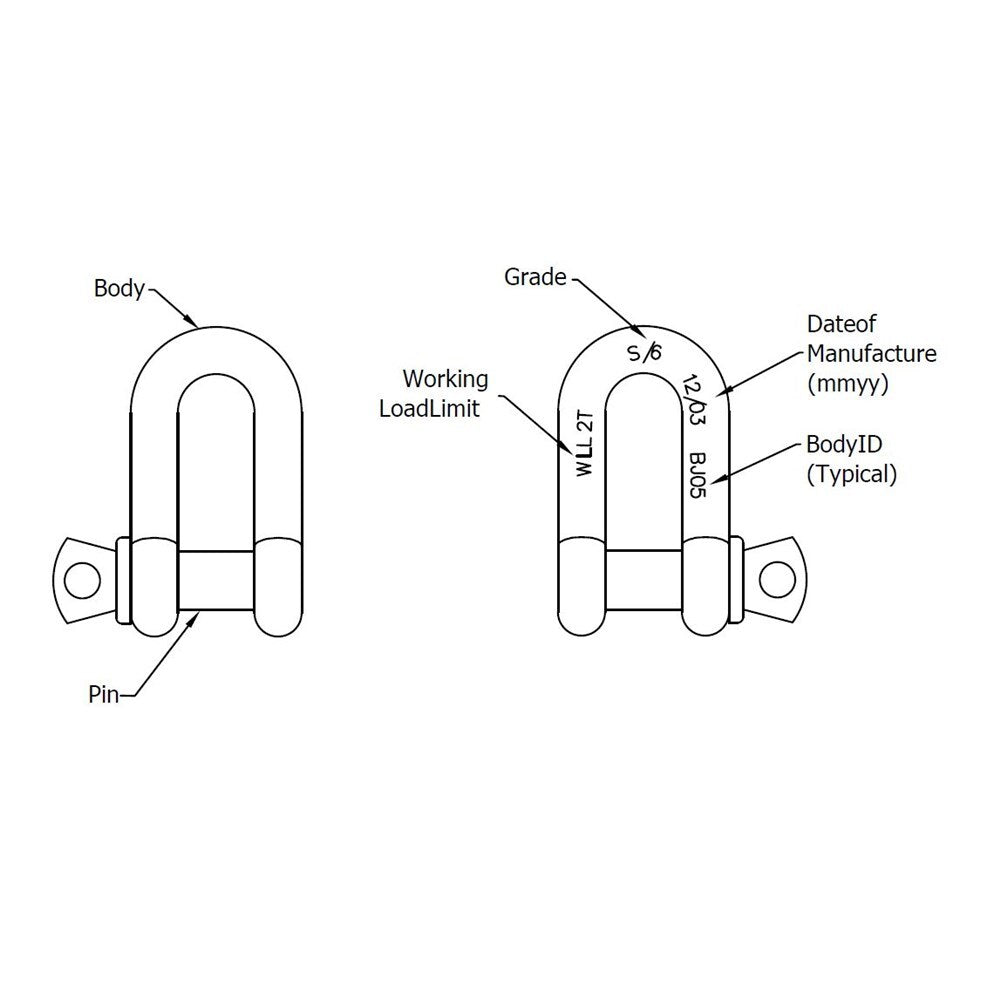

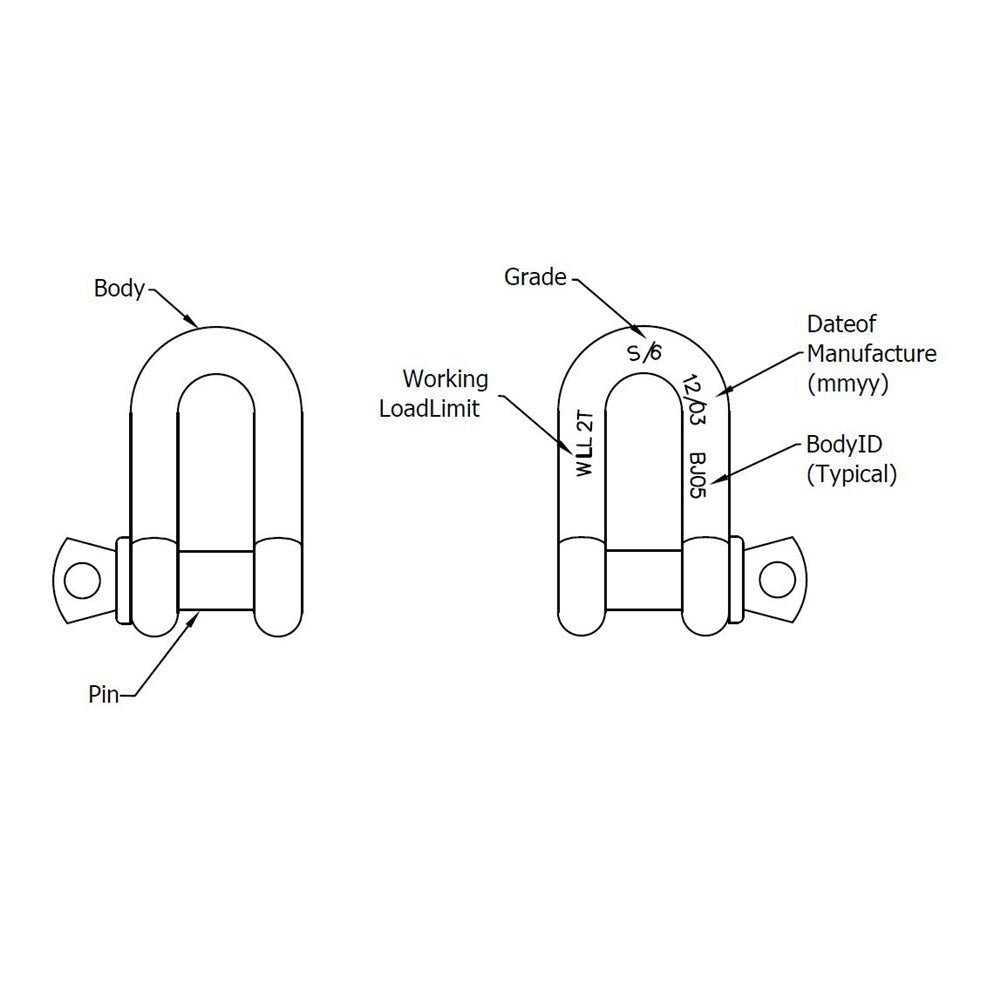

• Stamped with WLL, grade, size and body ID with date of manufacture
• Proof tested to the Australian Standard and test certificates available on request

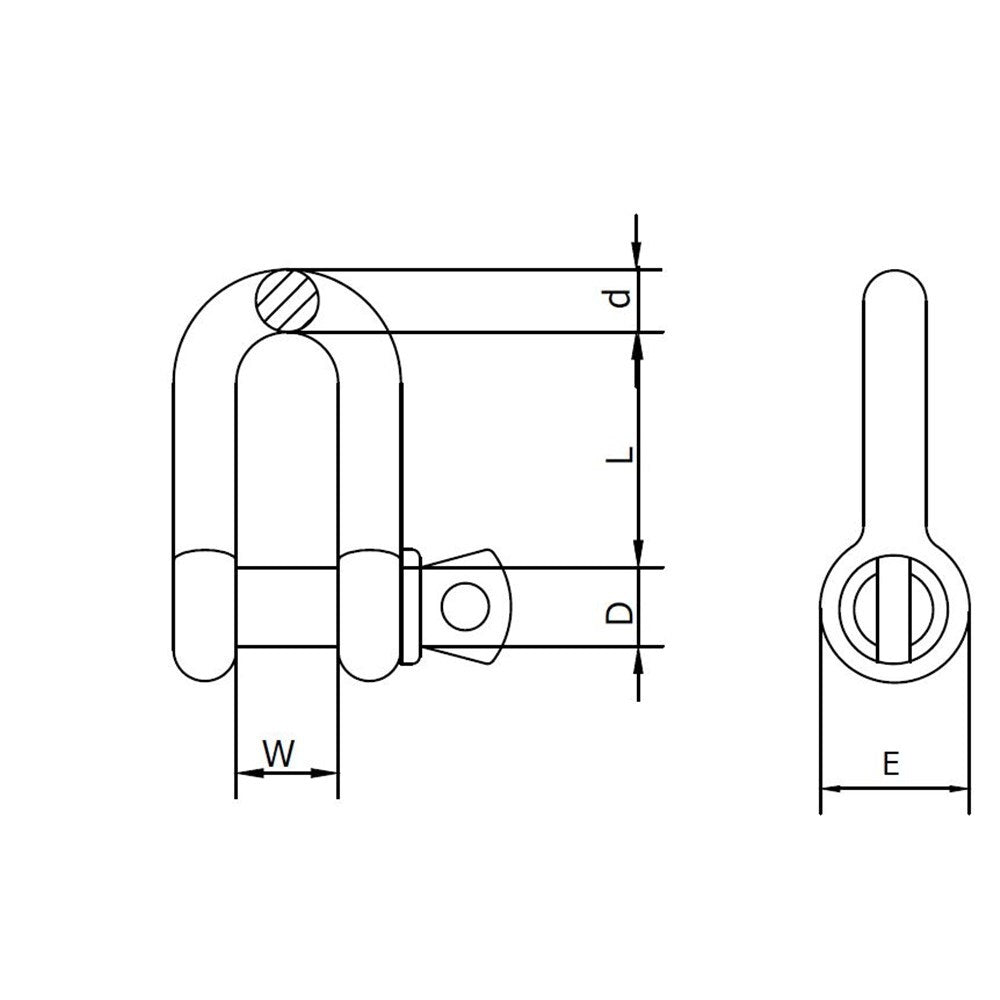

Key specifications

Choosing the right option

Choose the shackle by the WLL marked on it, never by the pin size alone, and make sure the shackle, the sling or chain and the lifting point are rated for the load. Inspect the shackle before each use. Check that the markings are legible, the pin and body threads are undamaged, and the body and pin are not distorted, worn, nicked, gouged, cracked or corroded. Do not heat treat, weld, bend or reshape a shackle, and do not replace the pin with a screw or bolt, as this affects the WLL. A safety bolt type shackle must always be used with its split cotter pin. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
