Beaver grade S safety pin bow shackles, 13 x 16

$8.07

Inc. GST

Available

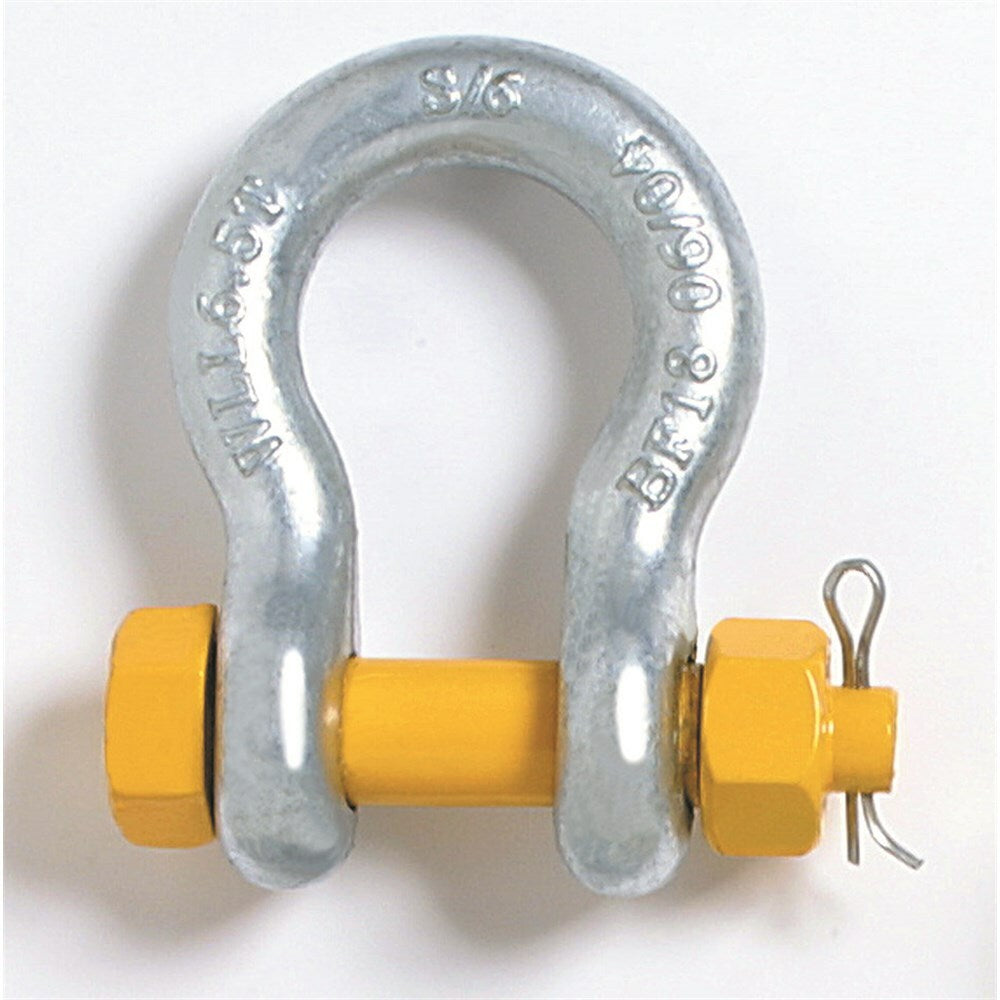

Beaver Grade S safety pin bow shackles, 13 x 16mm to 63 x 70mm are Grade S (alloy, marked S/6) bow shackles with a safety pin closure, in WLLs from 2,000kg (2 t) to 55,000kg (55 t). The body is stamped with its WLL, grade, size and a body ID with date of manufacture, so the rating and batch can be checked on the shackle itself.

The shackles comply with AS 2741.

Where this product is used

Bow (anchor) shackles are mainly used on multi-leg lifting systems
Safety pin (bolt type) shackles suit long-term or permanent applications, or where the load may slide on the pin and rotate it. They are used with the split cotter pin

Features

Grade S alloy bow shackle with safety pin closure, WLL 2,000kg (2 t) to 55,000kg (55 t)
Yellow painted pin to AS 2741
Pin diameter larger than the body diameter, because the pin carries more load than the body
Stamped with WLL, grade, size and body ID with date of manufacture
Proof tested to the Australian Standard and test certificates available on request

Key specifications

Specification	Detail
Brand	Beaver
Product type	Bow Shackle

Choosing the right option

Choose the shackle by the WLL marked on it, never by the pin size alone, and make sure the shackle, the sling or chain and the lifting point are rated for the load. Inspect the shackle before each use. Check that the markings are legible, the pin and body threads are undamaged, and the body and pin are not distorted, worn, nicked, gouged, cracked or corroded. Do not heat treat, weld, bend or reshape a shackle, and do not replace the pin with a screw or bolt, as this affects the WLL. A safety bolt type shackle must always be used with its split cotter pin. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

For heavier or lighter duty see the other Beaver Grade S shackles: Beaver Yellow Pin Grade S Screw Pin Dee Shackle, Beaver Grade S Screw Pin Dee Shackle, Beaver Screw Pin Anchor Bow Shackle.

Code	Size d x D (mm)	WLL (t)	Inside width W (mm)	Inside length L (mm)	Width of bow B (mm)	Boss dia. F (mm)	Weight each (kg)
244313	13 x 16	2	21	48	33	33	0.44
244316	16 x 19	3.2	27	61	43	40	0.79
244319	19 x 22	4.7	32	72	51	48	1.26
244322	22 x 25	6.5	37	84	58	54	1.88
244325	25 x 29	8.5	43	95	68	60	2.78
244329	29 x 32	9.5	46	108	74	67	3.87
244332	32 x 35	12	52	119	83	76	5.26
244335	35 x 38	13.5	57	133	92	84	6.94
244338	38 x 41	17	60	146	98	92	8.79
244345	45 x 51	25	73	178	127	110	14.99
244351	51 x 57	35	83	197	146	127	20.65
244357	57 x 63	45	—	—	—	—	—
244363	63 x 70	55	105	267	184	152	41.05

Product Highlights −

Beaver Grade S safety pin bow shackles, 13 x 16mm to 63 x 70mm are Grade S (alloy, marked S/6) bow shackles with a safety pin closure, in WLLs from 2,000kg (2 t) to 55,000kg (55 t). The body is stamped with its WLL, grade, size and a body ID with date of manufacture, so the rating and batch can be checked on the shackle itself.

The shackles comply with AS 2741.
