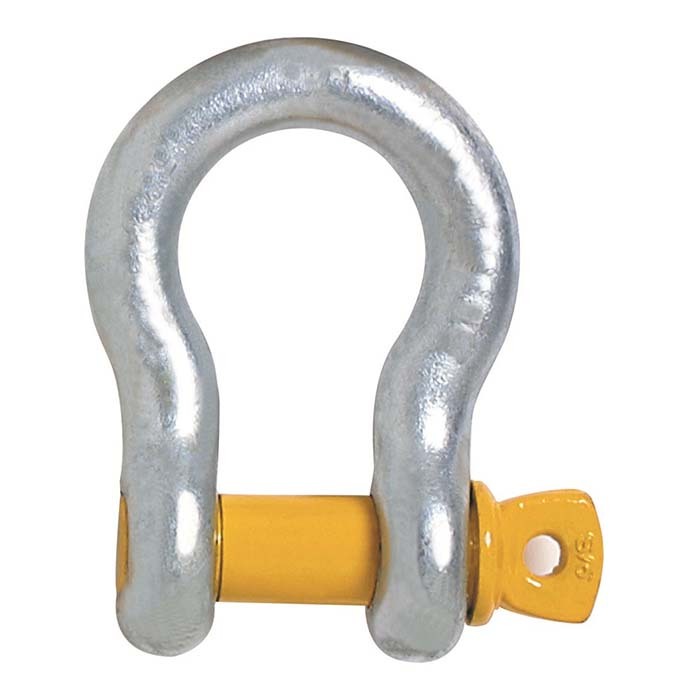

Beaver Grade S Screw Pin Bow Shackle 5 x 6 mm, 0.33 t WLL (242305)

Beaver screw pin anchor bow shackles, 5 x 6 mm to 25 x 29 mm are Grade S (alloy, marked S/6) bow shackles with a screw pin closure, in WLLs from 330 kg (0.33 t) to 8,500 kg (8.5 t). The body is stamped with its WLL, grade, size and a body ID with date of manufacture, so the rating and batch can be checked on the shackle itself.

The manufacturer states that the shackles comply with AS 2741. Beaver also states that they are proof tested to the Australian Standard and that test certificates are available on request.

Where this product is used

• Beaver states that bow (anchor) shackles are mainly used on multi-leg lifting systems.
• Beaver states that screw pin shackles are used mainly in non-permanent applications.
• Mining, resource and construction lifting work, where Beaver states Grade S shackles are used.

Features

• Grade S alloy bow shackle with screw pin closure, WLL 330 kg (0.33 t) to 8,500 kg (8.5 t)
• Hot-dip galvanised body (manufacturer-stated)
• Yellow painted pin to AS 2741 (manufacturer-stated)
• Pin diameter larger than the body diameter, because the pin carries more load than the body
• Stamped with WLL, grade, size and body ID with date of manufacture
• Proof tested to the Australian Standard and test certificates available on request (manufacturer-stated)

Key specifications

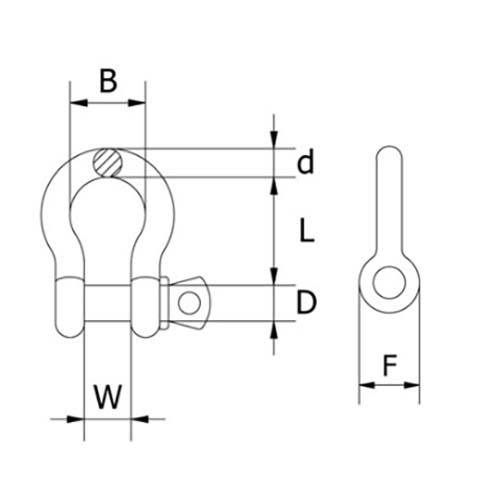

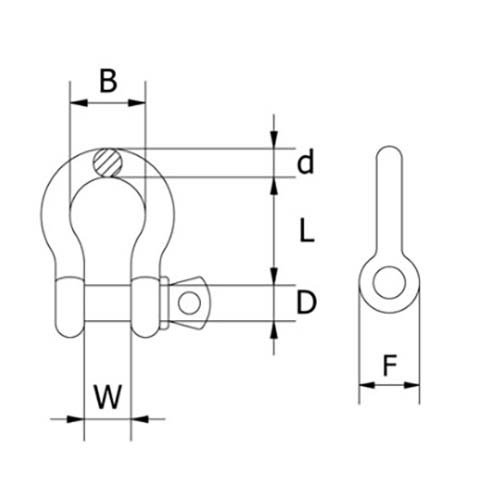

Dimensions and weights are taken from Beaver's Materials Handling Technical Manual (Vol. 4) and are nominal; Beaver states that actual dimensions fall within the tolerances of AS 2741.

Selecting the right option

Choose the shackle by the WLL marked on it, never by the pin size alone, and make sure the shackle, the sling or chain and the lifting point are rated for the load. Inspect the shackle before each use. Check that the markings are legible, the pin and body threads are undamaged, and the body and pin are not distorted, worn, nicked, gouged, cracked or corroded. Do not heat treat, weld, bend or reshape a shackle, and do not replace the pin with a screw or bolt, as this affects the WLL. A safety bolt type shackle must always be used with its split cotter pin. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards. If you are unsure what suits your lift, contact AIMS or a qualified rigger before ordering.

Related products

For heavier or lighter duty see the other Beaver Grade S shackles: screw pin dee shackles, 0.5 t to 8.5 t, screw pin dee shackles, 12 t to 35 t, screw pin anchor bow shackles, 0.33 t to 8.5 t and safety pin bow shackles.
