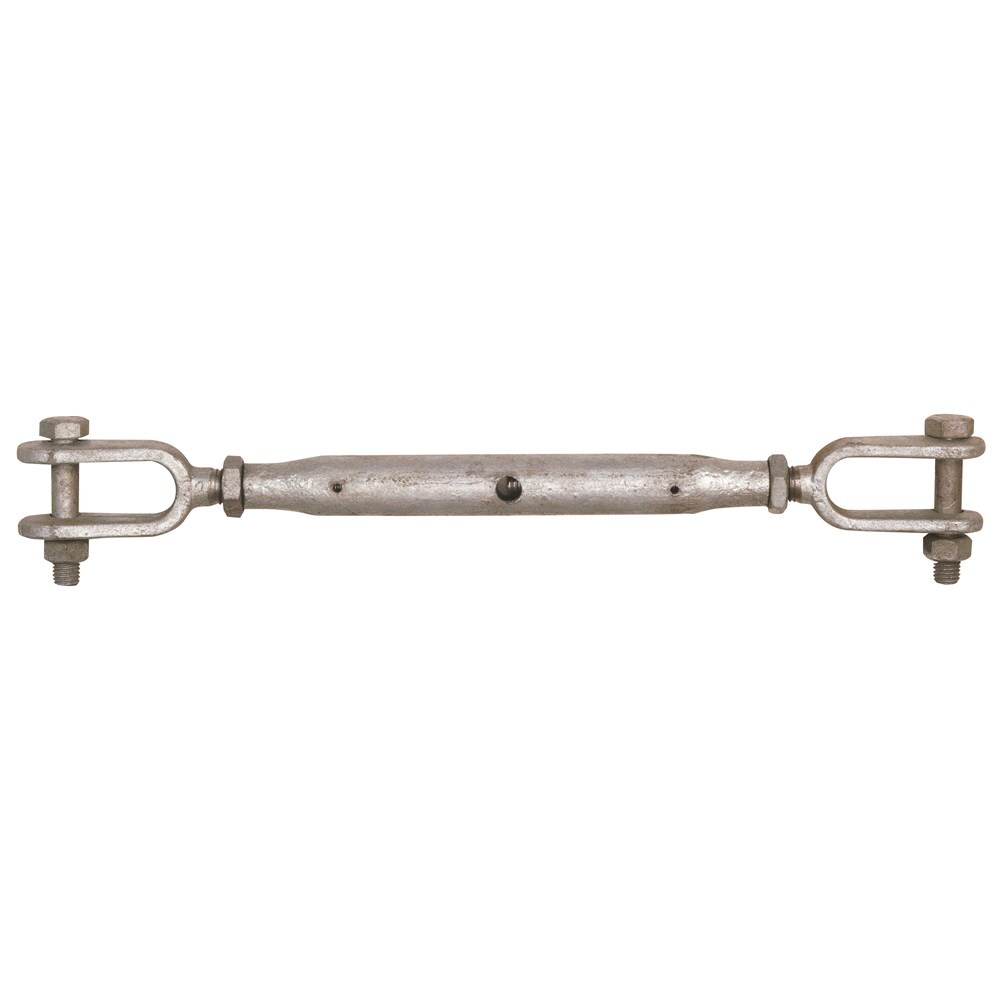

Beaver jaw and jaw rigging screws with locknuts

Beaver jaw and jaw rigging screws with locknuts are rated rigging hardware for straight, in-line tensioning with wire rope and chain assemblies with a working load limit (WLL) for each size.

A rigging screw is a tensioning device: the threaded ends turn in the body to take up or let out the length between the two end fittings. The this type is made from high tensile steel, quenched.

Where this product is used

• Tensioning wire rope and chain assemblies
• Straight in-line tensioning

Features

• Jaw and jaw end fittings with locknuts
• Working load limit for each size, from 0.3 t to 6 t
• High tensile steel, quenched and tempered, hot dip galvanised for outdoor use
• Six metric sizes, 10mm to 38mm, with dimensions, weight and pack quantity for each

Key specifications

Choosing the right option

Its rated rigging hardware has a working load limit (WLL) and is rated for lifting applications, and the rated load depends on the end fittings and thread. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Beaver sells the rigging screws singly (unit of measure: each).

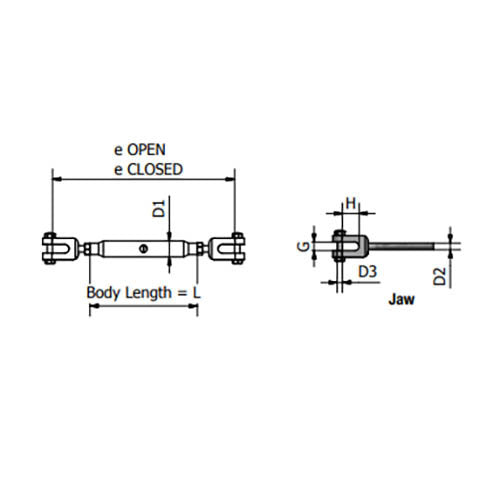

Choose the size by the working load limit your application needs, then check the dimensions and the end fittings against your rigging.
