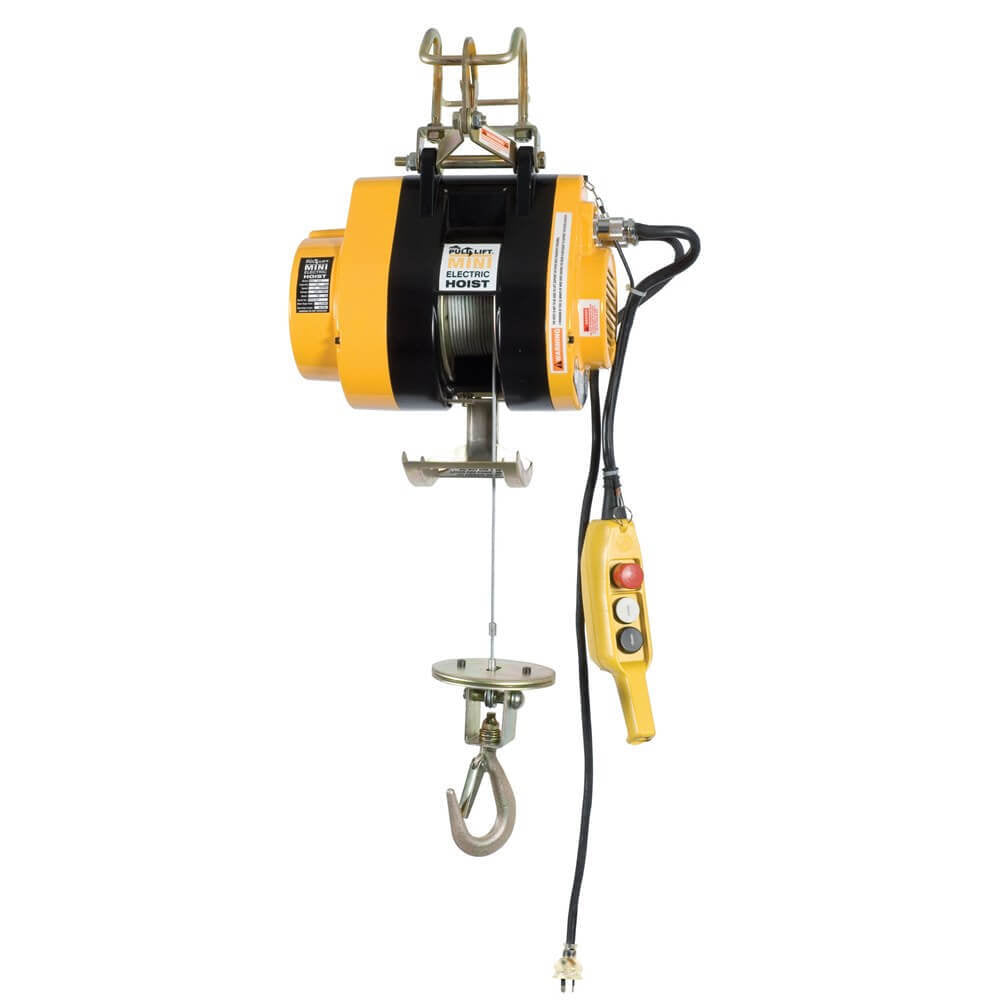

Beaver Electric Single Phase Mini Hoist, 250 kg, 240V

The Beaver electric single phase mini hoist, code BMI1025, is a 240 volt, 50 Hz single phase wire rope hoist with a rated capacity of 250kg, a lifting speed of 12 m/min and a net weight of 30kg.

Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Where this product is used

• Lifting small loads that are too heavy to handle by hand
• Building sites

Features

• Heavy duty motor with an automatic load brake and an overload clutch
• IP54 rated lightweight body
• IP65 rated European style pendant control with an emergency stop
• Upper limit switch
• 20 m of galvanised wire rope supplied, attached to the winch drum with a set screw
• 1200W input power at 25% ED, 12 m/min lifting speed

Key specifications

Choosing the right option

Check your supply is 240V single phase, and the 250kg rated capacity covers the heaviest load plus any rigging. The duty rating is 25% ED, which is lower than the Lift-All chain hoists, so check it against how often you lift. If you need more capacity or a higher duty rating, see the Lift-All electric chain hoists.

Other Beaver hoists: Beaver Lift-All 240V Single Phase Electric Chain Hoist, 500kg and 1000kg, 3 m Lift, Beaver Lift-All 415V Three Phase Electric Chain Hoist, 1000kg to 3000kg, 3 m Lift, Beaver Big Haul Wire Rope Hoist, 800kg and 1600kg Lifting, 20 m Rope.

For single phase electric winches, see the: Beaver 240V Single Phase Electric Pull-Lift Winch, 250kg and 300kg Rated Capacity.
