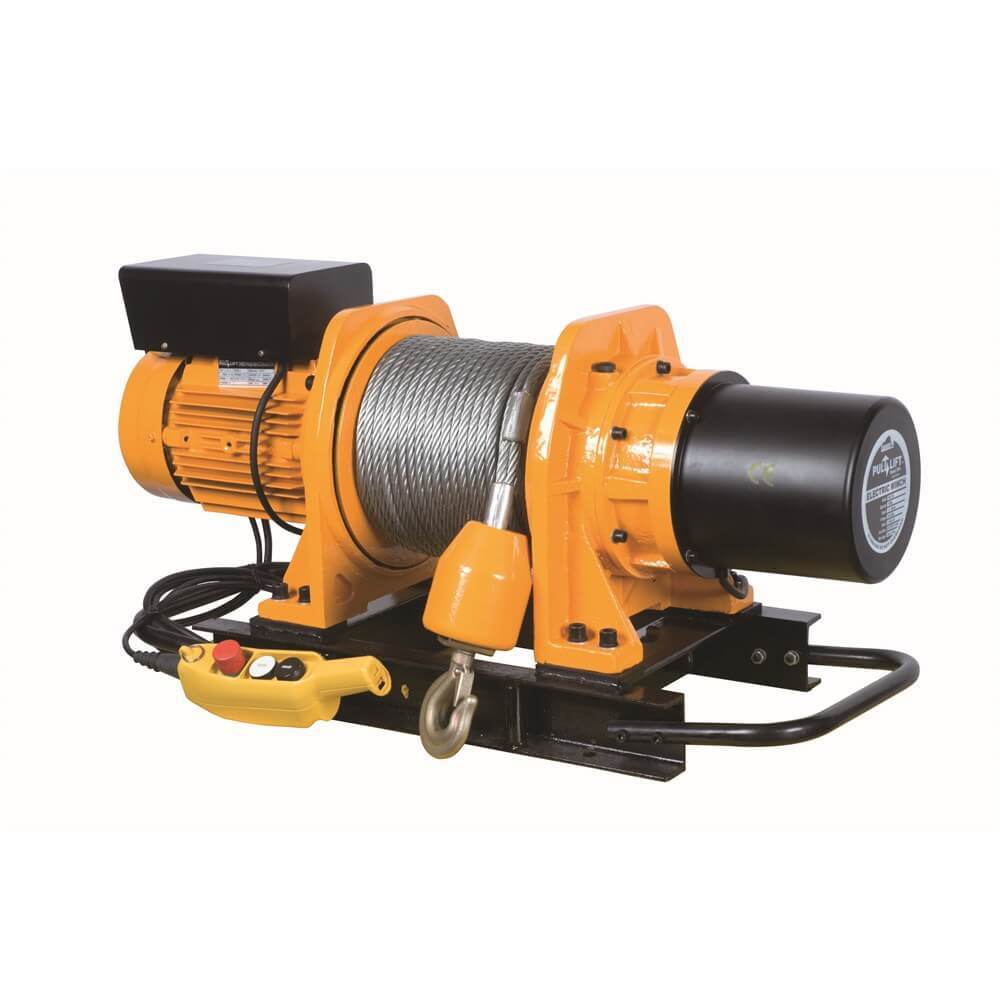

Beaver 415V Three Phase Electric Pull-Lift Winch, 1000 kg Rated Capacity, 58 m Pull

The Beaver 415V three phase electric winch runs on 415 volt, 50 Hz three phase power and has a 24 volt IP65 pendant control with an emergency stop.

The range is of robust construction, suitable for building sites, slipways and industrial use. They are Pull Lift winches and give a single rated capacity for each code. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

Where this product is used

• Building sites, slipways and industrial use
• Powered pulling and hauling

Features

• Direct coupling from the motor to the gearbox, for low power loss and accurate speed control
• Brake designed for static and dynamic loading, with large friction area discs that apply automatically on power loss and need no adjustment
• Automatic load brake and overload clutch
• One piece cast gearbox, with planetary gears and a main drive gear made from a solid billet of steel
• Sealed, grease filled ball bearings
• 24 volt IP65 pendant control with an emergency stop
• Wire rope secured to the drum with a set screw for rope retention
• Cast steel foot mountings

Key specifications

Dimensions

Choosing the right option

Choose the voltage to match the power supply on site, then the rated capacity to suit the load, allowing for friction and any rigging. The duty rating is 25% ED, so check it against how often you will run the winch, and check the effective pull height against the distance you need.

Other Beaver winches and hoists: the: Beaver 240V Single Phase Electric Pull-Lift Winch, 250kg and 300kg Rated Capacity, Beaver Brake Hand Winches, 360kg to 1180kg Rated Pulling, Beaver Electric Single Phase Mini Hoist, 250kg, 240V, Beaver Big Haul Wire Rope Hoist, 800kg and 1600kg Lifting, 20 m Rope.
