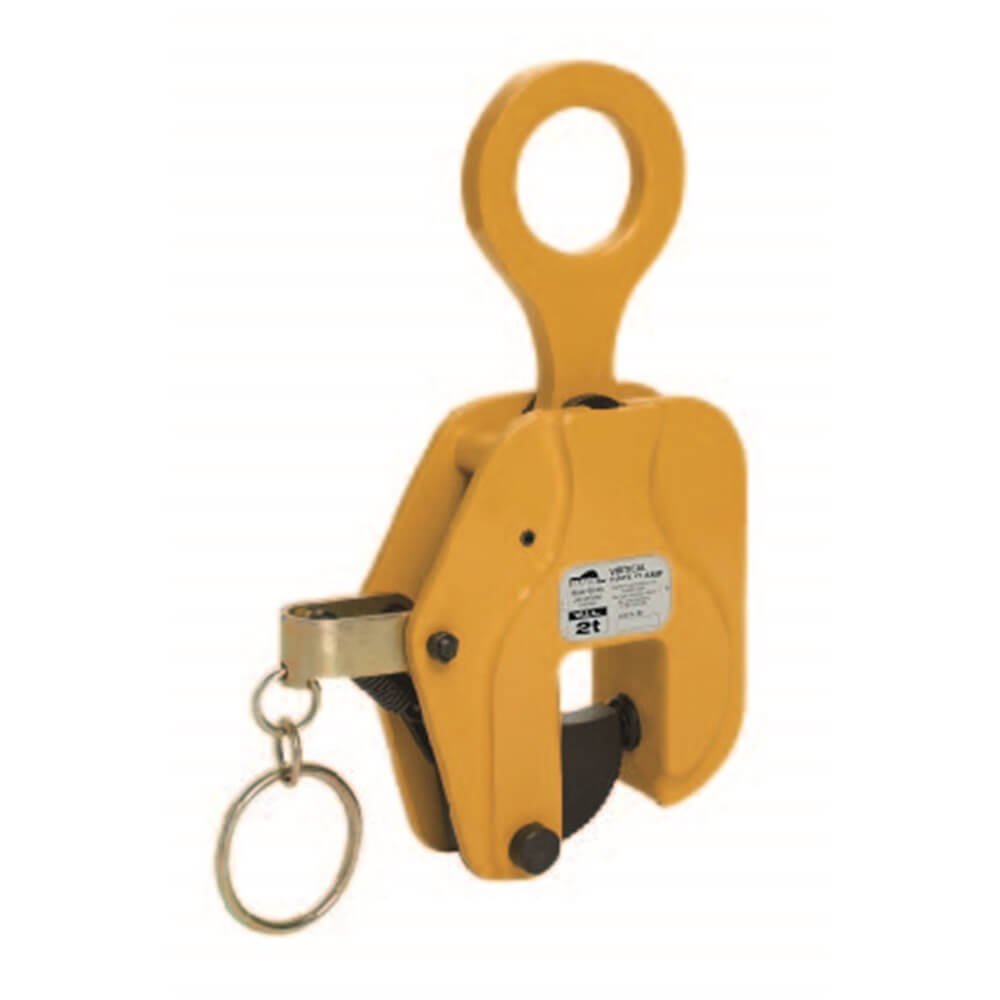

Beaver vertical plate clamps for lifting and turning plate
Available
Beaver VC vertical plate clamps are heavy duty steel clamps for lifting and turning steel plates, steel structures, crane girders and beams, and steel pipes.
The clamps comply with AS 4991. The clamps are proof load tested at manufacture. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.
Where this product is used
- Lifting steel plate
- Handling plate in fabrication and workshop areas
Features
- Heavy duty steel construction
- Drop forged, heat treated alloy steel cam and jaws
- Positive clamping force that increases in ratio to the weight of the load
- Positive clamp action at the start of the lift
- Spring loaded safety lock
- Proof load tested at manufacture
Key specifications
| Specification | Detail |
|---|---|
| Brand | Beaver |
| Product type | Plate Clamp |
Choosing the right option
Choose the code by the plate thickness it has to grip and the weight being lifted.
Other Beaver lifting products: Beaver UC Universal Plate Clamps, 0.5 to 5 t, Beaver CQ Horizontal Plate Clamps, Pair, 1.5 to 5 t, Beaver Vertical Drum Lifting Clamp, 500kg WLL, 200 L Drums, Beaver YC Industrial Girder Clamps, 1 to 10 t.
| Code | WLL (kg) | Jaw opening A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Net weight (kg, per pair) |
|---|---|---|---|---|---|---|---|

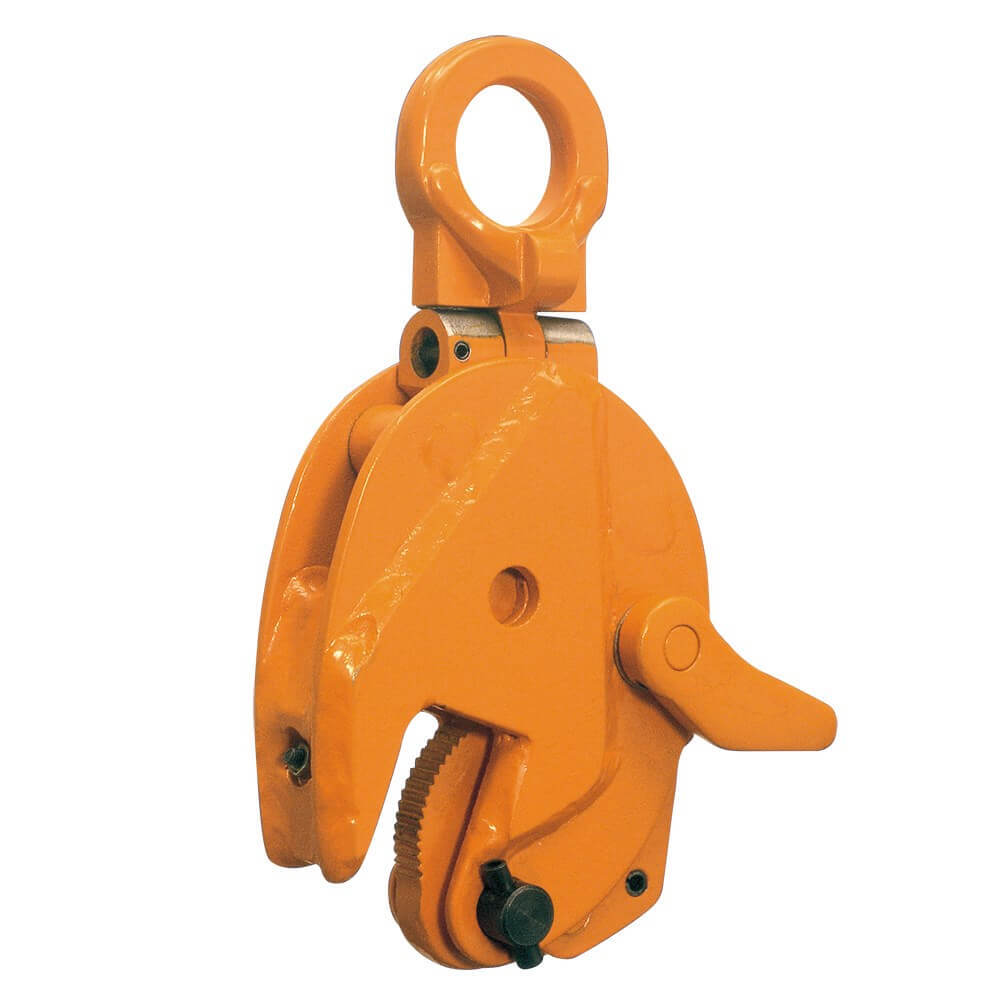

| 261130 | 1000 | 0-30 | 144 | 70 | 286 | 60 | 3.6 |

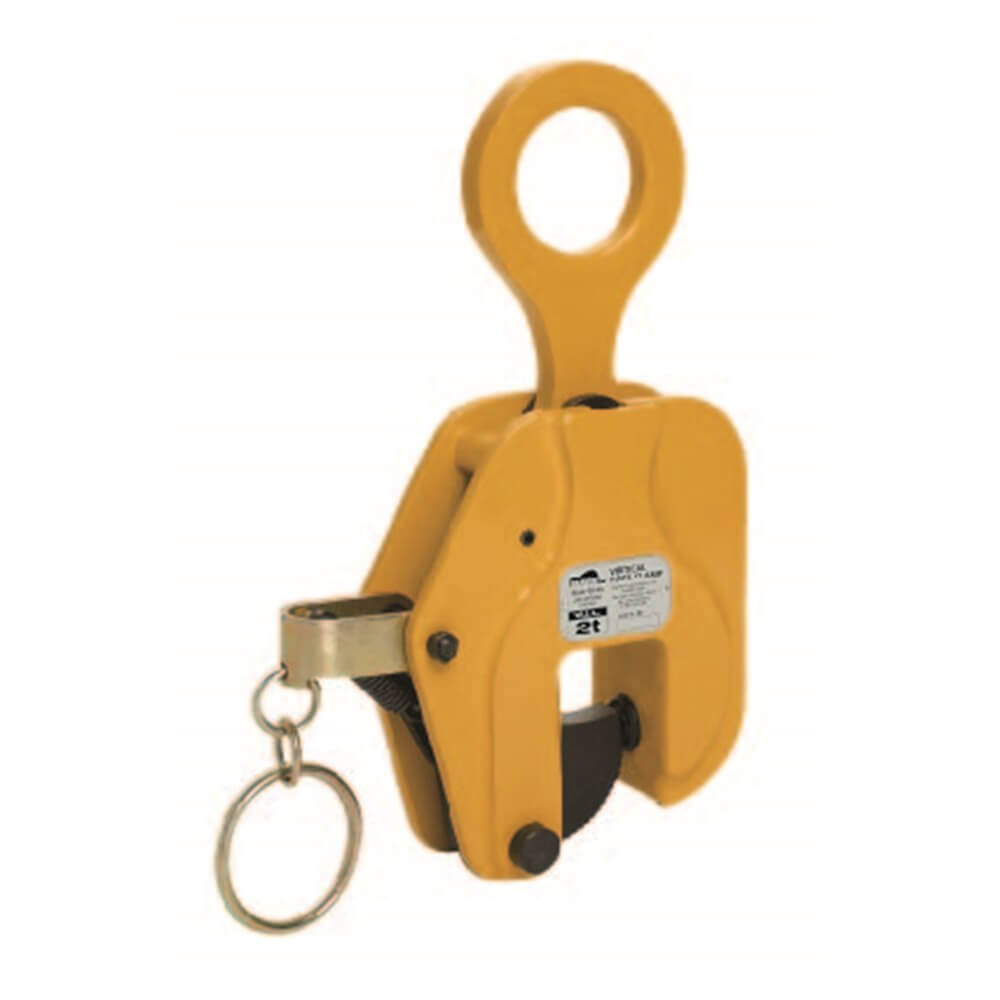

| 261240 | 2000 | 0-40 | 170 | 82.5 | 297 | 60 | 5 |
| 261350 | 3000 | 0-50 | 207 | 88 | 336 | 60 | 7.7 |
