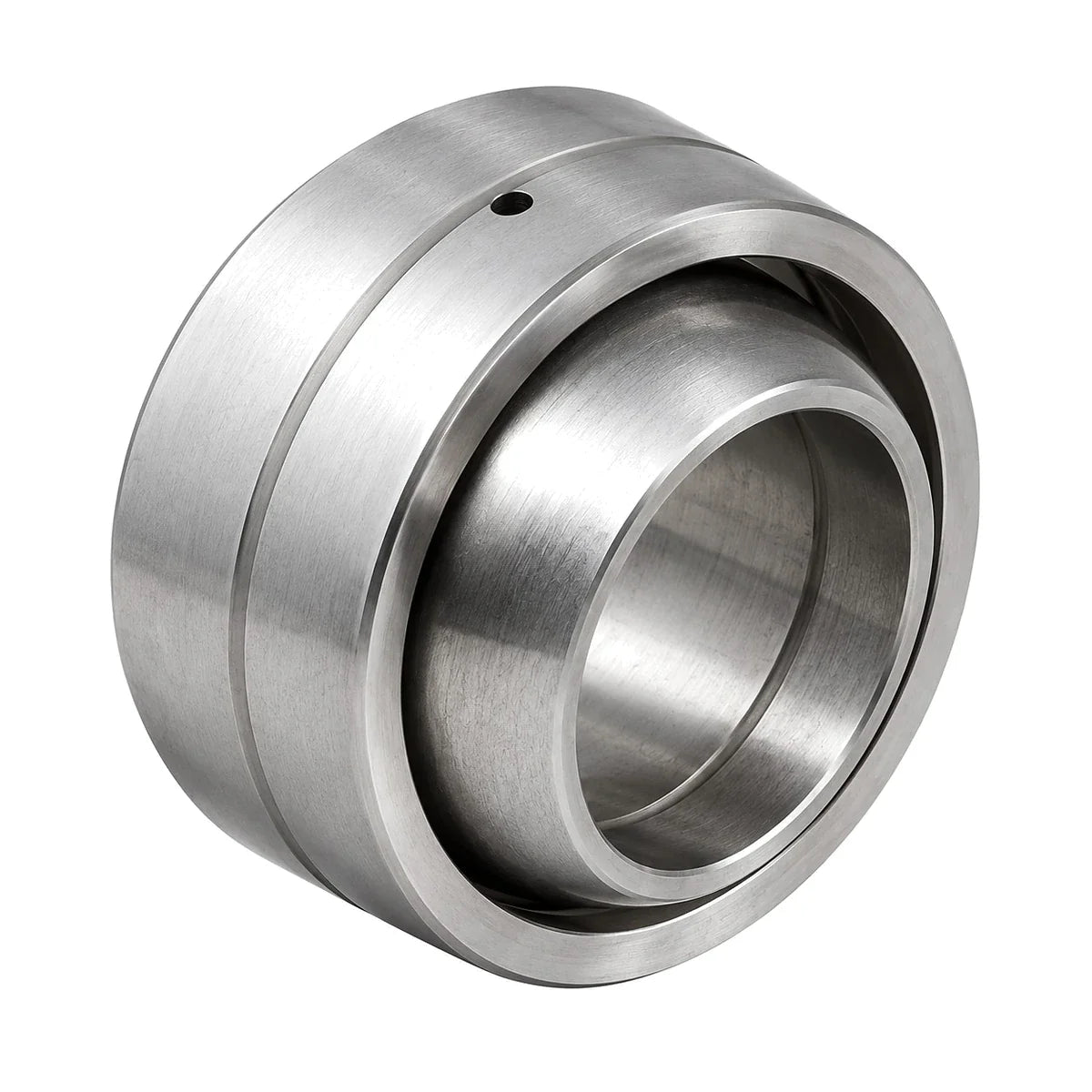

BECO BJ63Z Imperial Spherical Plain Bearing Open
Available
BECO imperial radial spherical plain bushings — spherical plain bearings bored to an inch shaft size — for repair and replacement work on imperial-shafted plant.
Hardened steel inner ring running its spherical surface directly against a matching hardened steel outer ring, for very high static load capacity and good tolerance of shock and alternating loads. Bores run 3/4" to 4"; every size is listed with both its inch bore and its millimetre boundary dimensions so you can check the housing before you order.
Supplied open, for clean or regularly serviced positions. These need periodic greasing — plan it into the service schedule.
At a glance
| Bearing type | Imperial Spherical Plain Bearing |
|---|---|
| Standard | Radial imperial |
| Sliding surfaces | Steel on steel |
| Sealing | Open (no seals) |
| Lubrication | Relubrication required |
| Bore range | 1-1/4" to 4" (12 sizes) |
- Inch bores, 3/4" to 4" — for older Australian, British and American plant on imperial pins
- Very high static load capacity — hardened steel on hardened steel, built for shock and alternating loads

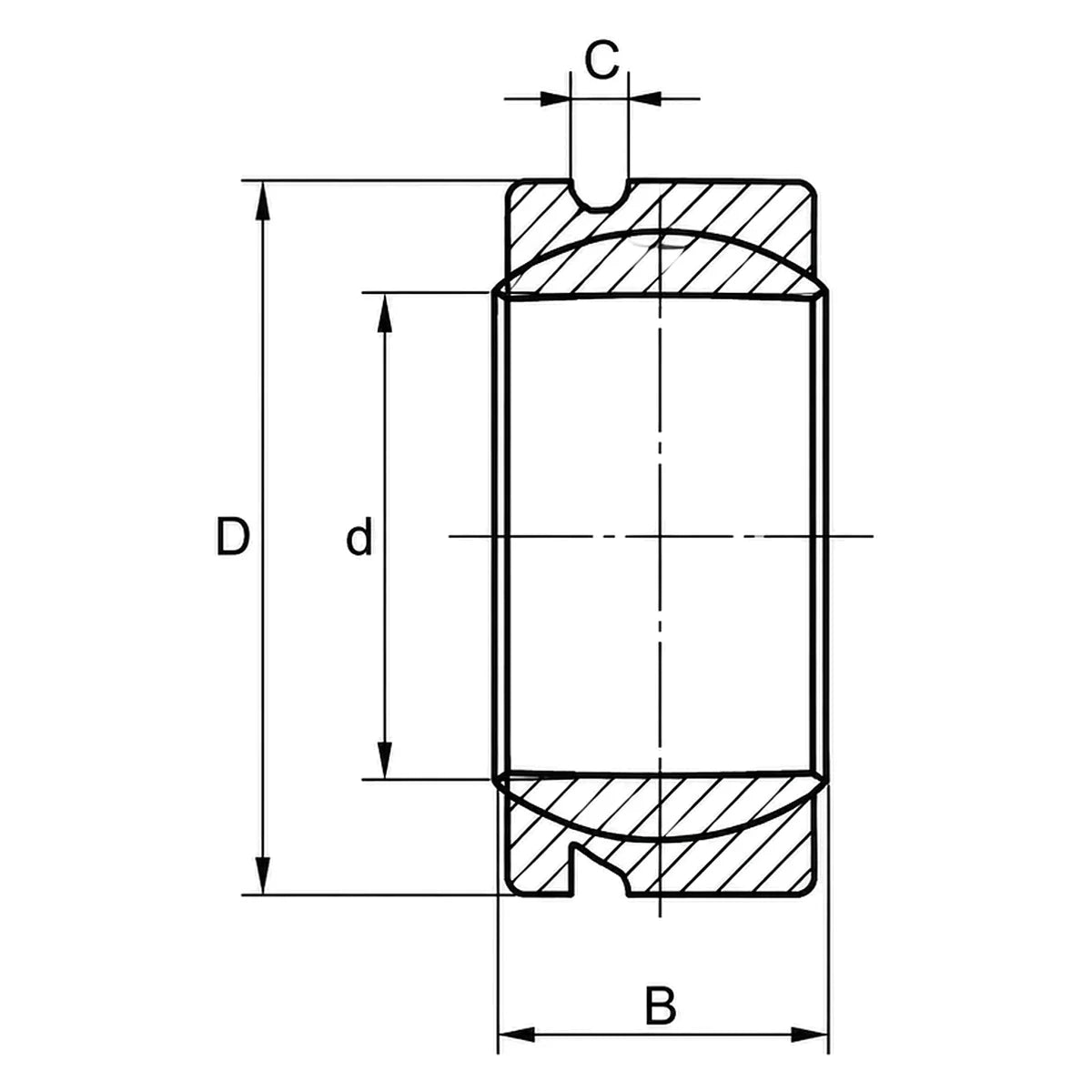

- Both inch and metric dimensions listed — check the housing before you order
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
31.75 x 50.8 x 27.76 / 1-1/4"mm bearing
Model Number: BJ31FZ_BECO
-
38.1 x 61.91 x 33.33 / 1-1/2"mm bearing
Model Number: BJ38FZ_BECO
-
44.45 x 71.44 x 38.89 / 1-3/4"mm bearing
Model Number: BJ44FZ_BECO
-
50.8 x 80.96 x 44.45 / 2"mm bearing
Model Number: BJ50FZ_BECO
-
57.15 x 90.49 x 50.01 / 2-1/4"mm bearing
Model Number: BJ57FZ_BECO
-
63.5 x 100.01 x 55.55 / 2-1/2"mm bearing
Model Number: BJ63Z_BECO
-
69.85 x 111.13 x 61.11 / 2-3/4"mm bearing
Model Number: BJ69FZ_BECO
-
76.2 x 120.65 x 66.68 / 3"mm bearing
Model Number: BJ76FZ_BECO
-
82.55 x 130.18 x 72.24 / 3-1/4"mm bearing
Model Number: BJ82FZ_BECO
-
88.9 x 139.7 x 77.78 / 3-1/2"mm bearing
Model Number: BJ88FZ_BECO
-
95.25 x 149.23 x 83.34 / 3-3/4"mm bearing
Model Number: BJ95FZ_BECO
-
101.6 x 158.75 x 88.9 / 4"mm bearing
Model Number: BJ101FZ_BECO
