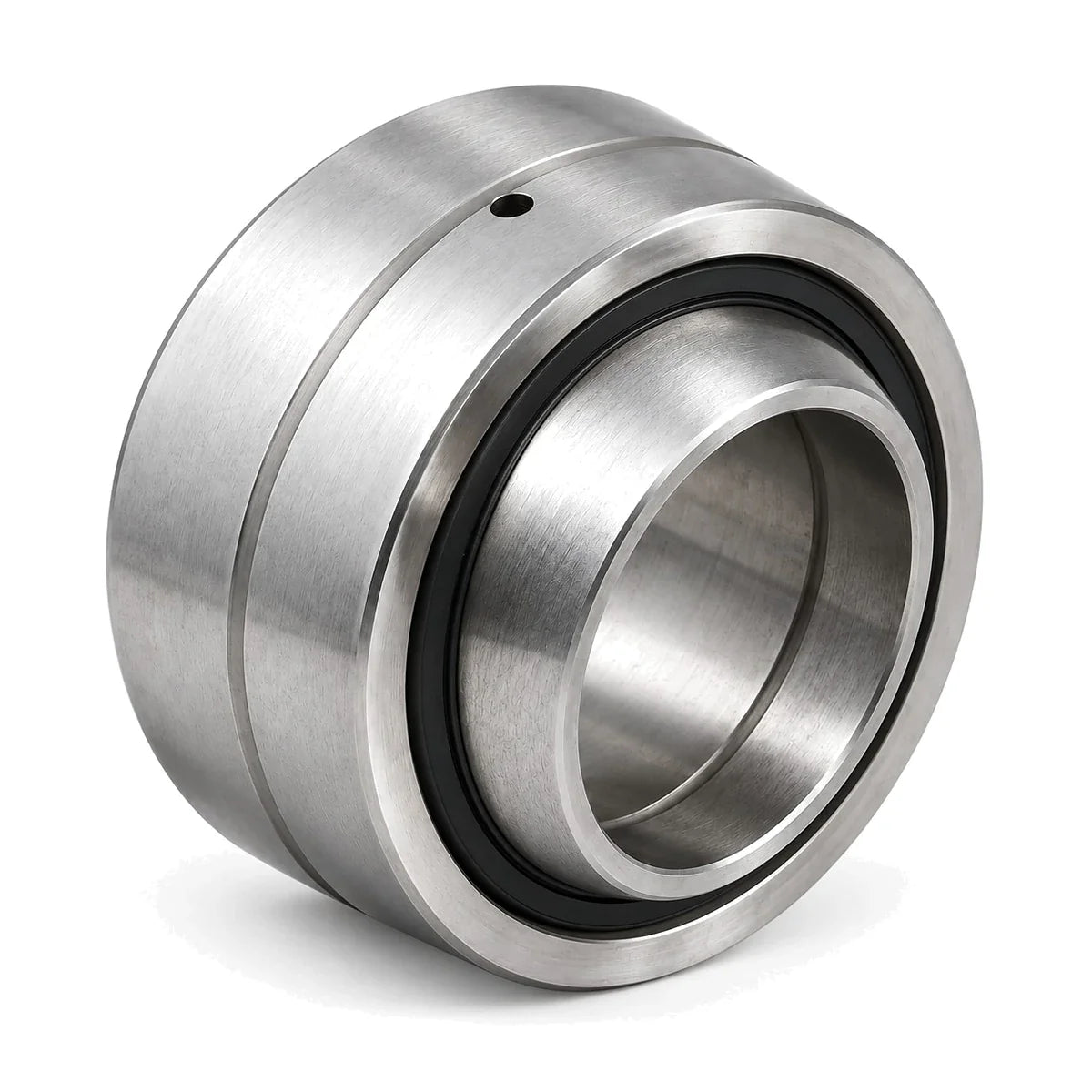

BECO BJ19Z-2RS Imperial Spherical Plain Bearing Sealed
Available
BECO imperial radial spherical plain bushings — spherical plain bearings bored to an inch shaft size — for repair and replacement work on imperial-shafted plant.
Hardened steel on hardened steel sliding surfaces, for very high static load capacity and good tolerance of shock and alternating loads. Sealed on both sides to hold the grease in and keep dirt and water out. Bores run 3/4" to 4"; every size is listed with both its inch bore and its millimetre boundary dimensions so you can check the housing before you order.
These need periodic greasing — plan it into the service schedule.
At a glance
| Bearing type | Imperial Spherical Plain Bearing |
|---|---|
| Standard | Radial imperial |
| Sliding surfaces | Steel on steel |
| Sealing | 2RS seals, both sides |
| Lubrication | Relubrication required |
| Bore range | 3/4" to 4" (16 sizes) |
- Inch bores, 3/4" to 4" — for older Australian, British and American plant on imperial pins
- Sealed both sides — holds the grease in and keeps dirt and water out of exposed positions
- Both inch and metric dimensions listed — check the housing before you order
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-
19.05 x 31.75 x 16.66 / 3/4"mm bearing
Model Number: BJ19Z-2RS_BECO
-
22.22 x 36.51 x 19.43 / 7/8"mm bearing
Model Number: BJ22Z-2RS_BECO
-
25.4 x 41.28 x 22.23 / 1"mm bearing
Model Number: BJ25Z-2RS_BECO
-
31.75 x 50.8 x 27.76 / 1-1/4"mm bearing
Model Number: BJ31Z-2RS_BECO
-
34.92 x 55.56 x 30.15 / 1-3/8"mm bearing
Model Number: BJ34Z-2RS_BECO
-
38.1 x 61.91 x 33.33 / 1-1/2"mm bearing
Model Number: BJ38Z-2RS_BECO
-
44.45 x 71.44 x 38.89 / 1-3/4"mm bearing
Model Number: BJ44Z-2RS_BECO
-
50.8 x 80.96 x 44.45 / 2"mm bearing
Model Number: BJ50Z-2RS_BECO
-
57.15 x 90.49 x 50.01 / 2-1/4"mm bearing
Model Number: BJ57Z-2RS_BECO
-
63.5 x 100.01 x 55.55 / 2-1/2"mm bearing
Model Number: BJ63Z-2RS_BECO
-
69.85 x 111.13 x 61.11 / 2-3/4"mm bearing
Model Number: BJ69Z-2RS_BECO
-
76.2 x 120.65 x 66.68 / 3"mm bearing
Model Number: BJ76Z-2RS_BECO
-
82.55 x 130.18 x 72.24 / 3-1/4"mm bearing
Model Number: BJ82Z-2RS_BECO
-
88.9 x 139.7 x 77.78 / 3-1/2"mm bearing
Model Number: BJ88Z-2RS_BECO
-
95.25 x 149.23 x 83.34 / 3-3/4"mm bearing
Model Number: BJ95Z-2RS_BECO
-
101.6 x 158.75 x 88.9 / 4"mm bearing
Model Number: BJ101Z-2RS_BECO
