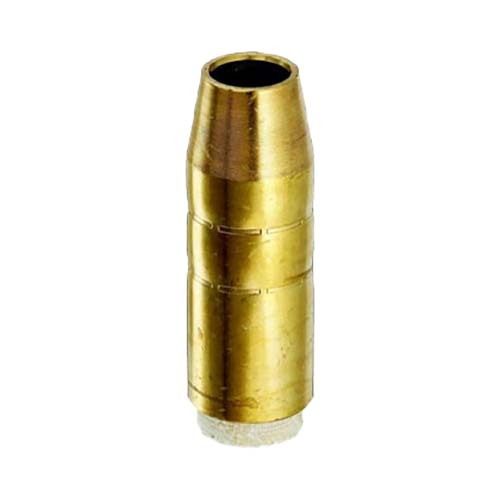

Bossweld Bernard Style Insulated Gas Nozzle 13 mm Conical, 200/300 | 93.4394

Bossweld Bernard Style Insulated Gas Nozzles 13 to 19 mm fit Bernard style 200/300 and 400/500 MIG torches. Four copper (CU) insulated nozzles are available: 13 mm conical and 16 mm cylindrical for 200/300 torches, and 14 mm conical and 19 mm cylindrical for 400/500 torches. Each pack holds 2 nozzles.

The nozzle directs shielding gas around the weld pool to protect it from the atmosphere, and it shields the front end of the torch from spatter and heat.

Where this product is used

• MIG welding with a shielding gas, with the nozzle sized to the joint
• Replacing a damaged or spatter-clogged nozzle on your existing torch
• Keeping a spare set for production welding

Features

• Bernard style 200/300 and 400/500 MIG torches
• 13 mm Conical, 200/300, 14 mm Conical, 400/500, 16 mm Cylindrical, 200/300 and 19 mm Cylindrical, 400/500
• Supplied in packs of 2

Key specifications

Selecting the right option

Choose the nozzle to match your torch style, insulator and diffuser, and pick the diameter for the job: a larger nozzle gives wider gas coverage for higher-current welding, and a smaller one gets into tighter joints. Spatter that builds up inside a nozzle restricts gas flow and can cause porosity, so clean nozzles regularly and replace them when they are damaged or heavily worn. If you are unsure which nozzle your torch takes, contact AIMS with the torch model before ordering.
