Brady 90847 Miniature Circuit Breaker (MCB) Lockouts for DIN
Available
Brady miniature circuit breaker (MCB) lockouts are a safe and effective method for locking out DIN miniature circuit breakers and install without tools using a push button. The range has four types, each as a single lockout or a pack of 6: Pin In Standard (PIS), Pin Out Standard (POS), Pin Out Wide (POW) and Tie Bar (TBLO).
The Tie Bar type takes 2 padlocks and the other three types take 1.
Where this product is used
- Electrical lockout of DIN miniature circuit breakers
- Switchboard and distribution board isolation where one or two padlocks are applied
Features
- Four types: pin in, pin out, pin out wide and tie bar
- No tools needed, installs with a push button
- Glass-reinforced nylon, service temperature -20 to 120 °C
- Takes a padlock shackle up to 7.1mm
- Single lockout or pack of 6
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | Miniature Circuit Breaker (MCB) Lockouts for DIN Breakers, Pin In, Pin Out, Pin Out Wide and Tie Bar |
| Types | Pin In Standard, Pin Out Standard, Pin Out Wide, Tie Bar |
| Pack | Single lockout or pack of 6, with separate part numbers |
| Material | Glass-reinforced nylon |
| Temperature | -20 to 120 °C |
| Maximum shackle | 7.1mm diameter |
| Padlocks | 1, or 2 for the tie bar type |
| Installation | No tools; push button |
Choosing the right option
Choose the type, then single or pack of 6, from the table. For single pole breakers see the Brady original single pole breaker lockout and the Brady no hole single pole breaker lockout.
Related Brady products: Brady original single pole breaker lockout, Brady no hole single pole breaker lockout, Brady compact safety padlock, Brady compact cable padlock and Safety Plus nylon shackle padlock.
| Option | Part number | SKU |
|---|---|---|

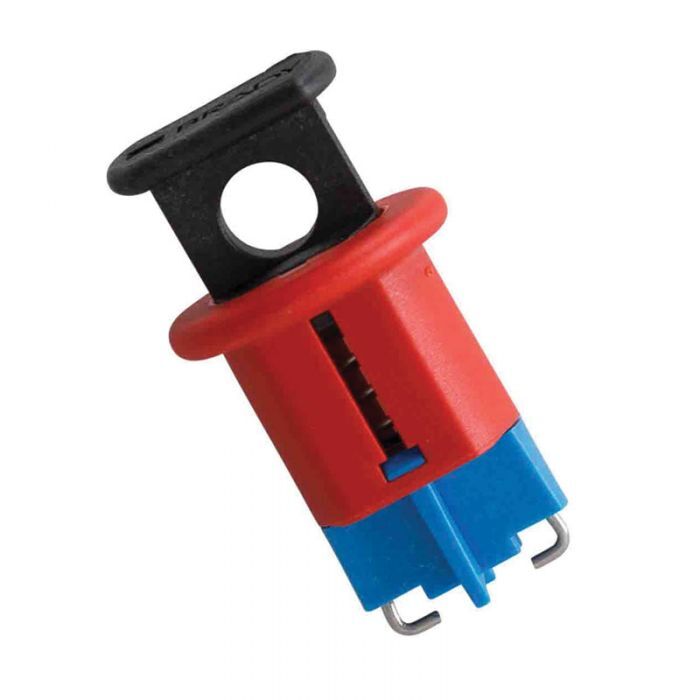

| Pin In Standard Lockout (PIS) / 1 | 90847 | A0172141 |
| Pin In Standard Lockout (PIS) / 6 | 90848 | A0172145 |

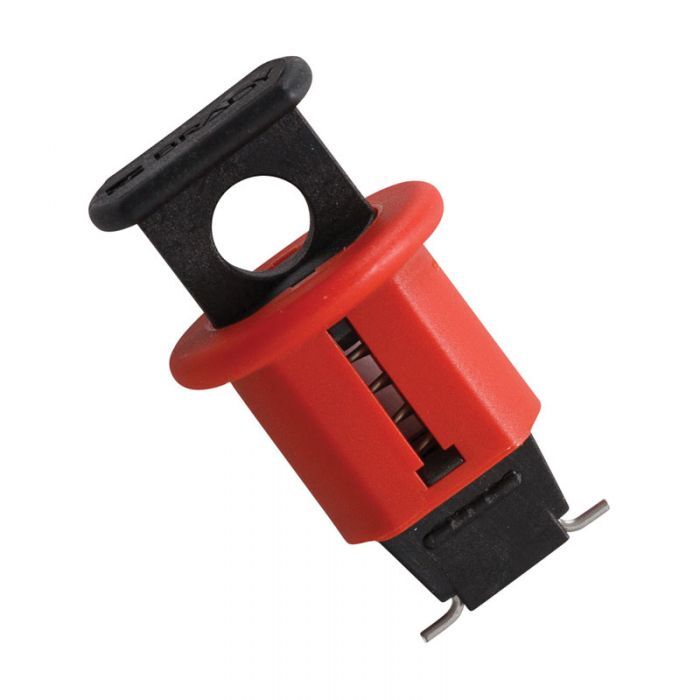

| Pin Out Standard Lockout (POS) / 1 | 90844 | A0172140 |
| Pin Out Standard Lockout (POS) / 6 | 90845 | A0172144 |

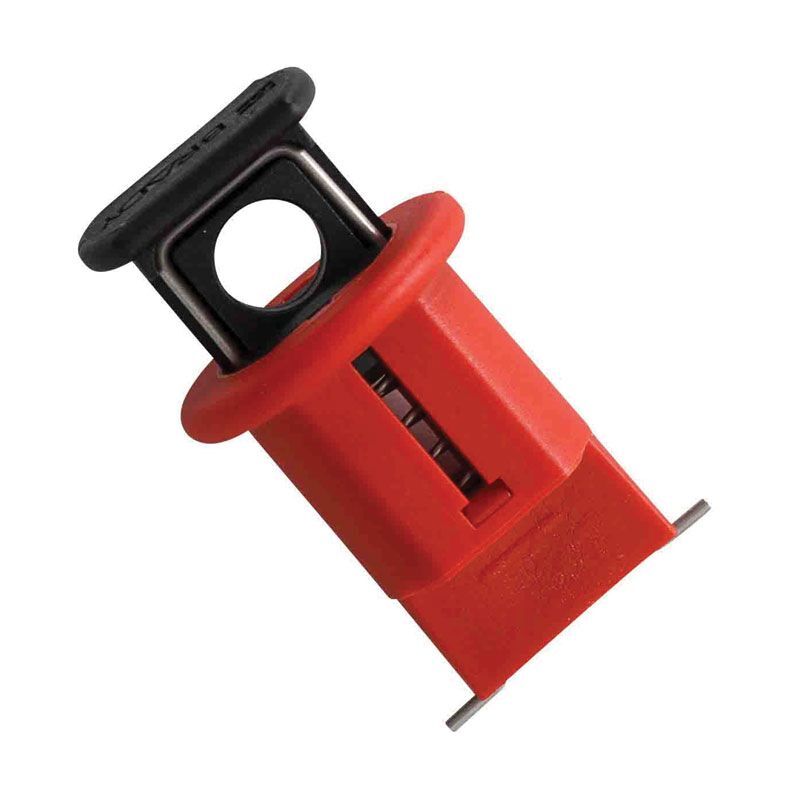

| Pin Out Wide Lockout (POW) / 1 | 90850 | A0172142 |
| Pin Out Wide Lockout (POW) / 6 | 90851 | A0172146 |

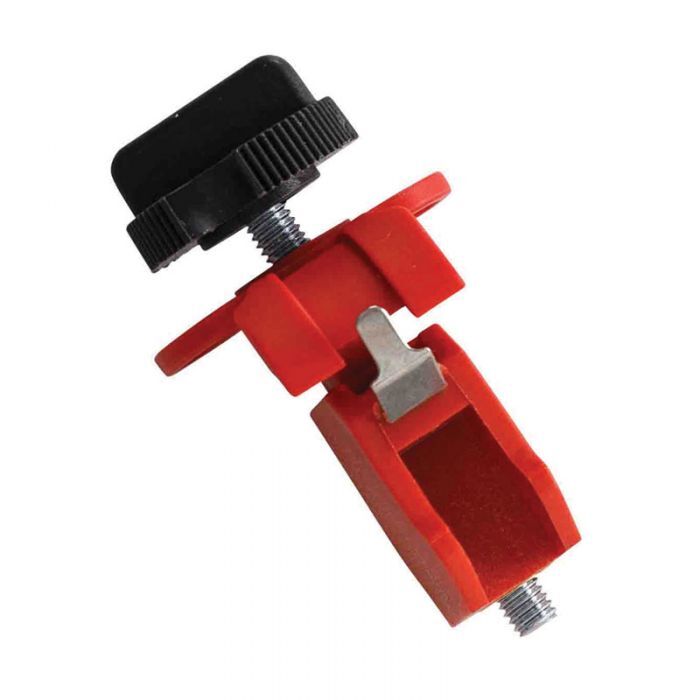

| Tie Bar Lockout (TBLO) / 1 | 90853 | A0172143 |
| Tie Bar Lockout (TBLO) / 6 | 90854 | A0172147 |
