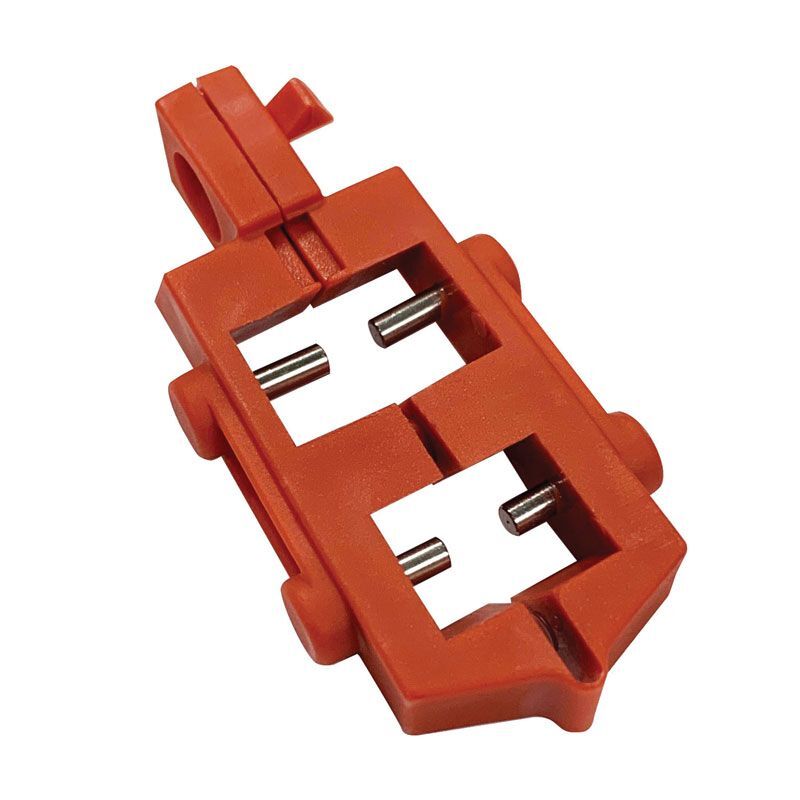

Brady 65387 Original Single Pole Circuit Breaker Lockout
Available
The Brady original single pole circuit breaker lockout snaps onto the breaker switch and accepts a padlock with a shackle up to 7mm in diameter, or a nylon tie. The range has two options: a single lockout and a pack of 6.
Check your breaker's switch tongue before ordering.
Where this product is used
- Electrical lockout of single pole breakers with a hole in the switch tongue
- Switchboard and distribution board isolation
Features
- Snaps onto the breaker switch
- Accepts a padlock shackle up to 7mm, or a nylon tie
- Dual cavities for different switch tongue sizes
- Nylon, service temperature -20 to 120 °C
- Single lockout or pack of 6
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | Original Single Pole Circuit Breaker Lockout, Snap-On, Nylon, Single or Pack of 6 |
| Style | Snap-on, dual cavities |
| Padlock | Shackle up to 7mm, or a nylon tie |
| Fit | Most major brand breaker switches except Federal Pacific and most 277V |
| Material | Nylon |
| Size | 30.2 x 54.4 x 8.4mm |
| Temperature | -20 to 120 °C |
| Pack | Single lockout or pack of 6 |
Choosing the right option
Choose a single lockout or a pack of 6. For breakers with no hole in the switch tongue see the Brady no hole single pole breaker lockout, and for DIN miniature breakers the Brady MCB lockouts for DIN breakers.
Related Brady products: Brady no hole single pole breaker lockout, Brady MCB lockouts for DIN breakers, Brady compact safety padlock and Brady compact cable padlock.
| Option | Part number | SKU |
|---|---|---|
| 1 | 65387 | A0172152 |
| 6 | 65688 | A0172153 |
