Brady 65396 No Hole Single Pole Circuit Breaker Lockout
Available

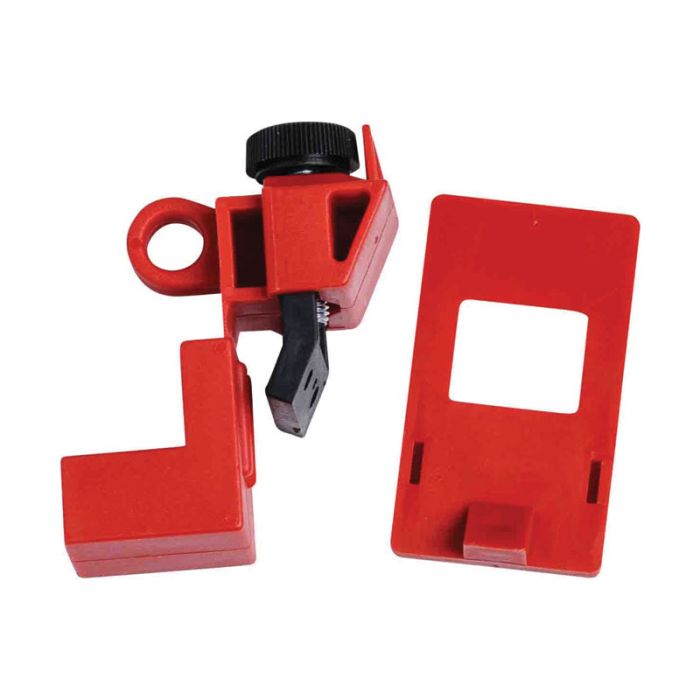

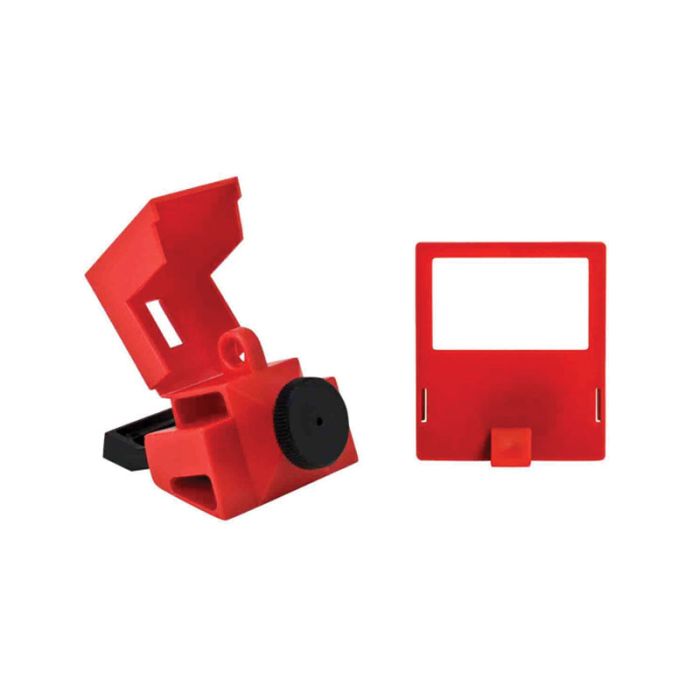

The Brady no hole single pole circuit breaker lockout is a clamp-on lockout for single pole circuit breakers whose switch has no hole to lock through. It has a thumbwheel design so no screwdriver is needed to fit it. The range has two sizes, small and large, each as a single lockout or a pack of 6.
It gives the switch tongue it fits as 16mm wide x 11mm thick for a 277V device and 41mm wide x 14mm thick for a 480/600V device. They name the product a 'Clamp-On Breaker Lockout, Flip Cover'.
Where this product is used
- Electrical lockout of single pole circuit breakers with no hole in the switch tongue
- Switchboard and distribution board isolation
Features
- Clamp-on thumbwheel design, no screwdriver needed
- Small and large sizes for different breaker switches
- Takes a padlock shackle up to 7mm
- Detachable cleat extends the range of compatible breakers
- Single lockout or pack of 6
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | No Hole Single Pole Circuit Breaker Lockout, Clamp-On, Small or Large, Single or Pack of 6 |
| Sizes | Small and large |
| Small body | 24.1 x 56.0 x 25.4mm |
| Large body | 40.3 x 82.6 x 55.2mm |
| Switch tongue | Small 16 x 11mm (277V); large 41 x 14mm (480/600V) |
| Padlock | Shackle up to 7mm |
| Material | Polypropylene |
| Temperature | -20 to 80 °C |
Choosing the right option
Choose small or large to match your breaker switch tongue, then single or pack of 6. For breakers with a hole in the switch tongue see the Brady original single pole breaker lockout, and for DIN miniature breakers the Brady MCB lockouts for DIN breakers.
Related Brady products: Brady original single pole breaker lockout, Brady MCB lockouts for DIN breakers, Brady compact safety padlock and Brady compact cable padlock.
| Option | Part number | SKU |
|---|---|---|
| Small / 1 | 65396 | A0172148 |
| Small / 6 | 65965 | A0172150 |
| Large / 1 | 65397 | A0172149 |
| Large / 6 | 65966 | A0172151 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Brady No Hole Single Pole Circuit Breaker Lockout, Clamp-On, Small or Large, Single or Pack of 6: Small / 1
SKU: A0172148 | Model: 65396
65396 is the Small, 1 option of Brady No Hole Single Pole Circuit Breaker Lockout, Clamp-On, Small or Large, Single or Pack of 6. Specifications: Size: Small; Pack: 1 lockout; Style: Clamp-on, thumbwheel, no screwdriver (Brady).
