Brady B33-94-2-7642 PermaSleeve HX B-7642 Single-Sided
Available

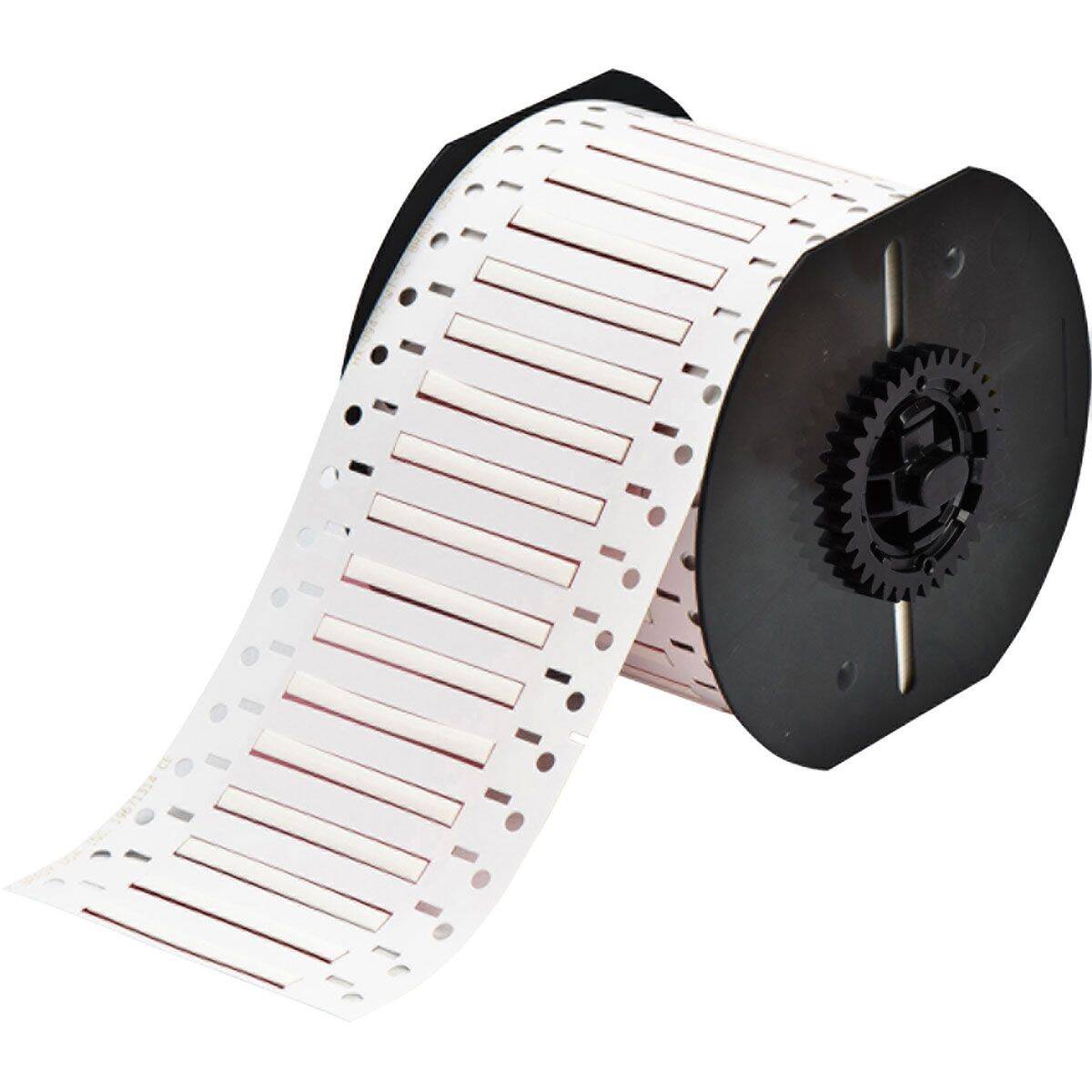

Brady PermaSleeve HX B-7642 is a 2:1 heat-shrink polyolefin wire marking sleeve for the Brady BBP33, i3300, i4311 and i5300 printers. The range has eight single-sided white rolls, each 50.8mm wide, in diameters from 2.39 to 25.4mm.
Service temperature is -40 to 120 °C (-40 to 248 °F). The sleeve is chemical, corrosion, humidity, UV and weather resistant and self-extinguishing, and meets SAE-AMS-DTL-23053/5 Class 1 and 3 and SAE-AS-81531, tested per ASTM E162 and E662. The ribbon is B30-R4300, on the [B30 series printer ribbons](/products/brady-b30-series-printer-ribbon).
Where this product is used
- Wire and cable labelling
- Electrical labelling
- Marking cables in chemical, humid or weathered environments, where the sleeve is chemical, corrosion, humidity and weather resistant
Features
- 2:1 heat-shrink polyolefin sleeve
- Chemical, corrosion, humidity, UV and weather resistant
- Self-extinguishing
- Service temperature -40 to 120 °C
- Single-sided thermal transfer printing, die-cut
- Eight white rolls, 2.39 to 25.4mm diameter
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | PermaSleeve HX B-7642 Single-Sided Heat-Shrink Wire Marking Sleeves for B33 Printers, White, 2.39 to 25.4mm Dia |
| Material | Heat-shrink polyolefin, B-7642, matte |
| Service temperature | -40 to 120 °C (-40 to 248 °F) |
| Printing | Single-sided, thermal transfer |
| Form | Die-cut sleeves on a roll, 50.8mm wide, white |
| Ribbon | B30-R4300 |
| Printer compatibility | BBP33, i3300, i4311, i5300 |
| Standards listed | SAE-AMS-DTL-23053/5 Class 1 and 3 and SAE-AS-81531, tested per ASTM E162 and E662 |
| 2.39 | wire diameter range (mm) 1.19 to 2.03; wire gauge range 24 AWG - 20 AWG; sleeve width (mm) 50.8 |
| 3.18 | wire diameter range (mm) 1.57 to 2.79; wire gauge range 20 AWG - 16 AWG; sleeve width (mm) 50.8 |
| 4.75 | wire diameter range (mm) 2.39 to 3.81; wire gauge range 16 AWG - 10 AWG; sleeve width (mm) 50.8 |
| 6.35 | wire diameter range (mm) 3.18 to 5.46; wire gauge range 12 AWG - 8 AWG; sleeve width (mm) 50.8 |
| 9.53 | wire diameter range (mm) 4.78 to 8.13; wire gauge range 8 AWG - 4 AWG; sleeve width (mm) 50.8 |
| 12.7 | wire diameter range (mm) 6.35 to 11.43; wire gauge range 6 AWG - 1 AWG; sleeve width (mm) 50.8 |
| 19.05 | wire diameter range (mm) 9.53 to 17.78; wire gauge range 2 AWG - 0000 AWG; sleeve width (mm) 50.8 |
| 25.4 | wire diameter range (mm) 12.70 to 24.13; wire gauge range 00 AWG - 500 MCM; sleeve width (mm) 50.8 |
Choosing the right option
Pick the sleeve whose wire diameter range includes your conductor. For double-sided printing see the B-7642 HX double-sided heat-shrink sleeves. For a sleeve with a 3:1 shrink ratio and a higher service temperature see the B-342 single-sided heat-shrink sleeves for B33 printers and B-345 PVDF high-temperature sleeves for B33 printers.
Related Brady products: B-7642 HX double-sided heat-shrink sleeves, B-342 single-sided heat-shrink sleeves for B33 printers, B-345 PVDF high-temperature sleeves for B33 printers, Brady i3300 industrial label printer and B30 series printer ribbons.
| Option | Part number | SKU |
|---|---|---|
| 50.80 x 4.62mm | B33-94-2-7642 | A0205437 |

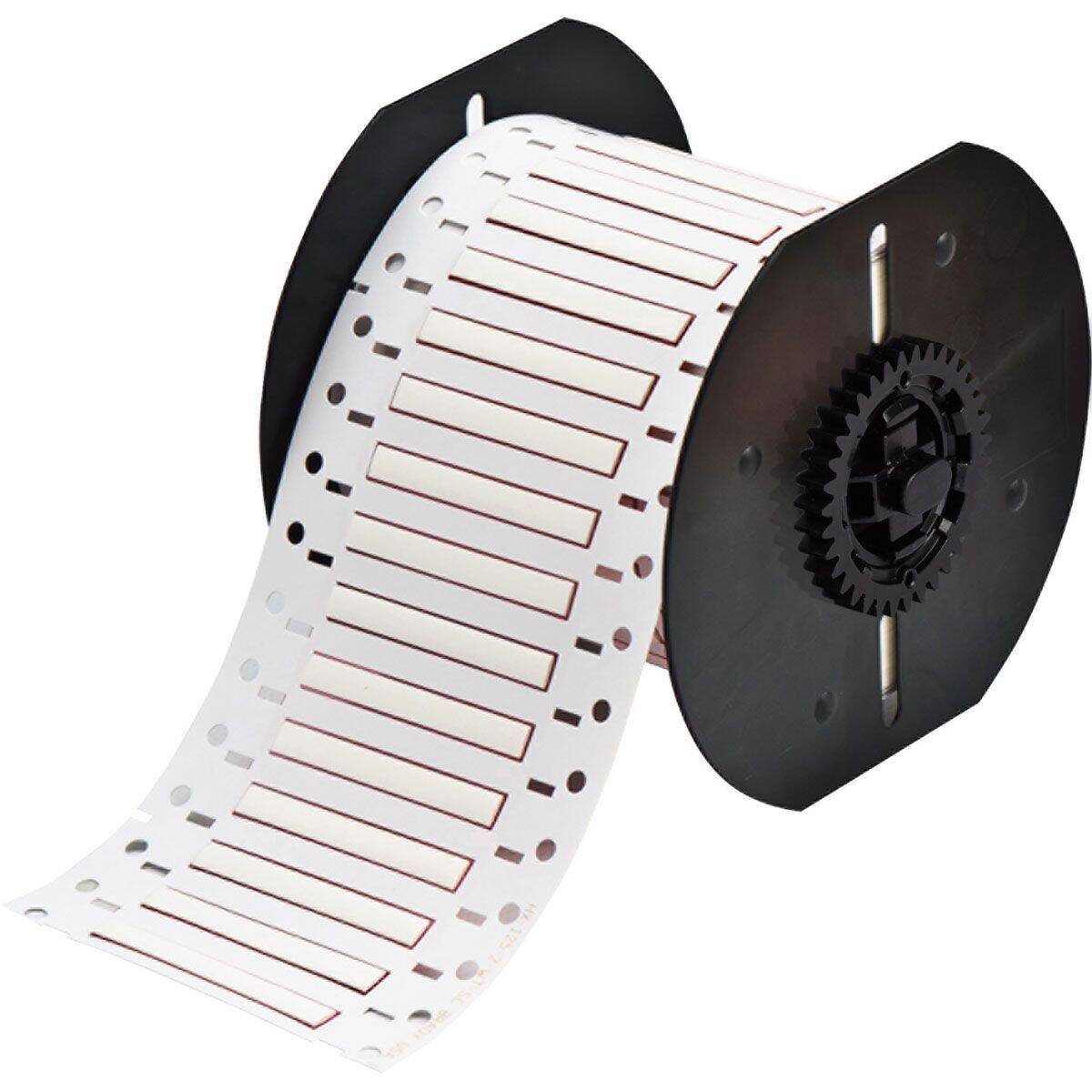

| 50.80 x 5.97mm | B33-125-2-7642 | A0205438 |

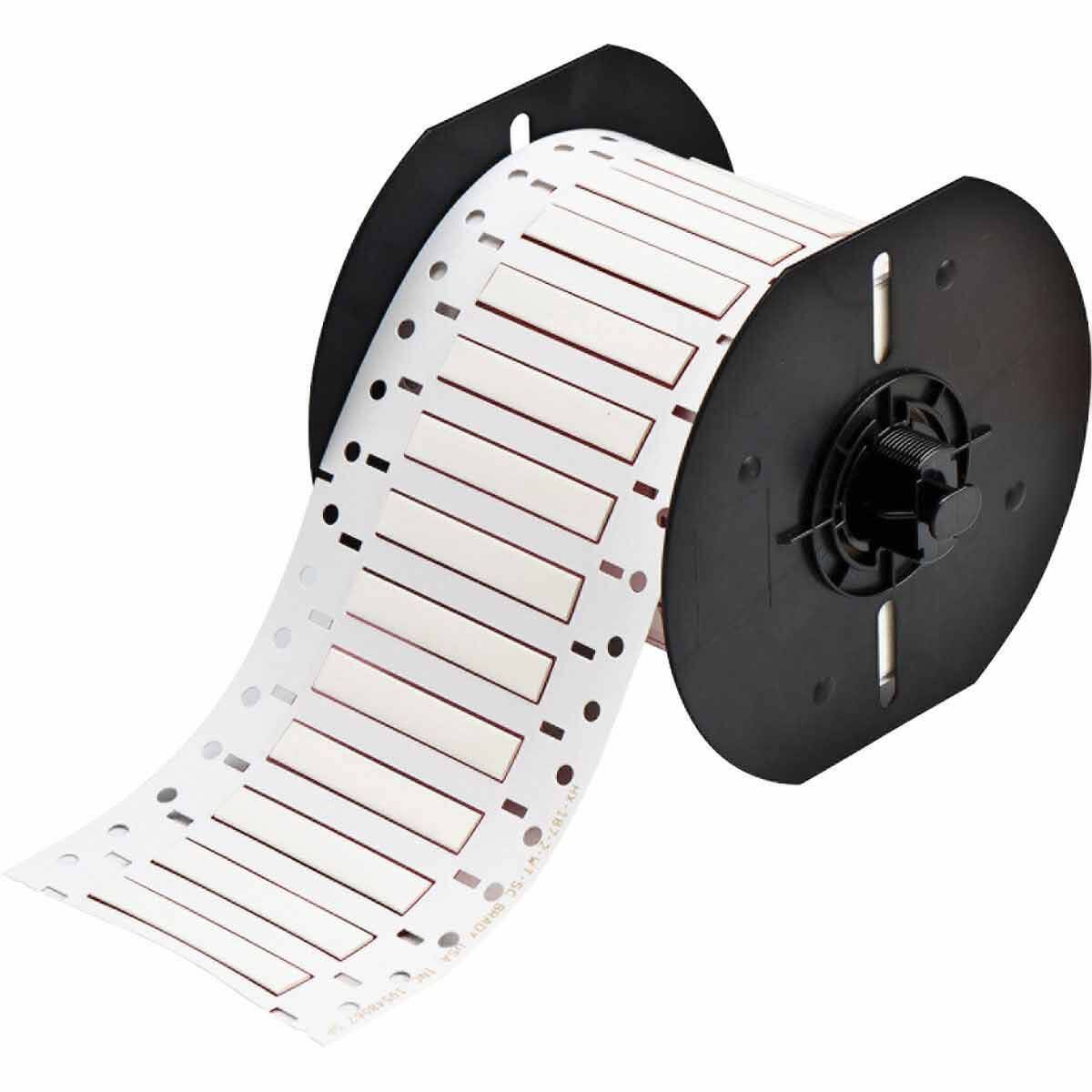

| 50.80 x 8.51mm | B33-187-2-7642 | A0205439 |

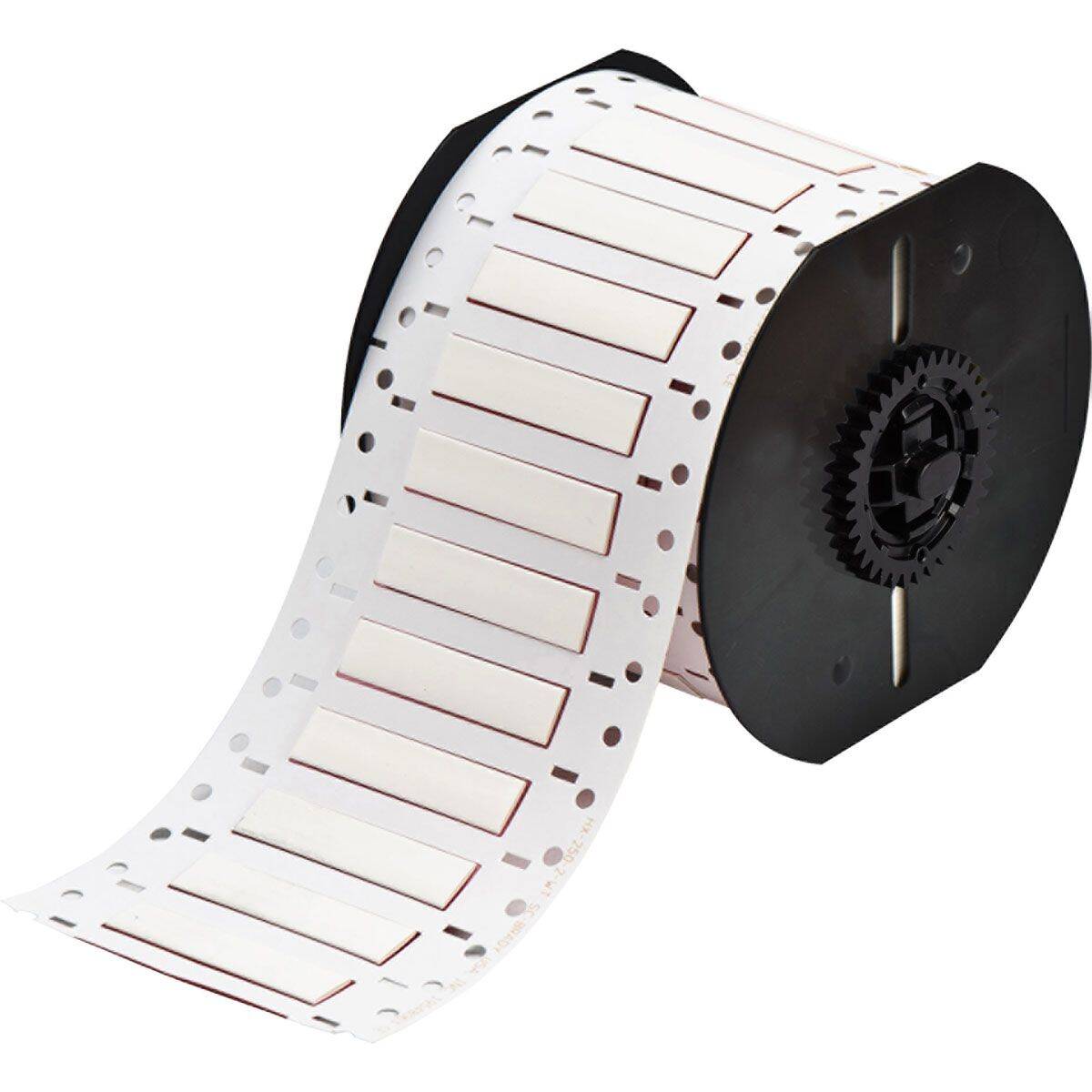

| 50.80 x 11.15mm | B33-250-2-7642 | A0205440 |

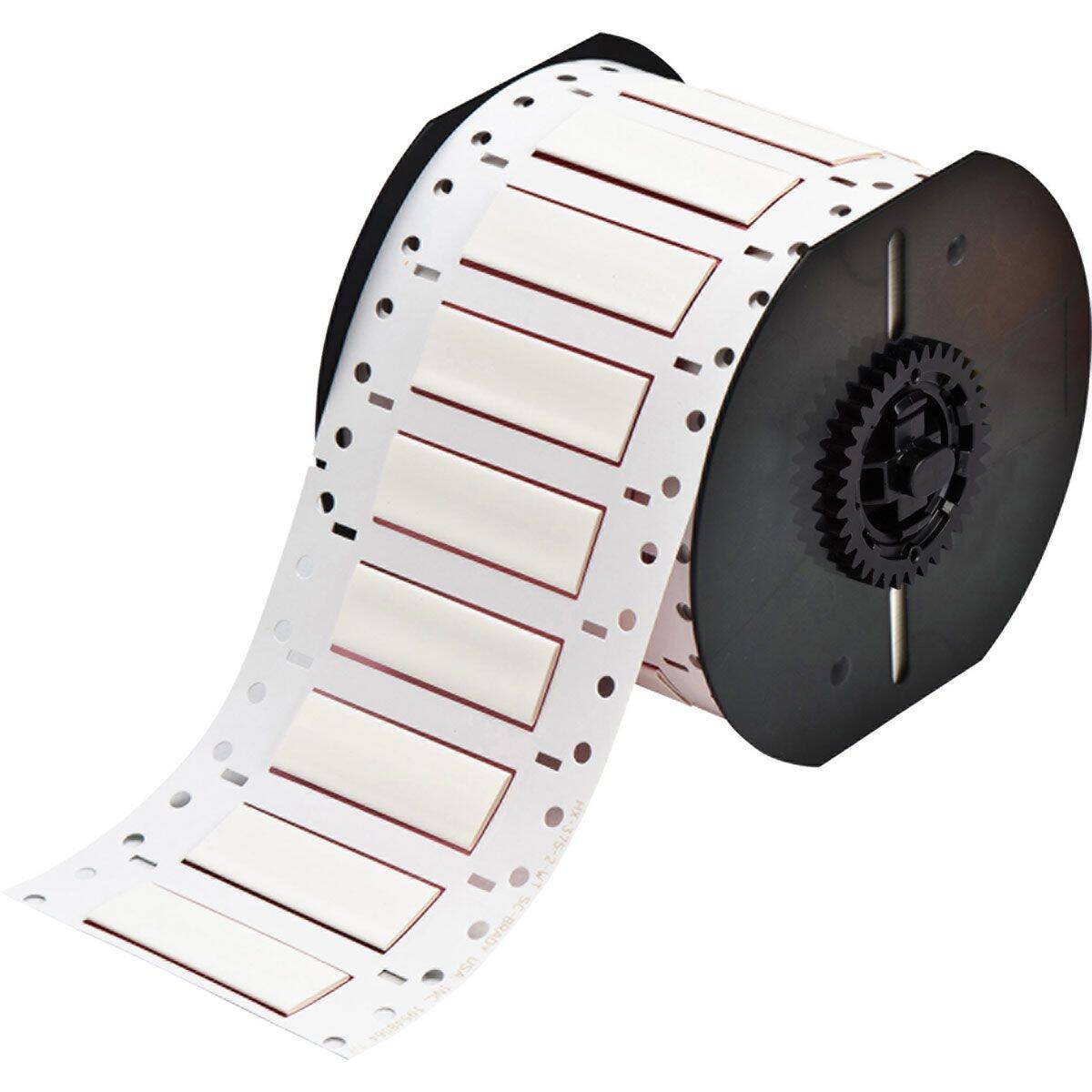

| 50.80 x 16.38mm | B33-375-2-7642 | A0205441 |

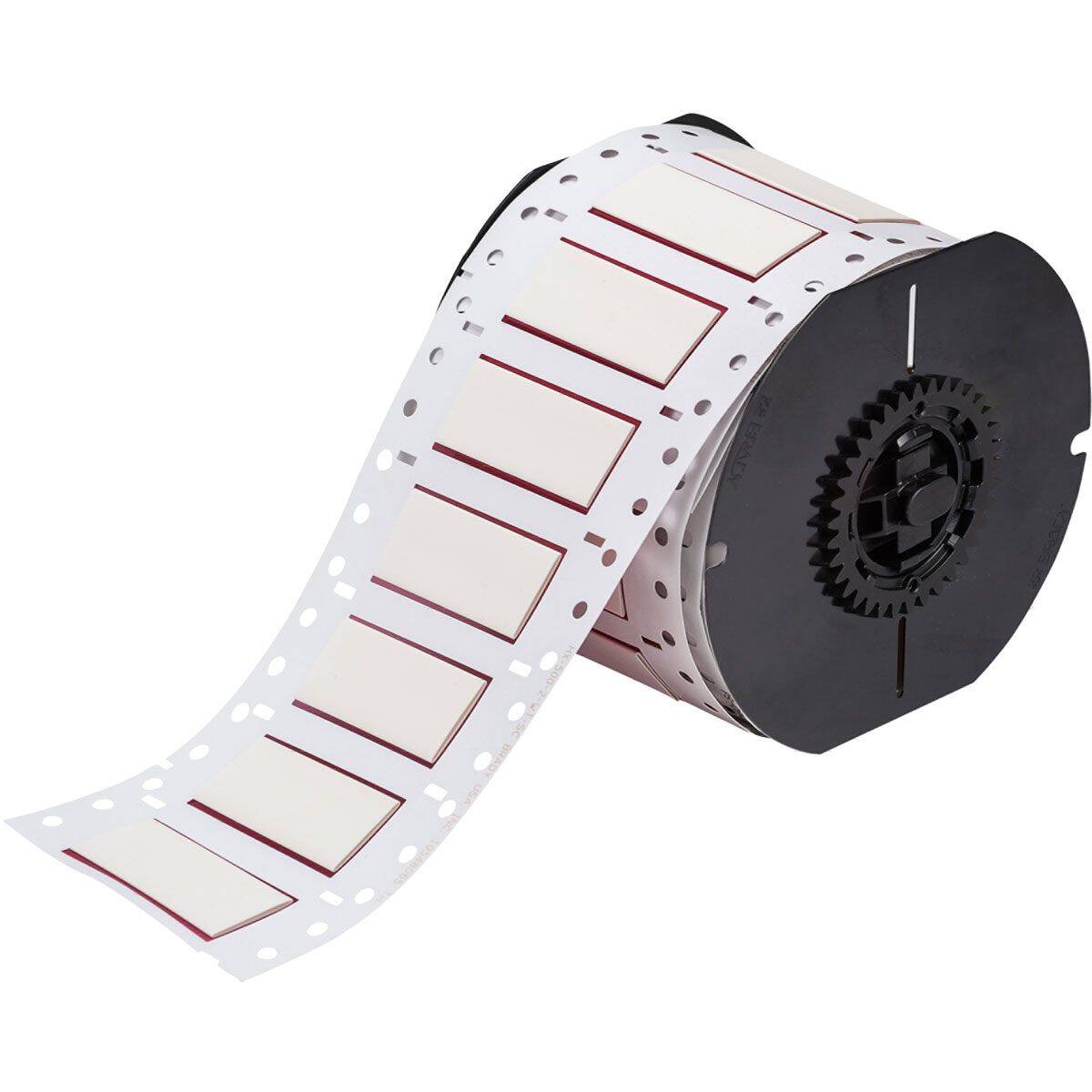

| 50.80 x 21.62mm | B33-500-2-7642 | A0205442 |

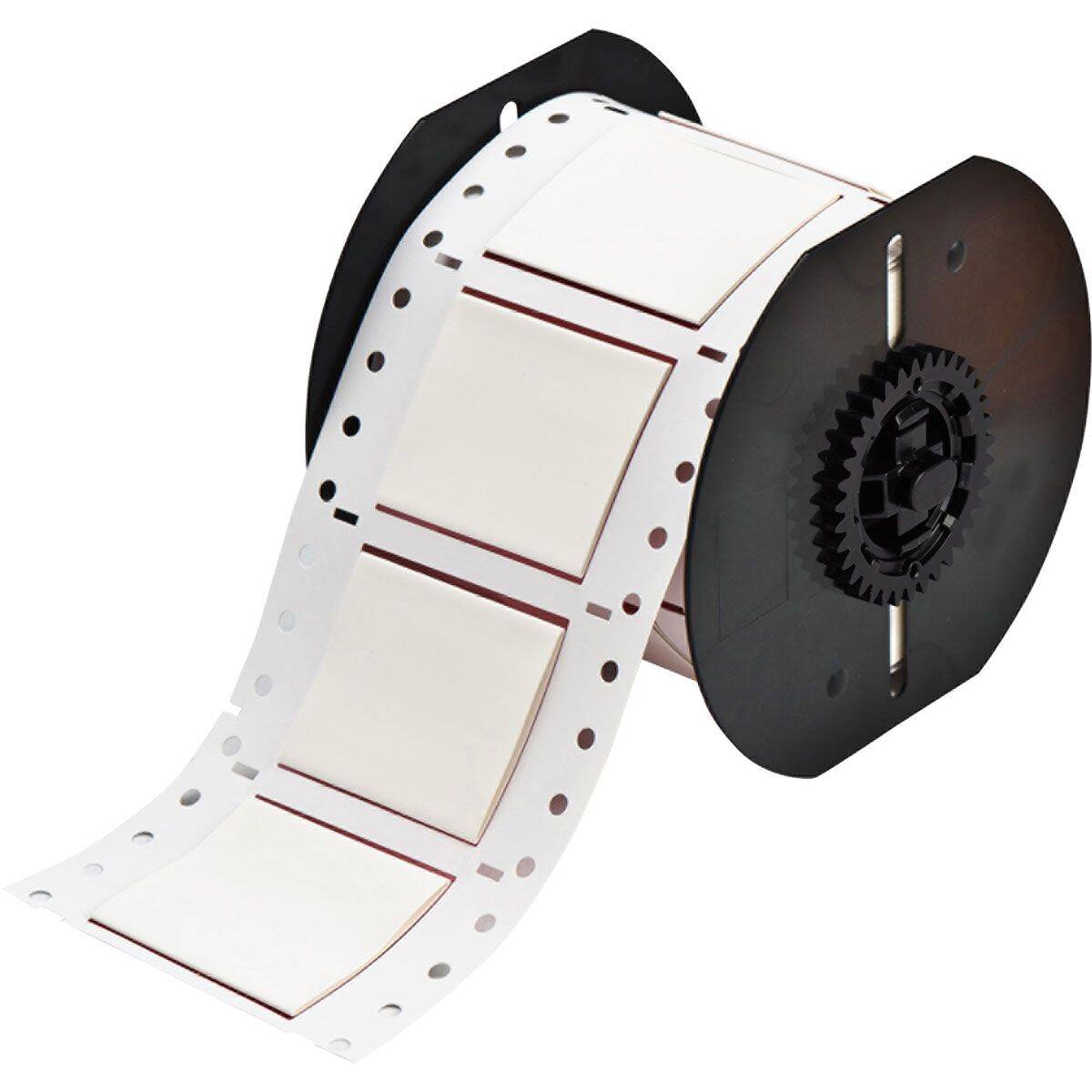

| 50.80 x 42.16mm | B33-1000-2-7642 | A0205444 |

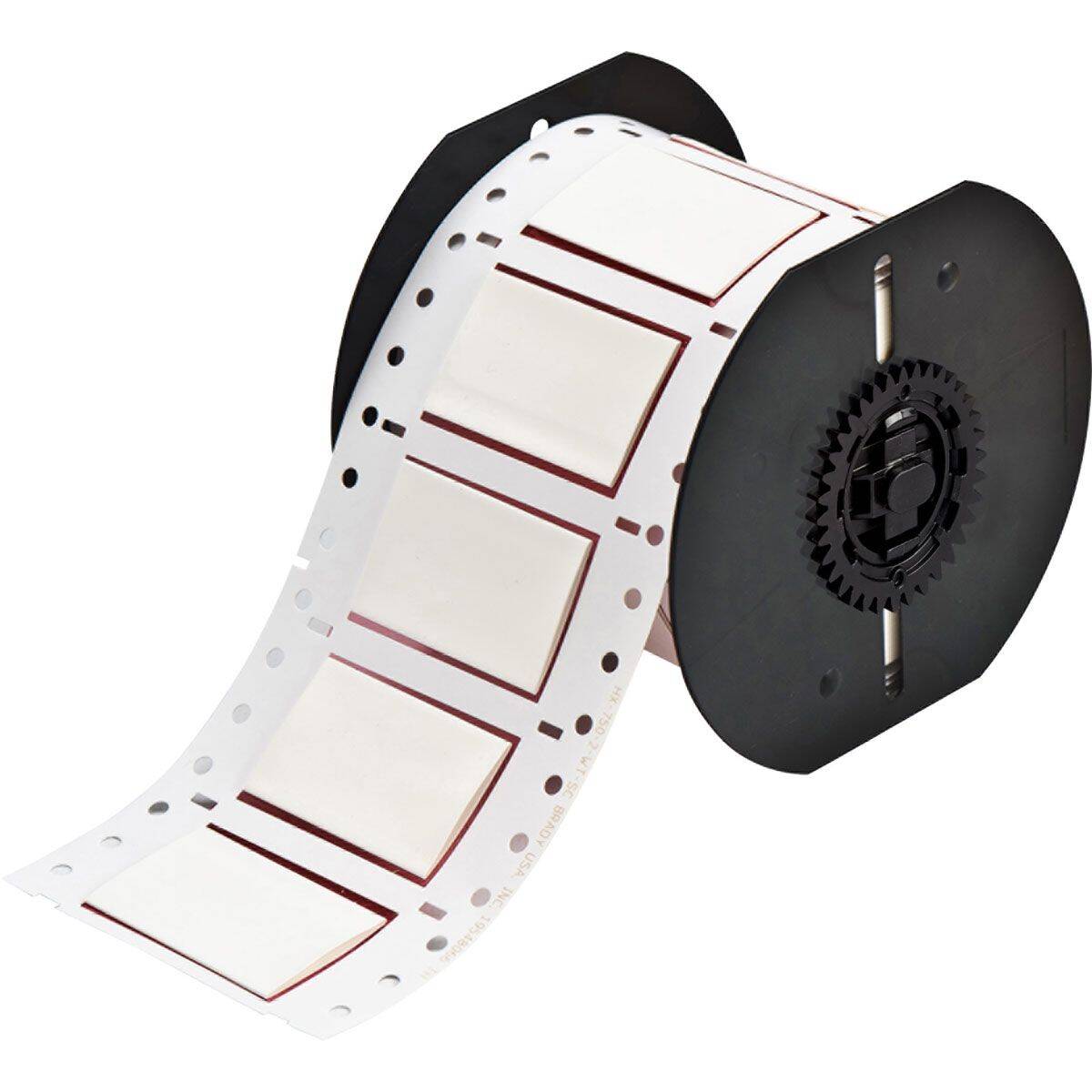

| 50.80 x 31.75mm | B33-750-2-7642 | A0205443 |
