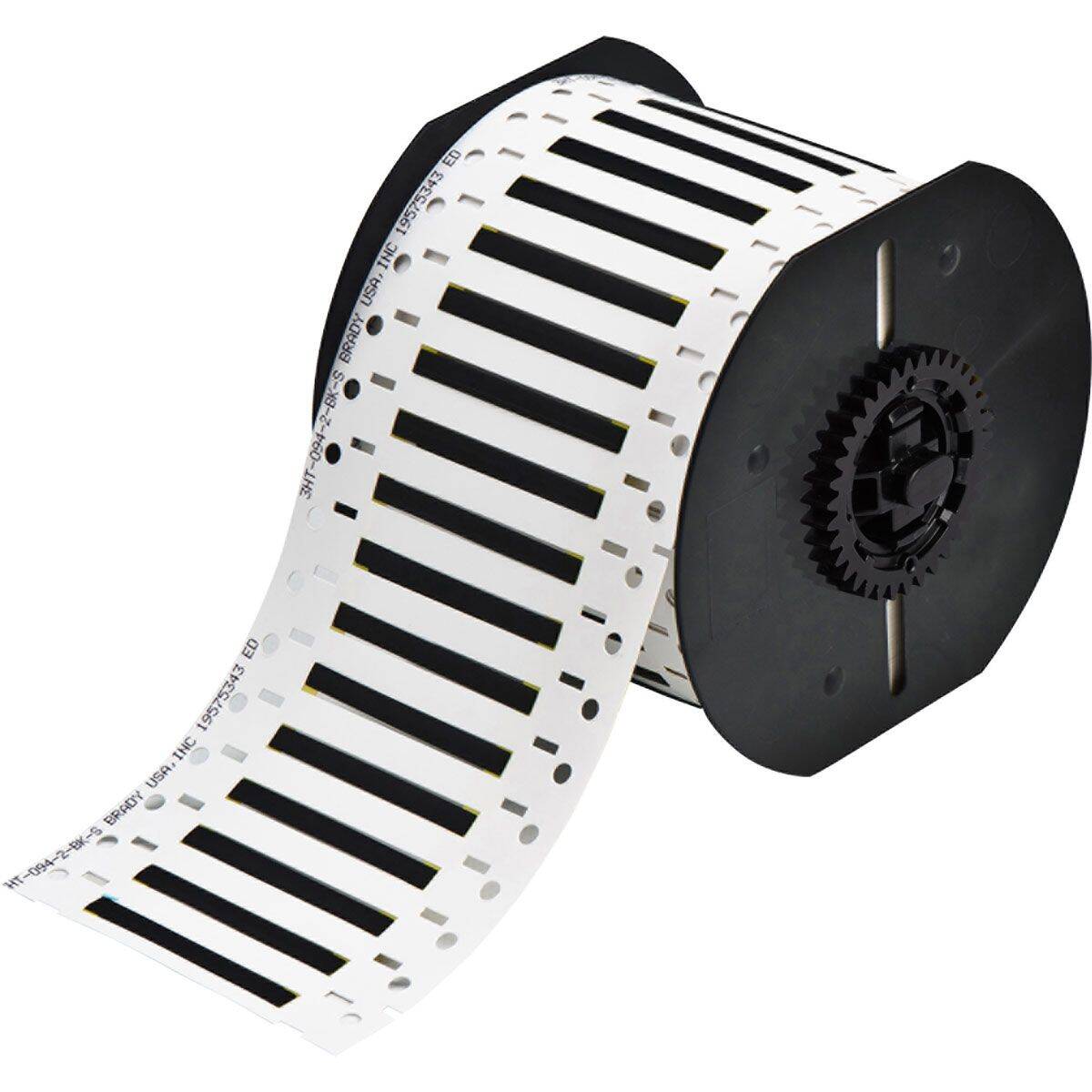

Brady B33D-94-2-345BK PermaSleeve B-345 High Temperature

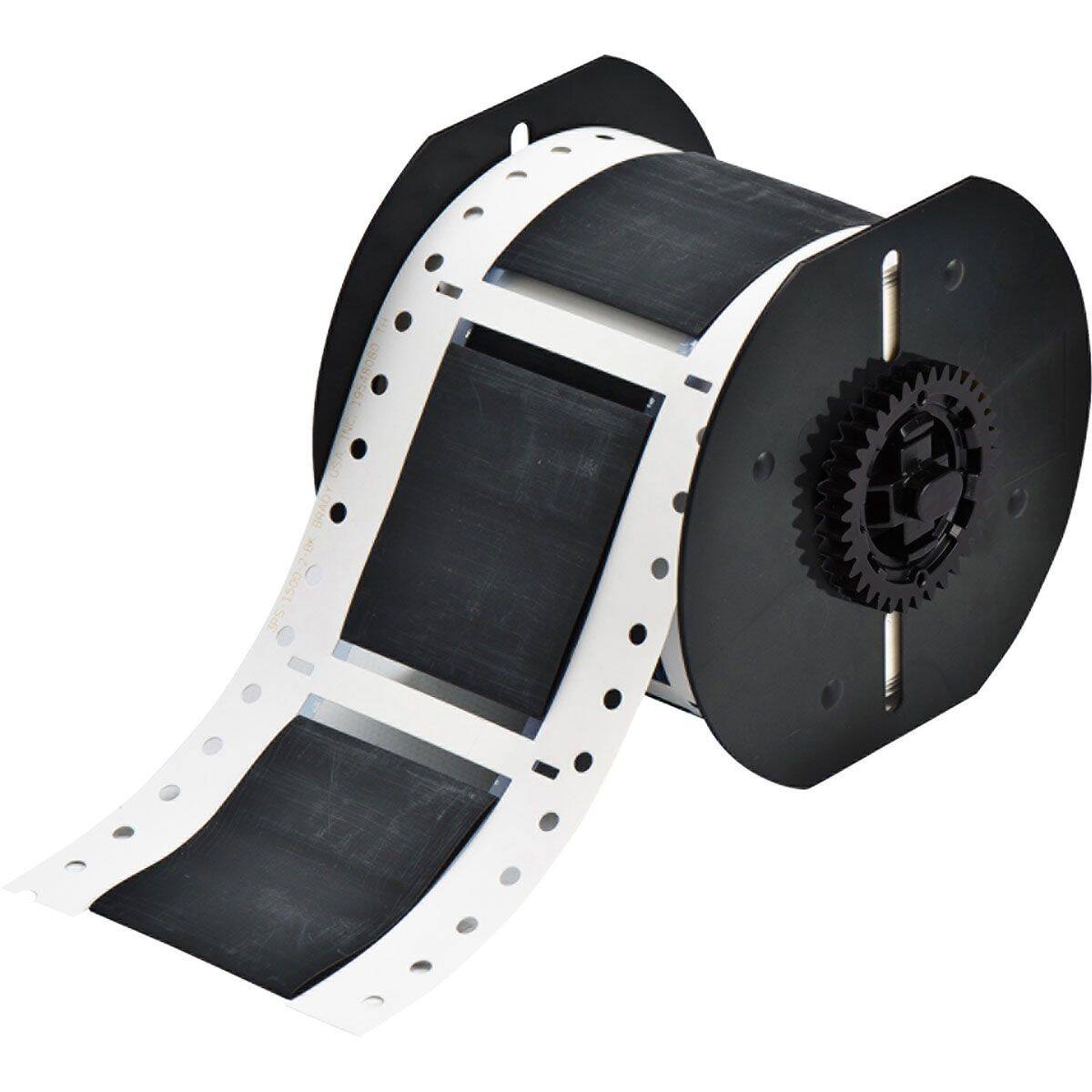

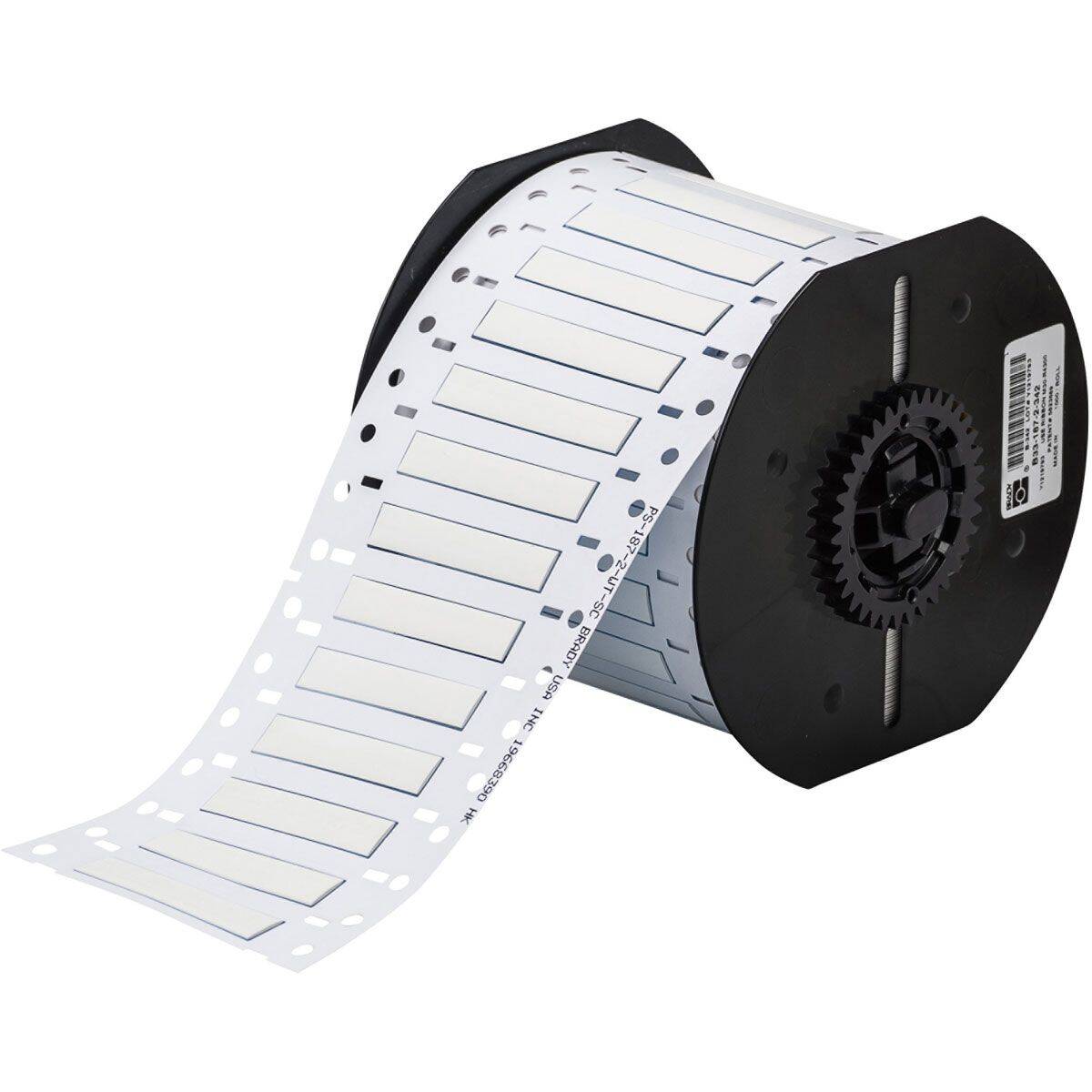

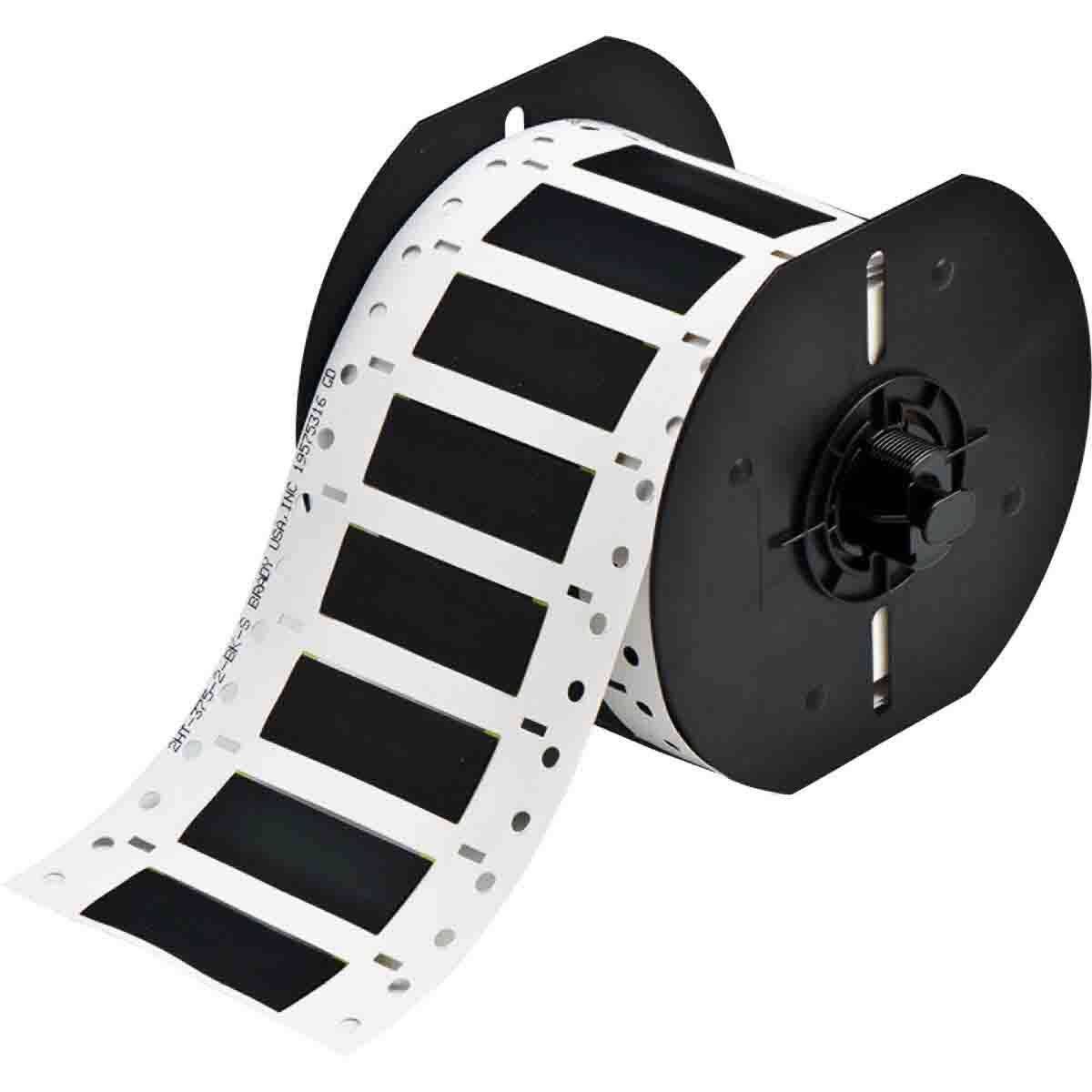

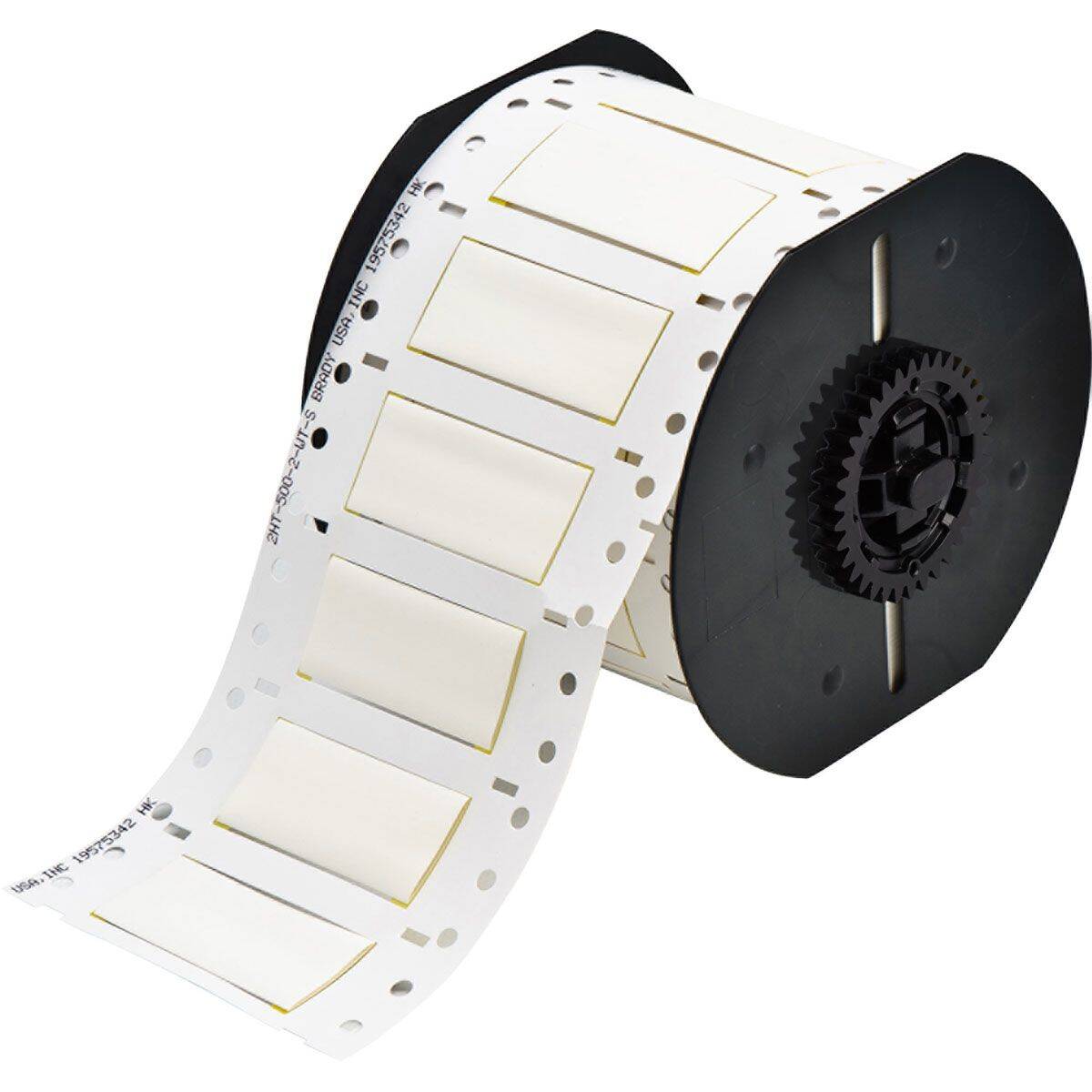

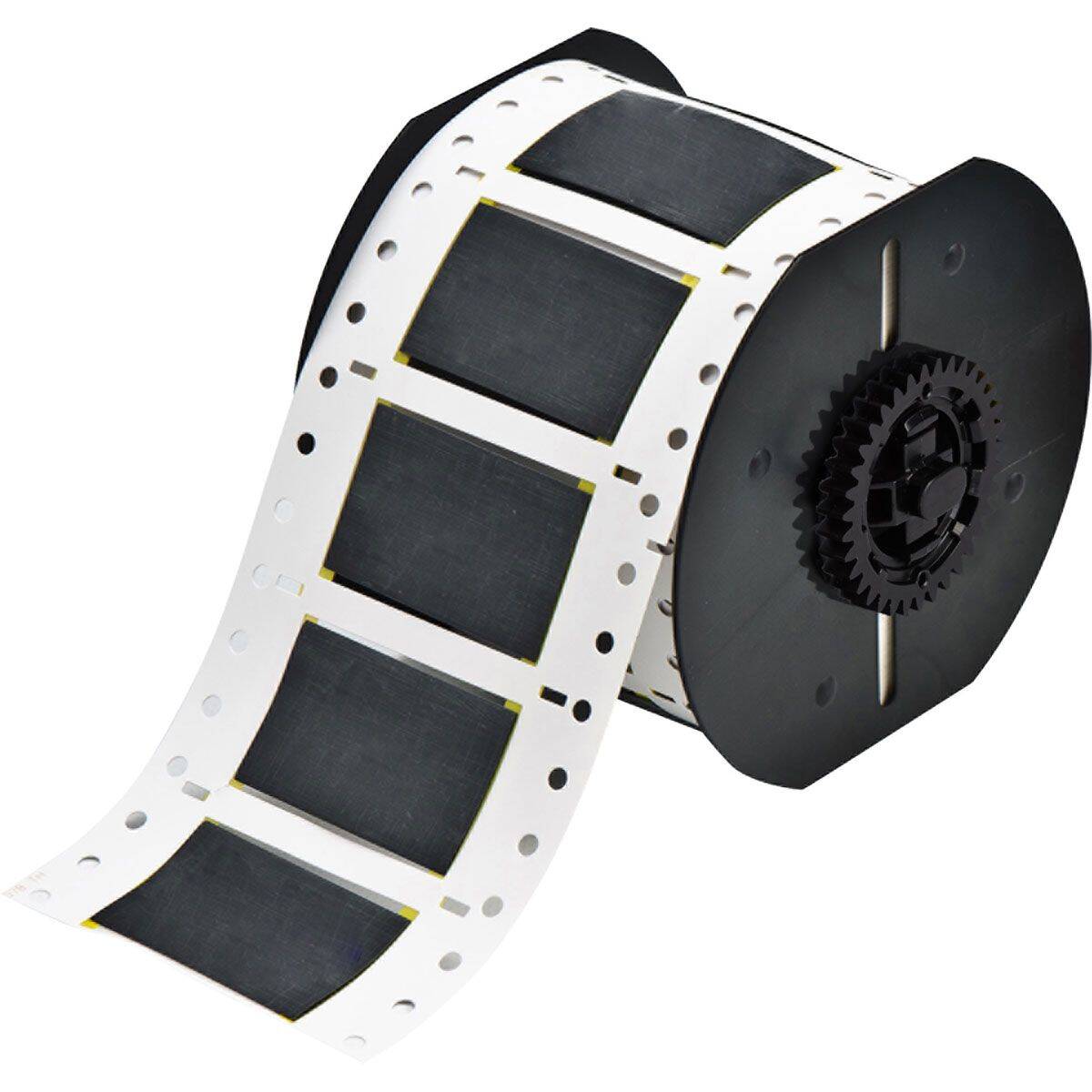

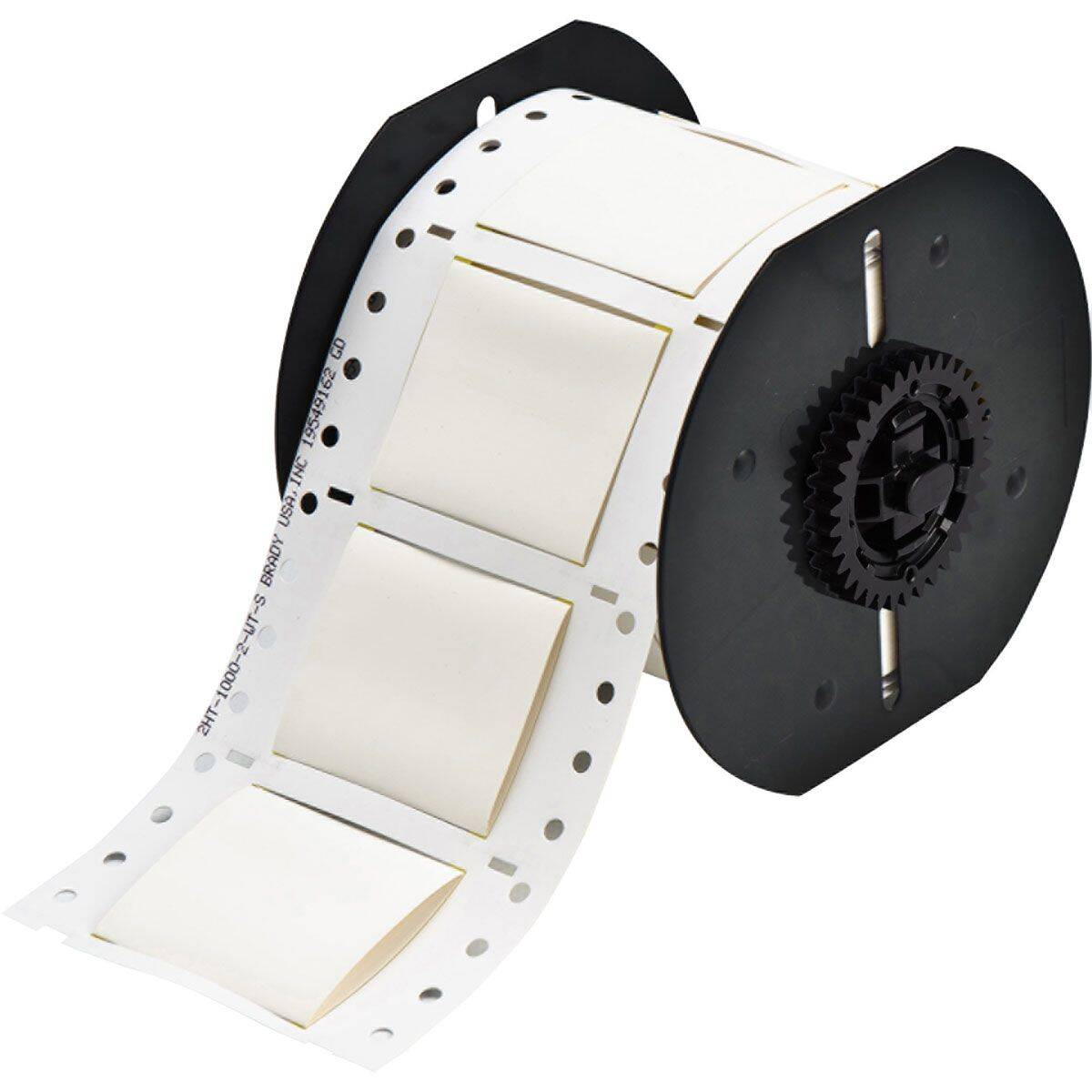

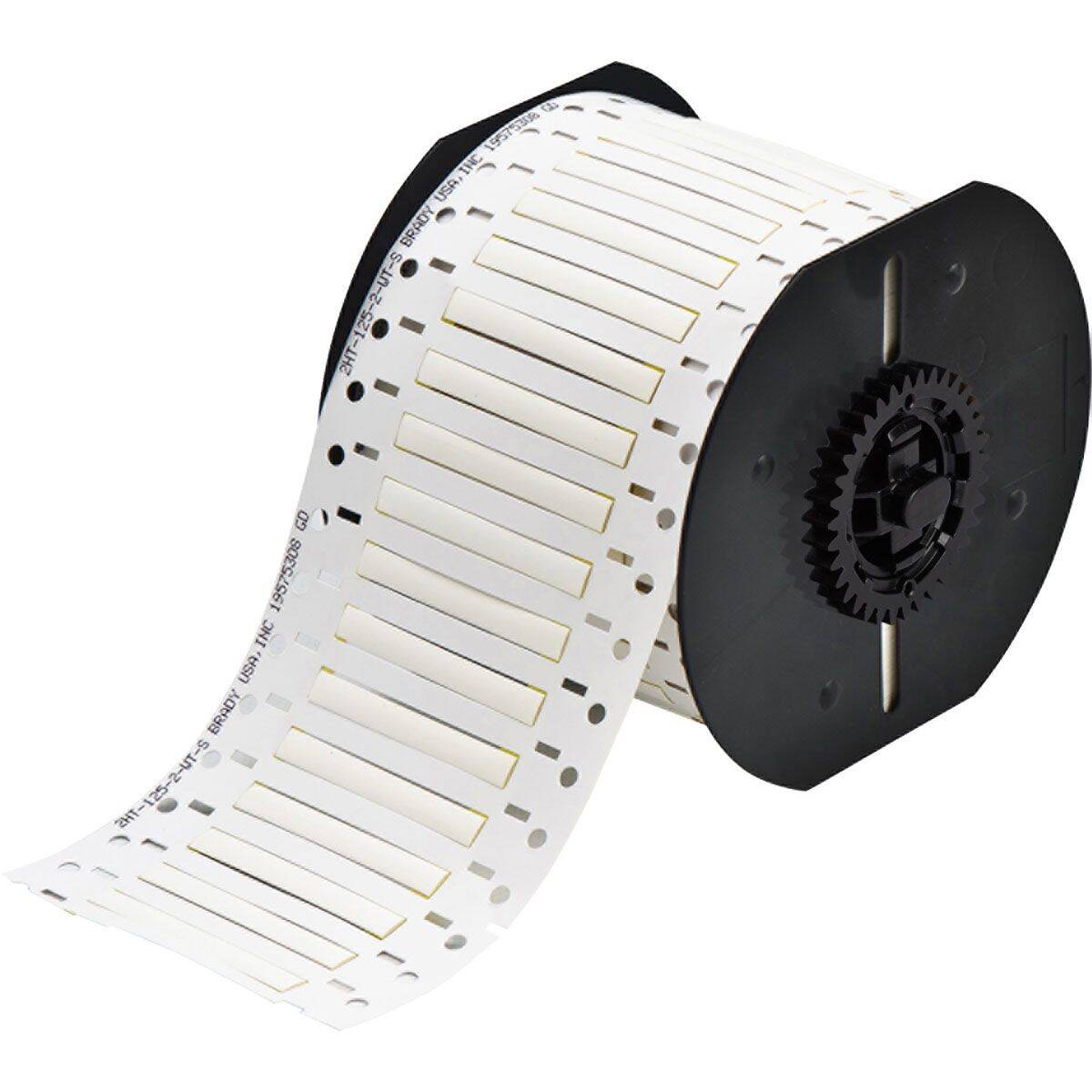

Brady PermaSleeve B-345 is a high temperature heat-shrink PVDF (polyvinylidene fluoride) wire marking sleeve for the Brady BBP33, i3300, i4311 and i5300 printers. Both sides can be printed. The range has 12 rolls, each 50.8mm wide, in six diameters from 2.39 to 12.7mm, in black and white.

Service temperature is -55 to 225 °C (-67 to 437 °F). It is flame-retardant, with a 2:1 shrink ratio (3:1 for the 2.39mm diameter), and suits outdoor use with a 2 year average outdoor durability. Meets SAE-AMS-DTL-23053/18 (Class 2), SAE-AS-81531 and MIL-STD-202, tested per ASTM E 162 and E 662, and is RoHS compliant and UL Recognized. Use ribbon B30-R4400-WT for the black sleeves and B30-R6000 for the white sleeves. These parts do not contain an SVHC under REACH.

Where this product is used

• Wire and cable labelling
• Electrical labelling
• Marking cables near heat sources, with the sleeve suited to temperatures up to 225 °C
• Outdoor wire marking, with a 2 year average outdoor durability

Features

• High temperature PVDF sleeve, service temperature -55 to 225 °C
• Flame-retardant material
• 2:1 shrink ratio (3:1 for the 2.39mm diameter)
• Outdoor use, 2 year average outdoor durability
• Double-sided thermal transfer printing, die-cut
• 12 rolls in black and white, six diameters

Key specifications

Choosing the right option

Pick the sleeve whose wire diameter range includes your conductor. Choose B-345 when the sleeve has to cope with temperatures above the 135 °C that for B-342. For general-purpose sleeves see the B-342 single-sided heat-shrink sleeves for B33 printers and B-342 double-sided heat-shrink sleeves for B33 printers.
