Brady B30EP-168-593-BK B30EP B-593 Raised Push Button Labels
Available

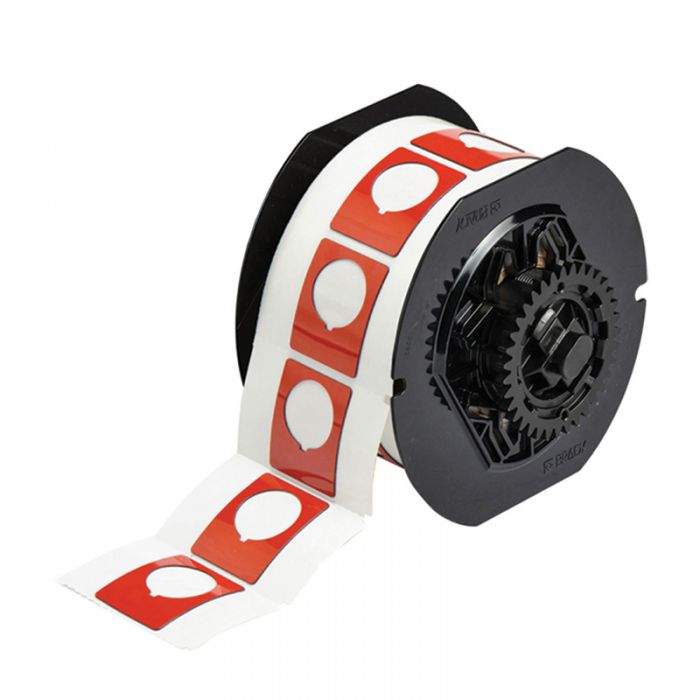

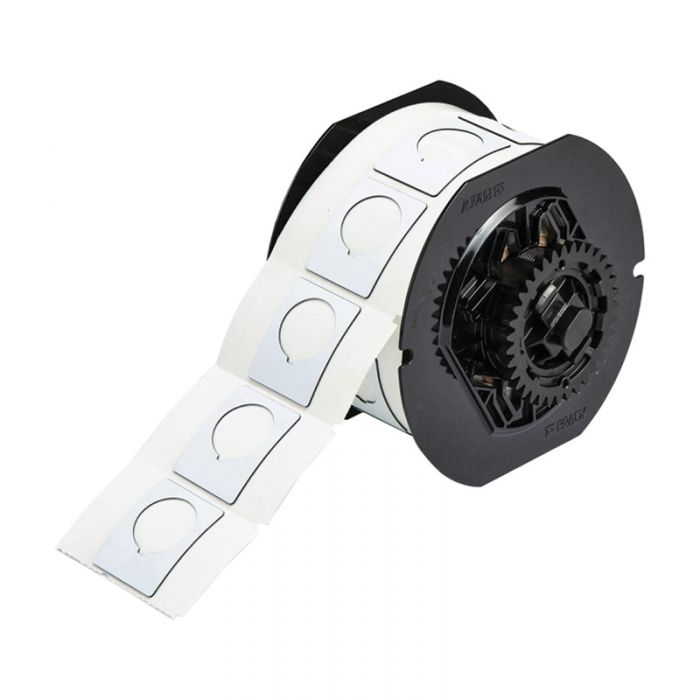

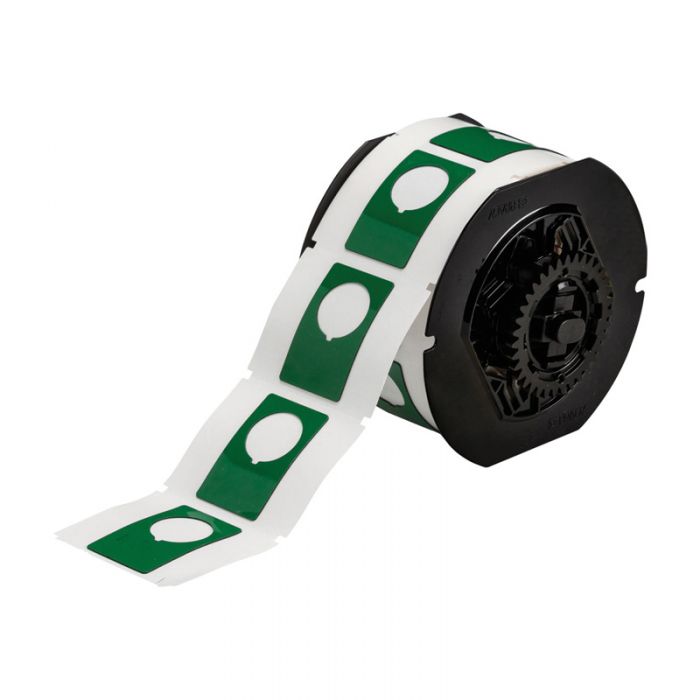

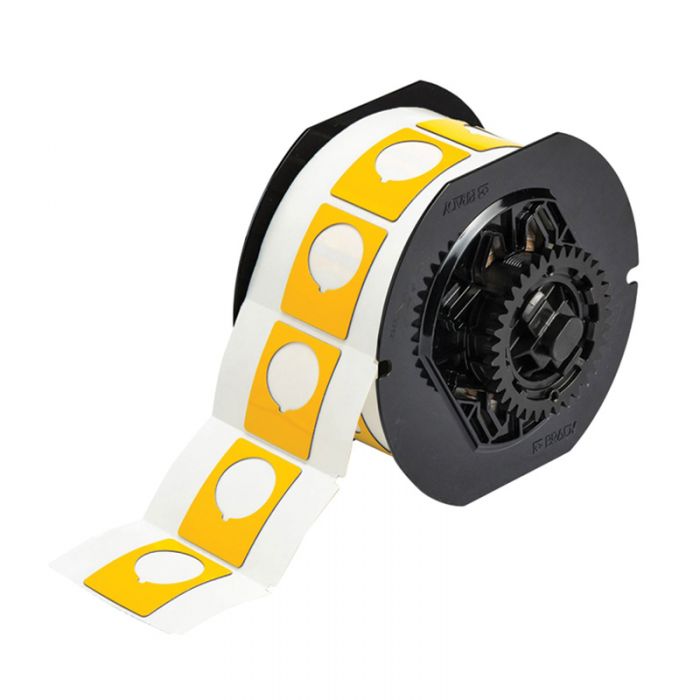

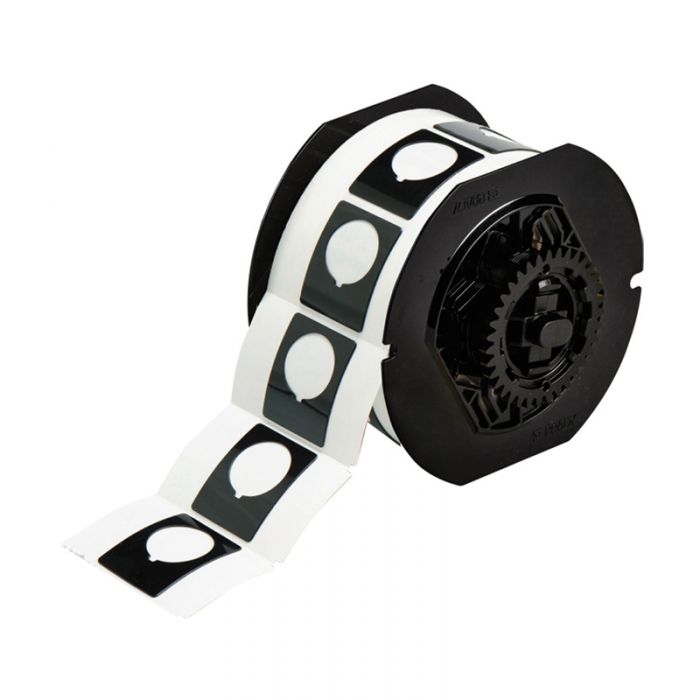

Brady B30EP raised push button labels with a keyed hole are die-cut polyester labels with a raised profile on a cartridge for Brady B30 series printers. The range has 10 cartridges in two sizes (30.48 x 38.1 and 30.48 x 48.26mm) and five colours: white, red, yellow, green and black.

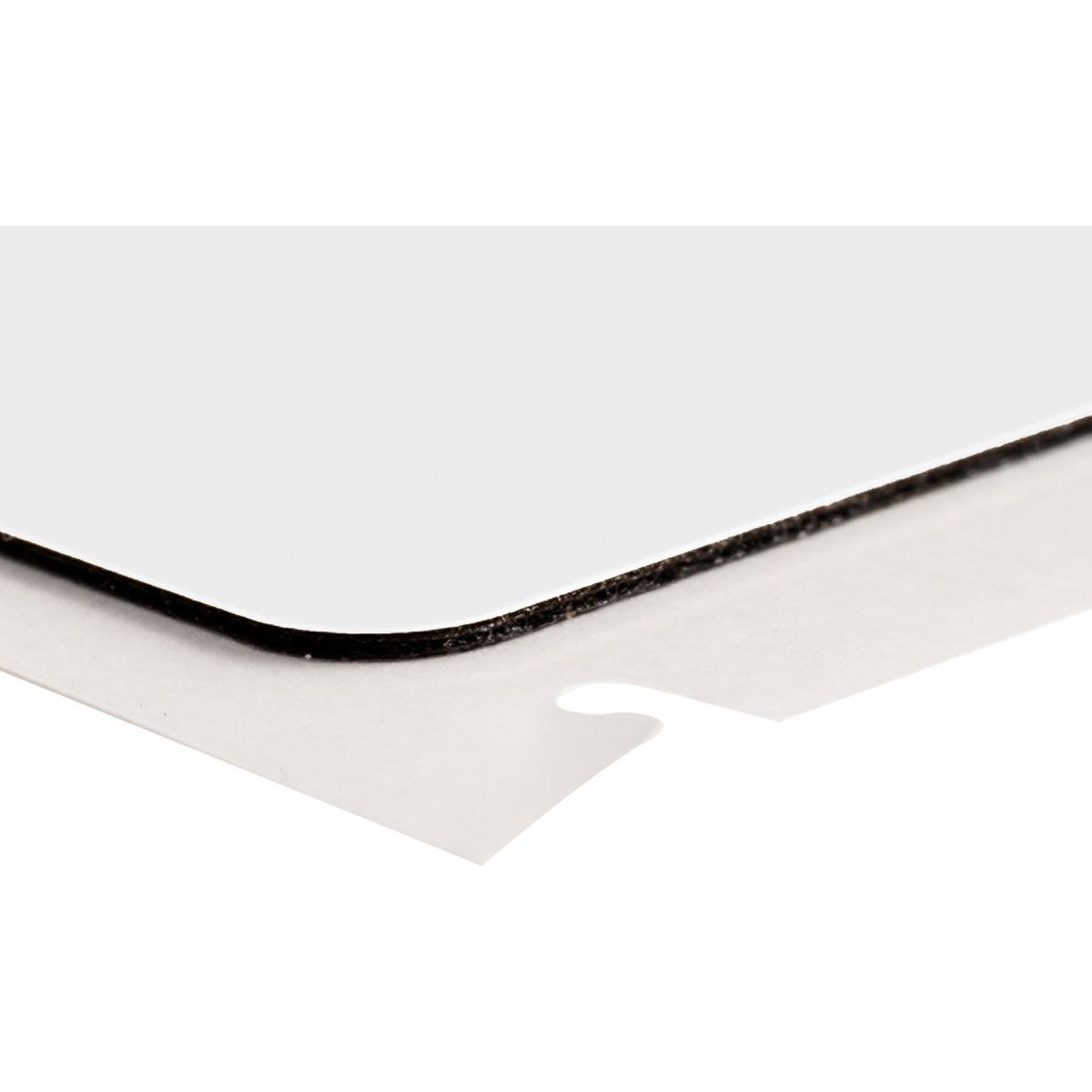

The material is raised polyester (B-593) with a gloss finish and a foam-backed permanent acrylic adhesive, with a service temperature of -20 to 100 °C and resistance to heat, abrasion, chemicals, corrosion and humidity. These parts do not contain an SVHC under REACH. Sizes are shown as width x height. Both sizes have a keyed hole of about 22.6mm.
Where this product is used

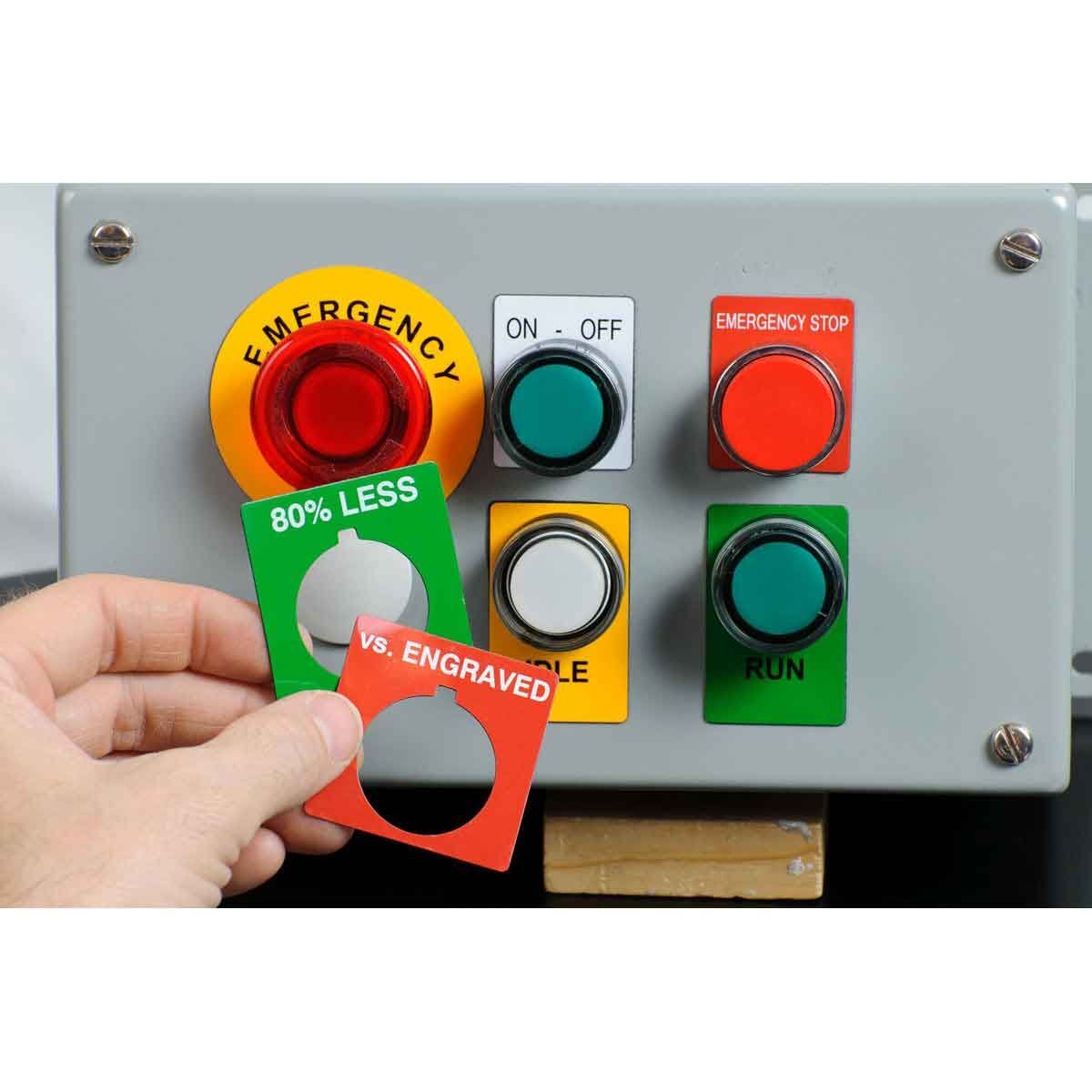

- Push button, switch and patch panel identification
- Rating and serial plates and internal connection points
Features
- Raised polyester with a foam-backed permanent acrylic adhesive
- Service temperature -20 to 100 °C
- Resists heat, abrasion, chemicals, corrosion and humidity
- Two sizes in five colours
- Needs a B30-R6000 or B30-R4400-WT ribbon, sold separately
Key specifications
| Specification | Detail |
|---|---|
| Brand | Brady |
| Product | B30EP B-593 Raised Push Button Labels With Keyed Hole, 30.48 x 38.1 and 30.48 x 48.26mm, 5 Colours |
| Material | Raised polyester (B-593), gloss, 0.65mm thick |
| Adhesive | Permanent acrylic, foam backed |
| Format | Die-cut raised profile labels with hole, 1 cartridge |
| Hole | Keyed hole, about 22.6mm |
| Temperature | Service -20 to 100 °C |
| Printers | B30 series: BBP30, BBP31, BBP33, BBP35, BBP37, i3300, i4311, i5300, S3000, S3100 and S3700 |
| Ribbon | B30-R6000 or B30-R4400-WT, required and sold separately |
Choosing the right option
Choose the size, hole and colour for your button or panel. The legend (print) colour comes from the ribbon you fit. For rectangular raised labels with no hole see the B30EP raised profile rectangular labels.
Related Brady products: B30EP raised profile rectangular labels, B30EP raised push button labels with hole, B-595 indoor and outdoor vinyl label tape for B30 printers and B30 series printer ribbons.
| Option | Part number | SKU |
|---|---|---|

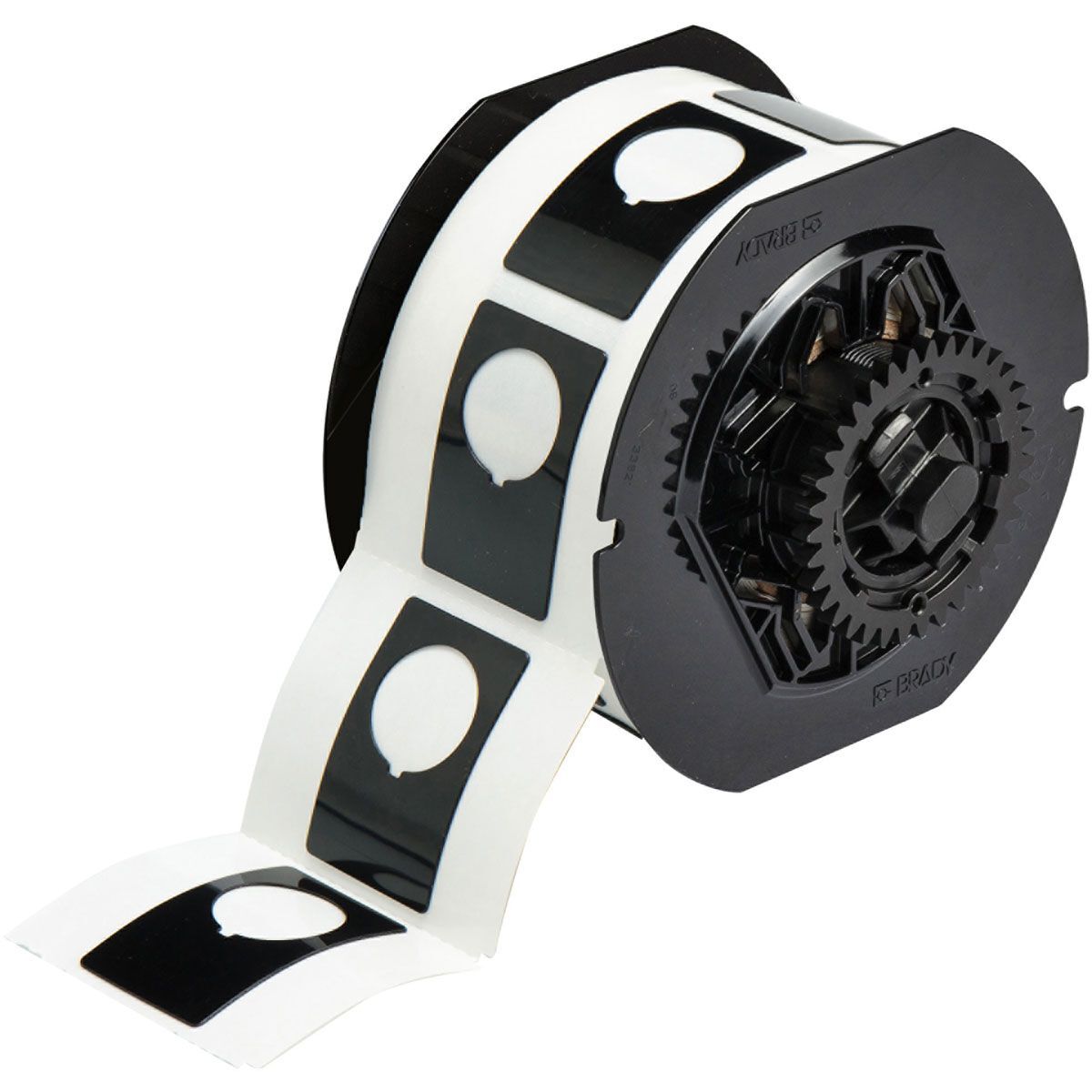

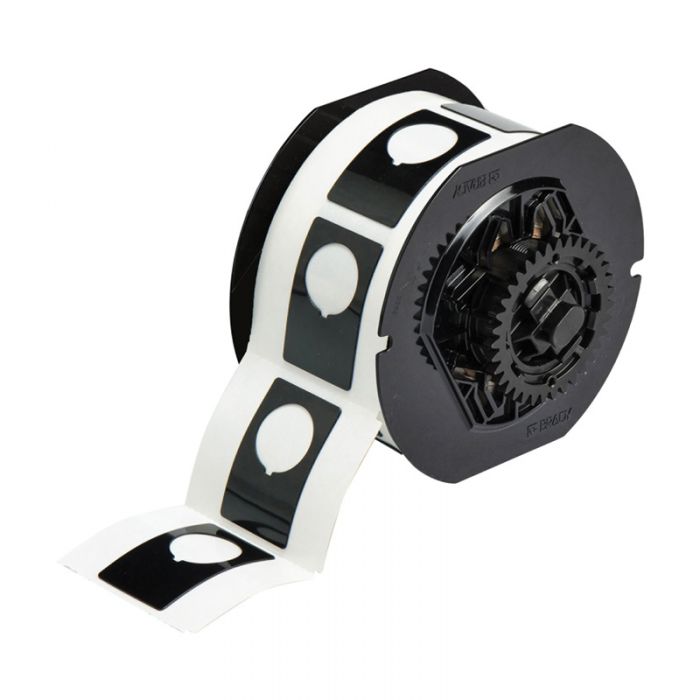

| 30.48 x 48.26mm / Black | B30EP-168-593-BK | A0205003 |

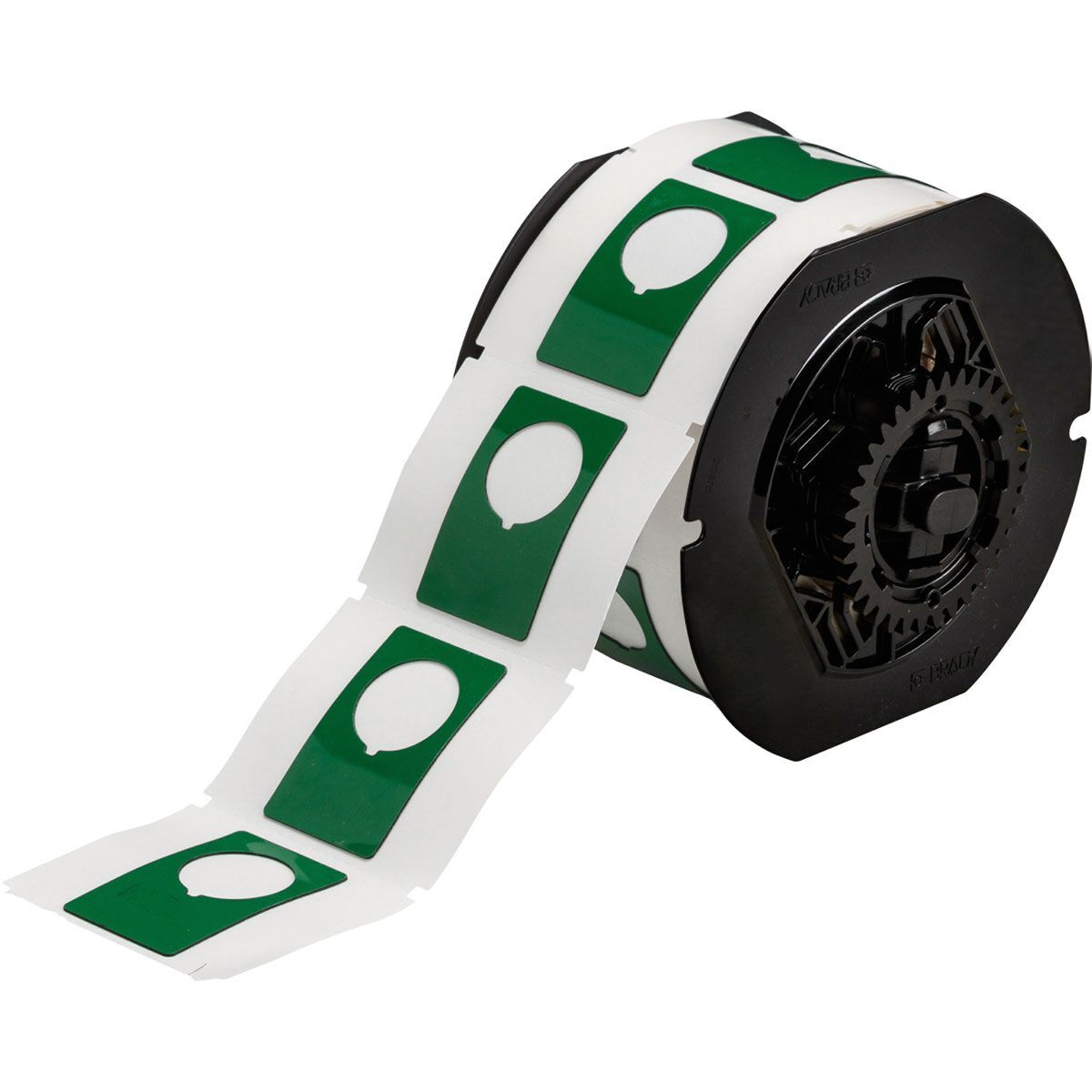

| 30.48 x 48.26mm / Green | B30EP-168-593-GN | A0205002 |

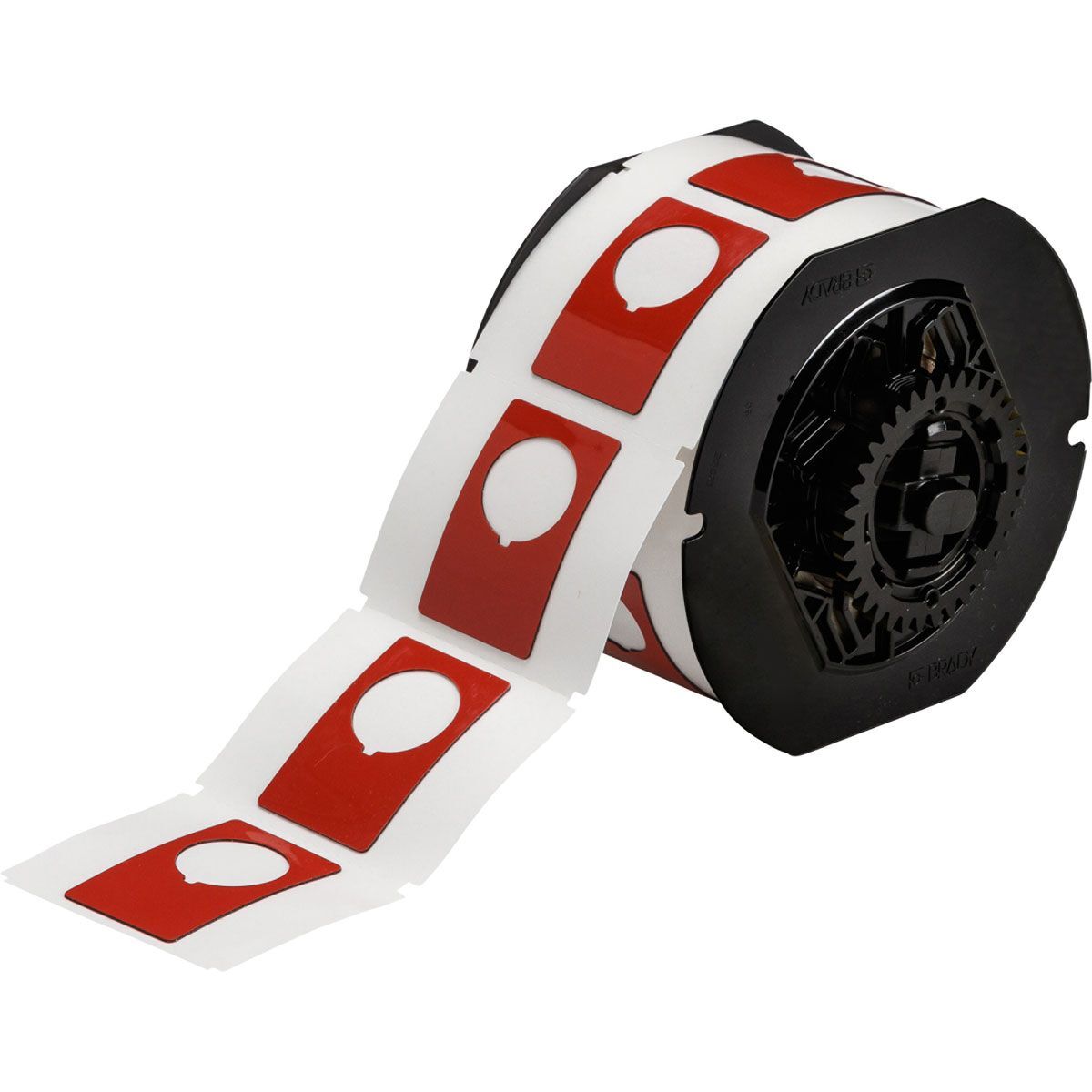

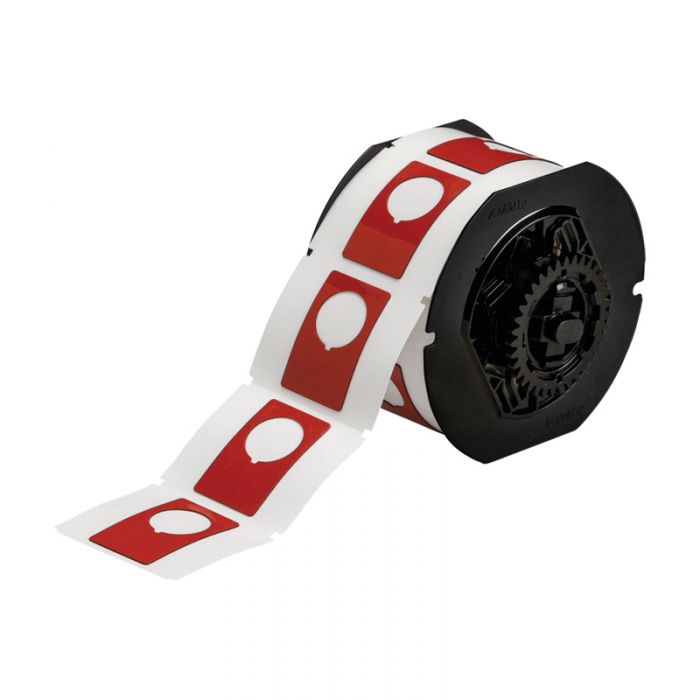

| 30.48 x 48.26mm / Red | B30EP-168-593-RD | A0205000 |

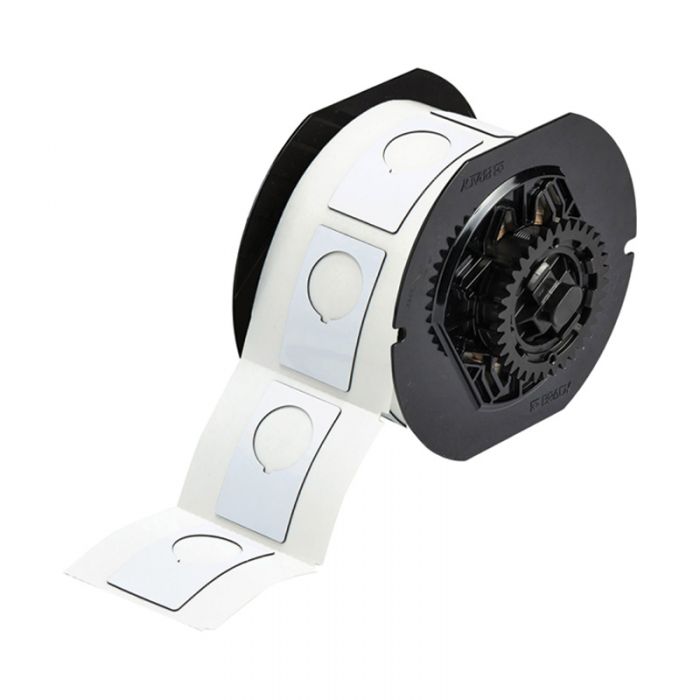

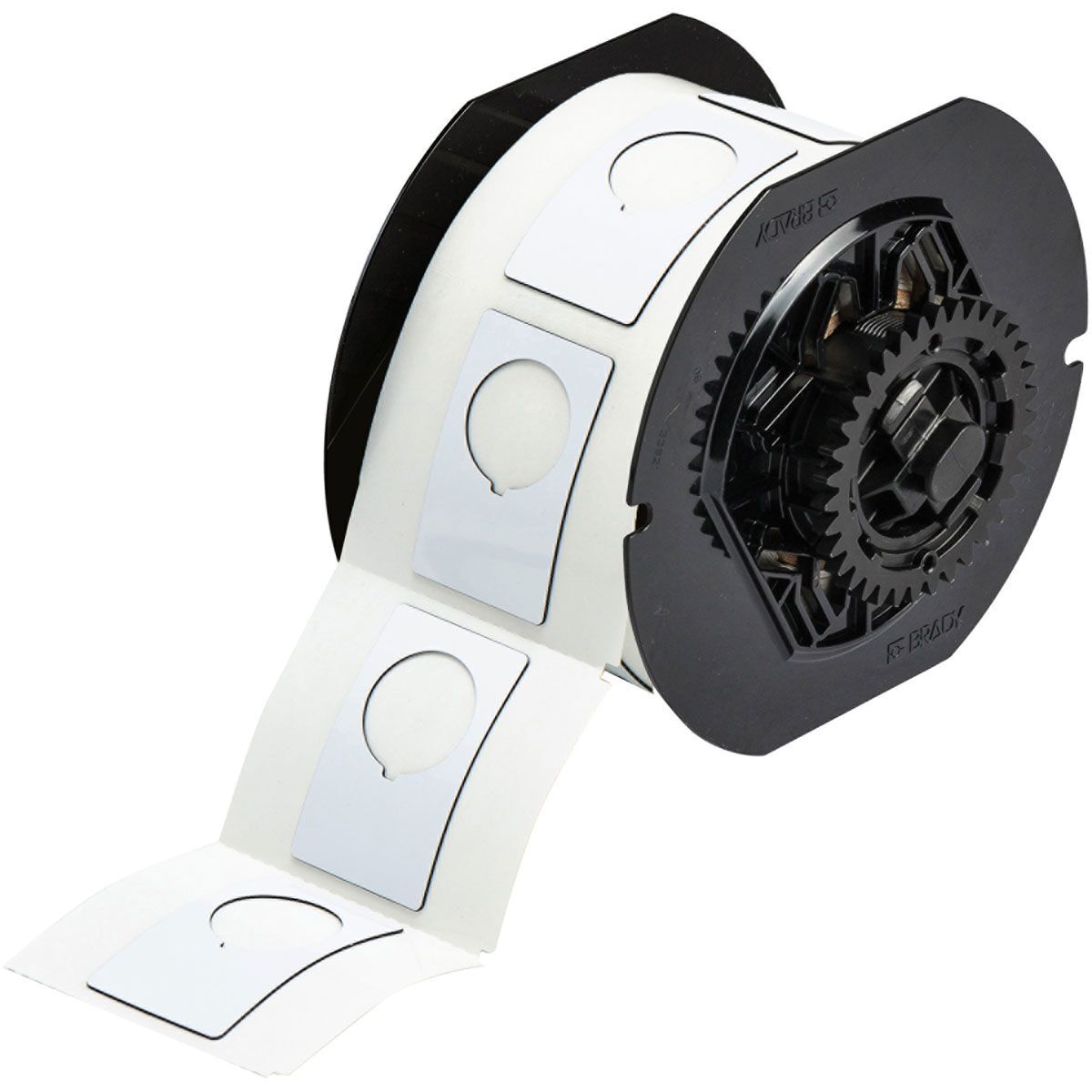

| 30.48 x 48.26mm / White | B30EP-168-593-WT | A0204999 |

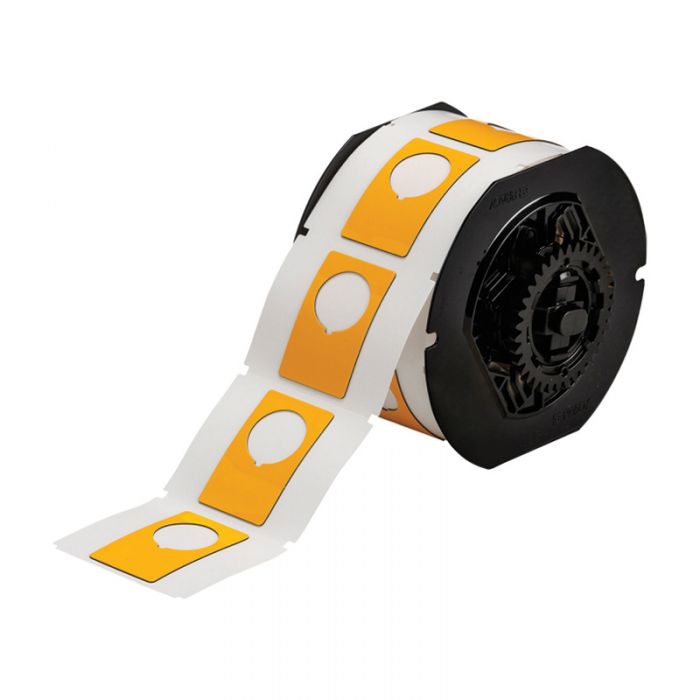

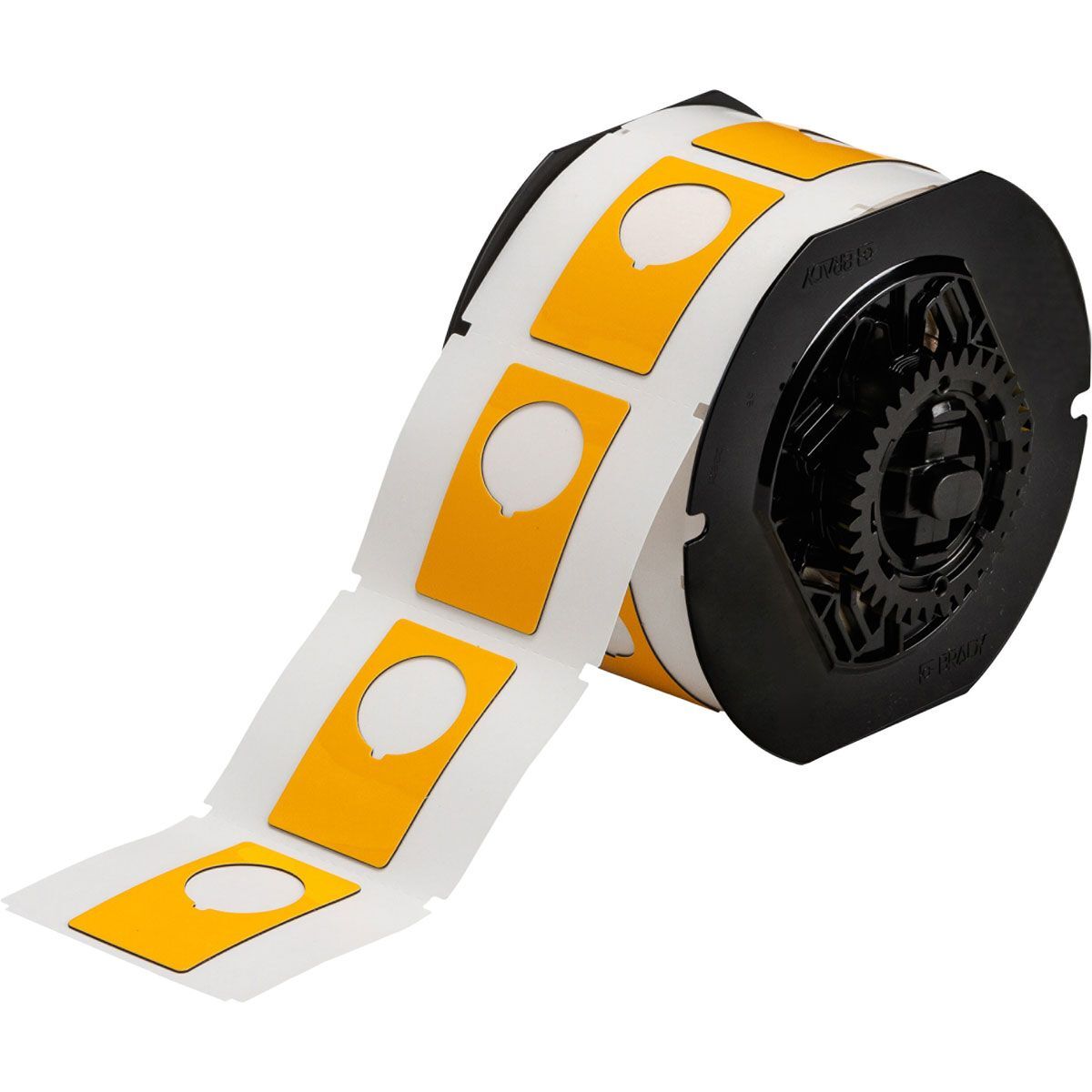

| 30.48 x 48.26mm / Yellow | B30EP-168-593-YL | A0205001 |

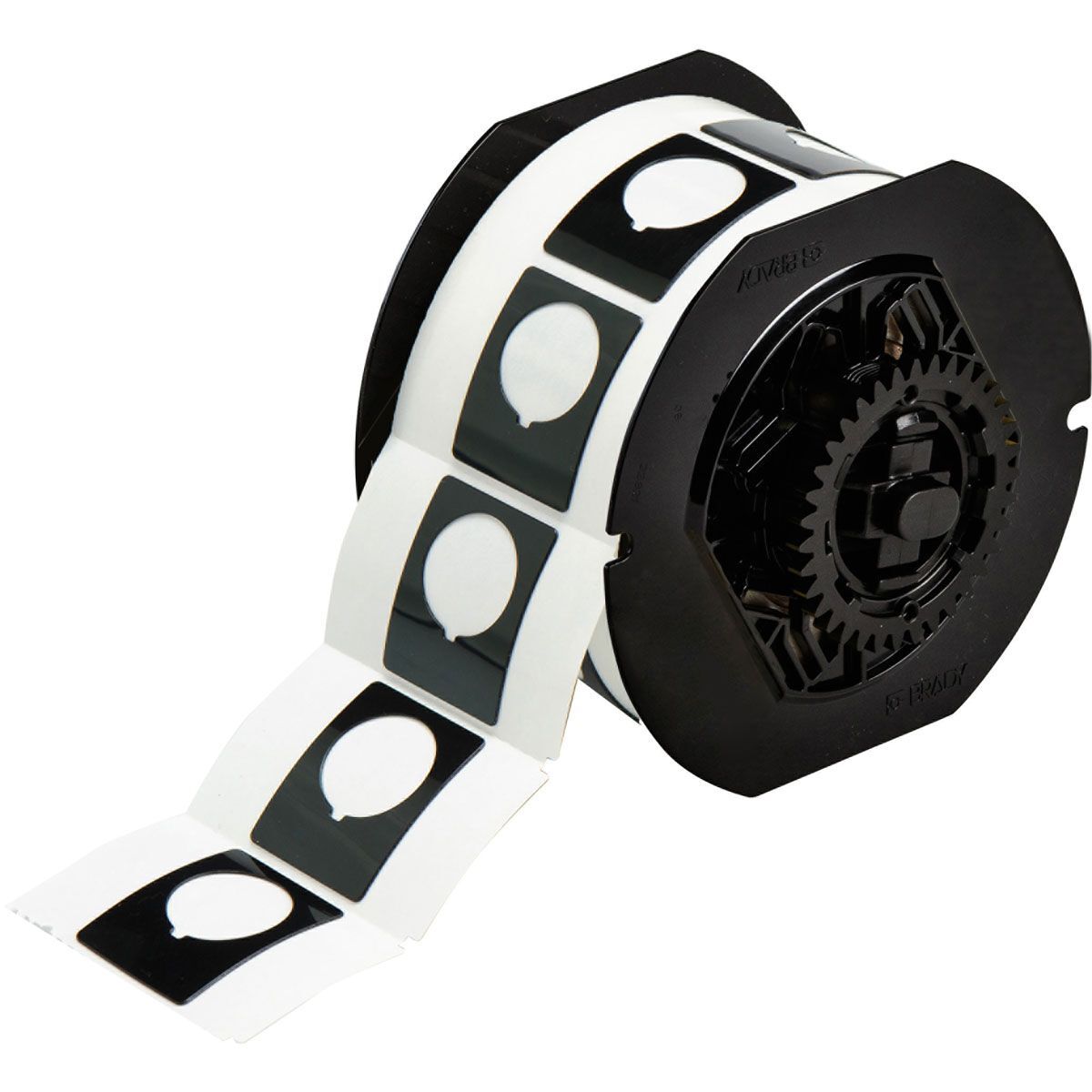

| 30.48 x 38.10mm / Black | B30EP-167-593-BK | A0204998 |

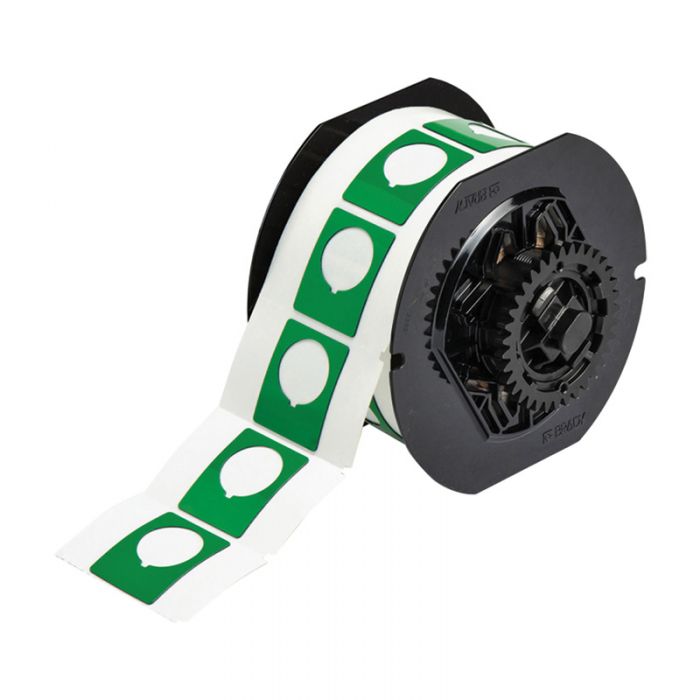

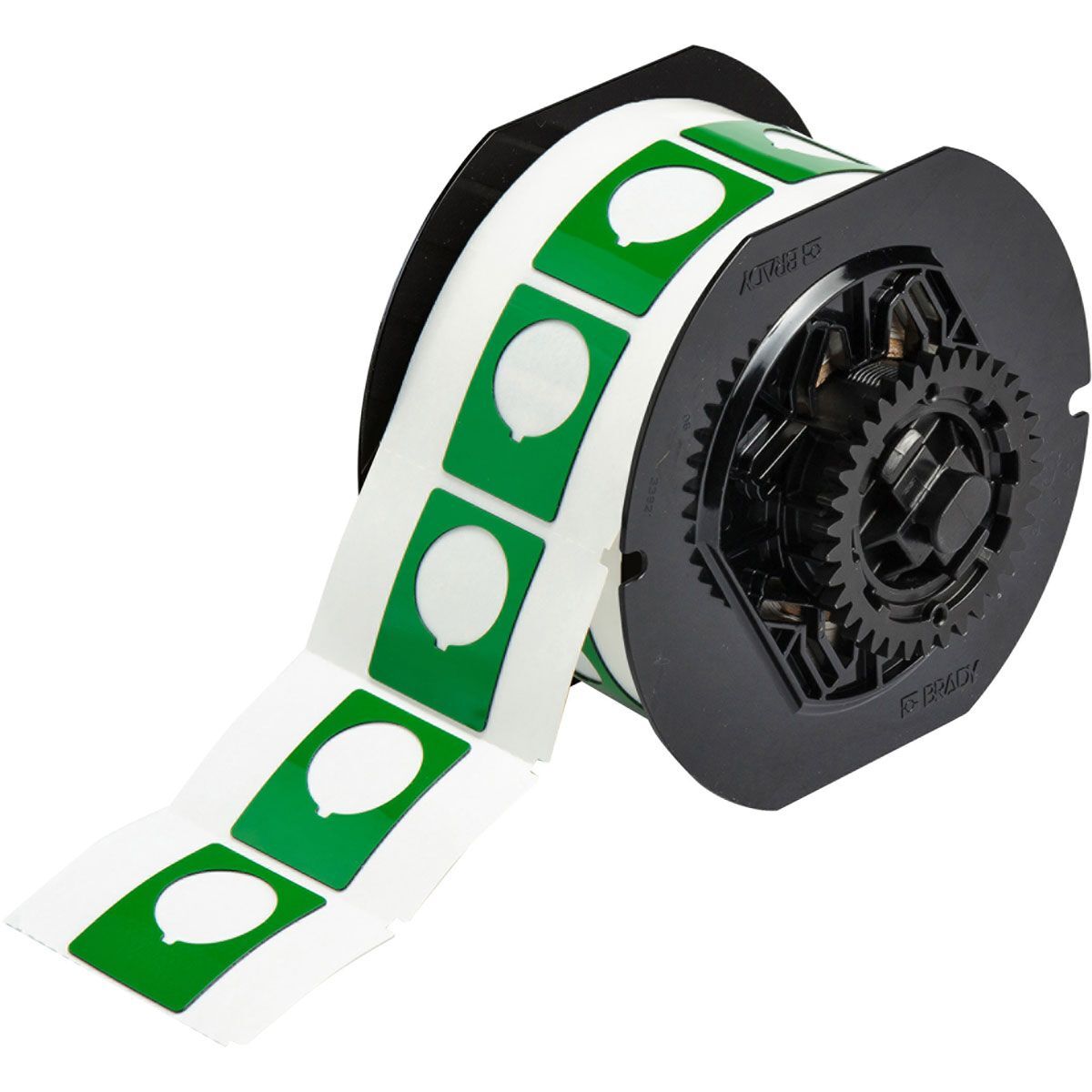

| 30.48 x 38.10mm / Green | B30EP-167-593-GN | A0204997 |

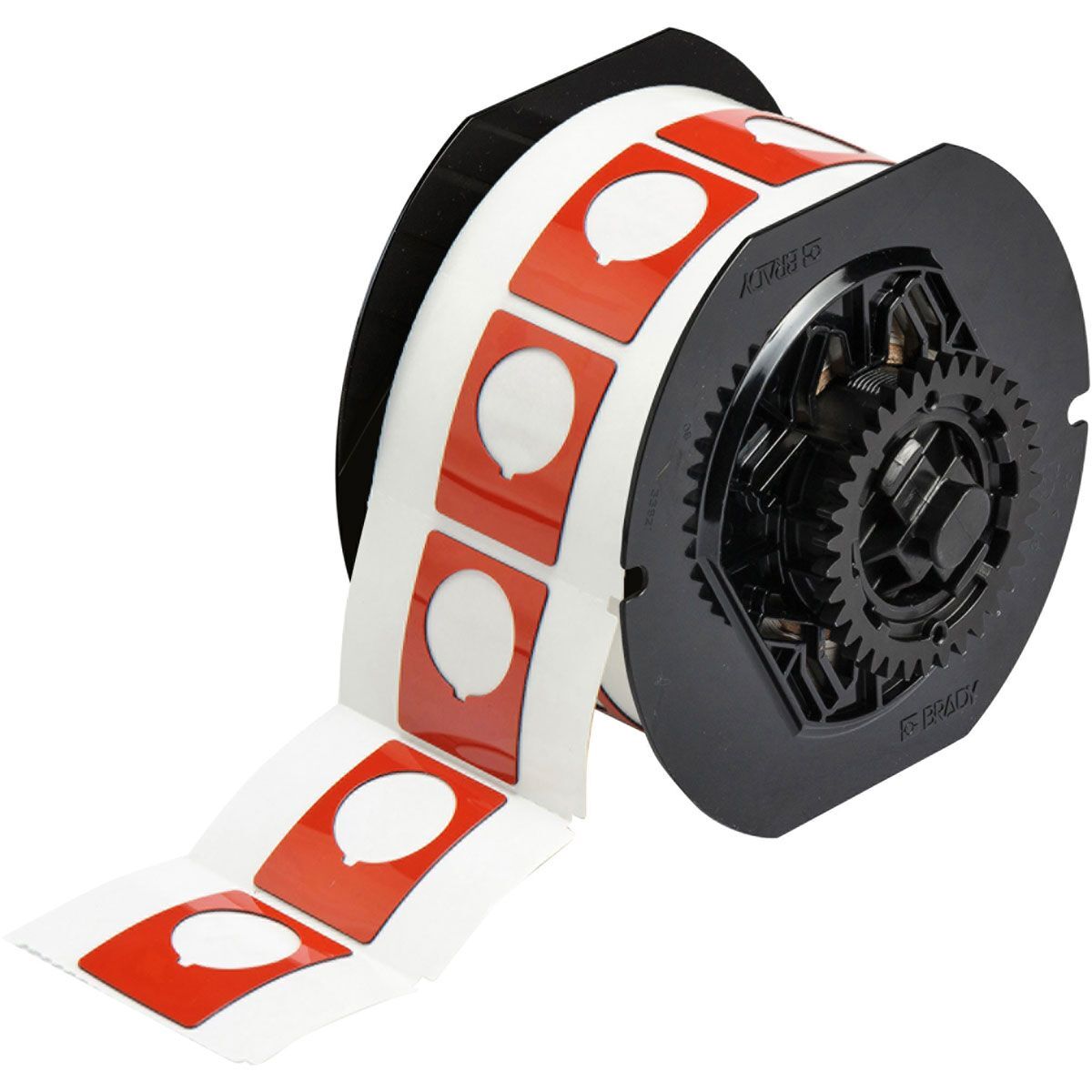

| 30.48 x 38.10mm / Red | B30EP-167-593-RD | A0204995 |

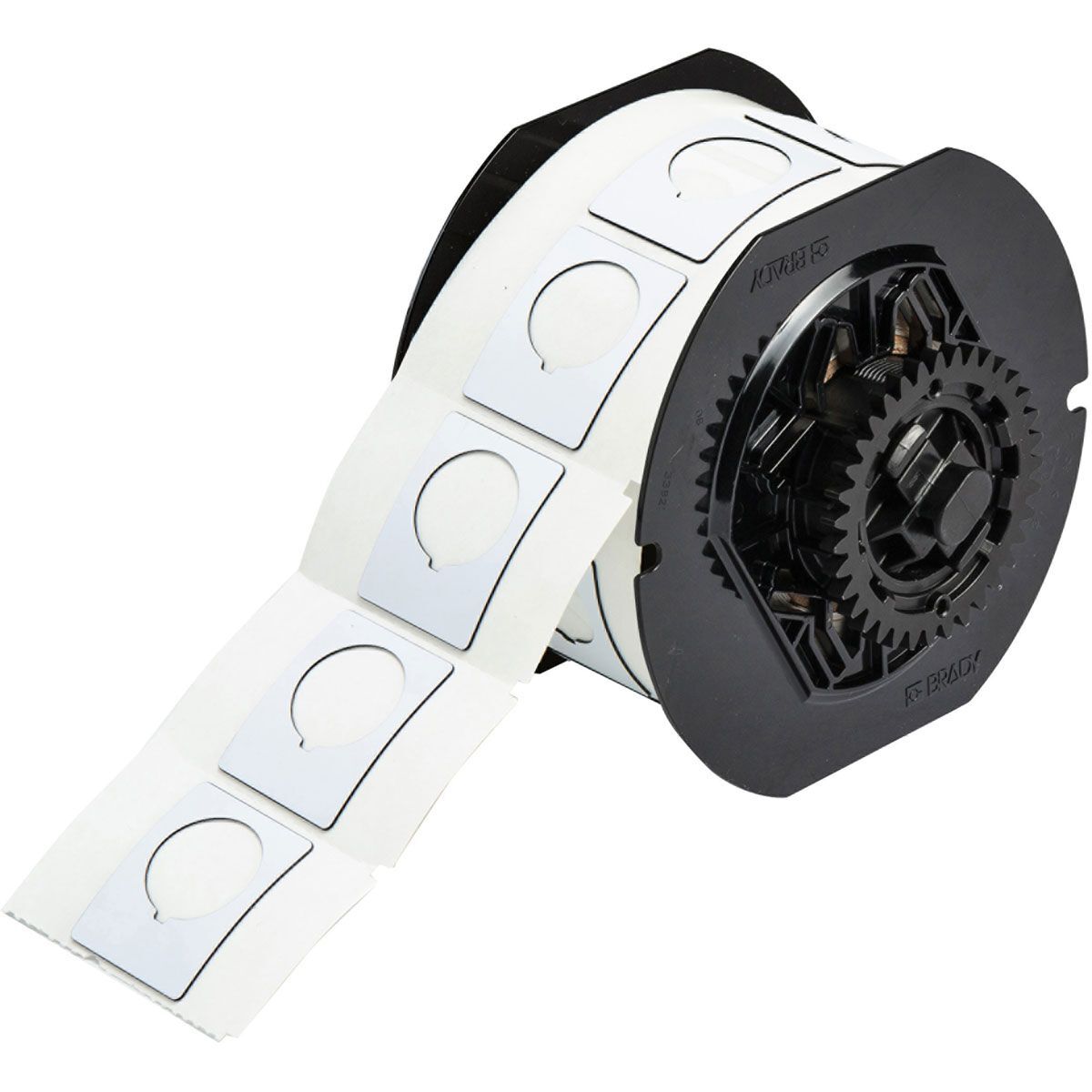

| 30.48 x 38.10mm / White | B30EP-167-593-WT | A0204994 |

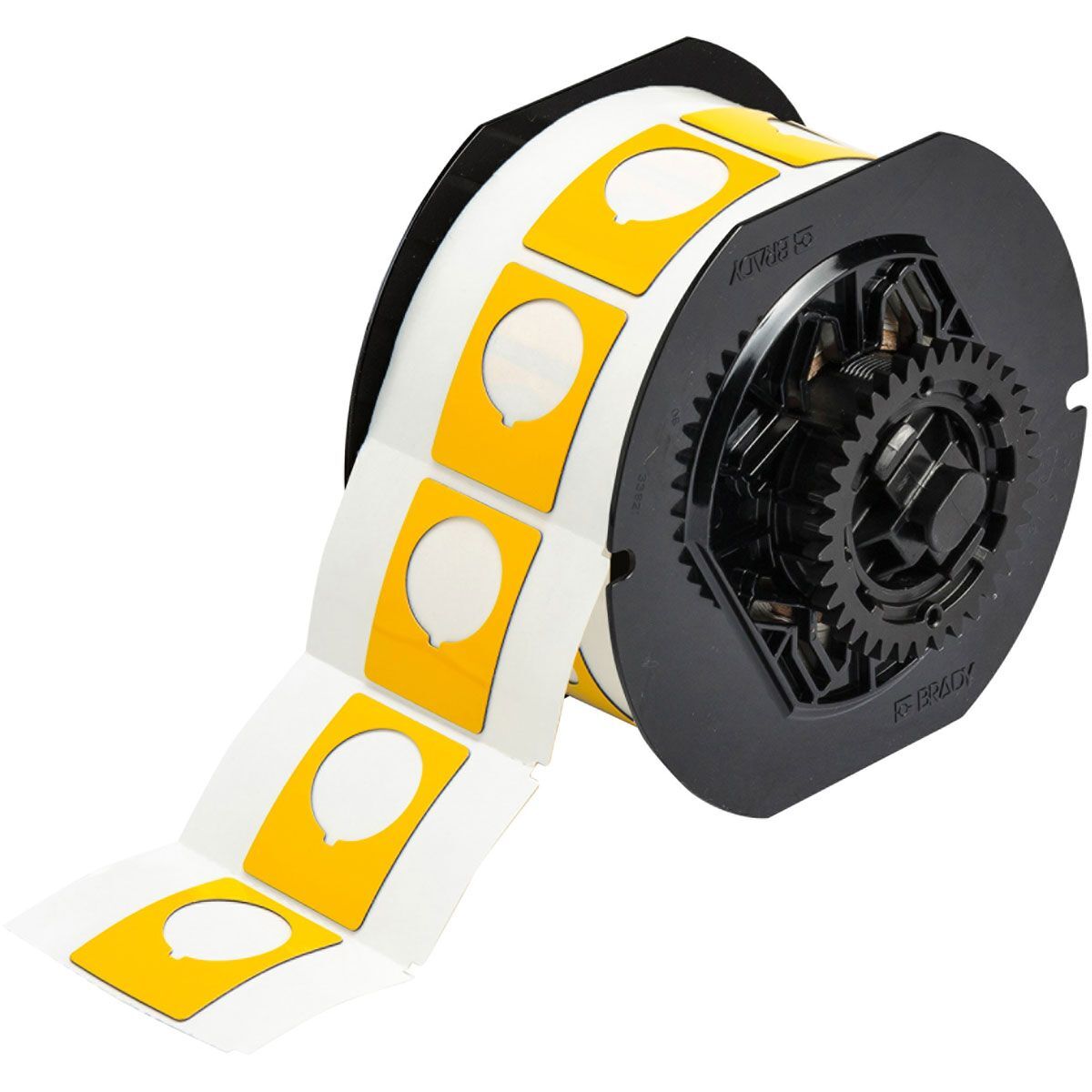

| 30.48 x 38.10mm / Yellow | B30EP-167-593-YL | A0204996 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Brady B30EP B-593 Raised Push Button Labels With Keyed Hole, 30.48 x 38.1 and 30.48 x 48.26 mm, 5 Colours: 30.48 x 48.26 mm / Black
SKU: A0205003 | Model: B30EP-168-593-BK
B30EP-168-593-BK is the 30.48 x 48.26mm, Black option of Brady B30EP B-593 Raised Push Button Labels With Keyed Hole, 30.48 x 38.1 and 30.48 x 48.26mm, 5 Colours. Specifications: Material: Raised polyester (B-593), gloss; Label Size (W x H, mm): 30.48 x 48.26; Hole Diameter (mm): 22.6.
