EasyRoll cast iron wheel, wheel diameter (mm) 125

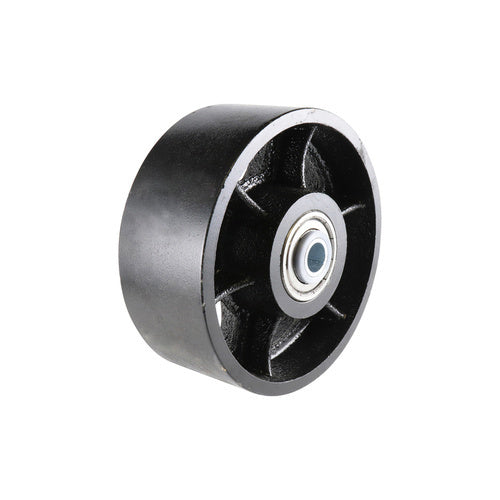

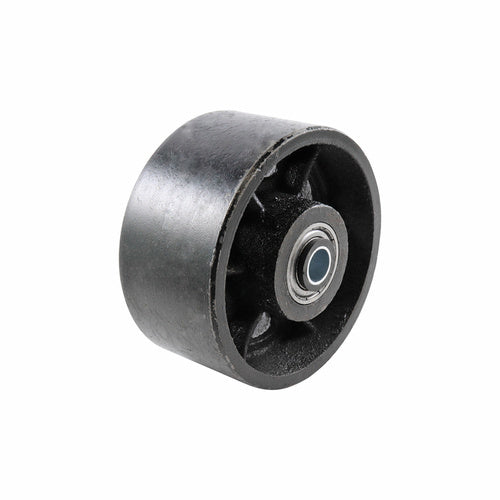

The EasyRoll black cast iron wheel is available in 100 to 125mm diameters, with dual ball bearings. The load capacity is 450 to 500kg per wheel, depending on the size.

Cast iron wheels: poor shock absorbency and floor protection, excellent load capacity, push effort and durability. It suits oven floors, outdoor or unsealed surfaces and broken glass, is the best choice for high temperature and may damage flooring. Ratings are EHI general guidance for the wheel material.

Where this product is used

• Outdoor or unsealed surfaces
• Heavy loads on floors that will not be damaged by a hard wheel
• Replacing wheels on trolleys and carts

Features

• 100 to 125mm diameter, 50mm tread
• Load capacity 450 to 500kg per wheel
• Dual ball bearings
• Cast iron wheel material, rated by EHI for shock absorbency, load capacity and floor protection

Key specifications

Choosing the right option

Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. Choose the wheel material for your floor type first, using the EHI ratings above, then check the load. Ball bearings are compact, simple bearing units, with balls rolling between the inner and outer rings in a moulded sheet metal housing. They have wheels with dual ball bearings. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
