Challenger CPT106 Push Beam Trolley, 0.5 tonne (500kg), 50 to 102mm Beam
Available

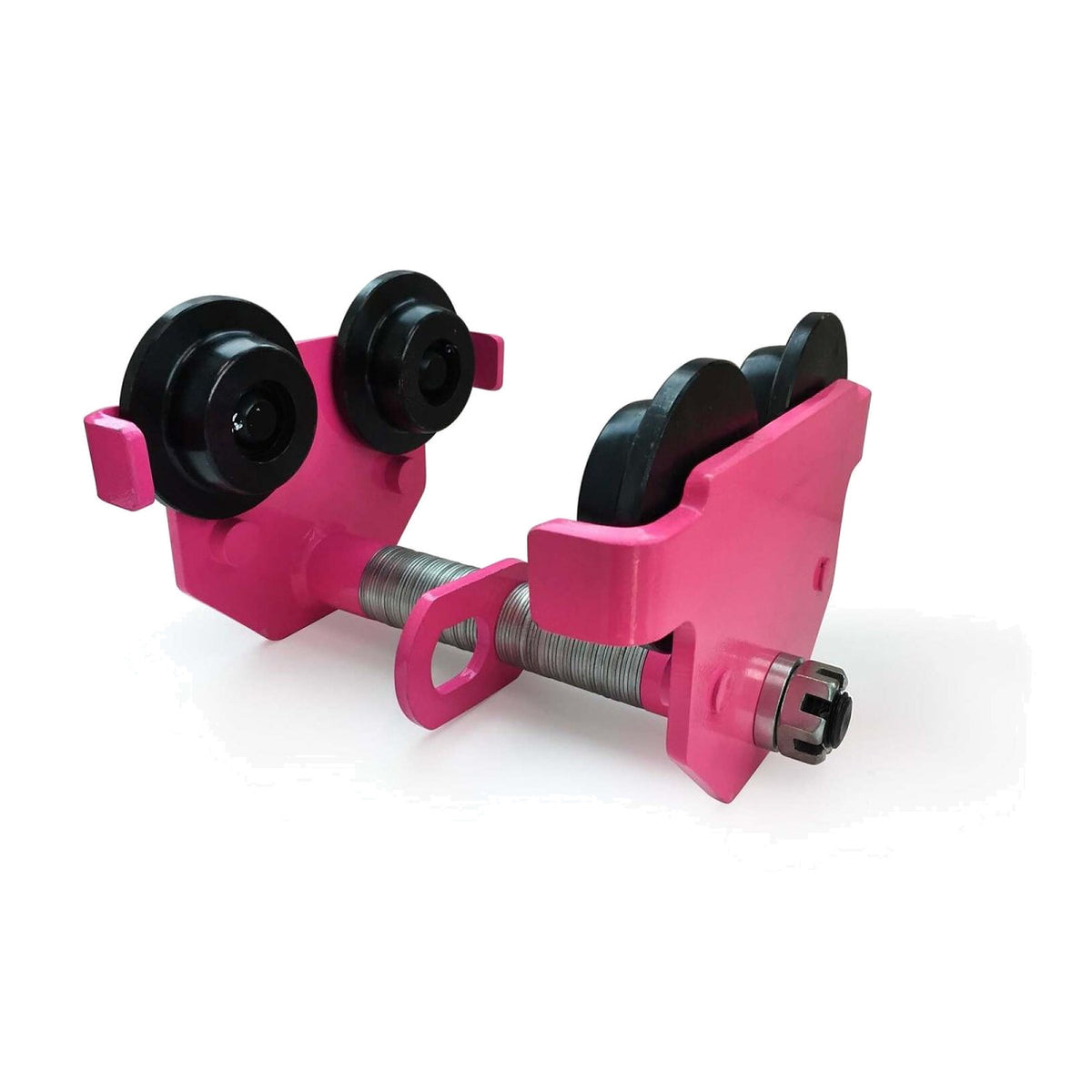

The Challenger Push Beam Trolley is a manual trolley for moving loads along beams of varying widths, listed in the Pacific Hoists catalogue in capacities from 0.5 tonne to 5 tonne, in a single pin configuration (manufacturer-stated). This page lists 5 models.
The catalogue lists manual push operation, adjustable beam widths, steel construction with no aluminium content, anti-drop plates and high-grade, fully sealed bearings for maintenance free extended life (manufacturer-stated). It describes the single pin type as suited to lighter duty work where precise load movement is less critical or where cost is a primary consideration.
For each model the catalogue gives the rated capacity, beam width range, headroom and net weight. The catalogue lists this range against Australian Standard AS1418.2 (manufacturer-stated). No certificate or test report is shown on this page: if your site needs proof of compliance, ask for the maker's documents before you buy.
Where this product is used
- Moving a chain block or lever block along an I-beam by hand
- Positioning loads along a workshop or maintenance runway
- Lighter duty lifting set-ups where precise load movement is less critical
Features
- Rated capacity from 0.5 tonne to 5 tonne (manufacturer-stated)
- Manual push operation, adjustable beam widths (manufacturer-stated)
- Single pin configuration (manufacturer-stated)
- Steel construction, no aluminium (manufacturer-stated)
- Anti-drop plates (manufacturer-stated)
- High-grade, fully sealed bearings (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Rated capacity | 0.5 tonne to 5 tonne (manufacturer-stated) |
| Type | Manual push, single pin (manufacturer-stated) |
| Beam width range | 50 to 203mm, set by size |
| Standard | AS1418.2, as listed in the catalogue (manufacturer-stated) |
Key specifications
| Model | Rated capacity | Beam width range | Headroom | Net weight |
|---|---|---|---|---|
| CPT106 | 0.5 tonne (500kg) | 50 to 102mm | 106mm | 6kg |

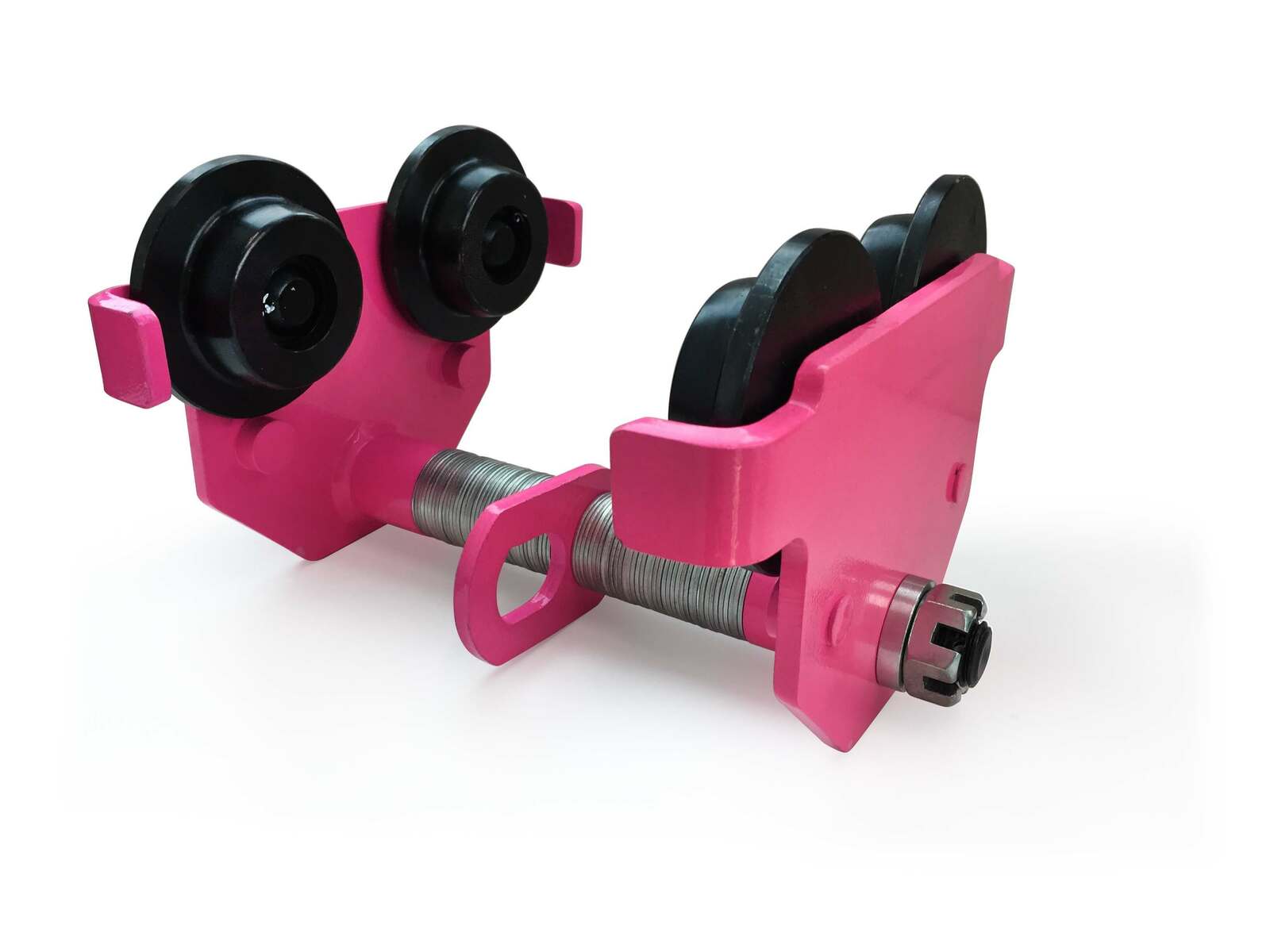

| CPT101 | 1 tonne (1,000kg) | 64 to 203mm | 127mm | 10kg |

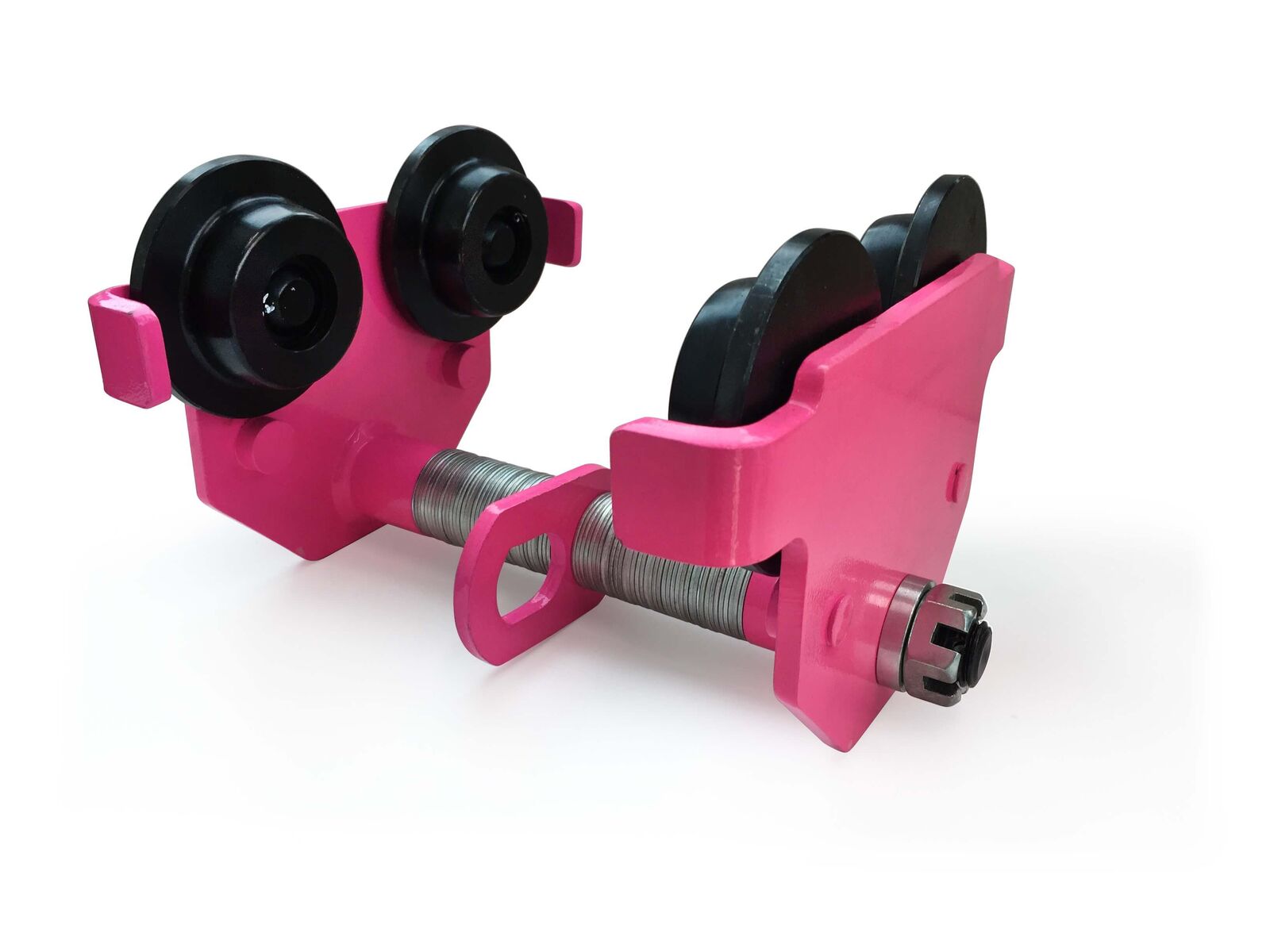

| CPT102 | 2 tonne (2,000kg) | 88 to 203mm | 146mm | 16.5kg |
| CPT103 | 3 tonne (3,000kg) | 100 to 203mm | 170mm | 28kg |
| CPT105 | 5 tonne (5,000kg) | 114 to 203mm | 197mm | 42kg |
Figures are as printed in the Pacific Hoists catalogue (manufacturer-stated). Beam width range and headroom are in millimetres.
Selecting the right option
Check your beam flange width against the range for the size, keep the combined hoist and load inside the rated capacity, and check the headroom you have above the beam. Lifting equipment must be used within its rated capacity, inspected before each use, and selected and used in line with your site lifting procedure and the applicable standards and regulations. Do not use it to lift or lower people. If you are unsure what suits your lift, speak to a qualified rigger before ordering.
