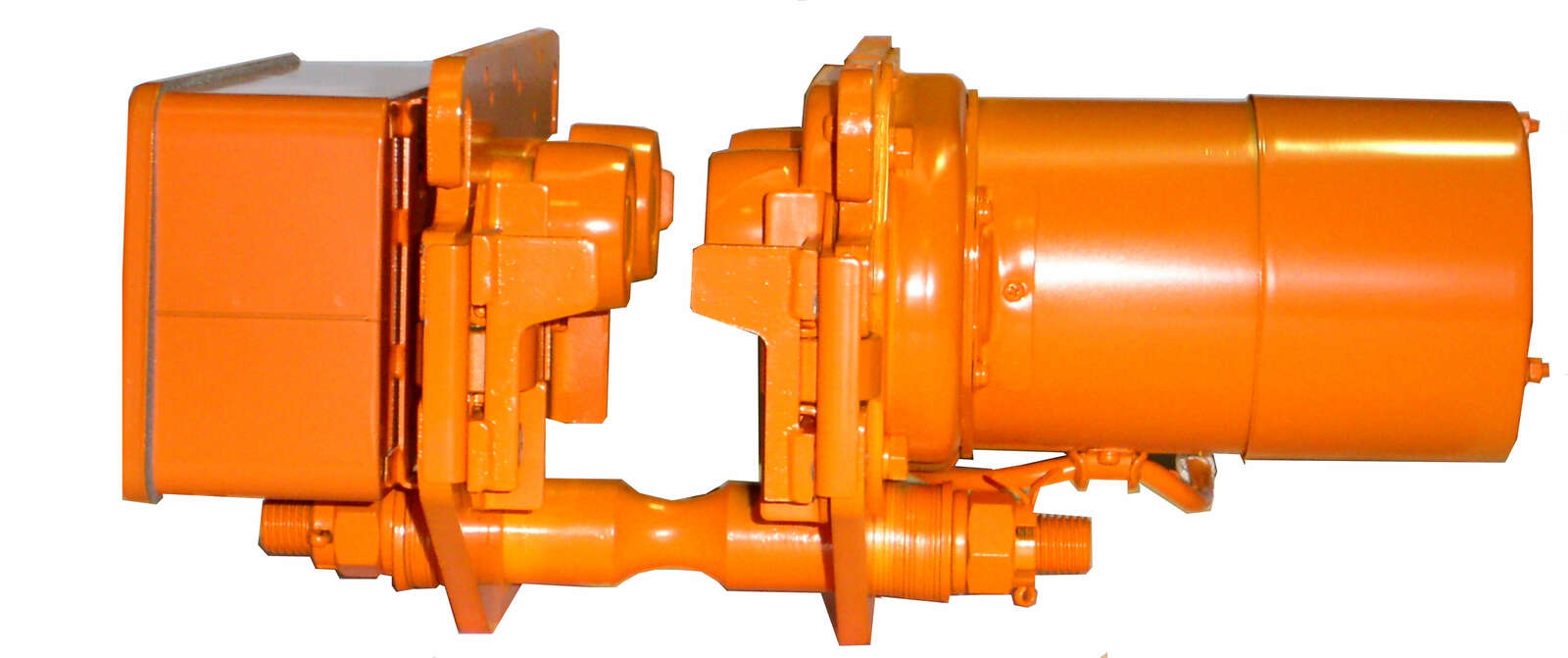

Hitachi HET100 Three Phase Electric Trolley, 1 tonne (1,000kg), Single Speed

The Hitachi Three Phase Electric Trolley is a 415V motorised beam trolley listed in the Pacific Hoists catalogue in 1, 2, 3 and 5 tonne capacities, in single speed and dual speed versions (manufacturer-stated). This page lists 8 models.

For each model the catalogue gives the rated capacity, beam width range, voltage, travel speed and the maker's model code. Single speed models travel at 10.5 m/min and dual speed models at 21 / 5.3 m/min. The beam width range steps up with capacity: 75 to 125mm at 1 tonne, 100 to 150mm at 2 and 3 tonne, and 125 to 175mm at 5 tonne.

The catalogue gives no features list, no weight and no wheel or flange details for the trolley, so none is published here. Check the trolley against your beam width and the hoist you plan to hang from it before ordering. The Hitachi electric hoist options in the catalogue include an electric trolley. No certificate or test report is shown on this page: if your site needs proof of compliance, ask for the maker's documents before you buy.

Where this product is used

• Moving a Hitachi electric hoist and its load along a beam under power
• Repeat lifts and moves along a runway in workshops and production areas
• Positioning loads at set points with the slow speed on dual speed models

Features

• Rated capacity of 1, 2, 3 or 5 tonne (manufacturer-stated)
• Single speed (10.5 m/min) or dual speed (21 / 5.3 m/min) (manufacturer-stated)
• 415V three phase (manufacturer-stated)
• Beam width range from 75mm to 175mm, set by capacity (manufacturer-stated)
• Maker model code listed for every model

Common specifications

Key specifications

Figures are as printed in the Pacific Hoists catalogue (manufacturer-stated). Beam width range is in millimetres, travel speed in metres per minute.

Selecting the right option

Choose the capacity so the hoist and load together stay inside the rated capacity, then check your beam width against the range for that size. Dual speed models add a slow travel speed for placing loads. The catalogue gives no trolley weight, so allow for it in the beam loading. Check the supply is 415V three phase. Lifting equipment must be used within its rated capacity, inspected before each use, and selected and used in line with your site lifting procedure and the applicable standards and regulations. Do not use it to lift or lower people. If you are unsure what suits your lift, speak to a qualified rigger before ordering.
