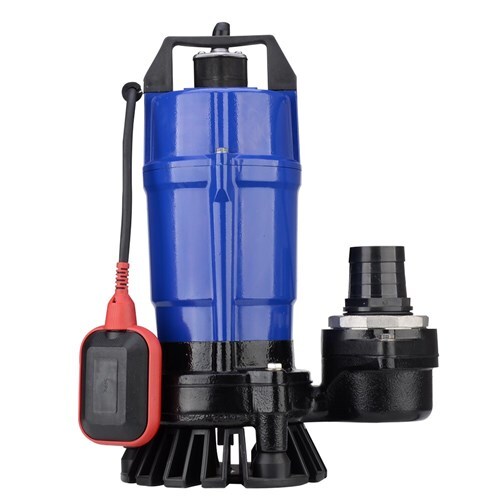

ClayTech Blue SUB10 Submersible Light Construction Pump with Float, 250 L/min, 750 W

The ClayTech Blue SUB10 is a submersible light construction pump with a float switch, made for dewatering construction sites and pits and for general dewatering where there is abrasive material. It is rated at 750W with a maximum flow of 250 L/min and a maximum head of 18 m.

It has a cast iron hydraulic body, a single urethane-coated impeller and dual mechanical seals in an oil bath, and it handles particles up to 10 x 25mm. The flexible float switch starts and stops the pump with the water level. The outlet is 3 inch with a 45 degree elbow to a 2 inch camlock.

Where this product is used

• Dewatering construction sites and pits
• Storm water and basement pumping
• General dewatering where the water carries abrasive material
• Pumping water with suspended solids, sandy and stringy material

Features

• Float switch for automatic operation
• Cast iron hydraulic body with a urethane-coated impeller
• Dual mechanical seals in an oil bath
• Handles particles up to 10 x 25mm
• IP68 with a 10 m H07RN-F power cable
• In-built auto-resetting thermal overload

Key specifications

Choosing the right option

It should be supplied through an RCD. For lower-flow drainage see the BlueVort 9 drainage pump or the BlueVort 7 drainage pump; for a polypropylene drainage pump with a 38mm solids passage see the BVP C11 drainage pump.
