ClayTech BlueVort 9 Submersible Drainage Pump, 200 L/min

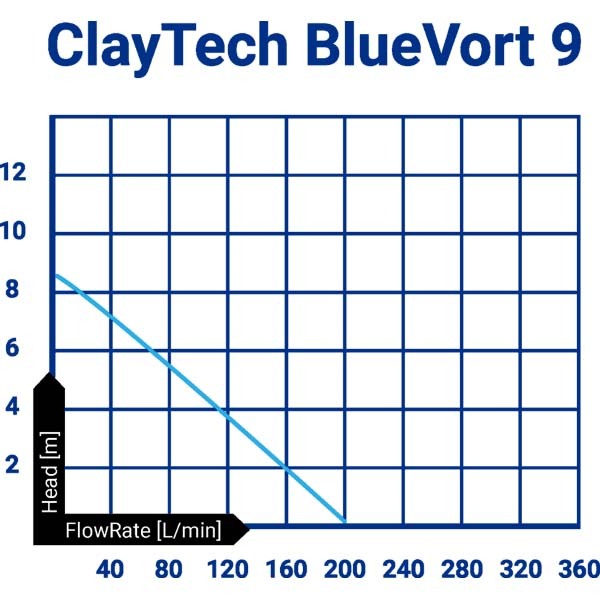

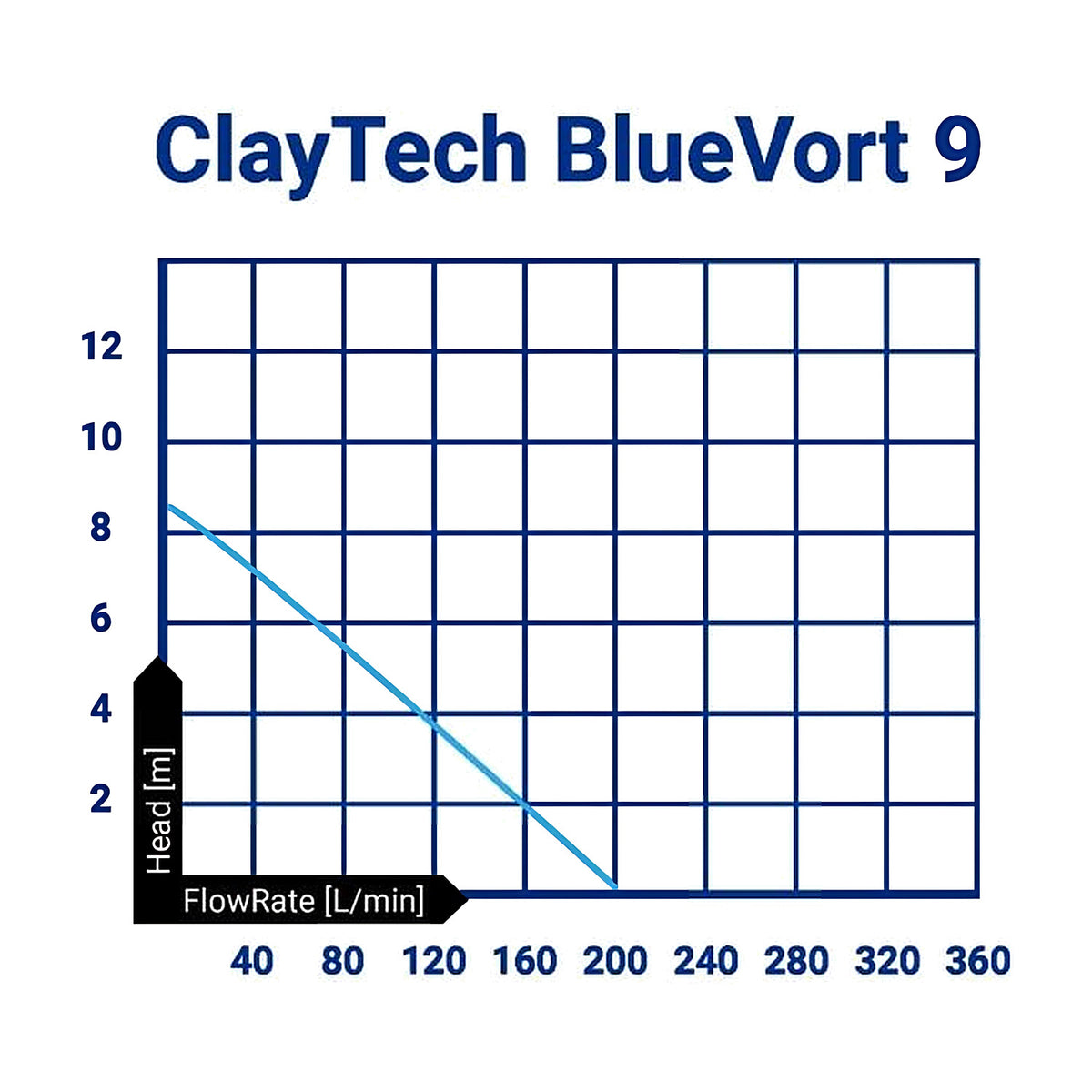

The ClayTech BlueVort 9 is a submersible drainage pump with a flexible float switch, rated at 450W (P2) with a maximum flow of 200 L/min and a maximum head of 8.5 m. It handles particles below 25mm.

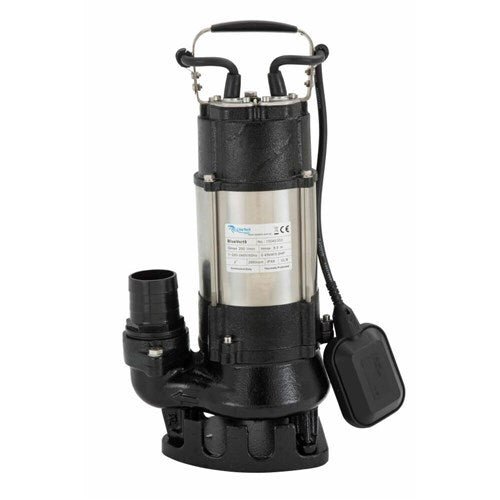

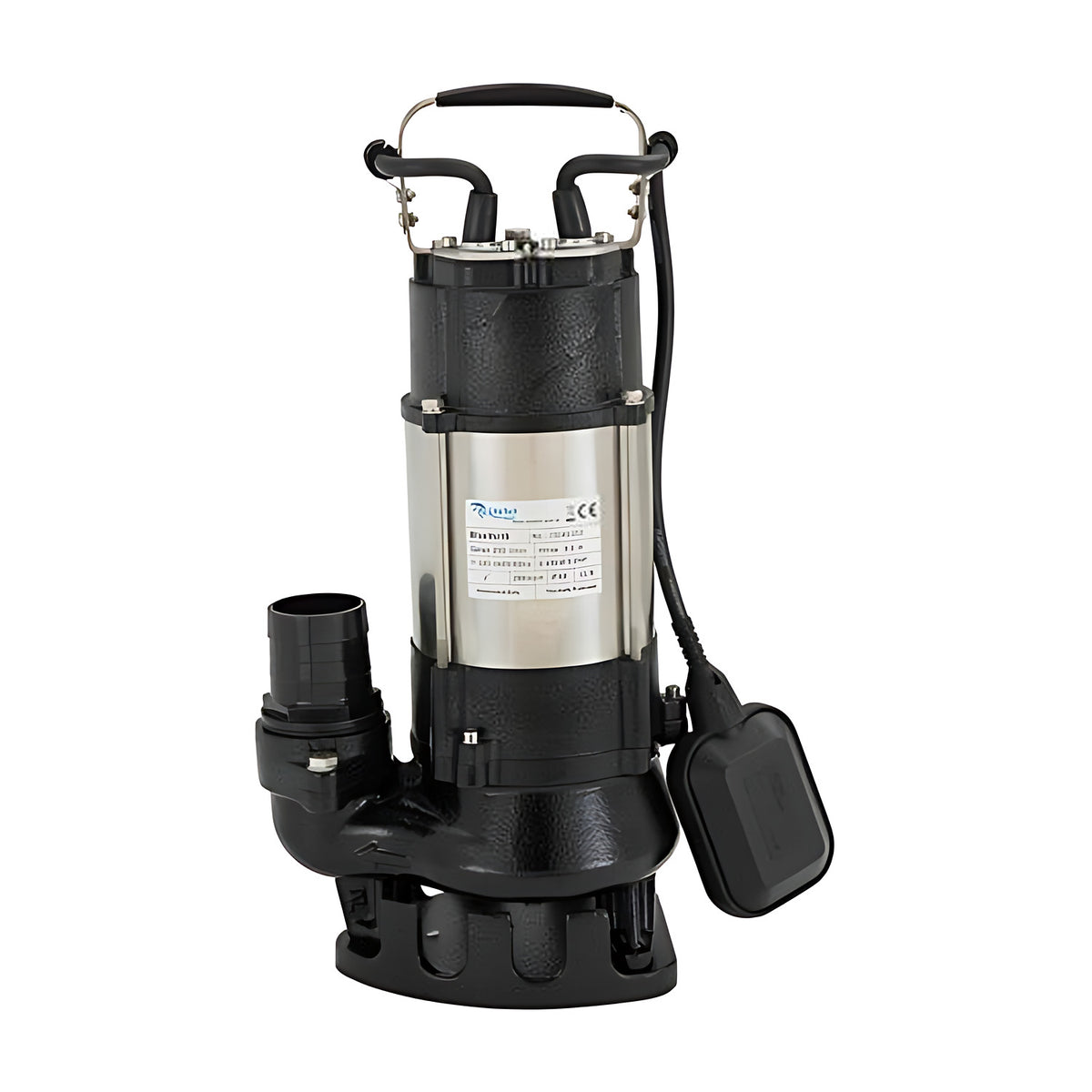

The pump has a single cast iron impeller and a cast iron hydraulic body, dual mechanical seals with a lip seal, a stainless steel carry handle and an industrial grade coating. The outlet is a 2 inch DN universal hose tail. It is a multi-purpose submersible pump for drainage and water transfer, and is intended for intermittent use.

Where this product is used

• Pumping a grey water tank
• Final pumping from domestic water treatment systems
• Drainage and water transfer

Features

• Float switch for automatic operation
• Handles particles below 25mm
• Cast iron impeller and hydraulic body
• Dual mechanical seal and lip seal
• IP68 with a 10 m H07RN-F power cable

Key specifications

Choosing the right option

The BlueVort 9 is the larger of the two BlueVort pumps. For smaller drainage jobs see the BlueVort 7 drainage pump (135 L/min, 7 m head); for a flow of 320 L/min and solids up to 38mm see the BVP C11 drainage pump.
