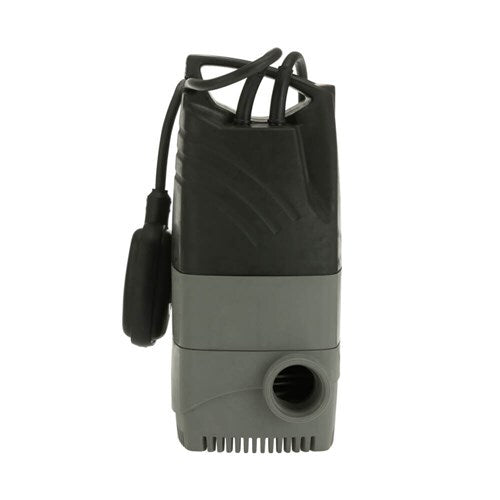

ClayTech Pitbull 15 - Drainage Pump 0.75kW, 170L/min

***This pump is NOT currently stocked in our warehouse but can usually be sourced within 24 hours. Contact us if you need this pump urgently.***

ClayTech Pitbull 15 - Drainage Pump

• The ClayTech PitBull 15 possesses a unique design, conceived specifically for the Australian waste water treatment system.
• It was designed for above surface irrigation applications where it operates at its ‘best efficiency point’ during normal operation.
• Most comparable pumps have a maximum head capacity of 11m.
• This means that they operate towards the top of their curve under normal operating conditions causing a reduction in the pumps service life.

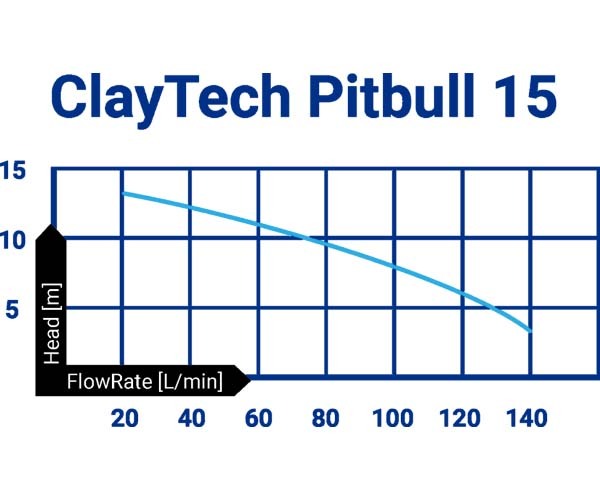

• The Pitbull, at 10m head is at the centre of its curve, and still produces 80 LPM.

 EcoVort 7 Technical Data

Power Absorbed (W) P2
550
Max Head
15m
Pump Max Flow Rate
170 L/min
Pump Outlet Size
1 1/4"
Pump Diameter
150m
Pump Height
325mm
Cable Length
8m
